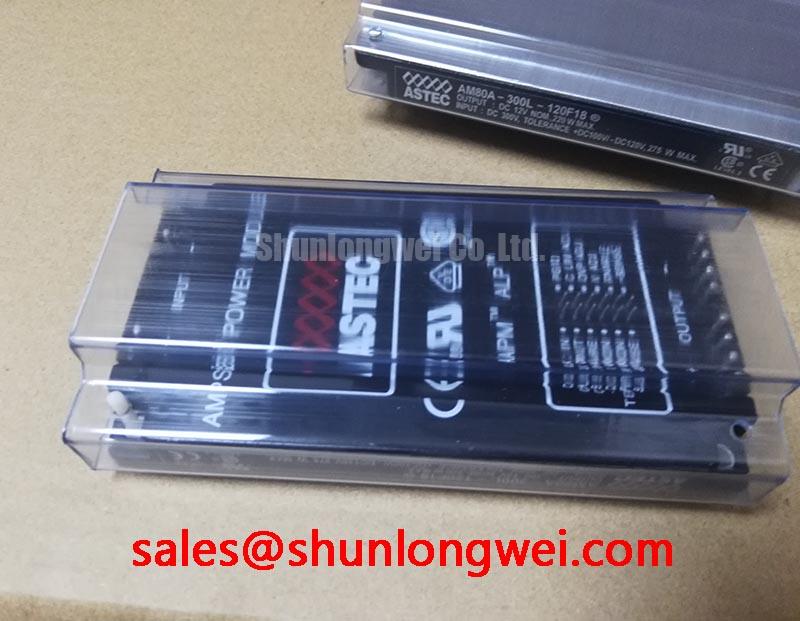

AM80A-300L-120F18 Thermal-Electrical Optimization: High-Frequency Common-Mode Bearing Current Practical Tuning
When this DC-DC converter is evaluated inside a variable frequency AC motor drive, inspect the complete power path rather than treating the converter as an isolated source. Long motor cables, inverter switching edges, shield termination, cabinet bonding, and the location of common-mode chokes can interact with the drive’s high-frequency current paths. These conditions belong to the system design and are not official specifications of the AM80A-300L-120F18.
Common-mode current can travel through motor-frame bonding, cable shields, protective earth, encoder wiring, and bearing structures. A field investigation should begin with a known-good operating condition, then compare the drive input current, DC-link ripple, converter output stability, and motor-frame current using appropriately rated measurement equipment. If bearing noise, shaft voltage, or unexplained communication disturbances appear, the observation may indicate an impedance or return-path problem; it should be verified with controlled oscilloscope measurements and a comparison of the original cable routing.
Output filters and chokes should be selected from the switching frequency, motor-cable length, drive current, insulation requirements, and measured transient behavior. A filter that reduces common-mode disturbance can also affect control-loop response, leakage current, and converter loading. Designers should confirm the filter manufacturer’s attenuation data and assess the complete network under acceleration, deceleration, and regenerative conditions. The requested “two times DC-link voltage” terminal-spike condition is not an official rating for this model and should not be used as a product-specific assumption.
Keep high-current converter conductors physically separated from feedback, communication, and sensor wiring. Use a short, intentional return path for high-frequency currents, maintain the enclosure bonding scheme, and avoid routing sensitive cables alongside switching nodes. The appropriate clearance and creepage values depend on the verified working voltage, pollution environment, insulation system, and applicable safety standard. They must be established by the equipment designer rather than copied from an unrelated power module.
For maintenance planning, inspect the heat sink and air path for dust accumulation, examine thermal interface material for drying or displacement, and check for condensation marks after cold starts. ⚠️ Maintenance Note: De-energize the equipment and allow the DC link to discharge before disconnecting the converter, then verify the absence of hazardous voltage with an approved meter.
AM80A-300L-120F18 Thermal-Electrical Optimization: Reinforced Insulation Barrier Integrity and Practical Tuning
The available product information does not publish a reinforced isolation value, a dielectric withstand result, or a common-mode transient immunity rating for the AM80A-300L-120F18. Values such as greater than 5kV or greater than 100kV/us must not be assigned to this converter without a manufacturer datasheet or formal test report. Isolation behavior in a complete drive also depends on the PCB layout, mounting hardware, busbar spacing, cable capacitance, control isolators, and protective earthing.
During a service investigation, map every galvanic connection between the DC-DC converter, control board, gate-drive board, chassis, and DC link. Check whether mounting screws, shields, heat sinks, or cable screens unintentionally bridge an isolation boundary. A resistance measurement can identify an unexpected conductive path, but it does not validate high-voltage insulation performance or transient immunity. A qualified test procedure is required when the equipment safety design depends on reinforced insulation.
Parasitic busbar inductance should be minimized where it forms part of a high di/dt commutation loop. The practical method is to reduce loop area, place the outgoing and returning conductors close together, keep the DC-link film capacitor near the switching bridge, and verify the result with a differential probe and suitable common-mode rejection. The proposed 25nH value is not an official parameter for this model and should not be presented as a universal installation limit.
Snubber capacitors, surge absorbers, and MOV networks require coordinated selection. Their voltage rating, pulse energy, leakage current, clamping behavior, and service environment must match the switching topology. An MOV should not be treated as a substitute for correct busbar geometry or an appropriately rated snubber. Designers should validate the highest measured switching voltage at the semiconductor terminals, including tolerances during regenerative braking and abnormal load transitions.
When an isolated control signal appears to produce an unexpected gate-drive event, inspect the isolation component, local decoupling, return-current path, probe connection, and controller supply stability before assigning the cause to the converter. Industrial drive designers may compare isolation practices with references such as Infineon EconoDUAL™ 3, but that product information does not define the ratings of Astec / Artesyn model AM80A-300L-120F18.
Benchtop Waveform Tuning: Mitigating Stress via Sizing Braking Resistors and Chopper Transistor on AM80A-300L-120F18
A DC-DC converter supplying a drive control section should not automatically be treated as the braking-energy path. The braking IGBT, chopper circuit, DC-link capacitor bank, and ballast resistor may be separate parts of the variable frequency drive. Before changing any component, trace the actual topology and establish whether the AM80A-300L-120F18 supplies control electronics, gate-drive power, auxiliary loads, or another defined subsystem.
Braking resistor selection is determined by the motor and load inertia, stopping profile, duty cycle, DC-link threshold, resistor pulse capability, enclosure temperature, and braking transistor limits. These values are system requirements, not parameters published for the converter in the supplied product data. The resistor must be assessed for both instantaneous pulse energy and repeated thermal cycling. A bench test should use a controlled DC source, current-limited conditions, an isolated differential voltage probe, and temperature monitoring at the resistor and switching device.
The control supply can influence chopper behavior if its output droops during gate-drive demand or regenerative events. Check the converter output at the gate-driver supply pins rather than only at the converter terminals. Measure start-up rise time, steady-state ripple, and the response to a representative control load, using the original wiring length and connector arrangement where possible. If an auxiliary supply contains a bootstrap circuit, verify the high-frequency charging path, diode recovery behavior, capacitor voltage retention, and available margin under the actual switching duty cycle. These characteristics require circuit-specific validation and are not stated as official specifications for this model.
Thermal cycling deserves attention in bidirectional battery or DC-link applications. Repeated charge and discharge operation can stress solder joints, terminals, capacitors, and thermal interfaces even when the average load appears acceptable. Use measured temperature profiles and the equipment manufacturer’s allowable operating limits to review the cooling arrangement. Do not assign a service-life figure without a qualified reliability model, verified mission profile, and supporting test data.
For a replacement assessment, the neutral comparison point is the electrical interface and duty requirement. The P950A may be reviewed as a separate Astec / Artesyn product during a documented alternative evaluation, but interchangeability must be established from verified voltage, current, control, mechanical, isolation, and thermal data rather than product-family similarity.
Transient Dynamics and Electrical Design: Derating Guidelines and Mismatched Parameters on AM80A-300L-120F18
Static and dynamic current behavior should be separated during troubleshooting. A positive temperature coefficient of conduction voltage in a semiconductor may support current sharing under particular parallel-device conditions, but that behavior cannot be assumed for the complete AM80A-300L-120F18 power supply without an internal circuit diagram and device-level specifications. The converter’s 67.0A rated current is an official product parameter; allowable current at a particular ambient temperature, airflow condition, input voltage, or duty cycle requires the applicable derating curve.
Check for mismatched conditions at the system boundary: input voltage, output voltage, load step, control enable timing, cooling airflow, connector resistance, and chassis temperature. A converter that passes a static load test may still show instability during a motor-drive start command or braking transition. Capture the voltage at the converter terminals and at the downstream load so that cable and connector drop are not confused with internal regulation behavior.
Where several switching paths operate in parallel, symmetrical gate-loop routing and closely matched power paths are general design considerations. A Kelvin emitter connection should only be used if the actual switching device and gate-driver layout provide a dedicated auxiliary emitter terminal; it must not be invented from a package name or inferred from this converter’s DC-DC Brick format. Keep power and signal returns distinct where the schematic requires it, and validate switching waveforms at the semiconductor terminals.
Surge protection should be coordinated across the AC input, DC link, control supply, and motor-drive output. MOVs, TVS devices, snubbers, active clamps, and line filters each address different transient conditions. Their selection should follow measured surge amplitude, source impedance, repetition rate, energy, and required insulation coordination. The converter manufacturer’s published protection limits take precedence over generic assumptions, while system verification should include cold start, hot restart, maximum load, minimum input, regenerative operation, and fault recovery.
For long-term service, record terminal temperature, fan condition, heat-sink cleanliness, enclosure humidity, and evidence of condensation during scheduled inspections. Communication networks such as IO-Link may be present elsewhere in an industrial machine, but the IO-Link protocol reference does not establish compatibility or immunity for this power supply. Engineers reviewing gate-drive behavior and negative off-bias techniques can also consult Evolution of Negative Off-Bias Gate Drive Circuits as a separate technical reference; the article should not be interpreted as a rating sheet for AM80A-300L-120F18.
Before approving a field replacement, document the measured operating envelope, confirm the exact voltage requirement, review the mechanical installation, and compare the equipment’s protection and sequencing requirements with the verified product documentation.
