BSM15GP120: Engineering Analysis of an Integrated Power Stage for Compact Motor Drives
Introduction to the BSM15GP120 IGBT Module
An All-in-One Power Core for Streamlined Drive Design

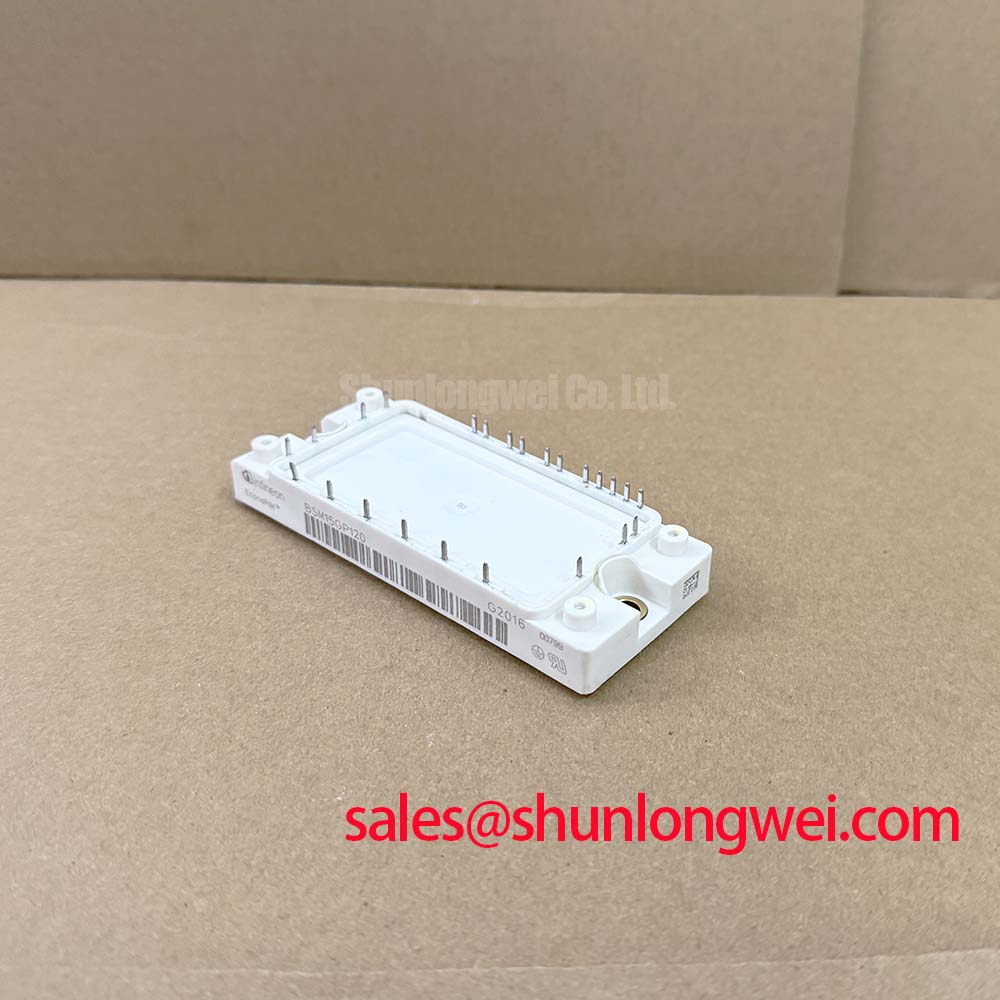

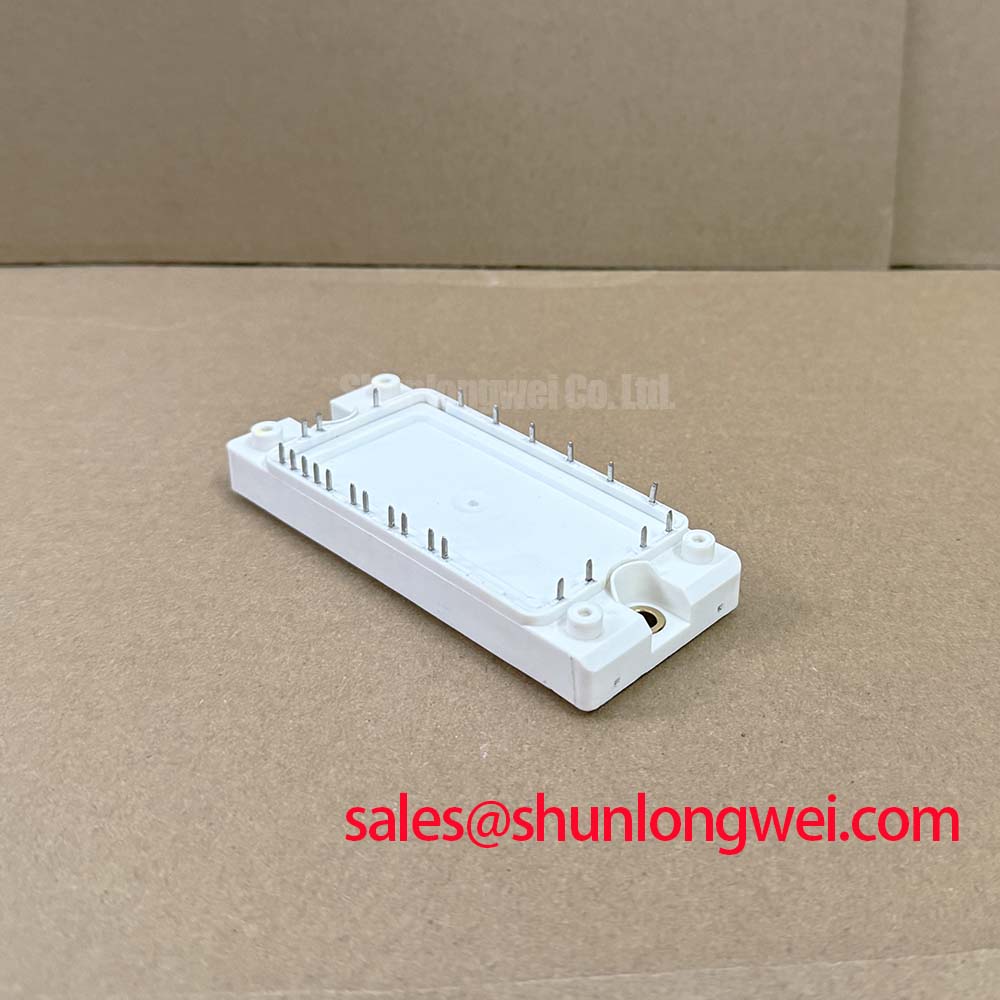

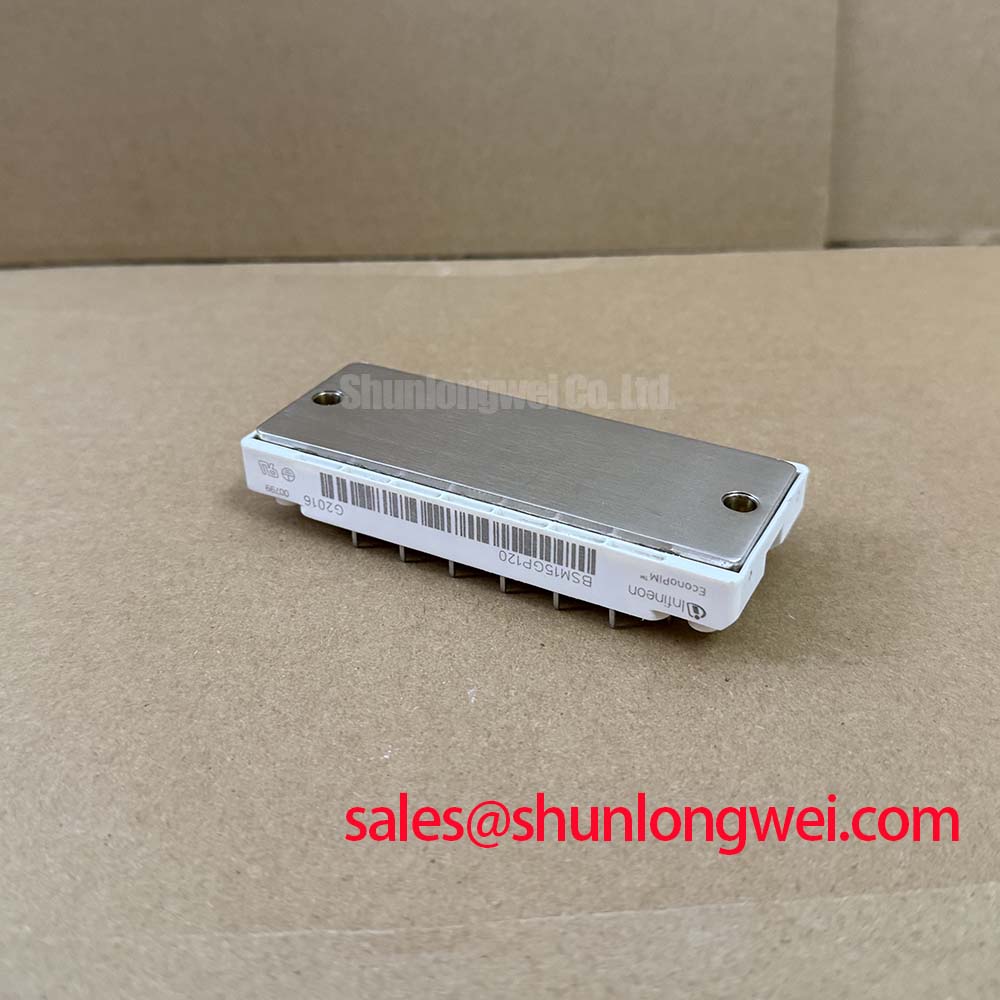

The Infineon BSM15GP120 is a highly integrated Power Integrated Module (PIM) that consolidates a complete power stage for low-power motor drives into a single, compact component. Featuring core specifications of 1200V | 15A (I_C @ 80°C) | EconoPIM™ 2 Package, this module offers the key benefits of a significantly reduced component count and enhanced thermal protection. By integrating the input rectifier, brake chopper, and output inverter, this PIM directly addresses the engineering challenge of minimizing PCB footprint and simplifying system assembly. For low-power AC motor control systems up to approximately 5 kW that demand a compact and reliable all-in-one power stage, the BSM15GP120 is the definitive choice.
Application Scenarios & Value
Achieving System-Level Benefits in Compact Industrial Automation
The BSM15GP120 is engineered specifically for applications where space, assembly efficiency, and reliability are critical design drivers. Its primary value is realized in systems like variable frequency drives (VFDs), servo drives, and other low-power AC motor control units.
Consider the design of a compact VFD for a distributed conveyor belt system in a logistics center. An engineer's primary challenge is fitting a complete, reliable drive into a constrained enclosure while managing both operational heat and the regenerative energy from motor deceleration. The BSM15GP120 directly solves this by combining three essential circuits into one housing. The integrated three-phase input rectifier handles the AC-DC conversion, the three-phase inverter provides precise motor control, and the built-in brake chopper efficiently manages regenerative braking energy. This level of integration eliminates the need for three separate power components, shrinking the required PCB area and reducing assembly complexity. Furthermore, the inclusion of an NTC thermistor provides a direct path for thermal monitoring, allowing the control system to protect itself from overheating—a critical feature for ensuring long-term reliability in demanding industrial environments. For applications demanding higher power output, the related BSM35GP120 provides a similar integrated topology with a higher current rating.
Key Parameter Overview
Decoding the Specs for Integrated Motion Control
The technical specifications of the BSM15GP120 are optimized for efficiency and reliability in low-power drive applications. The parameters are best understood when broken down by their integrated function within the module.
| Functional Block: Three-Phase Inverter | |
|---|---|
| Collector-Emitter Voltage (V_CES) | 1200 V |
| Continuous Collector Current (I_C) | 15 A (at T_C = 80°C) |
| Collector-Emitter Saturation Voltage (V_CEsat) | 1.7 V (typ. at 15 A) |
| Thermal Resistance, Junction-to-Case (R_thJC) | 0.69 K/W (per IGBT) |
| Functional Block: Brake Chopper | |
| Collector-Emitter Voltage (V_CES) | 1200 V |
| Continuous Collector Current (I_C) | 10 A (at T_C = 80°C) |
| Collector-Emitter Saturation Voltage (V_CEsat) | 1.9 V (typ. at 10 A) |
| Functional Block: Input Rectifier Diode | |
| Repetitive Peak Reverse Voltage (V_RRM) | 1600 V |
| DC Forward Current (I_F) | 35 A (at T_C = 80°C) |
| General Module Specifications | |
| Isolation Voltage (V_isol) | 2500 V (AC, 1 min.) |
| Integrated Feature | NTC Temperature Sensor |
| Package Type | EconoPIM™ 2 |
Download the BSM15GP120 datasheet for detailed specifications and performance curves.
Technical Deep Dive
The Architectural Advantage of Power Integrated Modules (PIM)
The core innovation of the BSM15GP120 lies in its Power Integrated Module architecture. This design philosophy moves beyond simply packaging individual components and focuses on creating a functional subsystem. Think of the BSM15GP120 not as separate electronic components, but as a pre-fabricated engine block for your motor drive. Instead of sourcing and assembling the crankshaft (rectifier), pistons (inverter), and braking system (chopper) piece by piece, you receive a fully integrated, factory-tested core. This simplifies the final design and assembly process, much like a modern engine block streamlines automobile manufacturing, leading to higher reliability and faster time-to-market.
This integration yields tangible thermal benefits. By placing all power-dissipating chips on a single Direct Bonded Copper (DBC) substrate, the thermal pathways are optimized and well-characterized. The specified thermal resistance from junction to case (R_thJC) for each component provides engineers with precise data for heatsink design. A low R_thJC value is akin to a wide, smooth highway for heat. It ensures that the heat generated during switching and conduction losses can escape the silicon chip efficiently, keeping the junction temperature below the maximum limit of 150°C and thereby maximizing the operational lifespan of the drive system.
Frequently Asked Questions (FAQ)
What is the primary advantage of using a Power Integrated Module (PIM) like the BSM15GP120 compared to discrete components?
The main advantage is system simplification. A PIM drastically reduces the bill of materials (BOM), minimizes PCB space, simplifies the assembly process, and reduces stray inductance between power stages. This leads to a more compact, reliable, and cost-effective final product with a shorter design cycle.
How does the integrated NTC thermistor in the BSM15GP120 improve system-level reliability?
The integrated NTC thermistor provides a real-time temperature feedback signal directly from the module's substrate. This allows the motor drive's controller to implement precise over-temperature protection. If an overload or cooling failure occurs, the controller can gracefully reduce power (derate) or trigger a safe shutdown before the IGBT junctions exceed their maximum operating temperature, preventing catastrophic failure and extending the drive's service life.
As a distributor, we provide access to a wide range of power semiconductor technologies. The BSM15GP120 exemplifies a solution for designers prioritizing integration and reliability in the low-power industrial sector. For specific project requirements or to explore further options, please contact our technical support team for data-driven assistance.
