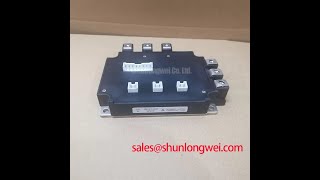

Mitsubishi CM150TL-24NF IGBT Module | Driving Efficiency in High-Power Inverters
The Mitsubishi CM150TL-24NF is a high-performance 6-pack IGBT module engineered for demanding three-phase power conversion applications. Integrating six 1200V / 150A IGBTs in a single, thermally efficient package, this module serves as the powerhouse for industrial motor drives, uninterruptible power supplies (UPS), and servo control systems where reliability and energy efficiency are non-negotiable.
Technical Deep Dive: The Advantage of CSTBT™ Technology
At the heart of the Mitsubishi CM150TL-24NF lies its most significant competitive advantage: Mitsubishi's proprietary Carrier Stored Trench-gate Bipolar Transistor (CSTBT™) technology. This isn't just an incremental improvement; it's a fundamental shift in IGBT design that delivers tangible benefits.
- Ultra-Low Saturation Voltage (Vce(sat)): The advanced trench gate structure dramatically reduces the on-state voltage drop. For a system designer, this translates directly into lower conduction losses. Think of Vce(sat) as electrical friction; by minimizing it, the CM150TL-24NF wastes significantly less energy as heat. This allows for the use of smaller, more cost-effective heatsinks and reduces the overall system operating temperature, enhancing long-term reliability.
- Optimized Switching Characteristics: This module is engineered to provide a soft, controlled turn-off behavior. This characteristic is crucial for minimizing voltage overshoots and oscillations, which simplifies the design of snubber circuits and helps manage electromagnetic interference (EMI). The result is a more robust and compliant end-product that can pass stringent EMC regulations with less design overhead.
Key Technical Parameters Overview
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (Vces) | 1200V |
| Collector Current (Ic) | 150A |
| Collector-Emitter Saturation Voltage (Vce(sat)) typ. | 2.2V (at Ic=150A, Tj=25°C) |
| Package Type | Standard 6-in-1 Module |
| Maximum Junction Temperature (Tj max) | 150°C |
For a comprehensive list of specifications, please refer to the official CM150TL-24NF Datasheet.
Application-Specific Value in Industrial Automation
Simply listing applications doesn't capture a component's true worth. Here’s how the CM150TL-24NF solves specific problems across different sectors:
- Variable Frequency Drives (VFDs): In factory automation, the energy cost of running large motors is a major operational expense. The low Vce(sat) of this IGBT module directly reduces the power dissipated in the inverter stage, leading to measurable energy savings and a lower total cost of ownership over the equipment's lifespan.
- Uninterruptible Power Supplies (UPS): For data centers and critical facilities, UPS reliability is paramount. The robust construction and proven performance of Mitsubishi IGBTs provide the dependability required. Furthermore, its high efficiency ensures that more of the stored battery energy is delivered to the load, maximizing runtime during a power outage.
- Servo Drives: Precision manufacturing and robotics demand fast and accurate motor response. The well-controlled switching of the CM150TL-24NF enables clean, stable power delivery to the servo motor, facilitating the high-speed, high-accuracy positioning required in CNC machinery and robotic arms.
Selection Insight: Why Upgrade to a Trench Gate IGBT?
Engineers considering the CM150TL-24NF may be comparing it with older, planar gate IGBT modules. While planar IGBTs have been workhorses for years, they exhibit significantly higher conduction losses. Upgrading a design to a CSTBT™-based module like this one can yield a 15-20% reduction in Vce(sat), a critical improvement for modern systems targeting higher efficiency standards like IE3/IE4 for motors. If your design is constrained by thermal performance or energy consumption targets, this module represents a clear and justifiable upgrade path. You can explore more IGBT modules to compare different technologies and find the perfect fit for your power requirements.
Frequently Asked Questions
- Is the CM150TL-24NF suitable for high-frequency applications like induction heating?While capable, this module is primarily optimized for the switching frequencies typical of motor drives (2-15 kHz), where it strikes an excellent balance between conduction and switching losses. For applications consistently above 20 kHz, a different series optimized for lower switching losses might be more appropriate.
- What gate driver considerations are important for this module?A gate driver capable of providing a stable +15V/-10V supply with sufficient peak current is recommended to ensure full saturation and prevent spurious turn-on. Using a driver with built-in protection features like under-voltage lockout (UVLO) is also best practice for enhancing system robustness.
For a personalized quote or to discuss your specific application needs for the Mitsubishi CM150TL-24NF, please do not hesitate to contact our technical support team.
