Mitsubishi CM200DY-24NF | Engineered for Low-Loss, High-Frequency Power Conversion
Deconstructing the Core Technology: Low VCE(sat) and Thermal Stability

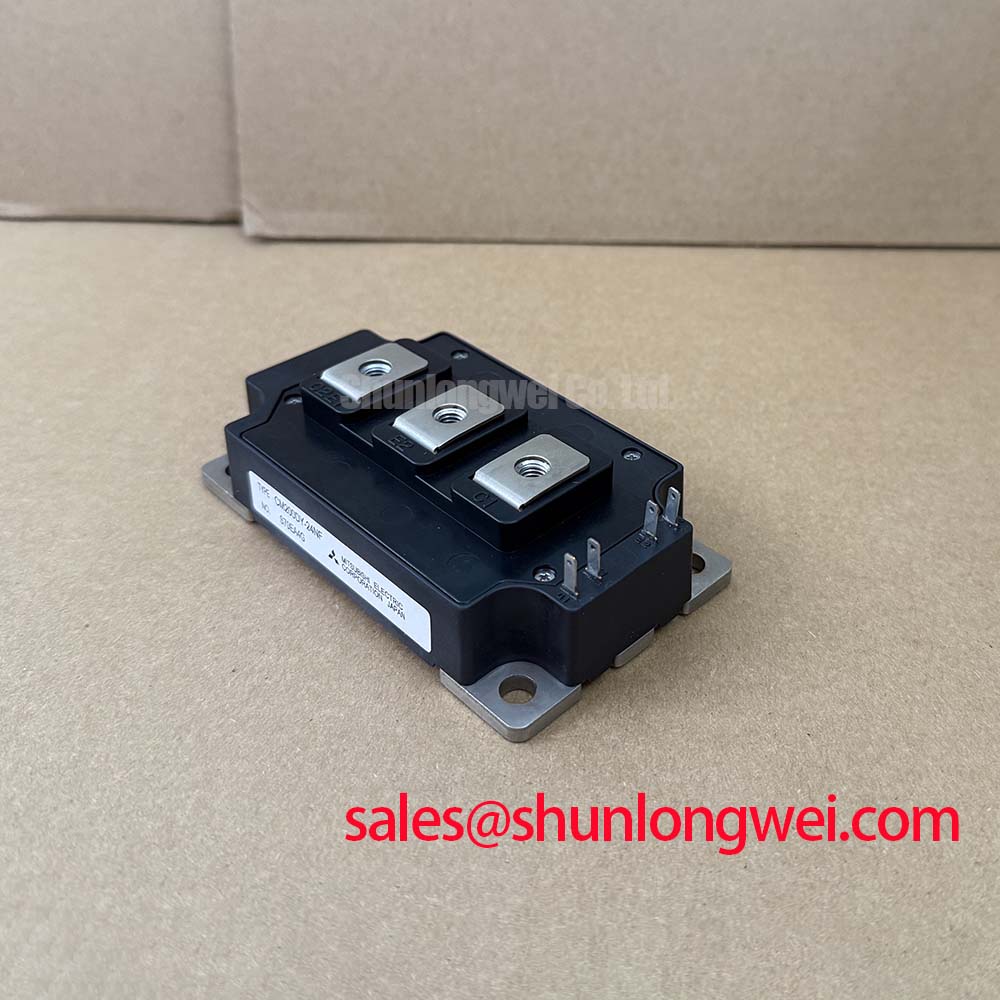

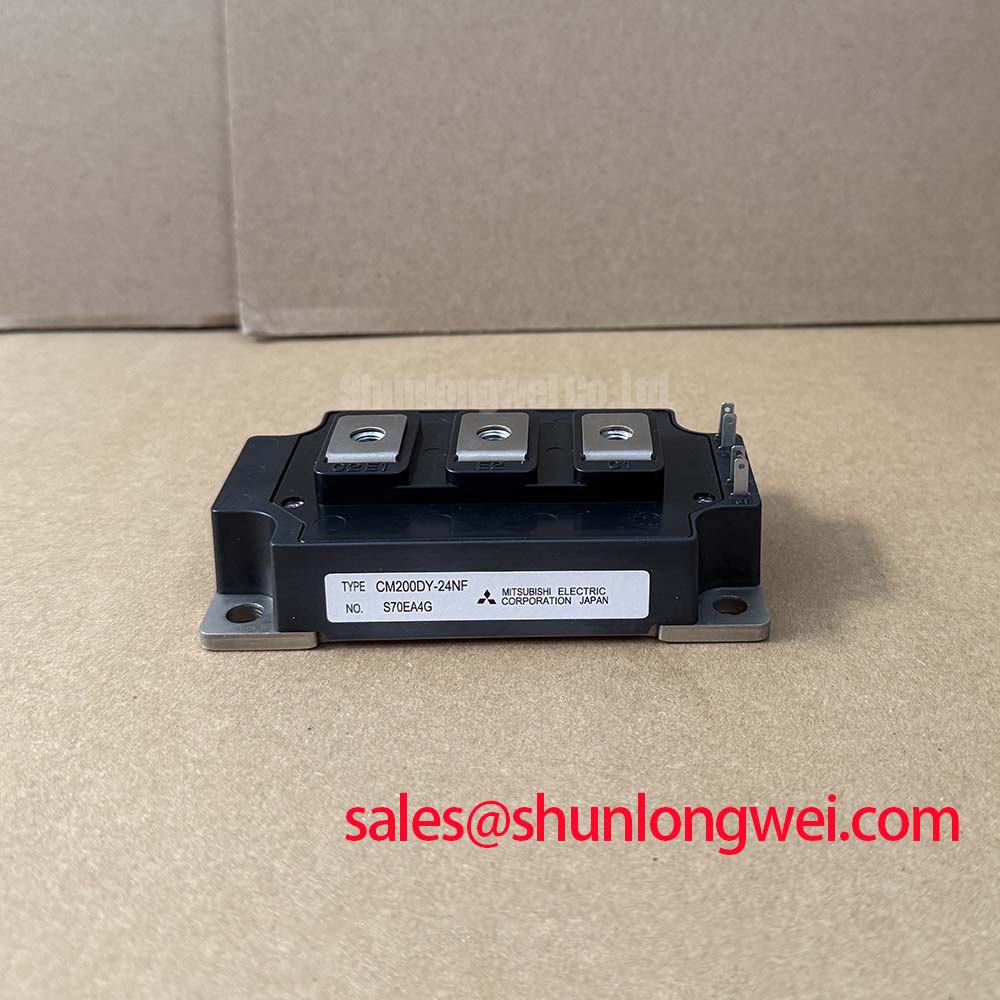

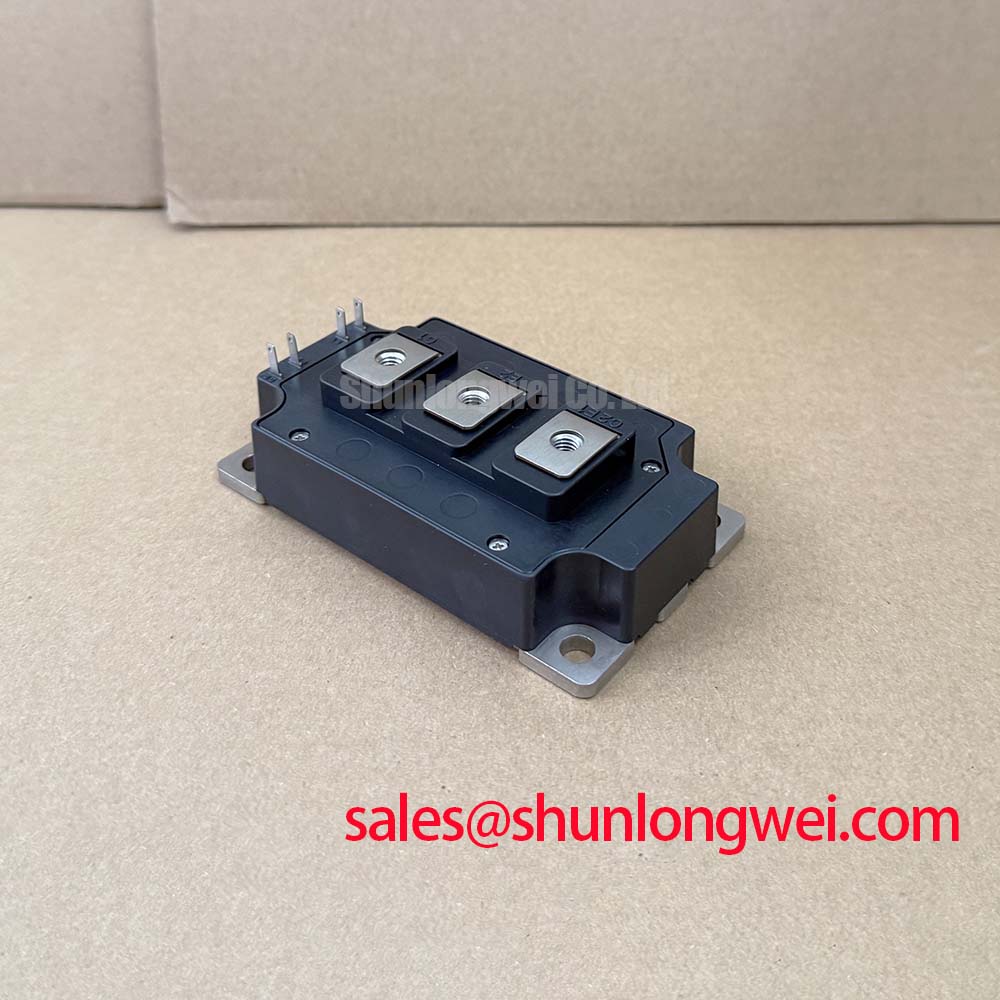

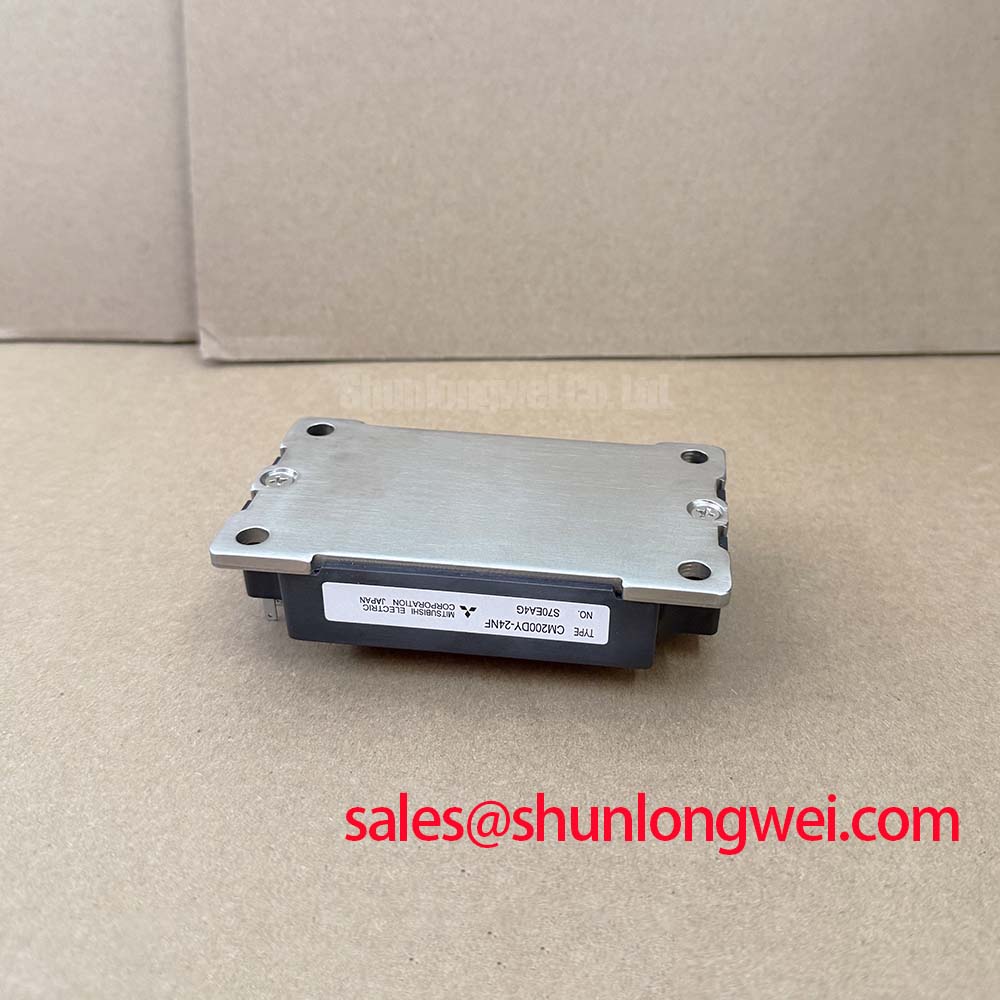

The Mitsubishi CM200DY-24NF is a 1200V, 200A dual IGBT module from the NF-Series, a lineage built upon Mitsubishi's 5th generation chip technology. A defining characteristic of this module is its implementation of the Carrier Stored Trench-Gate Bipolar Transistor (CSTBT™) structure. This advanced chip design is engineered to minimize the collector-emitter saturation voltage (VCE(sat)), a critical parameter that directly dictates conduction losses. For a design engineer, a lower VCE(sat) — typically 1.8V for this module at nominal current — means less power is converted into waste heat during the on-state. This translates to higher overall system efficiency and simplifies thermal management, potentially allowing for smaller heatsinks or increased power density in the final application.
Furthermore, the NF-Series package is designed with low internal inductance, a crucial factor in minimizing voltage overshoots during high-speed switching events. This electrical integrity, combined with a robust thermal interface to the heatsink, ensures reliable operation under demanding thermal cycling conditions typical in industrial motor drives and power inverters. The module's construction focuses on longevity, ensuring consistent performance over a long operational lifespan.
Application Spotlight: High-Performance Servo Drives
Consider the design of a high-precision servo drive for a CNC machining center. Such systems require rapid and precise control of motor torque and speed, which is achieved through high-frequency Pulse-Width Modulation (PWM). The CM200DY-24NF is exceptionally well-suited for this role. Its optimized switching characteristics—including low turn-on and turn-off energy losses (Eon/Eoff)—enable efficient operation at higher PWM frequencies. This capability allows the servo drive to achieve a higher control bandwidth, resulting in smoother motor operation, reduced audible noise, and more accurate positioning. The low thermal resistance (Rth(j-c)) ensures that the heat generated during these rapid switching cycles is efficiently transferred away from the IGBT junctions, maintaining a stable operating temperature and preventing thermal runaway.
Key Performance Metrics of the CM200DY-24NF
The operational value of the CM200DY-24NF is quantified by its electrical and thermal specifications. These parameters form the basis for system-level design and performance simulation.
| Parameter | Specification | Engineering Implication |
|---|---|---|
| Collector-Emitter Voltage (VCES) | 1200V | Provides a substantial safety margin for applications on 400V/480V AC lines, ensuring reliability against voltage transients. |
| Collector Current (IC) | 200A | Supports medium-to-high power applications, suitable for motors in the 37 kW to 75 kW range, depending on the drive topology and cooling. |
| Collector-Emitter Saturation Voltage (VCE(sat)) | 1.8V (Typ) | Indicates low on-state power loss, leading to higher converter efficiency and reduced cooling requirements. |
| Maximum Junction Temperature (Tj max) | 150°C | Defines the thermal operating limit, providing a robust threshold for reliable performance in industrial environments. |
| Thermal Resistance, Junction-to-Case (Rth(j-c)) | 0.11 °C/W (per IGBT) | A low value signifies effective heat transfer from the silicon chip to the module's baseplate, crucial for preventing overheating. |
System Integration and Design Advantages
The CM200DY-24NF, with its dual (half-bridge) configuration, simplifies the layout of a three-phase inverter, requiring only three modules to construct a full bridge. Its industry-standard footprint ensures compatibility with existing mechanical designs and heatsink layouts, making it a viable drop-in replacement or upgrade for older, less efficient modules. For engineers looking to scale their designs, the [CM300DY-24NF](https://www.slw-ele.com/cm300dy-24nf.html) offers a higher current rating within the same family, allowing for platform-based design approaches. This strategic consistency in packaging and electrical behavior across a product family, a hallmark of manufacturers like Mitsubishi Electric, accelerates development cycles and reduces inventory complexity.
Frequently Asked Questions for Design Engineers
Problem: My current motor drive design is hitting thermal limits when operating at higher switching frequencies. How can the CM200DY-24NF help?
Resolution: The CM200DY-24NF addresses this through a dual approach. Its 5th generation CSTBT™ chip technology is optimized for lower switching losses (Eon/Eoff) compared to older generation IGBTs. This means less heat is generated per switching cycle. Concurrently, its low junction-to-case thermal resistance provides a more efficient path for that heat to be extracted, directly tackling the thermal bottleneck.
Problem: How does the internal package design of the CM200DY-24NF contribute to system reliability?
Resolution: The module features a low-inductance package design. This is critical for minimizing transient voltage spikes during fast switching, which can otherwise stress the IGBT and potentially lead to failure. This internal design feature reduces the need for aggressive external snubber circuits, saving board space and component cost. For a deeper understanding of module construction, explore our guide on the anatomy of an IGBT module.
Problem: Is this module suitable for paralleling to achieve higher current output?
Resolution: While paralleling is possible, it requires careful design considerations. The positive temperature coefficient of VCE(sat) in this module provides a degree of self-balancing for thermal runaway. However, ensuring symmetrical gate drive signals and busbar layouts is paramount for balanced current sharing. We recommend consulting resources on robust gate drive design to prevent potential issues.
Designer's Reflection: Optimizing for Future Trends
The CM200DY-24NF represents a solid foundation for today's high-performance power conversion systems. As industry demands push towards even greater power density and efficiency, designers can leverage the thermal and electrical headroom provided by this module. Future design iterations might focus on integrating more advanced cooling techniques, such as liquid cooling, to extract maximum continuous power, or pairing it with next-generation gate drivers that can fully exploit its fast-switching capabilities while maintaining control over EMI emissions. This module serves not just as a component, but as an enabler for more compact, efficient, and reliable industrial automation solutions.
