CM600YE2P-12F | Mitsubishi 600V 600A Dual IGBT Module
Introduction: High-Efficiency Switching for Demanding Power Topologies

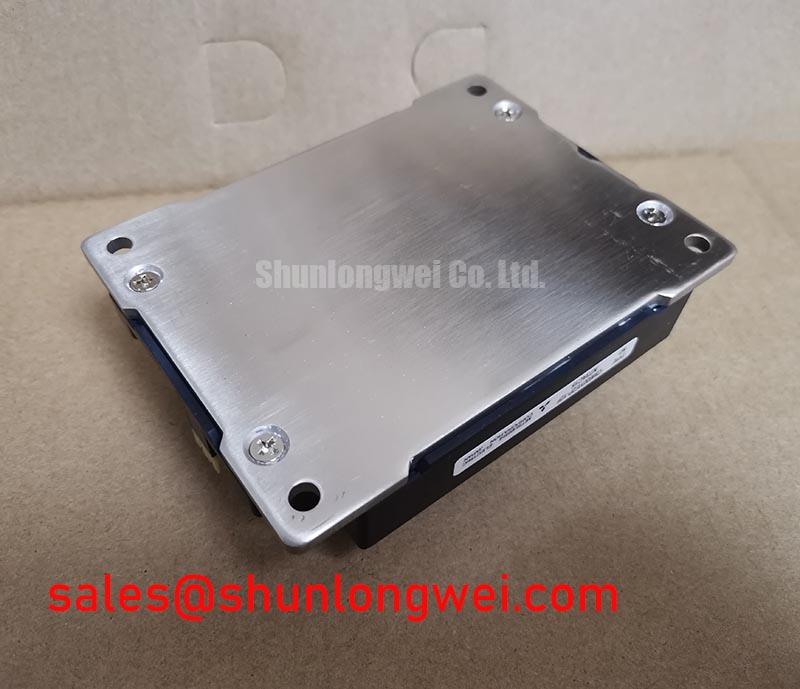

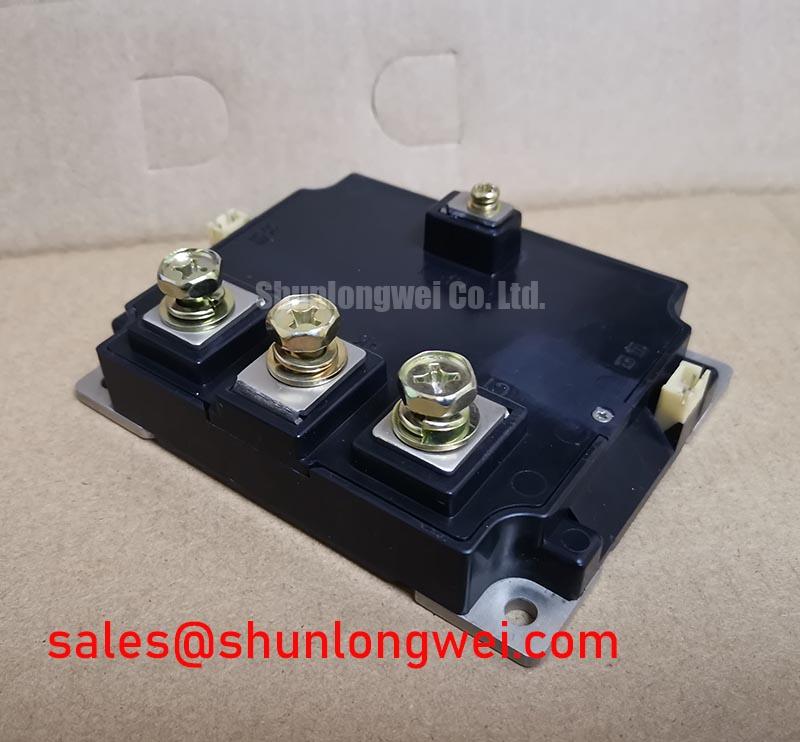

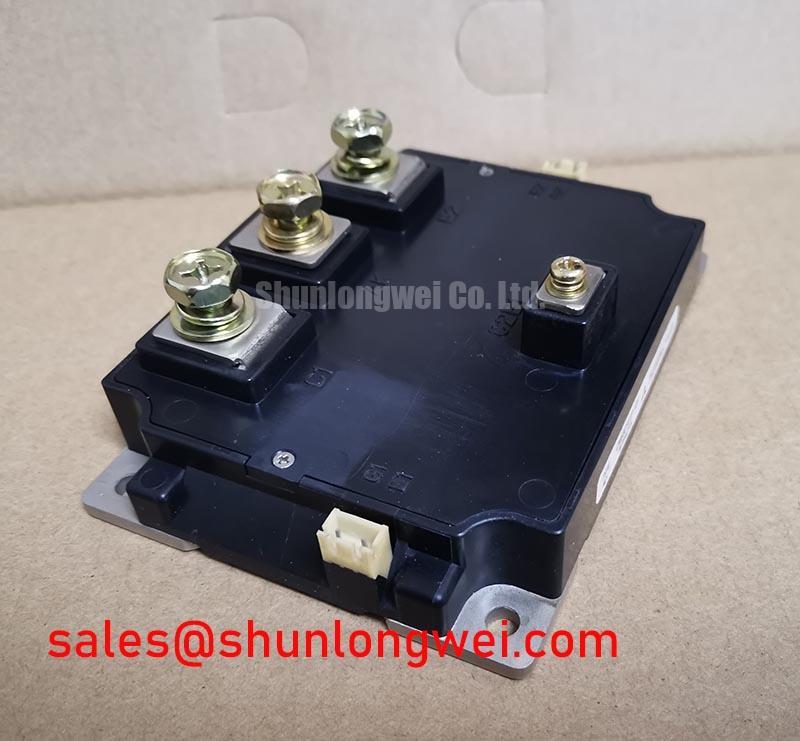

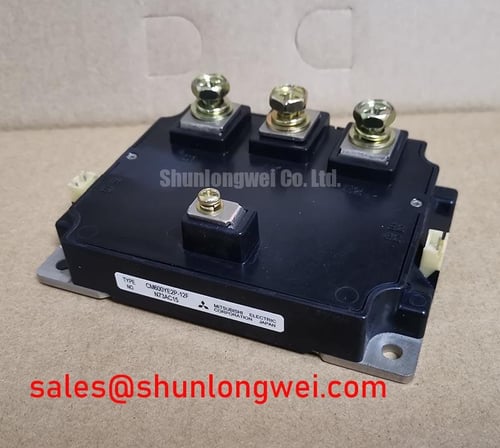

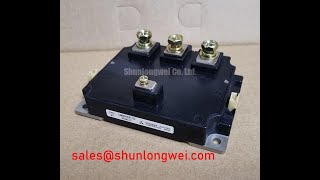

The Mitsubishi CM600YE2P-12F is a high-current IGBT module engineered for robust performance in demanding power conversion systems. This module integrates two IGBTs in a half-bridge configuration, optimized for applications requiring efficient, high-frequency switching. With its 600V collector-emitter voltage and 600A continuous collector current ratings, it provides a solid foundation for developing powerful and reliable inverters and motor drives. A key advantage lies in its specialized design for three-level inverter topologies, which significantly reduces output voltage steps and ripple current. For high-power inverter designs where minimizing switching losses and improving output waveform quality are critical, this 600V module delivers a distinct performance advantage.
Key Parameter Overview
Decoding the Specs for Efficient Power Conversion
The specifications of the CM600YE2P-12F are tailored for high-power applications where both efficiency and reliability are paramount. The low collector-emitter saturation voltage is a critical parameter, as it directly reduces conduction losses, which is analogous to minimizing friction in a mechanical system. This lower "friction" means less energy is wasted as heat, allowing for smaller heatsinks and a more compact overall system design.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 600V |
| Continuous Collector Current (IC) at TC=25°C | 600A |
| Collector-Emitter Saturation Voltage (VCE(sat)) at IC=600A | 2.7V (Max) |
| Maximum Junction Temperature (Tj(max)) | 150°C |
| Total Power Dissipation (PC) at TC=25°C | 1860W |
| Isolation Voltage (Viso) | 2500Vrms |
Download the CM600YE2P-12F datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Three-Level Inverter Designs
The CM600YE2P-12F is specifically designed for advanced three-level (neutral point clamped) inverter topologies. What is the primary benefit of a three-level inverter? It produces a higher quality AC waveform with smaller voltage steps, which is crucial for reducing motor bearing currents and electromagnetic interference (EMI). In a high-power Variable Frequency Drive (VFD), using this module allows engineers to reduce the size and cost of output filters, a significant advantage in system integration. The module's architecture simplifies the power stage layout, enabling more compact and efficient designs for applications like large-scale solar inverters and uninterruptible power supplies (UPS), where power density and output purity are critical performance indicators. While the CM600YE2P-12F is optimized for 600V systems, for applications requiring a higher blocking voltage, the related CM600DX-24T provides a 1200V rating.
Technical Deep Dive
Inside the TLI-Series: Optimizing for Waveform Quality
The engineering value of the CM600YE2P-12F extends beyond its raw power ratings. As part of the Mitsubishi TLI-Series (Three Level Inverter), its internal layout is meticulously optimized for this specific topology. This is not simply two standard IGBTs in one package. The internal connections and terminal placement are designed to minimize stray inductance, a parasitic effect that can cause voltage overshoots and ringing during high-speed switching. Think of stray inductance as unwanted plumbing in a high-pressure water system; it creates turbulence and pressure spikes. By minimizing it, the module ensures cleaner switching, which enhances reliability and simplifies the design of the necessary snubber circuits. This built-in optimization allows designers to push for higher switching frequencies without compromising the system's stability or EMI performance.
Frequently Asked Questions (FAQ)
What is the main advantage of the CM600YE2P-12F's dual-IGBT, three-level configuration?
Its primary advantage is the ability to generate a smoother, higher-quality output AC waveform compared to traditional two-level inverters. This reduces stress on connected equipment, such as motors, and allows for smaller, more cost-effective filtering components.
How does the VCE(sat) of 2.7V impact system design?
A lower VCE(sat) directly translates to lower conduction power loss (P = VCE(sat) * IC). This reduction in wasted heat simplifies thermal management, potentially allowing for smaller heatsinks and a higher overall power density in the final product.
Is this module suitable for paralleling to achieve higher current output?
While paralleling IGBT modules is a common practice, it requires careful design considerations, particularly regarding gate drive balancing and thermal management to ensure proper current sharing. The datasheet should be consulted for specific application notes on this topic to ensure long-term reliability.
What does the 2500Vrms isolation voltage signify?
This rating indicates a high level of electrical isolation between the power terminals and the module's baseplate. This is a critical safety feature that simplifies mounting the module onto a grounded heatsink and ensures compliance with industrial safety standards by preventing high voltage from reaching the chassis.
Strategic Considerations for Power System Design
Integrating the CM600YE2P-12F into a power system is a strategic decision that favors efficiency and output quality. Its design for three-level topologies aligns perfectly with industry trends toward cleaner power and reduced electromagnetic emissions. For engineering teams developing next-generation solar inverters, high-efficiency UPS systems, or sophisticated motor control applications, this module provides a key building block. Its inherent advantages in waveform quality can lead to a cascading effect of benefits, including improved end-product reliability, reduced system complexity, and a smaller physical footprint.
