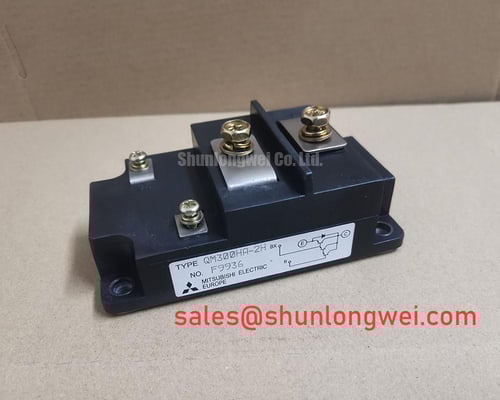

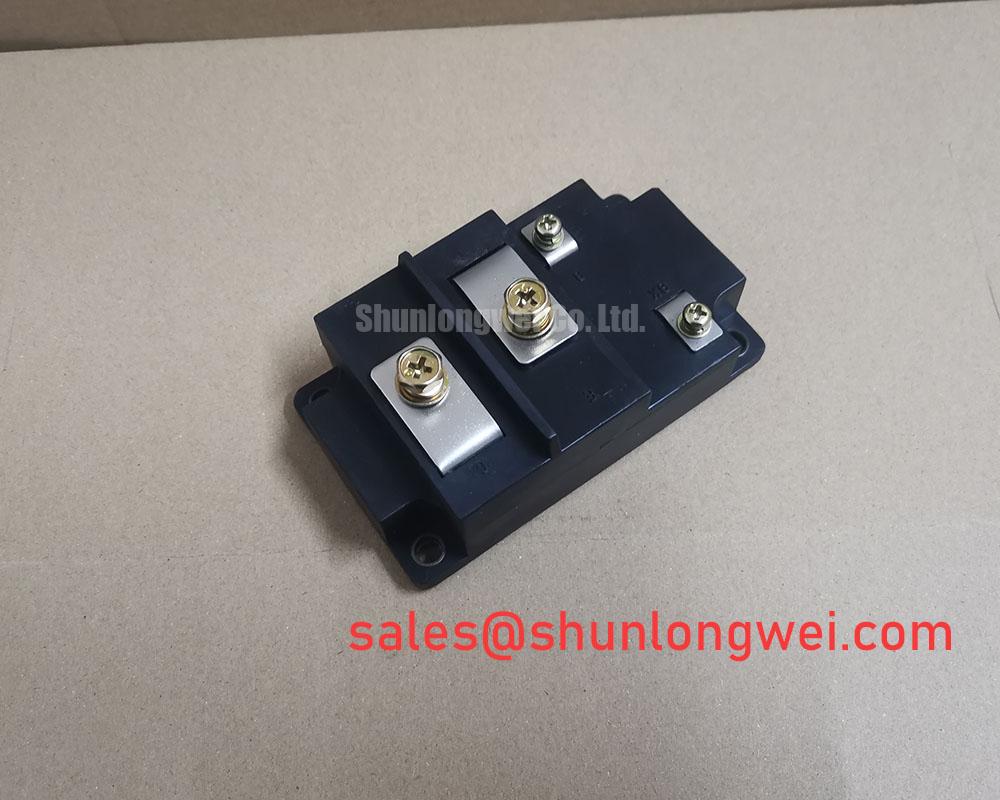

Mitsubishi QM300HA-2H IGBT Module

Mitsubishi QM300HA-2H | The Robust Power Transistor Module for High-Current, Low-Frequency Applications

The Mitsubishi QM300HA-2H stands as a testament to durability and reliable power handling in demanding industrial environments. While modern designs often gravitate towards newer IGBT generations, this power transistor module remains an indispensable component for specific applications, particularly in the maintenance and repair of legacy systems and in new designs where ruggedness and simplicity at lower switching frequencies are paramount. It represents a workhorse solution, engineered for sustained performance in high-current power conversion.

Core Strengths of the QM300HA-2H

• High Current Capability: With a 300A collector current rating, this module is built to manage significant power loads, making it ideal for heavy-duty industrial machinery.
• Robust H-Series Package: The industry-standard package provides excellent thermal conductivity and mechanical stability, ensuring long-term reliability even under strenuous operating conditions.
• Proven Darlington Technology: Leveraging a Darlington pair configuration, the QM300HA-2H offers very high current gain (hFE), simplifying the gate drive requirements compared to driving individual transistors.
• Optimized for Low-Frequency Operation: This module excels in applications like line-frequency motor drives and welding power supplies where switching losses are less critical than conduction performance and overall system toughness.

Key Technical Specifications

For engineers requiring precise data for system integration or replacement analysis, the following parameters are critical. The QM300HA-2H is designed with clear operational boundaries to ensure system safety and reliability.

For a complete breakdown of all electrical and thermal characteristics, you can download the official QM300HA-2H datasheet here.

Application Focus: Where Simplicity and Power Converge

The true value of the Mitsubishi QM300HA-2H is realized in applications where its specific strengths solve critical engineering challenges. Its design is not meant to compete on switching speed with the latest IGBTs, but on raw power handling and resilience.

• Industrial Motor Drives: For large, low-speed AC motor controls and DC motor choppers, the module's high current capacity and ability to absorb surges make it a highly reliable choice. It provides the muscle needed for applications like cranes, hoists, and industrial conveyors.
• Welding Power Supplies: The high power dissipation and robust nature of the Darlington configuration are well-suited for the demanding, cyclical loads found in industrial welding equipment, ensuring consistent power delivery for high-quality welds.
• Uninterruptible Power Supplies (UPS): In large-scale UPS systems, particularly older designs, the QM300HA-2H serves as a durable and cost-effective component for the main inverter stage, valued for its proven track record.
• Legacy System MRO: Perhaps its most critical role today is as a drop-in replacement for repairing and maintaining a vast installed base of industrial equipment, extending the life of valuable capital assets without the need for a complete system redesign.

Selection Guidance: QM300HA-2H vs. Modern IGBT Modules

Choosing between the QM300HA-2H and a modern trench-gate IGBT module is less about "better" and more about "fitter for purpose."

Choose the QM300HA-2H when:

• You are performing a direct replacement in an existing system designed for this module. Its electrical and mechanical footprint ensures seamless integration.
• Your application operates at low switching frequencies (typically below 5 kHz), where the higher VCE(sat) does not lead to prohibitive thermal challenges.
• The primary design criteria are maximum ruggedness and the ability to withstand harsh electrical environments, over high-frequency efficiency.

Consider a modern IGBT module when:

• Designing a new, high-efficiency system, such as a solar inverter or a modern robotic servo drive.
• The application requires high switching frequencies ( > 10 kHz) to reduce the size of magnetic components and improve system responsiveness.
• Minimizing total power loss (both conduction and switching) is the number one priority to meet energy efficiency standards.

Frequently Asked Questions (FAQ)

Is the QM300HA-2H an IGBT?

Technically, the QM300HA-2H is a Darlington Power Transistor Module, not an Insulated Gate Bipolar Transistor (IGBT). It uses a two-stage bipolar junction transistor (BJT) setup to achieve high current gain. While they serve similar functions in power switching, the underlying semiconductor technology differs. IGBTs offer a voltage-controlled insulated gate (like a MOSFET) for simpler driving and generally lower saturation voltages. The QM300HA-2H is current-controlled and remains a vital component in the broader family of high-power modules from Mitsubishi Electric.

What are the key considerations when replacing a QM300HA-2H?

When replacing this module, ensure the thermal interface is impeccable. Use a high-quality thermal compound and apply the correct mounting torque to the terminals and baseplate. Any deviation can lead to poor thermal transfer, increasing the risk of overheating and premature failure. A thorough understanding of IGBT failure analysis principles is highly beneficial for ensuring long-term success.
