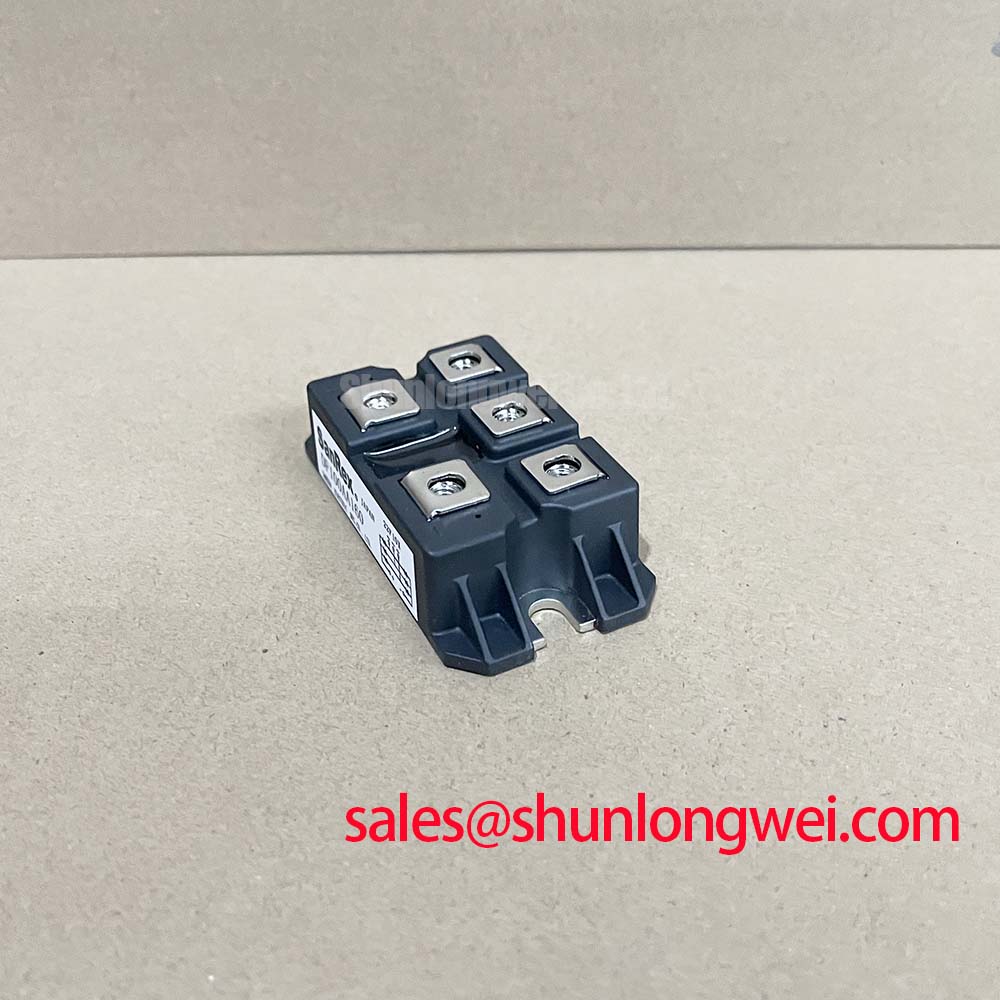

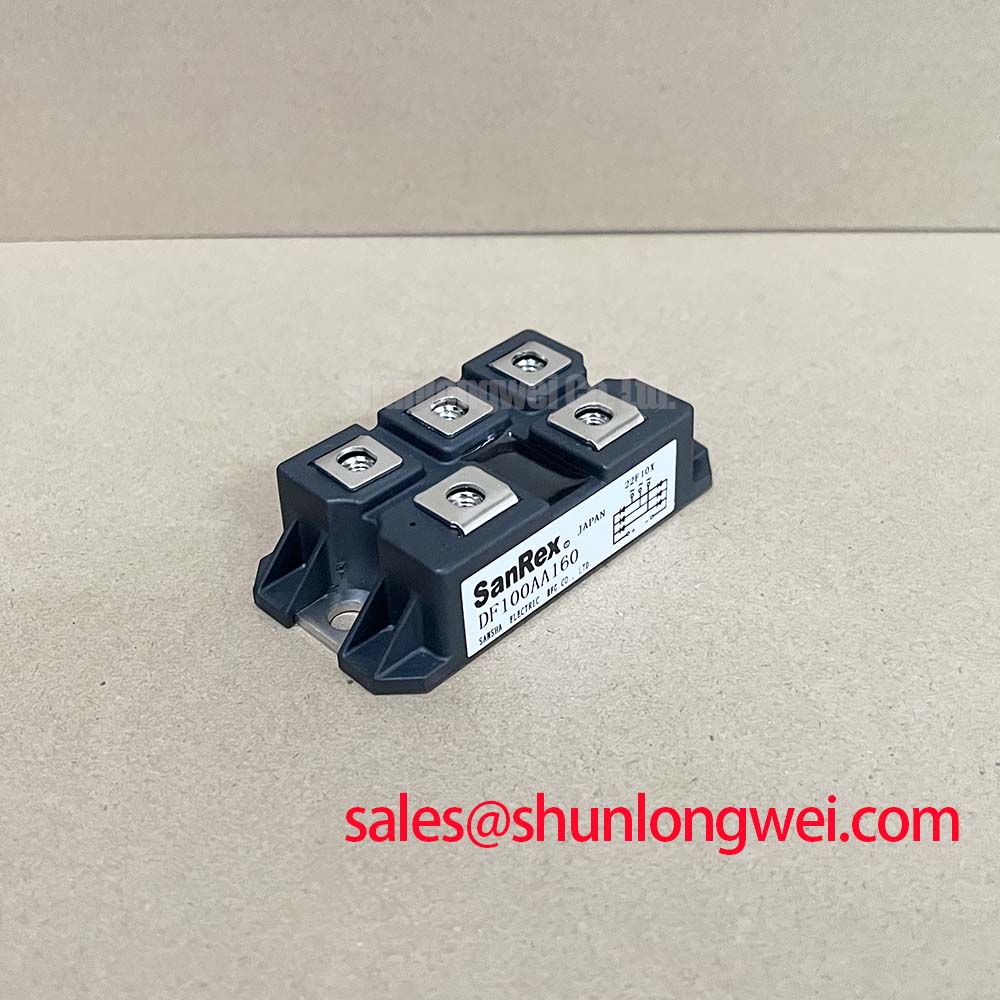

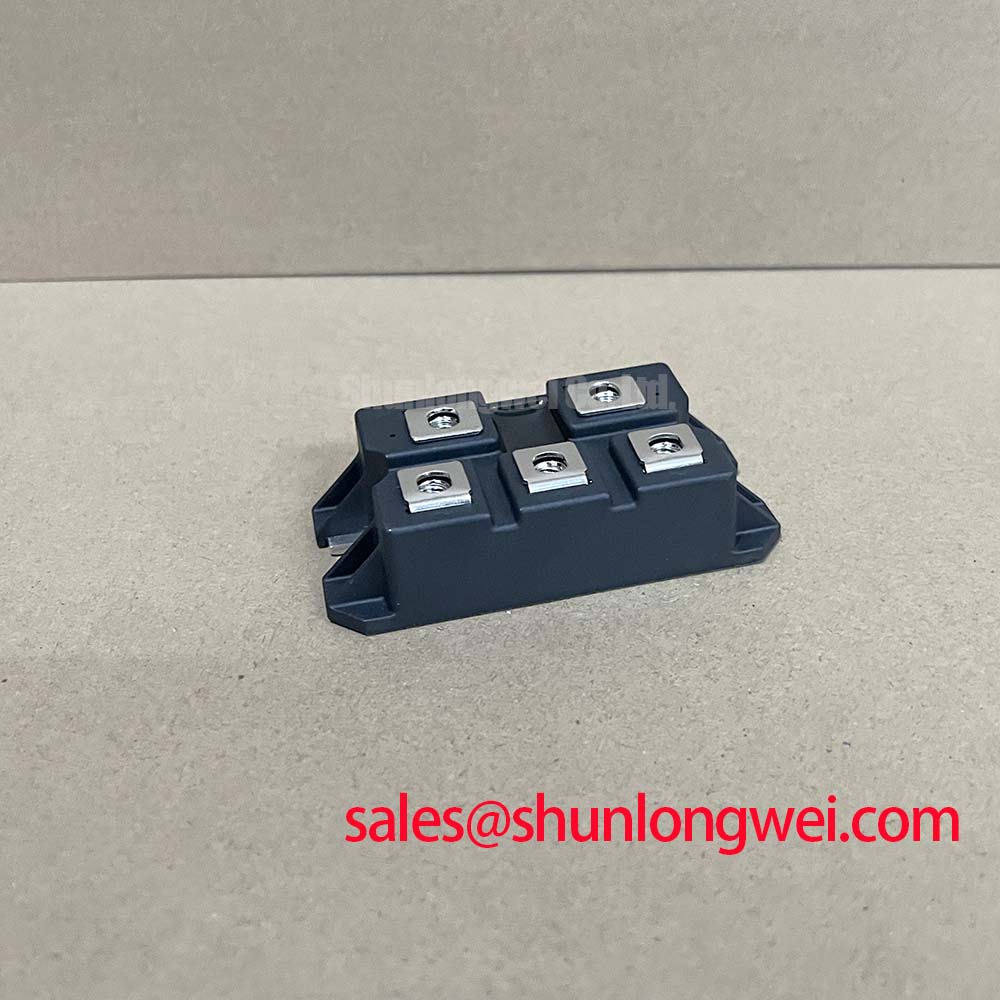

Sanrex DF100AA160: A High-Reliability 1600V 100A Three-Phase Diode Rectifier Module
Content last revised on October 2, 2025.
Engineering a Foundation of Reliability for High-Power Conversion
The Sanrex DF100AA160 Power Diode Module is engineered to deliver robust and stable three-phase full-wave rectification for demanding industrial power systems. This component provides a dependable AC-to-DC conversion front-end, balancing high electrical specifications with features designed for long-term operational reliability. Its core specifications are 1600V | 100A | I²t of 4100 A²s. Key engineering benefits include exceptional electrical isolation and high reliability ensured by a unique glass passivation process. This module directly addresses the need for a durable rectifier capable of withstanding the electrical and thermal stresses common in industrial motor drives and power supplies. For industrial applications requiring robust rectification with simplified thermal management, the DF100AA160 provides an optimal solution.
Application Scenarios & Value
System-Level Benefits in Industrial Drive and Power Supply Front-Ends

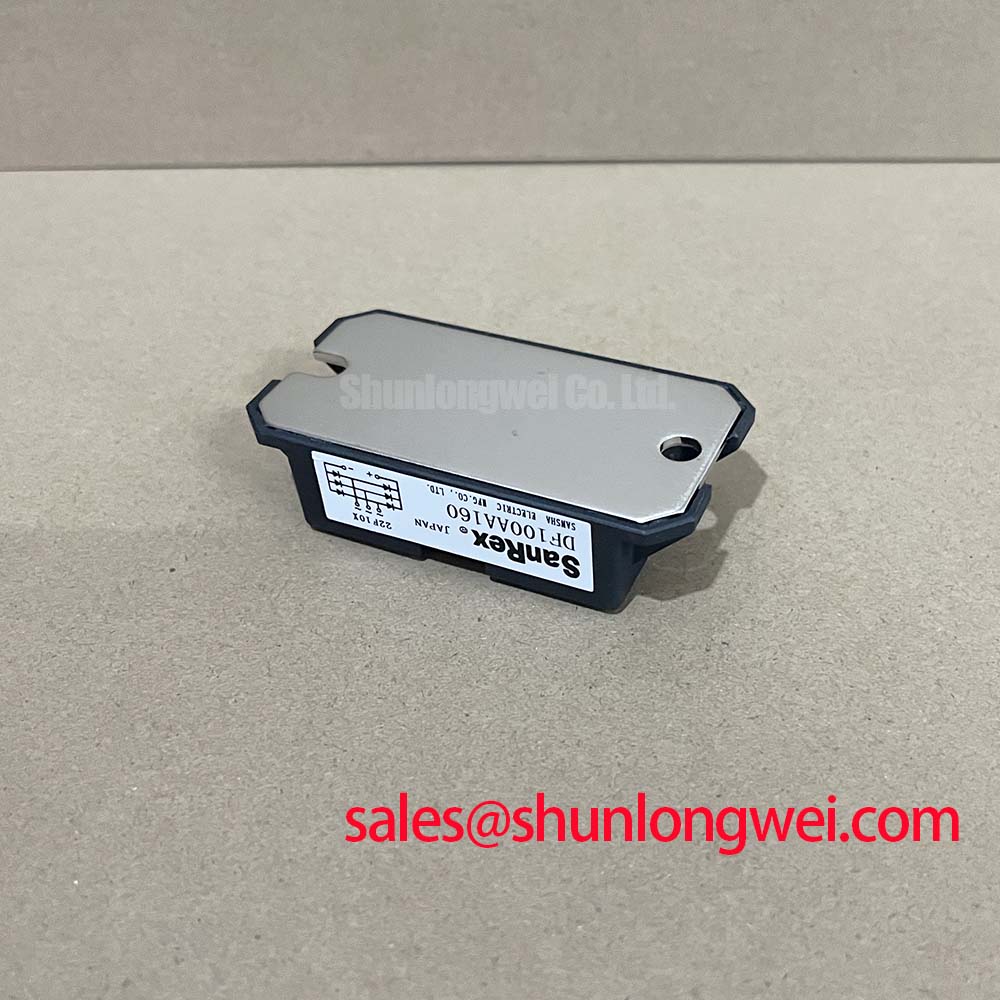

The primary application for the DF100AA160 is the input rectification stage of three-phase systems, such as Variable Frequency Drives (VFDs), DC motor drives, and switched-mode power supplies (SMPS). In a typical VFD for factory automation, the input rectifier is the first line of defense, converting the incoming AC mains power to a DC bus voltage. The engineering challenge here is ensuring this stage can handle not only continuous load but also line voltage fluctuations and inrush currents without degradation. The DF100AA160's high non-repetitive peak surge current (IFSM) of 1000A (60Hz) and a robust I²t rating of 4100 A²s provide the necessary resilience to absorb these stresses, preventing premature failure and enhancing system uptime. What is the primary benefit of its electrically isolated base? Simplified thermal design, as it allows direct mounting to a common heatsink without requiring additional insulating materials, which reduces assembly complexity and improves thermal transfer efficiency. For systems that demand higher current handling, the related DF200AA160 offers a 200A capacity within a similar package profile.
Key Parameter Overview
Defining Electrical and Thermal Performance
The technical specifications of the DF100AA160 are tailored for high-reliability industrial applications. The parameters below detail its electrical capacity, thermal efficiency, and mechanical construction, providing the data necessary for system design and thermal modeling.
| Absolute Maximum Ratings (Tj=25°C unless otherwise specified) | ||
| Symbol | Parameter | Rating |
| VRRM | Repetitive Peak Reverse Voltage | 1600 V |
| ID | Output DC Current (Three-phase full wave, TC=102°C) | 100 A |
| IFSM | Surge Forward Current (1 cycle, 60Hz, non-repetitive) | 1000 A |
| I²t | Value for one cycle of surge current | 4100 A²s |
| Tj | Operating Junction Temperature | -40 to +150 °C |
| VISO | Isolation Breakdown Voltage (A.C. 1 minute) | 2500 V |
| Electrical and Thermal Characteristics | ||
| Symbol | Parameter | Max Value |
| VFM | Forward Voltage Drop (IFM=100A, Tj=25°C) | 1.2 V |
| IRRM | Repetitive Peak Reverse Current (VRRM, Tj=150°C) | 15 mA |
| Rth(j-c) | Thermal Impedance (Junction to Case) | 0.16 °C/W |
Download the DF100AA160 datasheet for detailed specifications and performance curves.
Industry Insights & Strategic Advantage
Meeting the Uptime Demands of Modern Automation and Power Infrastructure
In the context of Industry 4.0 and increasingly automated manufacturing, system reliability is not just a feature but a critical economic driver. Unscheduled downtime in a production line or a critical power system like a UPS (Uninterruptible Power Supply) can lead to significant financial losses. The Sanrex DF100AA160 is strategically positioned to meet these demands through its emphasis on robust design. The "High reliability by unique glass passivation" mentioned in its datasheet is a key manufacturing process that protects the semiconductor junctions from environmental contaminants and electrical field stress. This is analogous to hermetically sealing a sensitive instrument; it ensures the core component maintains its specified performance over a long operational life, resisting the degradation that can lead to field failures. For system integrators and OEMs, specifying a module like the DF100AA160 translates to a lower total cost of ownership (TCO) by minimizing maintenance cycles and enhancing the reputation of their final product.
Frequently Asked Questions (FAQ)
How does the VRRM of 1600V benefit system design in 400V/480V AC line applications?
A 1600V Repetitive Peak Reverse Voltage (VRRM) provides a substantial safety margin for industrial systems operating on 400V or 480V AC lines. This high voltage rating ensures the diodes can safely block transient overvoltages caused by lightning strikes, load switching, or other grid disturbances, which are common in industrial environments. This margin is critical for building a reliable power converter that can operate for years without failure.
What is the engineering significance of the 150°C maximum operating junction temperature (TjMax)?
The TjMax of 150°C provides significant thermal headroom for designers. It allows the module to operate reliably in high ambient temperature environments or under heavy load conditions without exceeding its safe limits. This high-temperature capability, combined with the module's low thermal impedance, means that a smaller, more cost-effective heatsink may be used while still maintaining system reliability, directly contributing to higher power density and potentially lower overall system cost. What does a low thermal impedance of 0.16 °C/W mean in practice? It signifies very efficient heat transfer from the internal diode junctions to the module's baseplate, minimizing temperature rise during operation.
Requesting Technical Evaluation
For engineering teams evaluating rectifiers for industrial power conversion, the DF100AA160 offers a compelling combination of high voltage rating, robust surge handling, and features designed for long-term reliability. We encourage you to review the datasheet and contact us to discuss your specific application requirements or to request a quotation for your project bill of materials.
