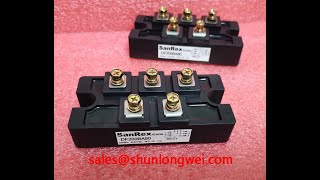

Sanrex DF200BA80 Three-Phase Diode Module: An Engineer's Technical Review

Content last revised on October 13, 2025.

The Sanrex DF200BA80 is a high-current three-phase diode bridge module engineered for robust performance in demanding power rectification applications. Delivering a potent combination of thermal efficiency and high electrical isolation, this module provides a dependable foundation for the input stages of industrial power systems. Its key specifications are 800V | 200A | Tjmax 150°C. This design translates to two primary engineering benefits: a significant thermal operating margin and enhanced system safety. The module directly addresses the need for reliable AC-to-DC conversion in high-power equipment by ensuring stable performance under heavy thermal loads. For industrial drives operating under fluctuating load conditions, the DF200BA80's thermal stability is the optimal choice for ensuring a reliable DC bus.

Key Parameter Overview

Decoding the Specs for Enhanced Thermal Reliability

The technical specifications of the DF200BA80 are foundational to its performance in industrial applications. The parameters detailed below highlight the module's capacity for high-power rectification while maintaining operational stability and safety. Special attention has been given to its thermal and electrical isolation characteristics, which are critical for long-term reliability.

This table is based on the official product datasheet. For complete electrical characteristics and performance curves, please refer to the manufacturer's documentation.

Download the DF200BA80 datasheet for detailed specifications and performance curves.

Application Scenarios & Value

System-Level Benefits in Industrial Power Rectification

The Sanrex DF200BA80 is engineered for the input stages of high-power three-phase systems where reliability is non-negotiable. Its primary role is to provide efficient and stable AC-to-DC rectification, forming a robust foundation for the downstream power electronics.

A high-fidelity engineering scenario is the front-end rectifier for a Variable Frequency Drive (VFD) controlling a heavy-duty industrial motor. In such applications, the VFD is subjected to frequent load changes and potential line voltage fluctuations, which place significant thermal stress on the input rectifier. The DF200BA80's high operating junction temperature of 150°C provides a crucial thermal margin. This is not just a number; it represents the module's ability to handle unexpected load conditions without immediate derating or failure. This robust thermal design directly contributes to the VFD's uptime and reduces the need for oversized, costly heatsinking solutions, ultimately improving the system's power density and total cost of ownership. What is the benefit of its robust thermal design? It ensures consistent DC bus voltage and operational reliability, even under strenuous industrial conditions.

The module's application scope includes:

• Industrial Motor Drives (AC and DC)
• Uninterruptible Power Supplies (UPS) and Switched-Mode Power Supplies (SMPS)
• Battery Charging Systems for forklifts and industrial vehicles
• Welding Power Supplies
• General Purpose Three-Phase Power Rectification

For systems that interface with higher voltage lines, the related DF200AA160 offers a 1600V rating while maintaining a similar current capacity.

Frequently Asked Questions (FAQ)

How does the 2500V isolation voltage (Viso) of the DF200BA80 benefit a system design?

The 2500V VISO rating is a critical safety and design feature. It ensures that the high-voltage semiconductor elements are safely insulated from the module's mounting baseplate. For a design engineer, this simplifies thermal management by allowing the module to be mounted directly to a grounded chassis or heatsink without the need for additional, often thermally inefficient, insulating layers. This improves heat transfer, enhances system reliability, and helps meet safety standards like UL E76102 M. For more details on the practical aspects of thermal design, see our guide on unlocking thermal performance.

What is the engineering significance of the 150°C maximum junction temperature (Tjmax)?

The 150°C Tjmax provides a significant operating margin for thermal design. Think of it as the engine's redline; having a higher redline means you can operate safely at higher power levels or in hotter ambient environments without risking failure. This high thermal tolerance allows engineers to design more compact systems with smaller heatsinks or to increase the power throughput in existing designs, directly impacting power density and system cost.

Can the DF200BA80 handle large inrush currents, such as those during motor startup?

Yes, the module is designed for such scenarios. The key parameter is the Surge Forward Current (IFSM), rated at 2000A for a 60Hz single cycle. This high surge capability ensures the diodes can safely withstand the large, brief current spikes typically seen when charging the DC bus capacitors in a motor drive or UPS, preventing catastrophic failure during system power-up.

Technical Deep Dive

A Closer Look at the Isolated Baseplate Design for Long-Term Reliability

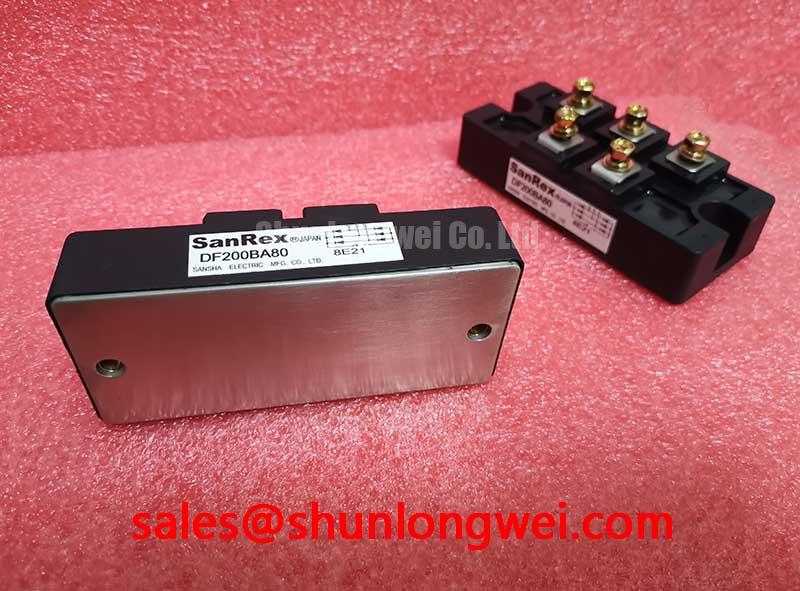

The reliability of a power module like the DF200BA80 hinges on more than just its silicon. The mechanical and thermal design of its package is equally critical. This module utilizes an industry-standard package with an electrically isolated mounting base. The core benefit of this design is the simplification of the thermal interface. The internal ceramic substrate, typically Alumina (Al₂O₃), provides high dielectric strength for the 2500V isolation while also acting as an efficient thermal conductor.

The thermal path can be visualized as a highway for heat: heat flows from the diode junctions, through the silicon, across the substrate, and into the copper baseplate, where it is finally transferred to an external heatsink. The low thermal impedance of 0.10 °C/W signifies a very wide, smooth highway with minimal traffic jams. This efficiency is paramount because it keeps the diode junctions—the most temperature-sensitive part of the device—cooler for a given power dissipation, directly correlating to a longer operational lifespan and higher reliability. Understanding this thermal path is key to preventing common failure modes in power electronics.

Strategic Advantage in Industrial Systems

Enhancing System Uptime and Reducing Total Cost of Ownership

In industrial automation and power conversion, the initial component cost is often secondary to the long-term Total Cost of Ownership (TCO). A failure in a rectifier module can halt an entire production line, leading to costs that far exceed the price of the component itself. The Sanrex DF200BA80 provides a strategic advantage by focusing on features that bolster system uptime.

Its robust thermal design, high surge current capability, and reliable electrical isolation contribute to a "design-in and forget" level of confidence. Engineers can specify this module for the critical input stage of a system, knowing it has the built-in resilience to withstand the harsh electrical and thermal environments common in factories and power substations. This reliability reduces the need for field service, minimizes downtime, and ultimately lowers the TCO for the end-user, aligning perfectly with the goals of modern industrial system design.
