Fuji EVK71-050: 600V 75A Dual Darlington Transistor Module for Robust Motor Drives

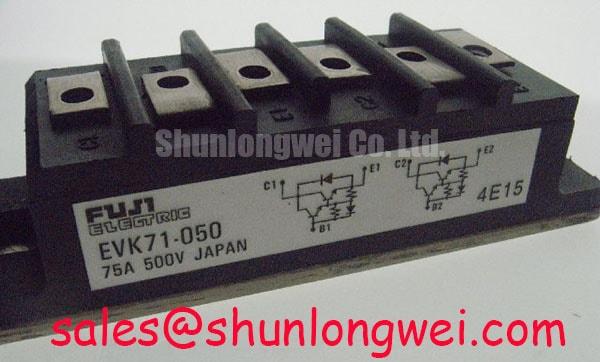

The Fuji EVK71-050 dual Darlington module delivers robust thermal reliability and mechanical durability for maintaining legacy high-current CNC spindle drives. Top Specs: 600V | 75A | 350W Power Dissipation. Key Benefits: Electrically isolated baseplate | Exceptional FBSOA margins. Are you looking to maintain a legacy CNC spindle drive? This module provides the exact switching characteristics required to keep older systems operational without total drive retrofits. What is the primary benefit of its isolated baseplate design? It simplifies thermal management by allowing direct mounting to standard heatsinks. For maintaining legacy 400V-class CNC machine tools prioritizing thermal reliability, this 600V module is the optimal choice.
Application Scenarios & Value
Achieving System-Level Benefits in High-Frequency Power Conversion
Engineers often face significant challenges when servicing or maintaining an older AC spindle drive where modern switching devices might introduce parasitic issues or incompatible drive requirements. In these scenarios, the Fuji EVK71-050 serves as a critical replacement component. Operating as a robust PWM switching element, this 75A, 600V module relies on a well-designed base drive circuit to efficiently manage high-current surges during motor startup.
Consider a legacy CNC machine tool experiencing frequent overcurrent faults during heavy cutting operations. The challenge lies in managing peak currents without exceeding the thermal limits of the device. The EVK71-050, with its 350W power dissipation capacity and wide FBSOA (Forward Bias Safe Operating Area), absorbs these transients effectively. Its Dual Darlington configuration provides the necessary current gain while keeping base drive requirements manageable. While this 600V model is ideal for older systems, for newer designs requiring higher efficiency, the related 2MBI100VA-120-50 IGBT module offers a 1200V rating.
Technical Deep Dive
A Closer Look at the Darlington Architecture and Thermal Performance
Unlike modern field-effect devices, the EVK71-050 utilizes a bipolar structure. To understand its performance, consider an analogy: think of a Darlington pair like a two-stage hydraulic amplifier. A small trickle of water (base current) opens a primary valve, which in turn opens a massive floodgate (the main collector current). This mechanism allows a relatively weak control signal to switch a massive 75A load.
However, this two-stage "valve" naturally creates a slightly higher forward voltage drop compared to a single switch. This is why the module features a highly optimized, electrically isolated baseplate. The thermal energy generated by the 350W dissipation must be evacuated rapidly. Another analogy is comparing the thermal interface to a multi-lane highway: the isolated substrate acts as an express lane, moving heat directly from the silicon junctions to the heatsink without electrical interference. By carefully managing these BJT switching characteristics and overall thermal management, engineers can ensure long-term stability even under continuous cyclic loading. For further insights into advanced architectures, explore modern Fuji Electric power modules.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
| Functional Group | Parameter | Value / Description |
|---|---|---|
| Voltage & Current Ratings | Collector-Emitter Voltage (V_CEO) | 600V |
| Maximum Collector Current (I_C) | 75A | |
| Thermal & Power Limits | Max Power Dissipation (P_C) | 350W |
| Isolation Voltage (Visol) | 2000V AC (typical) | |
| Mechanical Characteristics | Configuration | Dual Darlington (2-Element) |
| Mounting Style | Screw Terminals, Isolated Baseplate |
Download the EVK71-050 datasheet for detailed specifications and performance curves.
Frequently Asked Questions
Resolving Common Engineering Queries on the EVK71-050
- Is the EVK71-050 a direct replacement for Fanuc spindle drive transistors?
Yes, it is frequently used as a direct replacement component in legacy AC spindle servo units that originally utilized the A50L-0001-0096 specification. - How does the 350W power dissipation rating affect heatsink selection?
The 350W rating dictates that the heatsink must have a thermal resistance low enough to prevent the junction temperature from exceeding its maximum limit under worst-case 75A loads. - Why use a Dual Darlington configuration instead of a standard IGBT?
While IGBTs are standard today, legacy systems were designed with base drive circuits specifically calibrated for the current-controlled nature of Darlington pairs. - What is the significance of the electrically isolated baseplate?
It allows multiple modules to be mounted on a single common heatsink without the risk of short circuits, simplifying mechanical assembly and reducing system footprint. - Can this module handle high-frequency PWM switching?
Yes, it was originally designed for early PWM inverter applications. However, operating frequencies should strictly adhere to the original equipment manufacturer's guidelines to manage switching losses.
For engineers tasked with maintaining critical industrial automation equipment, securing reliable replacement components is paramount. Reach out to our technical sales team to verify specifications and secure the EVK71-050 for your next maintenance cycle.
