Feeder

What This Component Is and Its Industry Significance

In electrical and electronic engineering, the term feeder refers to a dedicated transmission line, conductor assembly, or distribution branch designed to transfer electrical power or high-frequency signals efficiently from a primary source to one or more distribution points, loads, or power processing stages. Historically, the word entered popular terminology during the early days of radio and television broadcasting, where the “feeder line” designated the twin-lead ribbon cable connecting an outdoor aerial antenna to an indoor television receiver. In modern electric utility grids and industrial facilities, a feeder represents an entirely different class of hardware: a robust primary power line or busway that delivers bulk energy from a substation or central DC bus to local branch circuits without intermediate tap-offs.

Regardless of whether a feeder operates in the radio-frequency (RF) domain at milliwatt signal levels or in heavy power distribution at kilovolt potential, its primary technical purpose remains identical: transporting electrical energy between two points while maintaining signal integrity, minimizing transmission loss, and presenting a controlled electrical impedance. In modern power electronics and automation architectures, feeder systems solve several critical operational challenges:

• Conducted Loss Reduction: Dedicated feeders isolate primary transmission from noisy, distributed loads. By utilizing optimized conductor cross-sections and high-dielectric-strength insulation, feeders limit resistive I²R losses and reactive voltage drops across long routing distances.
• Electromagnetic Noise Containment: High-frequency power electronic switching generates intense electromagnetic interference (EMI). Engineered feeders—such as shielded coaxial cables, twisted conductor pairs, and laminated low-inductance busbars—prevent mutual coupling and shield sensitive control electronics from radiated noise.
• Impedance Matching and Surge Suppression: When transmitting signals or fast-rising pulse waveforms, mismatched line impedance causes reflections, standing waves, and destructive voltage transients. Engineered feeders provide predictable characteristic impedance (Z₀), preserving waveform fidelity.
• System Modularization: By standardizing the physical and electrical parameters of feeder lines, industrial engineers can decouple power generation or transformation equipment from end-use converters, such as variable-frequency motor drives and grid-tie inverters.

As electronic systems have migrated toward higher operating voltages, faster switching speeds, and tighter volumetric footprints, the design of the feeder has shifted from an afterthought to a core system parameter. In renewable energy installations, industrial robotics, and rail propulsion, improper feeder specification leads directly to power degradation, acoustic noise, high thermal stress, and premature component breakdown.

Working Principle and Physical Structure

The operation of any feeder line is governed by electromagnetic wave propagation along distributed transmission parameters. Rather than acting as a simple ideal wire with zero resistance, a feeder consists of four distributed line parameters spread evenly along its physical length: distributed series resistance (R) per unit meter, distributed series inductance (L) per unit meter, distributed shunt conductance (G) representing dielectric leakage, and distributed shunt capacitance (C) between conductors.

When an electrical signal or alternating current enters the feeder, it travels as a transverse electromagnetic (TEM) wave through the dielectric medium separating the conductors. The relationship between the distributed inductance and capacitance defines the characteristic impedance (Z₀) of the line:

Z₀ = √(L / C)

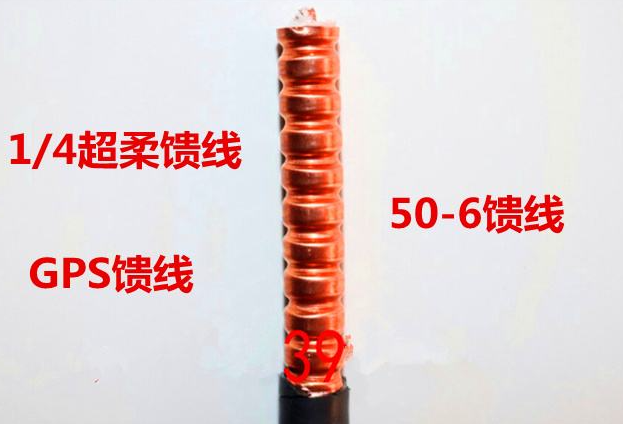

In balanced twin-lead feeders, two identical solid or stranded copper conductors are held at a fixed distance by a continuous ribbon of polyethylene or plastic webbing. Because air and plastic form the dielectric medium, the spacing must remain constant; any alteration in geometry changes C and L, disturbing Z₀ (traditionally standardized at 300 Ω). However, twin-lead lines lack an external shield, making them susceptible to ambient moisture, metallic objects, and external electrical fields. In contrast, coaxial feeders position an inner conductor coaxially within a tubular outer shielding conductor, separated by a continuous dielectric (solid PE, foam, or PTFE). The electromagnetic wave is entirely contained within the dielectric space inside the outer shield, achieving high noise immunity and standardized impedances of 50 Ω or 75 Ω.

In heavy industrial power electronics, feeder lines operate in conjunction with solid-state power switches. Power feeders supply high DC voltages to advanced inverter bridges constructed from devices such as the DP15H1200TO101982 module. Within these systems, the physical feeder architecture directly dictates the electrical stresses experienced by the semiconductor dies. When an insulated-gate control structure applies a positive bias above the gate threshold voltage V_GE(th), it creates an inversion channel in the underlying MOS structure. This channel permits electron flow that triggers massive minority-carrier injection across the wide, low-doped n-drift region of the bipolar sub-structure, collapsing the forward voltage drop to a low saturation level V_CE(sat).

During turn-off, the gate voltage drops below threshold, removing the conductive channel. The injected electron-hole plasma must either recombine or be swept out by the developing reverse electric field. During this rapid state transition, the rate of current change (dI/dt) through the feeder conductors can exceed several thousand amperes per microsecond (A/µs). If the power feeder or DC bus line possesses excessive parasitic stray inductance (L_σ), an inductive flyback voltage spike is generated across the power switches:

V_peak = V_DC + [L_σ · (dI/dt)]

If this voltage transient exceeds the maximum collector-emitter breakdown rating (V_CES), catastrophic avalanche breakdown occurs. For this reason, modern power electronic feeders utilize laminated busbar construction, stacking broad copper plates separated by thin dielectric films (such as polyimide or Mylar) to maximize capacitive cancellation and drive L_σ below 20 nH, shielding sensitive switching junctions from dangerous voltage overshoots.

Key Features, Advantages, and Technology Comparison

Selecting an appropriate feeder configuration requires balancing frequency response, current-carrying capacity (ampacity), dielectric strength, shielding performance, and mechanical flexibility. Each structural topology presents unique engineering trade-offs tailored to specific domains, ranging from RF communication links to multi-megawatt motor drives utilizing Insulated-Gate Bipolar Transistor (IGBT) Fundamentals.

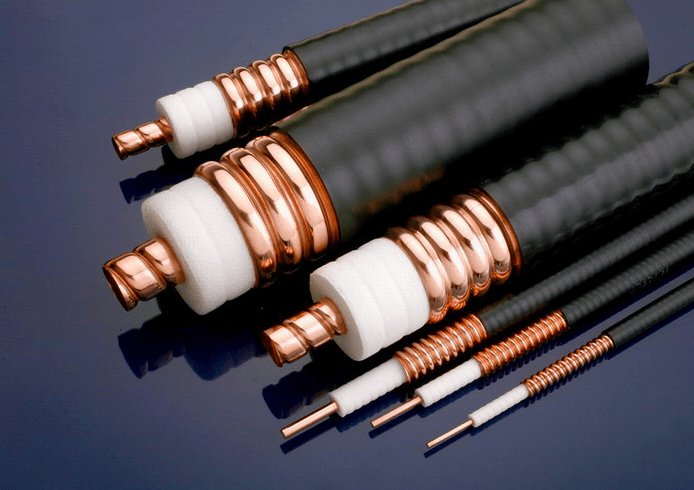

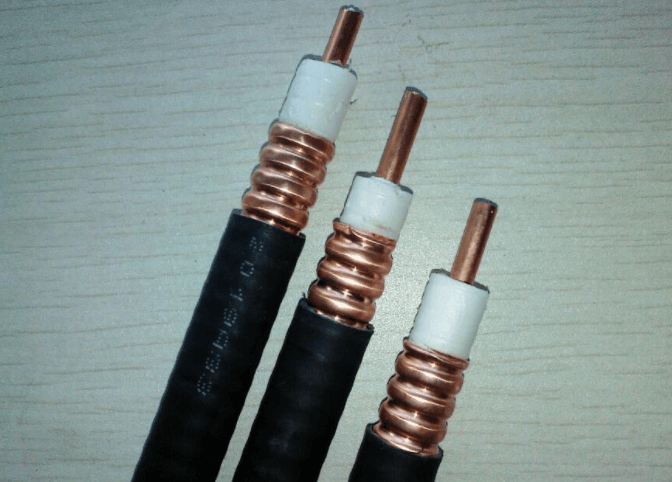

In signal transmission, balanced twin-lead offers minimal attenuation at high power levels when kept completely dry and isolated from metal surfaces. However, its high sensitivity to weather conditions and nearby conducting structures limits its contemporary use. Coaxial feeder cables overcome these environmental vulnerabilities by encasing the electromagnetic field entirely inside a metallic braid or solid copper tube. While coaxial cables introduce slightly higher dielectric attenuation at very high frequencies than air-spaced lines, their environmental resilience makes them the universal choice for radio transceivers, medical imaging, and RF industrial instrumentation.

For industrial power distribution and converter-level interconnection, conventional round-cable feeders encounter limitations due to skin effect—where high-frequency ripple currents concentrate exclusively on the outer conductor perimeter—and high loop inductance. In these applications, flat laminated busbar feeders outperform bundled cable runs by providing ultra-low parasitic loop inductance, uniform current density, and superior heat dissipation through wide conductive surface areas.

The choice between these feeder families directly affects operational efficiency. In power conversion setups, minimizing internal feeder resistance and parasitic inductance reduces thermal buildup inside enclosures, increases conversion efficiency, and simplifies the snubber circuitry needed to suppress inductive ringing.

Real-World Applications and Operating Precautions

Feeder lines serve as critical physical infrastructure across multiple sectors, bridging prime energy sources and sensitive loads. In industrial automation, heavy three-phase motor feeders connect variable frequency drives (VFDs) to induction and permanent magnet synchronous motors. The fast voltage rise times (high dV/dt) produced by the switching semiconductors can generate transmission-line wave reflections along long motor feeder cables. If the cable length exceeds the critical threshold—often as short as 10 to 15 meters for modern converters—voltage reflections double the peak voltage at the motor terminals, degrading winding insulation. Engineers install dedicated dV/dt filters or sinusoidal output filters directly at the feeder output to smooth these transitions.

In high-power induction heating and renewable grid-tied installations, robust switching devices like the QM300HA-H and SKD75GAL123D manage continuous currents of hundreds of amperes. In these high-density enclosures, the primary DC feeder lines must be routed with careful attention to mutual inductance, current sharing, and thermal dissipation:

• Ampacity Derating and Thermal Management: Feeder conductors must be sized not only for continuous root-mean-square (RMS) current but also derated for ambient enclosure temperatures. Operating feeders close to high-heat components—such as power module heatsinks operating at 80 °C to 100 °C—requires high-temperature insulation classes (such as silicone, cross-linked polyethylene, or fluoropolymers) and adequate convective airflow.
• Mechanical Clamping and Bending Radii: Exceeding the minimum specified bend radius of coaxial lines or heavy-gauge power feeders crushes the internal dielectric. In coaxial cables, this creates characteristic impedance dips and local signal reflections. In industrial power cables, mechanical stress micro-fractures the insulation, creating localized dielectric stress points that foster partial discharge and electrical treeing over time.
• Fastening Torque and Contact Resistance: At termination points, feeder terminals must be secured using calibrated torque wrenches according to manufacturer specifications (typically 3.0 to 5.0 N·m for M5/M6 bus terminals). Insufficient torque elevates interface resistance, causing localized ohmic heating that can ignite terminal housings or melt solder connections. Excessive torque strips threads and cracks internal semiconductor substrates.
• Electrostatic Discharge (ESD) and Shield Grounding: Coaxial and shielded power feeders gather electrostatic charges through triboelectric effects when pulled through raceways. Installers must ground conductor shields to a central low-impedance earth ground before making final connections. This protects sensitive gate drivers and control microcontrollers from static discharge. In power converters, continuous single-point or coordinated dual-ended shielding prevents ground loops while diverting common-mode noise away from sensitive logic circuits.

Adhering to these precautions ensures that the feeder assembly does not introduce parasitic vulnerabilities into systems relying on modern Industrial Power Semiconductor Solutions.

Engineering Selection Guidelines and Field Diagnostics

Properly specifying a feeder system requires a systematic evaluation of continuous electrical ratings, environmental constraints, and dynamic switching characteristics. When engineers size feeder runs for high-performance applications, they must adhere to a clear sizing sequence:

1. Determine Maximum Continuous and Peak Voltages: Establish the nominal working voltage, including possible grid fluctuations or DC bus charging peaks. For power feeders, ensure the dielectric insulation rating exceeds the maximum DC link voltage plus a safety margin of at least 50% to absorb transient overshoots.
2. Calculate Thermal Ampacity Requirements: Evaluate total continuous load current (I_out), accounting for harmonic distortion and skin-depth constraints. Copper cross-sectional area must be sized to limit thermal rise to acceptable limits, keeping conductor junction temperatures well below the rating of the adjacent module junction-to-case thermal resistance R_th(j-c).
3. Evaluate Maximum Allowable Loop Inductance: In high-speed converter stages, calculate allowable feeder inductance based on the switch turn-off speed and device safety margins. If L_σ cannot be kept sufficiently low with standard cabling, transition the design to flat laminated copper busway architectures.
4. Assess Mechanical and Environmental Hazards: Account for ambient moisture, chemical exposure, vibration profiles, and continuous flexing requirements. Where lines penetrate enclosure walls, install IP-rated strain-relief glands to prevent sheath abrasion and seal out atmospheric moisture.

Once installed, feeder networks require regular diagnostic evaluation to preempt system failure. Field technicians use several diagnostic tools to verify feeder performance, locate structural faults, and ensure attached active switching modules remain undamaged.

Regular preventive inspections—including annual micro-ohm contact checks, megohmmeter insulation sweeps, and thermographic scans under full load—ensure industrial feeders operate reliably. By matching the appropriate feeder topology to the voltage, frequency, and thermal demands of the target application, engineers ensure high system efficiency, long service life, and robust noise immunity across both signal and power distribution architectures.
