FS300R12KE3: High-Efficiency 1200V IGBT Six-Pack for Demanding Drive Applications
Introduction: Unpacking a Workhorse for Power Conversion

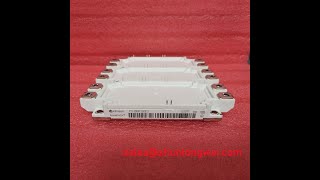

The Infineon FS300R12KE3 is a 1200V, 300A six-pack IGBT module engineered for high-reliability power conversion, leveraging Infineon's proven Trench/Fieldstop IGBT3 technology. With its core specifications of 1200V | 300A | VCE(sat) 1.70V (typ.), this module delivers robust thermal performance and efficient switching. These characteristics are crucial for engineers aiming to develop compact, high-power-density inverters while minimizing cooling system requirements. For industrial motor drives where thermal stability under load is paramount, the FS300R12KE3's low thermal resistance provides a distinct design advantage.
Application Scenarios & Value
Achieving System-Level Benefits in Variable Frequency Drives (VFDs)
The primary application for the FS300R12KE3 is in industrial Variable Frequency Drive (VFD) systems, which demand both high efficiency and long-term operational reliability. A key engineering challenge in VFD design is managing the heat generated during the high-frequency switching required for precise motor control. The FS300R12KE3 directly addresses this with a low junction-to-case thermal resistance (RthJC) of 0.085 K/W per IGBT. This superior thermal conductivity means heat is evacuated from the IGBT chip to the heatsink more effectively. In practical terms, this allows for the design of smaller, more cost-effective heatsinks or enables higher power output within an existing thermal envelope, contributing to a more compact and power-dense overall system. The integrated NTC thermistor provides essential real-time temperature feedback for system monitoring and protection within these demanding AC motor control applications. While this module is optimized for systems up to 1200V, for applications requiring higher voltage headroom, such as 1500V solar inverters, a component like the FS450R17KE3 may be considered.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
The FS300R12KE3's performance is defined by a set of parameters optimized for efficiency and durability in inverter applications. The values below are extracted from the official datasheet and highlight the module's core capabilities.
| Parameter | Value | Conditions |
|---|---|---|
| Collector-Emitter Voltage (VCES) | 1200 V | Tvj = 25°C |
| Continuous DC Collector Current (IC) | 300 A | TC = 80°C, Tvj max = 150°C |
| Collector-Emitter Saturation Voltage (VCE(sat)) | 1.70 V (typ.) / 2.00 V (max.) | IC = 300 A, VGE = 15 V, Tvj = 25°C |
| Total Power Dissipation (Ptot) | 1450 W | TC = 25°C, Tvj max = 150°C |
| Thermal Resistance, Junction-to-Case (RthJC) | 0.085 K/W | Per IGBT |
| Turn-off Energy Loss (Eoff) | 43.0 mJ (typ.) | IC = 300 A, VCE = 600 V, Tvj = 125°C |
| Isolation Test Voltage (VISOL) | 2.5 kV | RMS, f = 50 Hz, t = 1 min |
Download the FS300R12KE3 datasheet for detailed specifications and performance curves.
Frequently Asked Questions (FAQ)
How does the Trench/Fieldstop IGBT3 technology in the FS300R12KE3 benefit my design?
The Infineon TRENCHSTOP™ IGBT3 technology represents a sweet spot between conduction and switching losses. It achieves a low collector-emitter saturation voltage (VCE(sat)), which directly reduces heat generation during the on-state, a dominant loss factor in motor drives operating at lower to medium frequencies. This results in higher overall inverter efficiency and reduces the thermal management burden.
What is the significance of the typical VCE(sat) of 1.70V at the nominal 300A current rating?
A lower VCE(sat) is directly proportional to lower conduction losses. A typical value of 1.70V at 300A and 25°C is highly competitive for a 1200V IGBT of this generation. This low on-state voltage drop is analogous to having less resistance in a water pipe; less energy is wasted as heat, meaning more power is delivered to the load. For a three-phase inverter, this efficiency gain is multiplied across all six IGBTs, leading to a significant reduction in system-level waste heat.
Is the FS300R12KE3 suitable for high-frequency switching applications?
The FS300R12KE3 is optimized for the switching frequencies typically found in industrial motor drives, which generally operate up to around 10-16 kHz. While its switching energies (Eon and Eoff) are well-controlled for this range, applications requiring significantly higher frequencies, such as high-power SMPS or welding equipment, may require IGBTs from newer generations specifically designed for lower switching losses, even if it means a slight compromise on VCE(sat).
Strategic Outlook for Power System Design
Integrating the FS300R12KE3 into a power conversion system is a strategic decision rooted in leveraging established and highly reliable technology. Its EconoPACK™+ housing is an industry-standard footprint, facilitating straightforward mechanical integration and sourcing of compatible heatsinks and busbars. This module's balance of thermal efficiency, robust electrical performance, and industry-proven packaging makes it a dependable foundation for developing cost-effective and durable power electronics for industrial automation, uninterruptible power supplies, and commercial air conditioning systems.
