## Infineon FS50R06W1E3 | Integrated PIM for High-Efficiency Motor Control
The Infineon FS50R06W1E3 is a Power Integrated Module (PIM) designed to deliver a robust, all-in-one solution for low-to-medium power motion control applications. By integrating key power stages into a single, thermally efficient EasyPIM™ 1B package, this module simplifies design, reduces assembly costs, and enhances the reliability of the entire power conversion system. It is engineered for engineers who prioritize system-level efficiency and a streamlined development cycle.
Product Highlights Overview
- System Integration: Features a three-phase input rectifier, a brake chopper, and a three-phase inverter bridge in one compact module, significantly reducing component count and PCB footprint.
- Proven Efficiency: Utilizes Infineon's TRENCHSTOP™ IGBT3 technology, which provides an excellent balance between low conduction losses (VCE(sat)) and switching losses, optimizing performance in the typical frequency ranges of motor drives.
- Enhanced Thermal Performance: The integrated NTC thermistor allows for precise real-time temperature monitoring, enabling robust over-temperature protection and improving long-term system reliability.

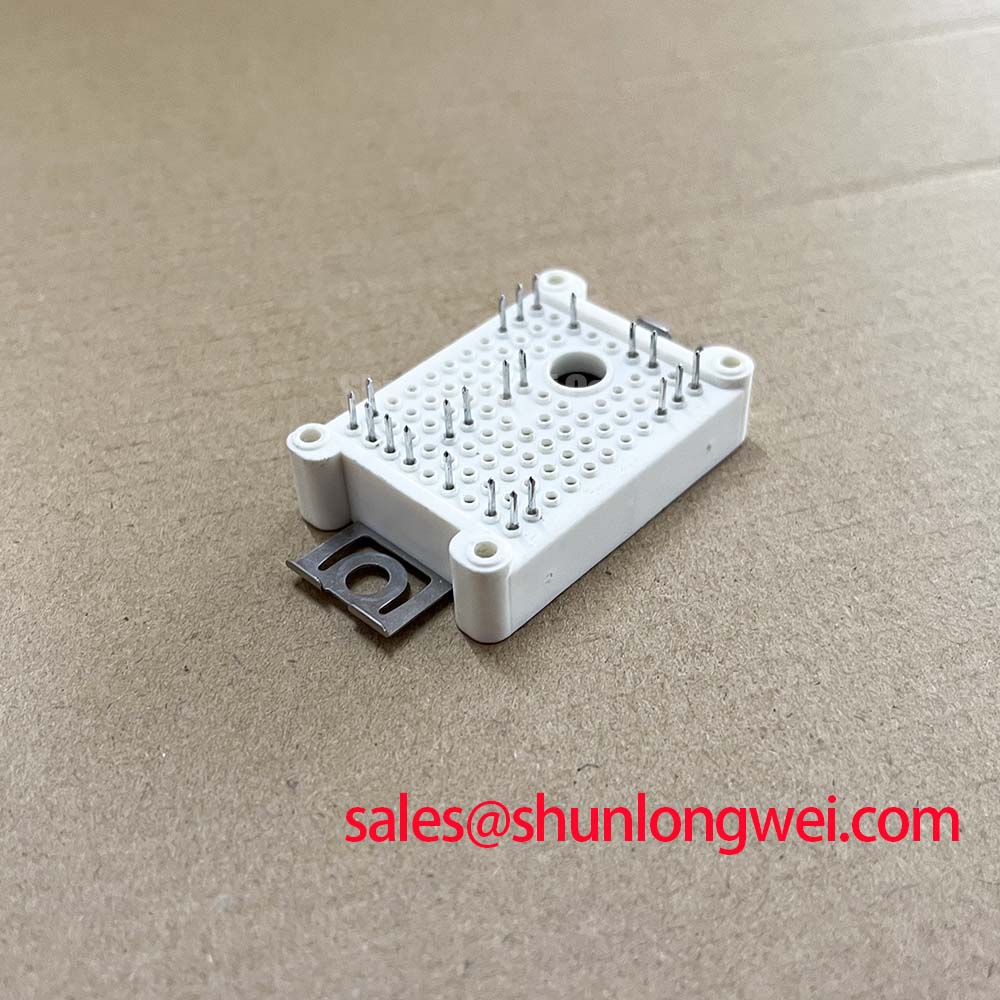

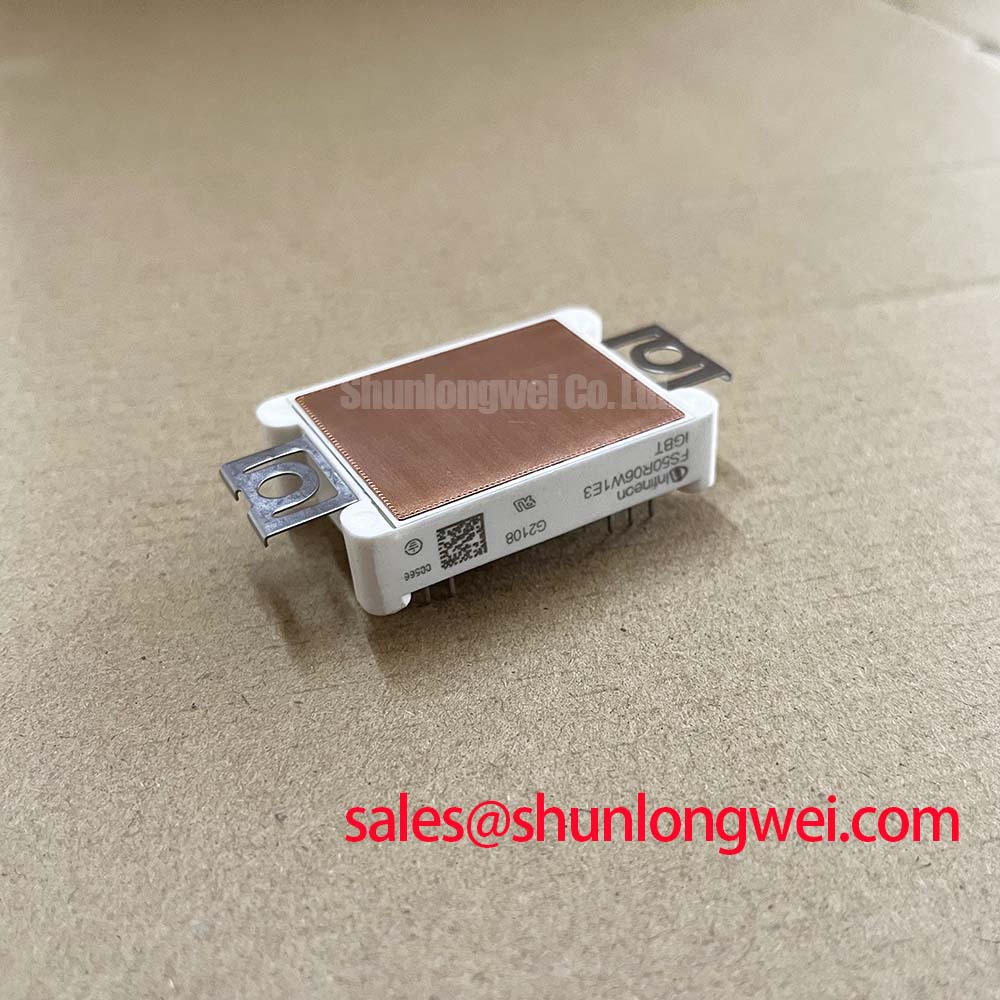

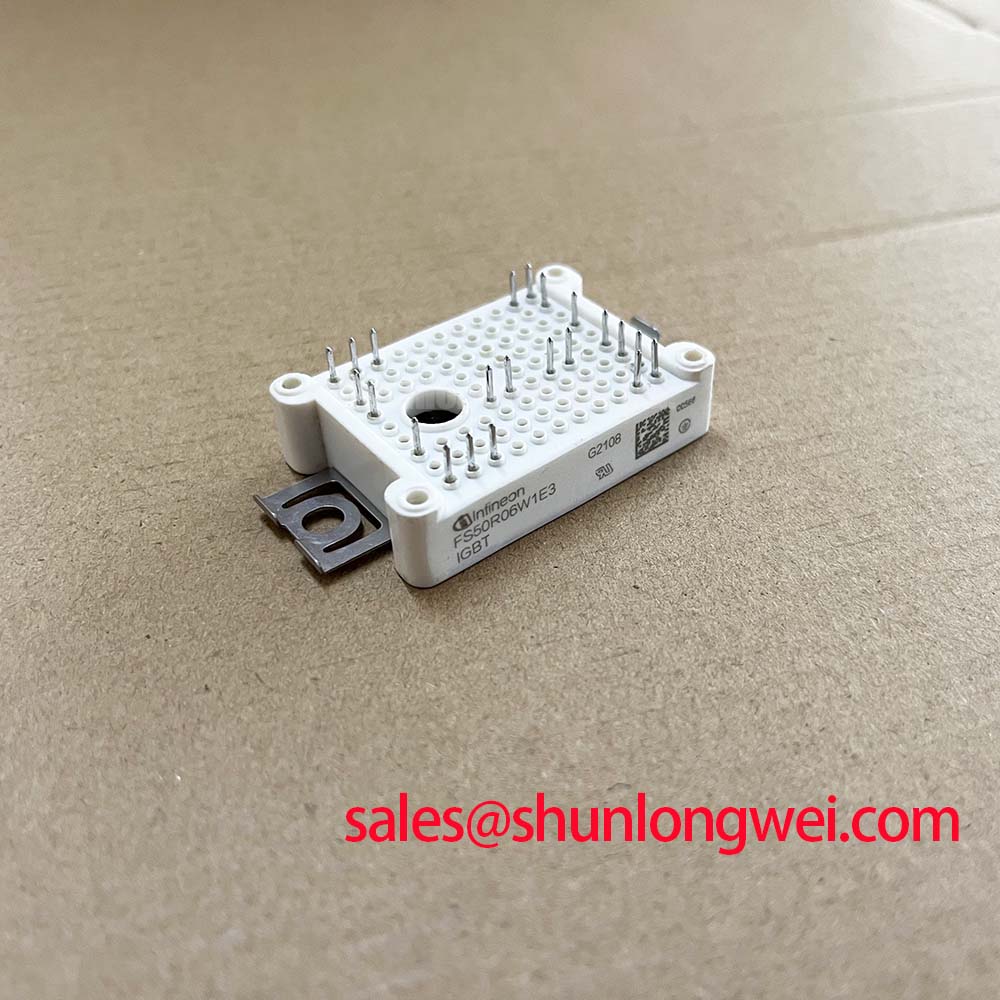

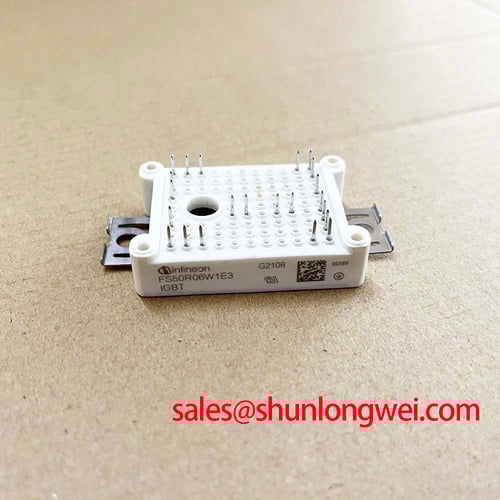

- Simplified Assembly: Housed in the industry-standard EasyPIM™ 1B package with press-fit pins, facilitating easy and reliable mounting to the PCB and heatsink.
An Engineering Deep Dive: TRENCHSTOP™ IGBT3 and PIM Integration
The core of the FS50R06W1E3's performance lies in its intelligent combination of silicon technology and package integration. The module employs Infineon's TRENCHSTOP™ IGBT3. While newer generations exist, IGBT3 remains a strategic choice for this power class due to its remarkably low on-state voltage (VCE(sat)). This characteristic directly translates to lower conduction losses, a dominant loss factor in motor control applications that often operate at moderate switching frequencies (typically 4-16 kHz). For the design engineer, this means less heat generation, reducing the demands on the thermal management system and potentially allowing for smaller heatsinks.
The second pillar of its value is the Power Integrated Module (PIM) architecture. By co-packaging the rectifier, brake, and inverter stages, Infineon eliminates multiple discrete components from the Bill of Materials (BOM). This integration provides a significant engineering advantage beyond simple part reduction. It minimizes stray inductance between stages, which simplifies EMC filtering and reduces voltage overshoots during switching. This leads to a more predictable and robust electrical performance, shortening the design validation and testing phases. For a deeper understanding of the internal workings, explore our guide on the IGBT working principle.
Optimized Performance in Demanding Applications
The specific features of the Infineon FS50R06W1E3 make it a standout choice for several key industrial applications:
- Variable Frequency Drives (VFDs): In general-purpose drives for pumps, fans, and conveyors, the module's high level of integration and thermal efficiency are paramount. The built-in brake chopper is essential for applications requiring controlled deceleration or regenerative braking, simplifying the overall VFD design.
- Servo Drives: The compact EasyPIM™ package is ideal for space-constrained servo drives used in robotics and CNC machinery. While servo drives demand high dynamic performance, the reliability and thermal stability of the FS50R06W1E3 ensure it can handle the high peak currents associated with rapid acceleration and deceleration cycles. This makes it a workhorse for powering precision in robotic servo drives.
- HVAC Systems: In commercial air conditioning and heating systems, efficiency and reliability are non-negotiable. The module's low conduction losses contribute directly to higher system efficiency, helping meet stringent energy consumption standards.
Key Technical Specifications: FS50R06W1E3
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 600 V |
| Continuous Collector Current (IC) @ TC=80°C | 50 A |
| Collector-Emitter Saturation Voltage (VCE(sat)) @ IC=50A, Tvj=25°C | 1.50 V (Typical) |
| Configuration | Sixpack IGBT with Rectifier + Brake Chopper (PIM) |
| Integrated Features | NTC Thermistor |
| Package | EasyPIM™ 1B |
For a comprehensive list of all parameters, download the official Infineon FS50R06W1E3 datasheet.
Engineer's FAQ for the FS50R06W1E3
What is the primary benefit of the PIM configuration in this module?
The primary benefit is system-level simplification. It reduces the number of components on your BOM, shrinks the required PCB area, and lowers manufacturing complexity and cost. Electrically, it provides a more controlled environment with lower parasitic inductance, leading to improved reliability and easier EMC compliance.
How does the TRENCHSTOP™ IGBT3 compare to newer IGBT technologies?
TRENCHSTOP™ IGBT3 is optimized for a very low VCE(sat), making it exceptionally efficient in applications with switching frequencies below 20 kHz, like most motor drives. Newer technologies, such as IGBT7, are designed to reduce switching losses, making them better suited for higher frequency applications where power density is the absolute priority. For its target applications, the FS50R06W1E3 offers an ideal and cost-effective performance balance.
What are the key thermal management considerations for the EasyPIM™ package?
Effective thermal management is crucial for reliability. Key considerations include: 1) Utilizing the integrated NTC thermistor for active temperature monitoring to prevent common failure modes. 2) Ensuring a high-quality thermal interface material (TIM) is evenly applied between the module baseplate and the heatsink. 3) Designing a heatsink with adequate surface area and airflow to dissipate the calculated thermal load under worst-case operating conditions.
