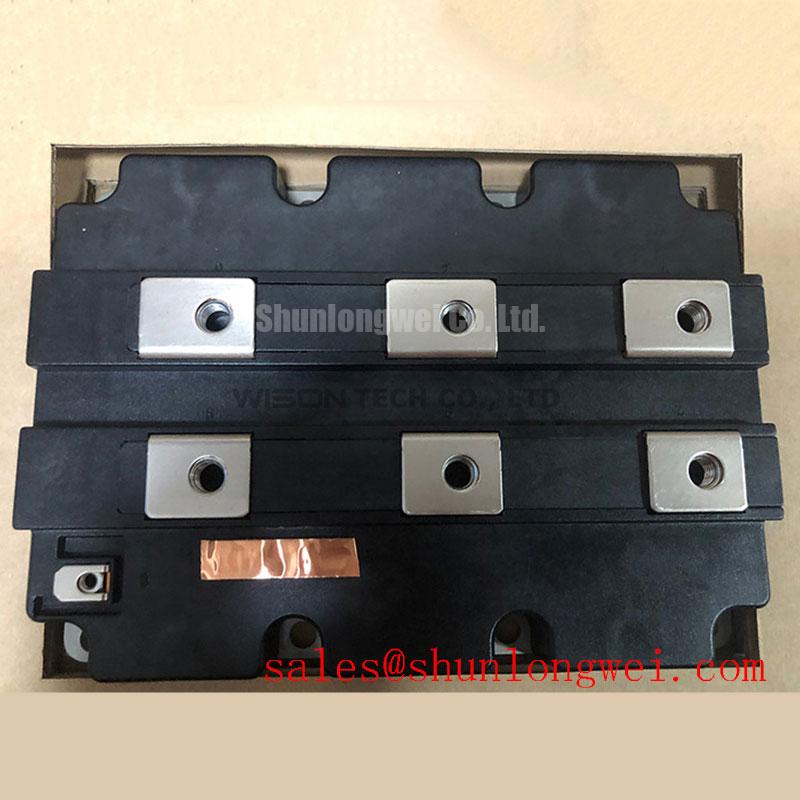

Infineon FZ2400R12HE4_B9 IGBT Module | Mastering High-Power Conversion with IGBT4 Technology
The Infineon FZ2400R12HE4_B9 is a high-power IGBT module engineered for the most demanding power conversion applications. As a cornerstone of the EconoDUAL™ 3 family, this 1200V / 2400A module leverages Infineon's proven IGBT4 chip technology to deliver an exceptional balance of high current density, efficiency, and operational robustness. It is the definitive choice for designers developing multi-megawatt wind turbines, heavy-duty industrial drives, and grid-scale energy storage systems where reliability is non-negotiable and performance dictates profitability.
Technical Deep Dive: The Core of Performance
The superior performance of the FZ2400R12HE4_B9 stems from two foundational pillars: advanced semiconductor technology and intelligent package design.
- IGBT4 Trench Field-Stop (TFS) Chip Technology: This is more than just a silicon chip; it's an architecture optimized for high-power switching. The IGBT4 Trench Field-Stop design significantly reduces collector-emitter saturation voltage (Vce(sat)). This directly translates to lower conduction losses, meaning less energy is wasted as heat. For system designers, this enables the use of smaller, more cost-effective heatsinks and improves overall inverter efficiency, a critical factor in renewable energy applications.
- EconoDUAL™ 3 Package with PressFIT Pins: The immense 2400A current capacity requires a package that is both thermally efficient and mechanically sound. The EconoDUAL™ 3 housing provides excellent thermal conductivity to the heatsink. Furthermore, it incorporates PressFIT auxiliary contacts, a solder-free mounting technology that eliminates solder-related defects, streamlines the manufacturing process, and enhances long-term IGBT reliability, especially in environments with high vibration or thermal cycling.
Application Scenarios: Where the FZ2400R12HE4_B9 Excels
This module isn't for every application; it's for those where power and endurance are paramount. Here’s how it solves specific industry challenges:
- Wind Turbine Converters: In multi-megawatt wind turbines, every percentage point of efficiency counts. The low switching and conduction losses of the FZ2400R12HE4_B9 maximize energy harvest. Its robust packaging ensures a long service life, minimizing costly and difficult maintenance operations in offshore or remote installations. Explore our complete line of IGBT for wind power solutions.
- Heavy-Duty Industrial Motor Drives: For large-scale motors in mining, metal processing, or marine propulsion, this module provides the raw power needed for high-torque startups and continuous operation. The integrated NTC thermistor allows for precise temperature monitoring, enabling protective shutdowns and preventing catastrophic failures in critical industrial processes.
- Grid-Scale Energy Storage & STATCOMs: Bi-directional power flow in battery storage systems demands high efficiency to reduce round-trip losses. The module’s high current capability and thermal stability make it ideal for the demanding charge/discharge cycles and for dynamic reactive power compensation in FACTS devices.
Key Technical Parameters
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (Vces) | 1200 V |
| Continuous Collector Current (Ic @ Tc=80°C) | 2400 A |
| Collector-Emitter Saturation Voltage (Vce(sat), typ. @ Ic=2400A, Tvj=125°C) | 2.05 V |
| Maximum Junction Temperature (Tvj max) | 150 °C |
| Package | EconoDUAL™ 3 |
For a complete list of specifications, please refer to the official FZ2400R12HE4_B9 Datasheet.
Industry Insight & Competitive Edge
The push for decarbonization and industrial efficiency has created a market need for power electronics that offer higher power density without sacrificing operational lifetime. The Infineon FZ2400R12HE4_B9 directly addresses this challenge. While newer technologies like SiC are emerging, for applications in the megawatt range, the proven performance, cost-effectiveness, and unparalleled robustness of IGBT4 technology remain the industry standard. This module represents a mature, highly reliable solution that allows engineers to build upon a known foundation of dependable power electronics packaging and silicon performance.
Frequently Asked Questions (FAQ)
- How does the positive temperature coefficient of Vce(sat) benefit my design?The positive temperature coefficient is crucial for paralleling modules. As a module heats up, its on-state resistance slightly increases, naturally forcing current to share with cooler, parallel modules. This inherent self-balancing behavior simplifies the design of high-current inverter legs and prevents thermal runaway in a single device.
- What are the main considerations when driving such a high-current module?Driving a 2400A module requires a robust gate driver with high peak current capability to charge and discharge the gate capacitance quickly, minimizing switching losses. Additionally, a low-inductance busbar design is critical to reduce voltage overshoot (Vce_spike) during turn-off. Careful PCB layout around the gate driver circuit is essential to prevent noise coupling.
To determine if the FZ2400R12HE4_B9 is the right fit for your next high-power project or to explore our full range of IGBT solutions, please Contact Us for a Quote and technical consultation.
