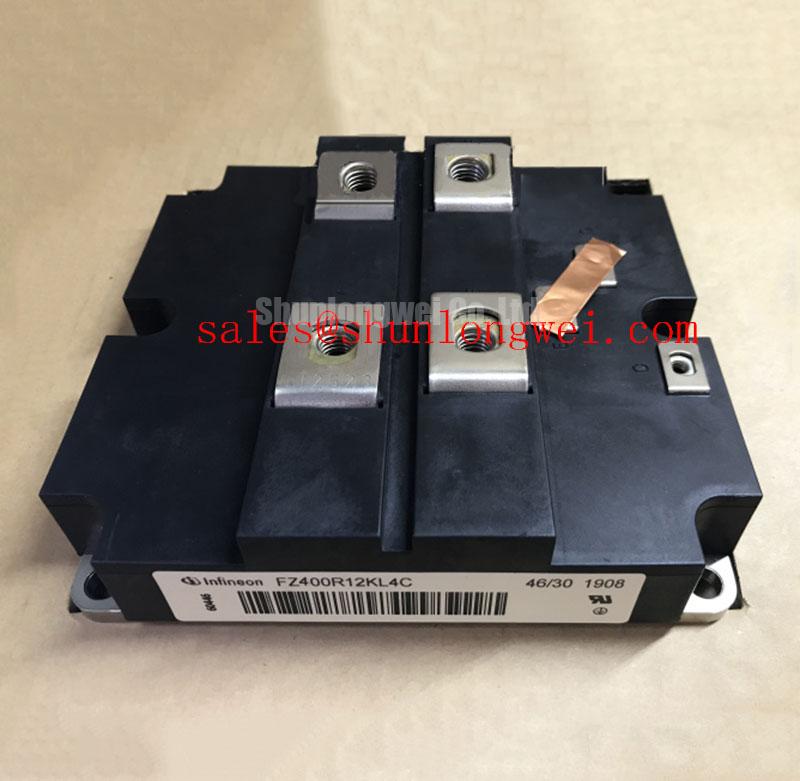

Infineon FZ400R12KL4C IGBT Module: Engineering High-Efficiency Power Switching
Designing high-frequency industrial power systems often requires managing excessive switching dissipation without compromising thermal stability. The FZ400R12KL4C single IGBT module addresses this trade-off by offering optimized dynamic losses and high ruggedness for demanding medium-to-high power topologies.
UVP: The FZ400R12KL4C delivers fast switching speeds and minimized turn-off losses for 1200V/400A high-frequency industrial power conversion applications.
Core Specifications: 1200V VCES | 400A IC nom | Single Switch Topology
- Low Switching Loss: Optimized silicon structure for reduced turn-off energy dissipation in high-speed applications.
- High Thermal Margin: Low thermal resistance substrate ensures stable operation under elevated current loads.
What is the primary benefit of the FZ400R12KL4C in fast power conversion? It minimizes turn-off energy dissipation to maximize overall converter efficiency.
For 1200V high-frequency industrial drives requiring minimal switching losses, this 400A single-switch module is the optimal choice.
Frequently Asked Questions
Addressing Core Engineering and Integration Queries
How does the fast switching design of the FZ400R12KL4C impact gate driver selection?
Because the FZ400R12KL4C is optimized for rapid turn-on and turn-off transitions, the associated gate driver circuit must manage high dV/dt and dI/dt rates cleanly. Implementing a low-inductance gate loop with an active Miller clamp prevents parasitic turn-on and ensures stable high-frequency switching.
How does single-switch configuration benefit high-power topologies?
It simplifies paralleling and custom bridge design for heavy-duty inverters.
Key Parameter Overview
Decoding Specs for High-Frequency Efficiency and Thermal Margin
| Parameter Category | Key Specification | Rated Value / Unit |
|---|---|---|
| Electrical Performance | Collector-Emitter Voltage (VCES) | 1200V |
| Continuous DC Collector Current (IC) | 400A | |
| Repetitive Peak Collector Current (ICRM) | 800A | |
| Thermal & Mechanical | Thermal Resistance, Junction-to-Case (Rth(j-c)) | 0.065 K/W (IGBT) |
| Operating Junction Temperature (Tvj op) | -40°C to +125°C | |
| Configuration & Package | Circuit Topology | Single Switch (1-in-1) |
| Baseplate & Housing | Isolated Copper Baseplate |
Technical & Design Deep Dive
Analyzing Switching Physics and Thermal Dissipation Mechanics
Engineers integrating high-current power semiconductors into industrial converters face substantial thermal management challenges when operating above standard PWM frequencies. In high-power switching circuits, switching energy losses (Eon and Eoff) dominate total device dissipation, directly restricting system power density.
The FZ400R12KL4C integrates fast-switching IGBT chip technology paired with a high-performance free-wheeling diode. By tailored carrier lifetime engineering, this module minimizes tail currents during turn-off. Think of turn-off tail current like a lingering echo in an acoustic chamber; by dampening this electric echo rapidly, the module prevents energy from burning off as unwanted thermal heat during every switching cycle. For additional thermal calculation methodology, see our guide on unlocking IGBT thermal performance.
Additionally, evaluating thermal limits requires analyzing junction-to-case thermal resistance. With an Rth(j-c) rating of 0.065 K/W, heat generated inside the silicon chip rapidly flows across the insulated substrate to the copper baseplate. For more details on system design principles, explore our IGBT design and integration guide.
Application Scenarios & Value
Achieving System-Level Benefits in High-Frequency Power Conversion
In high-power industrial systems such as resonant induction heating equipment and high-power Variable Frequency Drives (VFD), switching efficiency directly governs cooling system size and overall system footprint. Operating at elevated switching frequencies allows engineers to specify smaller passive components, such as filter inductors and capacitors, but requires an IGBT Module with optimized switching characteristics.
Consider an industrial induction heating power supply operating at 15 kHz. Standard 1200V IGBT modules often suffer from excessive switching losses at these frequencies, causing thermal runaway unless output current is severely derated. Implementing the FZ400R12KL4C rated for continuous 400A operation enables thermal headroom maintenance without requiring bulky liquid cooling assemblies, ensuring compliance with strict industrial standards such as IEC 61800-3.
While this 400A single-switch module serves mid-to-high power topologies effectively, systems needing double current handling can utilize the related FZ800R12KL4C with an 800A rating. Alternatively, for standard-frequency motor drives prioritizing lower VCE(sat) over ultra-fast switching, the FZ400R12KE3 provides a trench-gate alternative.
To evaluate engineering requirements for your high-power converter designs, contact our technical sales team for detailed specifications and inventory verification.
