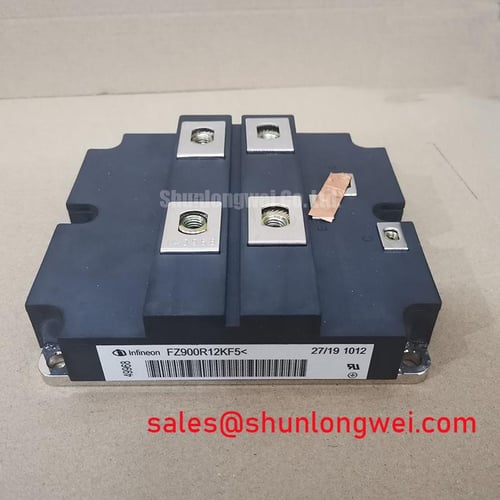

## FZ900R12KF5: Technical Review of a 1200V, 900A High-Power IGBT Module
The FZ900R12KF5 is a high-power single switch IGBT module engineered for demanding power conversion systems. This component integrates Infineon's established technologies to provide a robust solution for high-current applications. Delivering a potent combination of performance and thermal efficiency, it is designed for developers of high-power inverters, motor drives, and power supplies seeking reliable switching characteristics in a standard industrial housing. For systems requiring robust performance in the megawatt class, this 1200V module provides a foundational building block.
###
Key Parameter Overview
#### Decoding the Specs for High-Current Inverter Design
The FZ900R12KF5 is defined by its capacity to manage substantial power loads. Its electrical and thermal characteristics are critical for ensuring both efficiency and long-term operational reliability in demanding industrial environments. The following parameters are central to its application performance.
| Parameter | Value | Engineering Significance |
|---|---|---|
| Collector-Emitter Voltage (Vces) | 1200 V | Provides the necessary voltage headroom for operation in standard 400V, 480V, and up to 690V AC industrial line applications, ensuring a robust safety margin against transient overvoltages. |
| Nominal Collector Current (Ic nom) | 900 A | Indicates the module's high continuous current-carrying capability, making it suitable for high-power motor drives and large-scale inverters. |
| Collector-Emitter Saturation Voltage (VCE(sat)) | Typ. 1.70 V (at Ic=900A, Tvj=25°C) | A low VCE(sat) is crucial for minimizing conduction losses. Think of it as electrical friction; the lower the value, the less energy is wasted as heat while current flows through the device, directly improving overall system efficiency. |
| Total Power Dissipation (Ptot) | 4300 W (at Tc=25°C) | Defines the maximum amount of heat the module can dissipate. This high value, combined with a low thermal resistance, is fundamental to achieving high power density. |
| Thermal Resistance, Junction-to-Case (Rth(j-c)) | Max. 0.027 K/W | This parameter measures how effectively heat can be transferred from the active semiconductor junction to the module's baseplate. A lower value signifies superior heat extraction, a critical factor for reliability under heavy loads. |
| Maximum Junction Temperature (Tvj max) | 150°C | Sets the upper operational limit for the IGBT chip, directly influencing the system's overload capability and required cooling solution. |
For a comprehensive list of specifications, electrical characteristics, and performance graphs, please refer to the official manufacturer documentation. The datasheet for the technically similar FZ900R12KE4 provides detailed technical information.
###
Application Scenarios & Value
#### System-Level Benefits in Industrial Power Conversion
The FZ900R12KF5 IGBT module is engineered as a high-current switch for three-phase power conversion architectures. Its primary value lies in providing a robust and well-characterized component for applications where reliability and thermal performance are paramount. What is the primary benefit of its established IGBT4 technology? It offers a proven balance of low switching and conduction losses, enhancing system efficiency.
This module is a suitable candidate for the inverter stages of various high-power systems, including:
- Industrial Motor Drives: In applications like pumps, fans, conveyors, and compressors, the FZ900R12KF5 can reliably control large induction motors, contributing to energy savings and precise process control.
- Renewable Energy Systems: Its high power rating makes it applicable for the DC/AC inverter stages in central solar inverters and wind turbine converters, where converting DC power to grid-compliant AC is the core function.
- Uninterruptible Power Supplies (UPS): For large-scale data centers and industrial facilities, this module can be used in the inverter section of a double-conversion UPS to ensure a stable and continuous power source.
- Welding Power Supplies: The module's ability to handle high currents and switch effectively is beneficial in high-power welding equipment, enabling precise control over the welding arc.
By utilizing a standard 62mm industrial housing, the FZ900R12KF5 simplifies mechanical design and thermal management, allowing for straightforward integration with standard heatsinks and busbar layouts. For systems demanding even higher current capabilities or different voltage classes, designers may also evaluate components such as the FZ1200R12KF5 for increased current handling at the same voltage rating.
###
Frequently Asked Questions (FAQ)
What is the main advantage of the FZ900R12KF5's single switch topology?The single switch configuration offers maximum design flexibility. It allows engineers to create custom inverter topologies, such as choppers or parallel configurations for higher current output, without being constrained by a fixed half-bridge or three-phase bridge layout.
What gate driver considerations are important for a 900A IGBT module?For a module of this size, a robust gate driver with high peak output current is essential to ensure fast and controlled switching, minimizing switching losses. Features like a Miller Clamp function are highly recommended to prevent parasitic turn-on, and an isolated power supply for the driver is mandatory for safe operation.
How does the maximum junction temperature of 150°C impact system design?While the module can operate up to 150°C, designing with a significant thermal margin is key to long-term reliability. A lower operating junction temperature, achieved through effective Thermal Management, drastically reduces failure rates. The design of the cooling system (heatsink, fan, or liquid cooling) should be based on worst-case load conditions to keep the junction temperature well below this maximum limit.
Is this module suitable for high-frequency switching applications?The FZ900R12KF5 utilizes Infineon's Trench/Fieldstop IGBT4 technology, which is optimized for a balance between low conduction losses (VCE(sat)) and switching losses. While suitable for typical motor drive frequencies (a few kHz), it is not intended for very high-frequency applications (tens of kHz) where switching losses would become dominant. For guidance on selecting devices for high-frequency designs, our article on IGBT selection beyond VCE(sat) offers further insights.
###
Strategic Considerations for System Design
#### Leveraging Proven Technology for Long-Term Performance
Integrating the FZ900R12KF5 into a new design involves leveraging a mature technology platform. The use of IGBT4 and the standard 62mm housing provides a predictable performance baseline and a well-understood integration path. From a strategic perspective, this minimizes design risks associated with newer, less-proven technologies, which can be critical in industrial sectors where product lifecycles are long and field reliability is non-negotiable. The key is to pair this robust hardware with a meticulously designed gate drive and an effective thermal solution to fully realize its performance potential and ensure the system meets its long-term operational goals.
