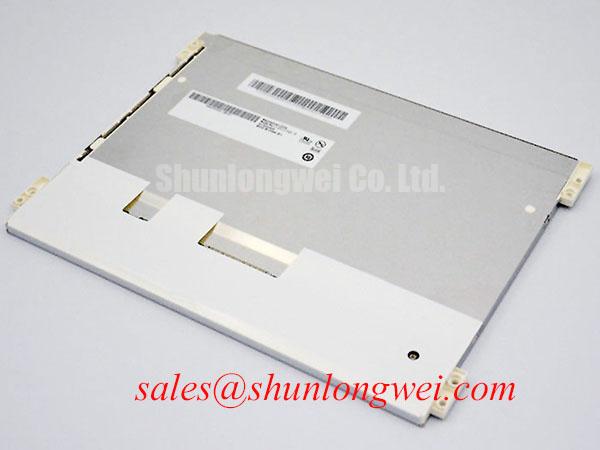

AUO G104XVN01.0 LCD Display

AUO G104XVN01.0: Industrial XGA Display with Extreme Temperature Resilience and 3000:1 Contrast

Delivering Uncompromised Clarity Where Performance is Paramount

The AUO G104XVN01.0 is an industrial-grade 10.4-inch TFT-LCD that fundamentally redefines performance expectations for demanding environments. At its core is AUO's Advanced Multi-domain Vertical Alignment (AMVA3) technology, a sophisticated liquid crystal orientation that solves a classic engineering trade-off. Unlike conventional displays that often sacrifice contrast for wider viewing angles, AMVA3 enables both simultaneously. This technology allows for an exceptionally high 3000:1 contrast ratio, rendering deep, true blacks, while also providing symmetrical 89-degree viewing angles from all directions. For system designers, this translates directly into user interfaces that are unequivocally legible from any standpoint, under a vast range of operational conditions.

Key Specification Framework

The G104XVN01.0 is built on a foundation of robust, industrial-centric specifications designed for long-term deployment and simplified integration.

For complete design and integration details, please Download the Datasheet.

Frequently Asked Engineering Questions

• How does the AMVA3 technology in the G104XVN01.0 differ from standard IPS panels?

  While both offer excellent wide viewing angles, AMVA3 technology provides a significantly higher native contrast ratio—typically 3000:1 for this model compared to the 800:1 or 1000:1 common in industrial IPS panels. This is achieved by aligning liquid crystals vertically to block backlight more effectively in dark states, resulting in deeper blacks and more vibrant colors without compromising the 89-degree symmetrical viewing cone.

• What are the practical implications of the -30°C to +80°C operating range?

  This wide temperature range certifies the display for use in environments without climate control. It guarantees reliable startup and stable performance in applications such as outdoor kiosks, unheated warehouses, agricultural vehicle cabins, and marine bridge systems, where other displays would suffer from slow response times, freezing, or permanent damage.

• What is a "Normally Black" display mode?

  "Normally Black" refers to the default state of the pixels when no voltage is applied. This mode inherently produces a darker, more uniform black level across the screen, which is a key contributor to the display's high contrast ratio. It also means that a failed pixel will appear black rather than bright, which is often less distracting in control and monitoring applications. For a deeper understanding of display technologies, explore The Ultimate Guide to TFT LCD.

Strategic Selection: G104XVN01.0 vs. Alternative Technologies

When selecting a 10.4-inch display, engineers often face a choice between older TN panels, standard IPS panels, and specialized modules like the AUO G104XVN01.0. A standard TN panel may offer a slight cost advantage but comes with severely restricted viewing angles and lower contrast, making it unsuitable for applications where operators are not positioned directly in front of the screen. A typical IPS panel provides wide viewing angles but often at the cost of a lower contrast ratio. The G104XVN01.0 occupies a strategic niche by delivering the superior, symmetrical viewing angles of IPS while providing a contrast ratio that surpasses it by a factor of three, ensuring data is always clear and unambiguous.

Enabling Next-Generation Industrial Interfaces

The feature set of the G104XVN01.0 directly supports key industry trends. In the context of Industry 4.0 and the Industrial Internet of Things (IIoT), machinery and control systems must present complex data with absolute clarity. The display's high contrast and resolution make detailed graphical user interfaces (GUIs), process schematics, and diagnostic data easy to read, reducing operator error and improving efficiency. Its rugged temperature tolerance is critical for the decentralization of control systems, allowing powerful HMIs to be deployed directly onto machinery on the factory floor or in the field, from transportation to energy infrastructure.

Proven Performance in the Field

While specific customer deployments are confidential, the AUO G104XVN01.0 is engineered for scenarios where visual performance cannot be compromised by environmental challenges. Consider its application in a cold chain logistics control panel, mounted on a forklift operating in and out of -25°C freezers. The display must provide instant, legible readouts of inventory data without lag or image degradation. Similarly, in an outdoor ticketing or payment kiosk, the screen must offer excellent readability from various angles for multiple users, while enduring the full heat of direct summer sun without failure.

A Deeper Analysis of Core Performance Metrics

Two specifications of the G104XVN01.0 merit closer examination. The 3000:1 contrast ratio is not merely a number; it's the foundation of visual fidelity. Think of contrast as the signal-to-noise ratio for human vision. A low-contrast display is like trying to have a conversation in a noisy room; details get lost. This display’s high contrast ensures that the faintest gray lines on a CAD drawing or the subtle color shifts in a medical image are clearly rendered. The -30°C to +80°C operating temperature is a testament to its robust physical design. At the low end, the liquid crystal viscosity is managed to prevent freezing and ensure fast pixel response. At the high end, the materials are selected to prevent degradation and blackouts, a common failure point for lesser displays when exposed to high ambient heat. For applications requiring even greater brightness in similar conditions, the G104XCE-L01 can be an excellent alternative to evaluate.

Applications Forged in Environmental Extremes

The unique combination of optical excellence and ruggedness makes the G104XVN01.0 an ideal solution for a specialized set of applications. Its capabilities are best leveraged in:

• Industrial Automation and HMI: Control panels on factory floors with fluctuating temperatures and the need for off-axis readability.
• Marine and Avionic Displays: Bridge control systems and cockpit displays where data must be legible from multiple crew positions.
• Outdoor Kiosks and Digital Signage: Information terminals and ticketing machines in transportation hubs and public venues.
• Medical Diagnostic Equipment: Devices requiring precise grayscale and color representation for accurate analysis.
• Test and Measurement Instruments: Portable and benchtop equipment used in field service and laboratory environments where ambient conditions are not always controlled.

Specify the G104XVN01.0 for Your Next Design

The AUO G104XVN01.0 is more than a display; it is a guarantee of visual performance and operational reliability. By eliminating the compromises between viewing angle, contrast, and environmental resilience, it empowers you to design more effective, durable, and user-friendly industrial systems. Contact our engineering team today to request a quote, secure a sample, or discuss how the G104XVN01.0 can provide the visual backbone for your most demanding applications.
