Innolux G121ICE-L02: A High-Contrast WXGA TFT Display for Demanding Industrial and Medical HMIs
Application Scenarios & Value
Achieving System-Level Benefits in High-Clarity Visual Interfaces

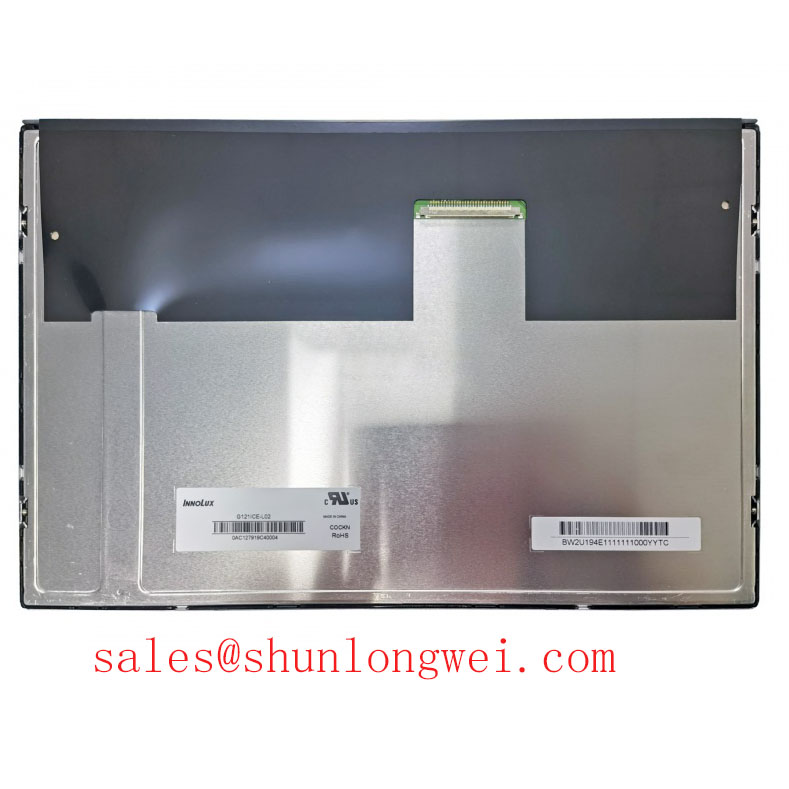

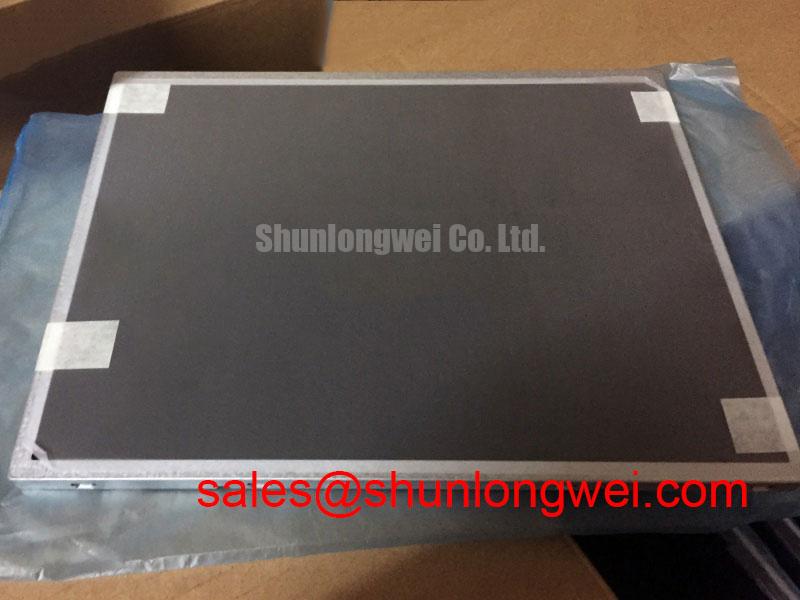

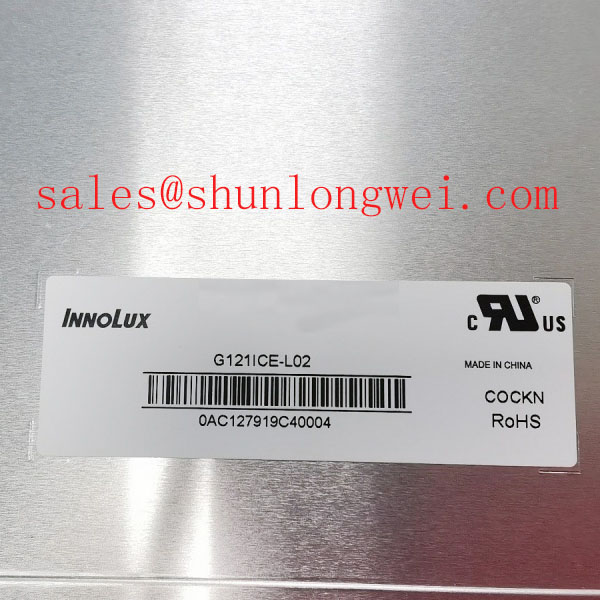

The Innolux G121ICE-L02 is a 12.1-inch TFT-LCD module engineered for applications where visual clarity, color fidelity, and robust performance are non-negotiable. Its combination of WXGA resolution, high contrast, and wide viewing angles makes it an excellent fit for complex Human-Machine Interfaces (HMIs). For systems requiring higher resolution in a similar form factor, the G121EAN01.1 offers a compelling alternative.
A primary engineering challenge in industrial control panels and medical diagnostic equipment is ensuring that critical data is legible from various angles and under different lighting conditions. The G121ICE-L02 directly addresses this with its Azimuthal Anchoring Switch (AAS) technology, providing 89-degree viewing angles in all directions without significant color shift. What is the primary benefit of its AAS technology? Consistent and accurate image reproduction from virtually any viewing position. This is crucial for a medical technician monitoring vital signs or a factory operator overseeing a complex process, where misinterpretation of data can have significant consequences. The panel's 400-nit brightness and anti-glare surface treatment further enhance readability in typical indoor industrial environments, reducing operator eye strain and improving decision-making speed. For applications that demand a more compact display solution with similar wide-viewing characteristics, the G104AGE-L02 presents a viable option.
Key Parameter Overview
Decoding the Specs for Enhanced Visual Performance
The specifications of the G121ICE-L02 are tailored for industrial and medical systems that require long-term operational reliability and superior optical performance. The display's parameters reflect a design philosophy centered on delivering consistent, high-quality visuals. With a 50,000-hour LED backlight lifetime, this display is engineered for longevity in applications that run 24/7. This extended lifespan is a critical factor in reducing the total cost of ownership, as it minimizes the need for costly maintenance and panel replacements over the system's operational life.
| Parameter | Specification | Engineering Value |
|---|---|---|
| Resolution | 1280 x 800 (WXGA) | Provides sharp, detailed imagery suitable for displaying complex GUIs and diagnostic data. |
| Brightness | 400 cd/m² (Typ.) | Ensures clear visibility in standard indoor industrial and medical lighting conditions. |
| Contrast Ratio | 1000:1 (Typ.) | Delivers deep blacks and vibrant colors, enhancing image depth and data legibility. |
| Viewing Angle (U/D/L/R) | 89/89/89/89 degrees (Typ.) | Allows for off-axis viewing without color distortion, crucial for multi-personnel monitoring stations. |
| Technology | a-Si TFT, AAS, Normally Black | Offers superior color performance and wide viewing angles compared to standard TN panels. |
| Operating Temperature | -20°C to +70°C | Guarantees reliable operation in a wide range of industrial environments, from refrigerated areas to factory floors. |
| Backlight Lifetime | 50,000 hours (Typ.) | Reduces maintenance cycles and total cost of ownership for long-life industrial equipment. |
| Interface | LVDS (1 ch, 6/8-bit) | Provides a standard, reliable, and low-noise interface for seamless system integration. |
Download the G121ICE-L02 datasheet for detailed specifications and performance curves.
Frequently Asked Questions (FAQ)
Design Considerations for the G121ICE-L02
How does the 1000:1 contrast ratio impact HMI design for industrial control systems?
A high contrast ratio like 1000:1 is critical for creating highly legible HMIs. It means the difference between the brightest white and the darkest black is significant, which makes text, graphical elements, and alarm indicators stand out sharply. For an engineer designing an interface for a Variable Frequency Drive (VFD) control panel, this allows for the use of subtle color coding and grayscale elements that remain distinct, reducing the cognitive load on the operator and minimizing the chance of error, especially when monitoring multiple parameters simultaneously.
What is the significance of the "Normally Black" AAS technology in this panel?
Normally Black means that in the absence of voltage, the liquid crystals block light from passing through, resulting in a true, deep black screen. This is a key contributor to the display's high contrast ratio. Unlike "Normally White" panels where off-pixels can appear grayish, the G121ICE-L02 provides a superior black state, which is particularly beneficial for applications like medical imaging or dark-themed industrial GUIs where image fidelity is paramount.
Does the integrated LED driver simplify the system design process?
Yes, significantly. The built-in LED backlight driver board simplifies both the mechanical and electrical integration. System designers do not need to source, qualify, and integrate a separate driver board, which saves development time, reduces potential points of failure, and simplifies the power supply design. The system only needs to provide a single voltage rail and control signals to the display module, streamlining the overall architecture.
Can the G121ICE-L02 be used in outdoor applications?
While the G121ICE-L02 features a wide operating temperature range suitable for many demanding indoor environments, its 400-nit brightness is not optimized for direct sunlight readability. For outdoor or high ambient light applications, a display with significantly higher brightness (typically 1000 nits or more) and potentially optical bonding would be required. This display is best suited for controlled-light environments such as factory floors, control rooms, and medical laboratories.
Technical Deep Dive
A Closer Look at the Optical and Thermal Design
The performance of the G121ICE-L02 is rooted in its advanced optical and thermal engineering. The Azimuthal Anchoring Switch (AUO's version is AHVA) technology is a key differentiator. Think of the liquid crystals in a standard display as vertical blinds that twist to let light through. In AAS, the crystals align horizontally and rotate in-plane, similar to sliding doors. This horizontal movement minimizes light leakage from off-angles, which is why the viewing angle is so wide and consistent. This architectural choice is fundamental to its application in collaborative environments where multiple stakeholders need to view the screen simultaneously without color degradation.
From a thermal standpoint, the wide operating temperature of -20°C to +70°C is a testament to its robust design. The ability to function reliably at these temperature extremes is crucial for equipment deployed in non-climate-controlled settings. This thermal resilience is achieved through careful material selection and an efficient LED backlight system that generates minimal waste heat. This reduces the thermal management burden on the end-system, potentially allowing for smaller vents or even fanless designs, which enhances the overall system reliability by eliminating moving parts and reducing the ingress of dust and contaminants.
Strategic Outlook
For engineering and procurement leaders, specifying the G121ICE-L02 is a decision that supports long-term product viability. Its combination of a standard LVDS interface, extended backlight life, and a wide operating temperature range ensures it can be designed into platforms with long production life cycles, typical of the industrial and medical sectors. By selecting a component with such robust fundamentals, companies can de-risk their supply chain and reduce the frequency of costly redesigns often forced by the shorter product cycles of consumer-grade displays.
