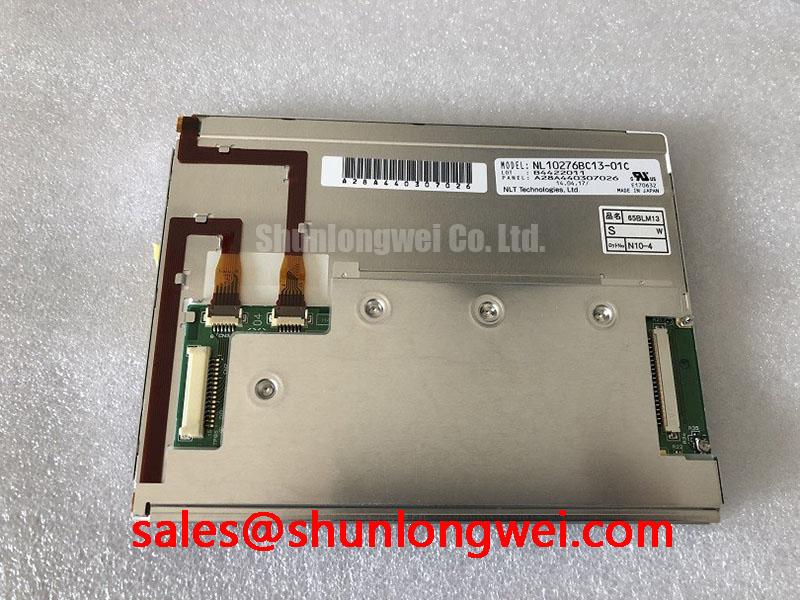

NL10276BC13-01C: 6.5-inch XGA Industrial TFT-LCD Module
Engineered for Visual Clarity and Reliability in Demanding Environments
The NL10276BC13-01C is an industrial-grade 6.5-inch a-Si TFT-LCD engineered for applications demanding high-resolution imaging and steadfast performance in variable conditions. It delivers crisp XGA resolution with high brightness and a wide operational temperature range, ensuring data legibility and component longevity. Key specifications include: 1024x768 XGA Resolution | 650 cd/m² Brightness | -20°C to 70°C Operating Temperature. This module provides exceptional image quality and robust environmental resilience. What enables its performance in bright conditions? The combination of 650 cd/m² luminosity and an anti-reflection surface treatment ensures clear visibility. For industrial HMIs and portable instrumentation requiring a compact, high-ppi display, the NL10276BC13-01C offers a purpose-built solution.
Key Parameter Overview
Decoding the Specs for Environmental and Visual Performance
The technical specifications of the NL10276BC13-01C are optimized for industrial deployment. The high brightness, wide temperature range, and robust physical design are critical parameters for system engineers.
| Parameter | Specification | Engineering Value |
|---|---|---|
| Display Size | 6.5 inches | Compact form factor for portable or space-constrained applications. |
| Resolution | 1024x768 (XGA) | High pixel density (196 PPI) for sharp, detailed GUI and data visualization. |
| Luminance | 650 cd/m² (Typ.) | Ensures screen readability in high ambient light, including indirect sunlight. |
| Contrast Ratio | 500:1 (Typ.) | Delivers clear differentiation between colors and shades for accurate imaging. |
| Operating Temperature | -20°C to 70°C | Guarantees operational reliability in unconditioned indoor and sheltered outdoor environments. |
| Storage Temperature | -30°C to 80°C | High tolerance for non-operational transport and storage conditions. |
| Viewing Angles (L/R/U/D) | 80°/80°/80°/60° (Typ., CR≥10) | Provides consistent image quality from multiple operator perspectives. |
| Interface | LVDS (1 channel, 6/8-bit) | A standard, low-noise interface for straightforward system integration. |
| Backlight | WLED, 16k Hours (Typ.) | Energy-efficient illumination with a long operational lifespan. |
Download the NL10276BC13-01C datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Industrial Control and Instrumentation
For industrial control systems and portable test equipment requiring a crisp, sunlight-readable display, the NL10276BC13-01C is a definitive choice. Its core value lies in delivering high-fidelity visual data reliably, irrespective of challenging environmental factors. Consider the design of a ruggedized diagnostic tablet for agricultural machinery. The operator must be able to read complex schematics and error codes in a field, under direct sun, and in temperatures ranging from cold mornings to hot afternoons. The NL10276BC13-01C's 650 cd/m² brightness and anti-reflection surface directly address the challenge of sunlight washout. Its -20°C to 70°C operating range ensures the display functions without failure, preventing costly downtime. This reliability within a compact XGA panel simplifies the mechanical design of the HMI's enclosure and thermal management system, contributing to a lower total cost of ownership. For systems that may require a different form factor but similar industrial robustness, the NL8060BC31-28e offers a larger 12.1-inch SVGA option.
Frequently Asked Questions (FAQ)
Engineering and Integration Inquiries
What is the primary benefit of the 196 PPI pixel density?
The high pixel per inch (PPI) rating translates to extremely sharp and clear image rendering. For industrial HMIs displaying fine-lined diagrams, small text, or detailed graphical interfaces, this prevents pixelation and ensures that operators can interpret information quickly and accurately without eye strain.
How does the -20°C to 70°C operating temperature range impact system design?
This wide temperature range allows the display to be integrated into systems deployed in environments without climate control, such as factory floors, outdoor kiosks, or vehicle cabins. It reduces the need for auxiliary heating or cooling components dedicated to the display, thereby simplifying the overall system design, lowering power consumption, and improving reliability by minimizing potential points of failure.
Is the WLED backlight user-replaceable?
Yes, the datasheet specifies that the WLED backlight is designed to be replaceable. This is a significant advantage for long-lifecycle industrial equipment. It allows for field or depot-level service to extend the operational life of the host device, which is a critical factor in maximizing return on investment for industrial assets.
Application Vignette
Enhancing Operator Effectiveness in a Portable Inspection Device
Imagine a team of engineers using a portable, handheld device for non-destructive testing (NDT) of infrastructure like bridges or pipelines. This work is often conducted outdoors, where ambient light and temperature are uncontrolled variables. The central challenge is ensuring the device's display remains consistently legible to prevent misinterpretation of critical flaw-detection data.
The NL10276BC13-01C is engineered for precisely this scenario. Its 650 cd/m² brightness cuts through ambient glare, allowing technicians to clearly view ultrasonic or eddy-current scan results. The anti-reflection polarizer further minimizes specular reflections that could obscure the screen. This optical performance is mission-critical; a misread could have severe safety implications. Furthermore, the device might be left in a service vehicle where temperatures can plummet below freezing or soar in the summer. The module's -30°C to 80°C storage and -20°C to 70°C operating ranges mean the device is ready for immediate use without pre-conditioning, improving team efficiency. By integrating the NL10276BC13-01C, designers of such portable test equipment can deliver a tool that provides unwavering visual performance, enhancing data integrity and operational uptime in the field.
From a strategic standpoint, integrating a component like the NL10276BC13-01C enhances the market value of an end-product by embedding reliability at the core of the human-machine interface. For OEMs producing equipment intended for long service lives in harsh settings, selecting a display with proven environmental resilience is a direct investment in brand reputation and customer satisfaction. It shifts the conversation from component cost to the total cost of ownership, where durability and consistent performance deliver superior long-term value.
