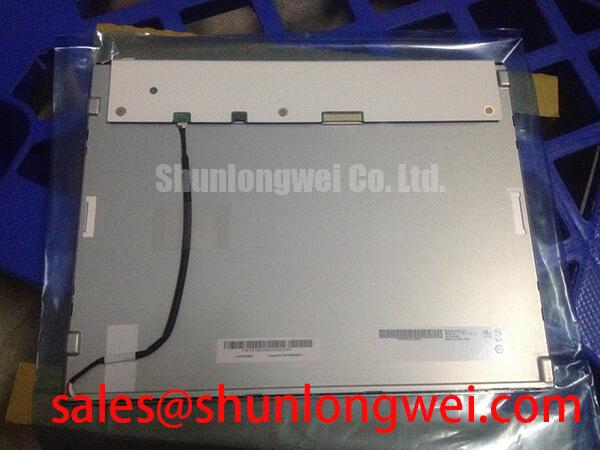

G150XTN03.5 AUO 15.0 inch 1024 x 768 LVDS LCD Display

Evaluate the AUO G150XTN03.5 15.0 inch LVDS LCD for AGV and forklift telematics repairs. Check 1024 x 768 timing, mounting, and compatibility.

· Categories: LCD Display
· Manufacturer: AUO
· Price: US$ 105 In-Stock Offer
· Date Code: Please Verify on Quote
. Available Qty: 189
MOQ: 1 PC
Express Shipping
90-Day Warranty
1-2 Days Lead Time
100% Tested
Whatsapp: 0086 189 2465 1869

Content last revised on November 21, 2026

Grayscale Inversion Mitigation & Optimal Viewing Direction Alignment

The G150XTN03.5 is a TFT-LCD Active Matrix Color Display Module for industrial display integration. Its supplied official specification baseline identifies Manufacturer: AUO (友达光电); Part Number: G150XTN03.5; Diagonal Size: 15.0 inch; Resolution: 1024 x 768; and Interface: LVDS. These specifications establish the basic selection envelope, not electrical or mechanical interchangeability with another panel.

Display a grayscale staircase and inspect it from the intended mounting angle before adjusting brightness or gamma. Design Consideration: in a normally white TN implementation, off-axis grayscale reversal depends on viewing direction; increasing backlight output does not correct that angular behavior. This is a general evaluation concern, not a verified optical-mode specification for this model. Symmetric viewing performance associated with other panel technologies must not be assigned to the G150XTN03.5 without supporting optical specifications.

Separate angular effects from signal-mapping errors by repeating the test at a fixed viewing position. Incorrect LVDS bit mapping can distort colors and grayscale ordering, while unsuitable gamma settings can compress shadow or highlight detail. Compare the host transmitter configuration with the panel’s required data format, including JEIDA/VESA mapping where applicable. Gamma changes should follow interface verification rather than compensate for an incorrectly configured link.

Engineering Recommendation: assess the complete signal path from the host timing generator through the LVDS transmitter and cable to the panel receiver. TTL-side setup and hold requirements, where a host-side conversion stage exists, are distinct from differential LVDS timing. Evaluate clock jitter, data-to-clock alignment, and receiver timing margin across the equipment’s intended operating conditions. Corruption that appears during servo switching warrants correlated waveform measurements, not an immediate diagnosis of panel failure.

Pro Tip: Preserve differential-pair balance and continuous return paths through the cable transition, then verify timing margin at the receiving interface rather than relying on matched trace lengths alone.

Inspect readability with the actual protective window installed. Surface reflections and off-axis contrast can interact, but neither confirms an anti-glare treatment or sunlight-readability rating for this panel.

Constant Luminance Output Control & L70/B50 LED Lifetime Assessment

Measure screen luminance after thermal stabilization while holding the displayed pattern, viewing geometry, and dimming command constant. Design Consideration: a constant electrical drive command does not establish constant optical output because emitter temperature, driver behavior, and optical transmission also influence measured brightness. Identify the panel’s backlight interface before connecting a replacement driver or changing its control method.

For an LED backlight system, inspect current regulation and dimming behavior together. A fluctuating image can reflect interactions between dimming, camera exposure, or electrical interference rather than deterioration of the light source. Assess edge temperatures in the assembled enclosure, and evaluate chassis heat spreading without imposing pressure on the display stack. Heat-spreader dimensions and contact arrangements belong to the enclosure’s thermal design, not a generic panel installation prescription.

L70 describes lumen maintenance to a specified proportion of initial output; B50 describes a population percentile associated with the stated criterion. Neither term alone establishes a panel’s service life, and L70 is not a half-brightness endpoint. Any lifetime claim needs its associated temperature, drive conditions, test method, and manufacturer evidence. Likewise, perceived contrast under ambient illumination requires measurements of the complete display assembly rather than inference from backlight brightness.

For replacement screening, the G150XG03-V0 can be included as a comparison candidate, not treated as an approved substitute. The following matrix distinguishes established G150XTN03.5 parameters from compatibility checks that require model-specific documentation.

Selection item G150XTN03.5 G150XG03-V0 comparison requirement
Diagonal Size 15.0 inch Consult datasheet for candidate specifications and interface details
Resolution 1024 x 768 Match native raster and supported timing
Interface LVDS Compare connector, pin assignment, mapping, and timing
Mechanical integration Verify against the model drawing Compare outline, mounting points, and connector clearance

The G156XW01 V3 is a separate display reference when reviewing controller and backlight-driver arrangements; it is not a companion driver or a presumed interchangeable panel.

Evaluating Frame Lag & Image Smearing in Cold Storage & Outdoor Industrial Facilities

Compare a moving edge with a static test pattern at the same temperature to distinguish motion-response limitations from persistent image defects. Design Consideration: liquid-crystal response generally slows as temperature falls, but the magnitude depends on the panel and transition being measured. This physical behavior does not establish a low-temperature operating qualification for the G150XTN03.5.

When motion appears delayed, compare the host’s rendered output with the panel image before altering display timing. Application buffering, controller processing, link instability, and pixel response can produce different forms of apparent lag. A repeated transition test helps separate inconsistent frame delivery from repeatable optical settling. Gray-to-gray measurements should identify the transitions tested rather than reduce every motion artifact to one response-time figure.

Keep host gamma settings controlled during thermal evaluation. If grayscale tracking changes, check externally accessible supplies and controller settings against the approved configuration before considering panel-internal faults. Modifying timing-controller gamma references without the relevant circuit documentation can obscure the original symptom.

For potential AGV or forklift telematics integration, designers should evaluate viewing position, enclosure temperature, vibration exposure, and ambient readability as equipment-level requirements. Environmental testing should follow the panel’s documented limits and the assembly qualification plan. The broader article A Clear Advantage for Industrial Displays provides display-technology context, not model-specific reliability or qualification evidence.

Flush-Mount Open-Frame Bezel Integration & Perimeter Gasket Shock Isolation

Check the bezel aperture, mounting datums, and cable clearance against the panel drawing before tightening the assembly. Design Consideration: a matching diagonal does not establish matching outside dimensions or fastening geometry. The enclosure should support the designated mounting features without transferring bezel preload into the active display area.

Evaluate gasket compression as part of the complete tolerance stack. Excessive or uneven restraint can introduce optical nonuniformity, while insufficient restraint can allow movement under equipment vibration. Select the fastening sequence and torque from the applicable mounting documentation and chassis validation; a generic screw-size torque value is not a G150XTN03.5 mounting specification.

Inspect uniform dark and mid-gray images before and after assembly under repeatable conditions. If nonuniformity changes with installation, investigate bezel contact, mounting alignment, gasket loading, and cable force before attributing it to an internal optical defect. Repeat the check after enclosure stabilization to capture thermally induced mechanical loading.

Route the LVDS harness away from high-current switching conductors where practicable, maintaining the intended shielding and chassis bonding arrangement. Validate image stability during representative equipment switching activity; module selection alone does not establish system EMC compliance. Finish the fit check by confirming that connector retention, service access, and cable strain relief remain effective with the enclosure fully closed.
