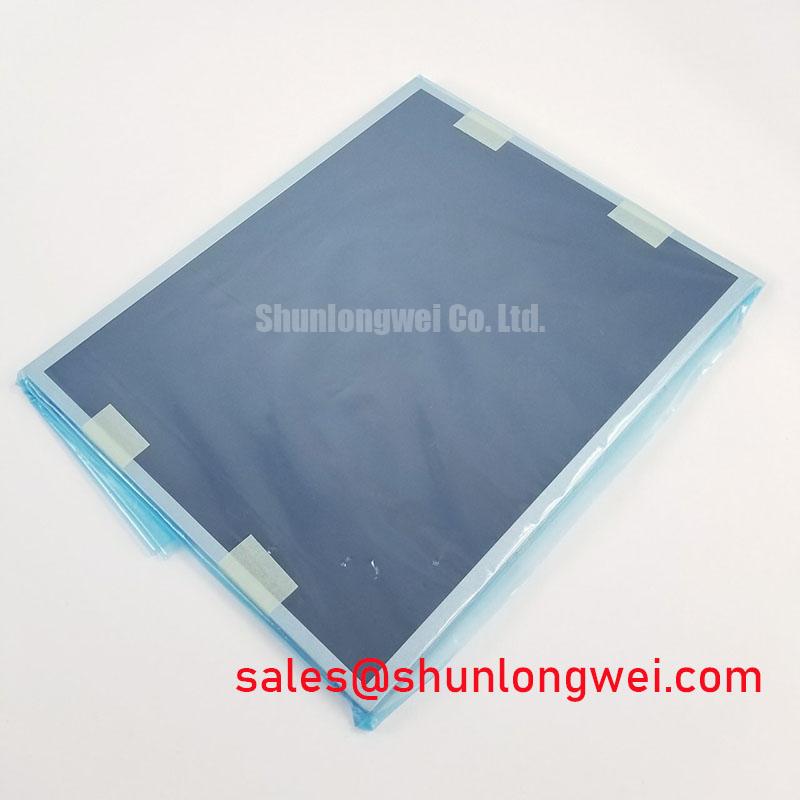

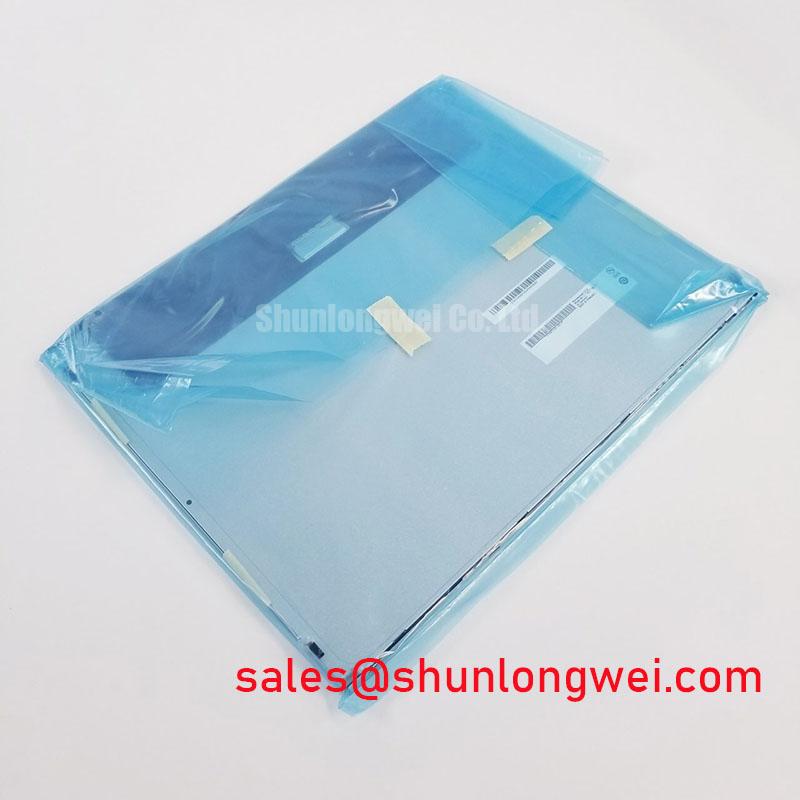

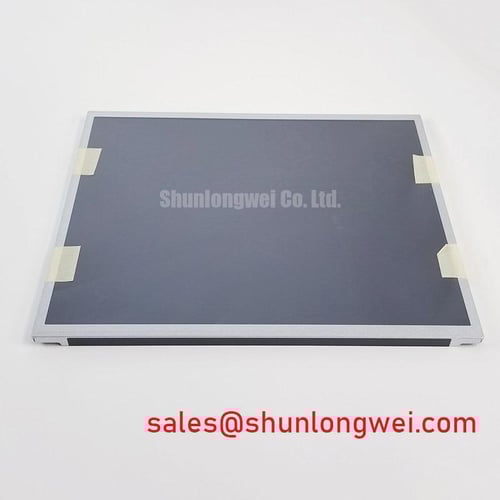

Auo G170ETN02.1 LCD Display

AUO G170ETN02.1: High-Brightness 17.0" SXGA Display for Demanding Industrial Environments

Introduction to a Robust Industrial Display Solution

Delivering Uncompromised Visuals Under Extreme Conditions

Engineered for performance in challenging settings, the AUO G170ETN02.1 is a 17.0-inch TFT-LCD module delivering exceptional clarity and operational resilience. This display provides a powerful combination of high brightness and an extremely wide operating temperature range, making it a premier choice for systems that cannot afford downtime. With its 1280x1024 SXGA resolution | 800 cd/m² brightness | -30 to +85°C operating temperature, it ensures superior readability and reliable performance. This addresses the critical need for displays that remain functional and clear in outdoor kiosks or unheated industrial sheds. For applications requiring a different form factor but similar environmental resilience, the G150XNE-L01 offers a 15.0-inch alternative.

Key Parameter Overview

Decoding the Specifications for System Integration

The G170ETN02.1 is defined by a set of specifications that underscore its suitability for industrial-grade applications. The combination of its optical performance and mechanical durability provides a solid foundation for building reliable and long-lasting Human-Machine Interfaces (HMIs).

Download the G170ETN02.1 datasheet for detailed specifications and performance curves.

Application Scenarios & Value

System-Level Benefits in High-Ambient Light and Extreme Temperatures

The G170ETN02.1 is engineered to solve specific challenges faced by designers of outdoor and industrial equipment. Its high brightness of 800 nits directly counters the visual washout effect of direct sunlight, ensuring that critical information displayed on an outdoor payment terminal, gas pump, or public transit information system remains legible. What is the primary benefit of its wide temperature range? It eliminates the need for costly and complex external heating or cooling systems in many deployments.

Consider the design of a control panel for heavy machinery on a construction site. This environment exposes the equipment to freezing pre-dawn temperatures and the intense heat of midday. The G170ETN02.1's -30 to +85°C operating range ensures the display starts up reliably in the cold and operates without failure in the heat, a critical factor for maintaining operational uptime and safety. This resilience, combined with its anti-glare surface and robust mechanical design featuring side mounting holes, simplifies integration into ruggedized enclosures common in industrial automation, marine, and transportation sectors. For systems that may require a slightly larger display with comparable features, the G190ETN01.4 presents a viable alternative.

Frequently Asked Questions (FAQ)

What makes the G170ETN02.1 suitable for outdoor applications?

Its key features for outdoor use are a high brightness of 800 cd/m² for sunlight readability and a very wide operating temperature range of -30 to +85°C, ensuring performance in various climates without additional thermal management. It also features an anti-glare surface treatment.

How does the 50,000-hour backlight lifetime impact the total cost of ownership (TCO)?

A 50,000-hour minimum WLED backlight lifetime translates to over 5.7 years of continuous 24/7 operation. This longevity significantly reduces maintenance frequency and replacement costs, lowering the total cost of ownership, which is a critical consideration for industrial and commercial deployments where servicing can be difficult or expensive.

Is an external backlight driver required for this display?

Yes, the datasheet specifies that the integral WLED backlight system is provided without a backlight driver. System designers will need to integrate a separate, appropriate driver to power the backlight, allowing for more flexibility in controlling brightness and power consumption.

What is the significance of the 1.5G vibration resistance?

The 1.5G vibration rating indicates a high level of mechanical stability. This is crucial for applications where the display is mounted on moving vehicles (e.g., in-cab displays for construction or agricultural machinery) or subject to vibrations from nearby industrial equipment, ensuring reliability and preventing premature failure.

Does the TN panel technology affect viewing angles?

While TN (Twisted Nematic) panels traditionally have narrower viewing angles than IPS technology, the G170ETN02.1 is specified with respectable viewing angles of 80°/80° horizontally and 70°/70° vertically (CR≥10). This is generally sufficient for fixed-mount industrial control panels where the operator is positioned directly in front of the screen.

Engineering Perspective

A Strategic Component for Reliable Human-Machine Interfaces

From an engineering standpoint, the AUO G170ETN02.1 represents a design choice centered on operational dependability. The wide temperature tolerance is not just a specification; it is a design enabler that simplifies the thermal architecture of the end product. The use of a standard LVDS interface ensures broad compatibility with industrial motherboards and single-board computers, streamlining development. This display is not intended for applications where color-critical accuracy is paramount, but for environments where durability, consistent performance, and long-term readability are the primary engineering objectives. Its feature set is deliberately focused on delivering core functionality without failure in settings that would incapacitate consumer-grade displays.
