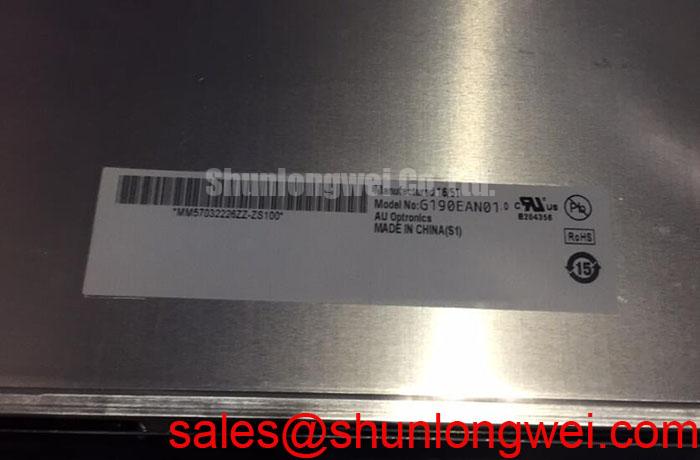

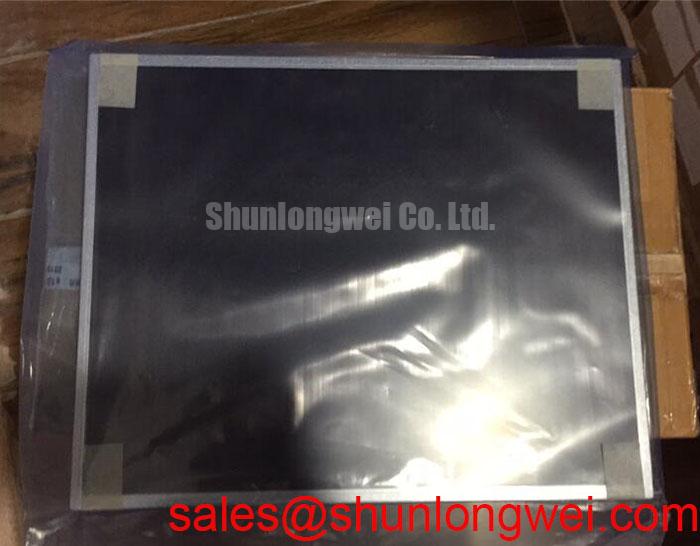

AUO G190EAN01.0 | High-Clarity Industrial Display with AHVA Wide-Angle Technology
The AUO G190EAN01.0 is an industrial-grade 19.0-inch TFT-LCD panel engineered for applications where visual precision, reliability, and off-axis readability are non-negotiable. It combines a classic 5:4 aspect ratio with AUO's advanced display technology to deliver superior performance for legacy system upgrades and new designs in demanding environments.
Engineered for Visual Performance and Durability
At the core of the G190EAN01.0's performance is a carefully selected feature set designed to solve common challenges in industrial and professional settings. This panel is not just a screen; it's a critical component for accurate data interpretation and long-term operational stability.
- Superior Viewing Angles: Utilizes AUO's Advanced Hyper-Viewing Angle (AHVA) technology to ensure consistent color and brightness from any perspective.
- Classic Form Factor: Features a 1280x1024 SXGA resolution in a 5:4 aspect ratio, making it an ideal drop-in replacement for older industrial HMIs, ATMs, and medical monitors.
- High Color Fidelity: Renders 16.7 million colors with a 72% NTSC color gamut, providing the accuracy needed for detailed graphical interfaces and diagnostic imaging.
- Robust Industrial Design: Built by AUO to withstand the rigors of continuous operation, featuring an anti-glare surface treatment to minimize reflections in variable lighting conditions.
Technical Deep Dive: The Engineering Advantage
Advanced Hyper-Viewing Angle (AHVA) Technology
The standout feature of the G190EAN01.0 is its AHVA panel, AUO's proprietary technology analogous to IPS (In-Plane Switching). Unlike standard TN (Twisted Nematic) panels that suffer from significant color shift when viewed off-center, AHVA maintains color and contrast integrity across extremely wide viewing angles (89°/89°/89°/89°). For engineers, this translates directly to enhanced usability. In a control room or at a medical station, multiple operators can view the screen simultaneously from different positions without misinterpreting data, a critical factor for safety and efficiency.
The Strategic Value of the 5:4 Aspect Ratio
While the consumer market has standardized on widescreen formats, many critical industrial and transactional applications are optimized for the 5:4 aspect ratio. Legacy HMI software, ATM user interfaces, and certain types of medical imaging equipment are designed for the SXGA resolution. The G190EAN01.0 provides a modern, high-performance solution that eliminates the need for costly software redesign or awkward letterboxing, offering a seamless and efficient upgrade path for existing systems. To learn more about the fundamentals, explore The Ultimate Guide to TFT-LCD.
Application-Specific Value of the G190EAN01.0
- Industrial Automation & HMI: The panel's robust construction and anti-glare surface make it perfect for factory floor environments. The wide viewing angles ensure that machine status and process data are clearly visible to operators and supervisors on the move.
- Medical Displays: In non-diagnostic medical applications like patient monitoring or equipment interfaces, the G190EAN01.0's color accuracy and consistent off-axis viewing are crucial for healthcare professionals to make quick, informed decisions.
- Public Kiosks, ATMs & Ticketing Systems: The 5:4 form factor is a natural fit for vertical user interfaces. The display's high contrast and reliable WLED backlight ensure clear readability and long operational life, reducing maintenance cycles.
Key Technical Specifications
The following table provides a quick reference for the G190EAN01.0's core parameters. For a comprehensive list, you can download the full G190EAN01.0 datasheet.
| Parameter | Value |
|---|---|
| Manufacturer | AUO |
| Model | G190EAN01.0 |
| Screen Size | 19.0 inch |
| Resolution | 1280(RGB)×1024, SXGA, 5:4 |
| Display Technology | a-Si TFT-LCD, AHVA, Normally Black |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 1000:1 (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Interface | LVDS (2 ch, 8-bit), 30 pins |
| Operating Temperature | 0 ~ 50 °C |
| Backlight | WLED |
Frequently Asked Questions (FAQ)
1. Is the G190EAN01.0 a suitable replacement for older 19" 5:4 CCFL displays?
Absolutely. The G190EAN01.0 is an excellent upgrade. Its WLED backlight offers higher energy efficiency, a longer lifespan, and more stable brightness over time compared to older CCFL technology. The standard LVDS interface and matching resolution ensure high compatibility for a straightforward integration process.
2. Why is an LVDS interface used?
The LVDS (Low-Voltage Differential Signaling) interface is an industry standard for industrial LCD displays because it offers excellent noise immunity, which is crucial in electrically noisy industrial environments. It allows for reliable, high-speed data transmission between the display controller and the panel over longer distances than older TTL interfaces, simplifying system design.
For detailed integration support or to discuss your specific application needs, please contact our technical team for expert guidance.
