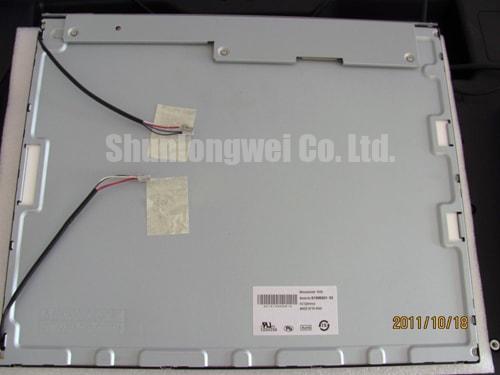

G190EG01 V2: 19.0-inch SXGA Industrial LCD for Demanding Visual Applications
Introduction to the G190EG01 V2 Display
The AUO G190EG01 V2 is a 19.0-inch a-Si TFT-LCD module engineered for exceptional visual performance and resilience in demanding industrial applications. It delivers sharp, consistent imagery through its SXGA resolution and wide viewing angles, providing a dependable HMI solution. Key specifications include: 1280x1024 Resolution | 350 cd/m² Brightness | 0 to 50°C Operating Temperature. This display offers significant benefits such as a long-life WLED backlight and high contrast for superior readability. For engineers looking for a robust display for industrial PCs or control panels, the G190EG01 V2's standard 5:4 aspect ratio and LVDS interface ensure straightforward system integration. With its 50,000-hour backlight lifetime and integrated LED driver, this display is an optimal choice for systems where long-term reliability and low maintenance are paramount.
Application Scenarios & Value
Delivering System-Level Benefits in Industrial and Medical Environments
The G190EG01 V2 is engineered for integration into systems where visual clarity and operational uptime are non-negotiable. Its technical attributes translate directly into value for specific, challenging applications. For an Industrial HMI on a factory floor, the display's excellent viewing angles of 85/85/80/80 mean operators can accurately read critical process data from various off-axis positions, reducing the potential for error. The 1000:1 contrast ratio, combined with a 350-nit brightness and an anti-glare surface, ensures that graphics and text remain sharp and legible even under the harsh, mixed lighting conditions typical of industrial settings. This is a critical factor explored in guides on TFT-LCD technology.
In medical imaging or diagnostic equipment, the 16.7M color depth and SXGA resolution provide the detail and color fidelity necessary for accurate analysis. The integrated WLED backlight system with a 50,000-hour lifespan significantly reduces maintenance requirements and total cost of ownership, a key consideration for long-lifecycle equipment. While the G190EG01 V2 is ideal for standard SXGA applications, for systems that require higher resolution and a larger screen size for more complex data visualization, the G215HAN01.0 offers a Full HD alternative.
Key Parameter Overview
Highlighted Specifications for System Integration
The following parameters are essential for system design and integration. The specifications are based on the official product data, highlighting the key performance indicators that define the G190EG01 V2's capabilities in its target applications.
| Parameter | Specification | Engineering Value |
| Screen Size | 19.0 inch | Large active area suitable for complex graphical user interfaces. |
| Resolution | 1280(RGB)×1024 (SXGA) | Delivers sharp, detailed images; ideal 5:4 aspect ratio for legacy industrial software. |
| Brightness | 350 cd/m² (Typ.) | Provides clear visibility in typical indoor industrial and commercial environments. |
| Viewing Angle (L/R/U/D) | 85/85/80/80 (Typ.) | Ensures color and contrast consistency from wide viewing positions. |
| Contrast Ratio | 1000:1 (Typ.) | Deep blacks and bright whites for excellent image depth and readability. |
| Operating Temperature | 0 ~ 50 °C | Reliable performance in controlled industrial and commercial settings. |
| Backlight Lifetime | 50,000 hours (Min.) | Reduces maintenance overhead and enhances long-term system reliability. |
| Signal Interface | LVDS (2 ch, 8-bit) | A robust, standard interface that simplifies integration and ensures signal integrity. |
Download the G190EG01 V2 datasheet for detailed specifications and performance curves.
Industry Insights & Strategic Advantage
Meeting the Demand for Durable, Long-Life Displays in Core Industries
The trend towards smarter, more connected industrial automation places immense pressure on the reliability of core components like the Human-Machine Interface (HMI). The G190EG01 V2 directly addresses this by providing a display solution built on proven AUO technology, prioritizing stability and longevity over cutting-edge but unproven features. Its use of an a-Si TFT substrate and a standard WLED backlight system represents a commitment to mature, predictable technology. For OEMs and system integrators, this translates to a lower-risk component choice that contributes to the overall robustness of the final product, whether it's a CNC machine controller, a medical diagnostic station, or an ATM.
The display's 50,000-hour backlight rating is not just a number; it's a strategic advantage. It corresponds to over 5.7 years of continuous 24/7 operation. This longevity is crucial in industries where equipment is expected to have a service life of a decade or more. Choosing a display like the G190EG01 V2 helps ensure that the visual interface will not be the life-limiting component of the system, aligning with the broader industry goal of maximizing asset uptime and minimizing total cost of ownership. This philosophy is central to understanding the difference between industrial and consumer displays.
Frequently Asked Questions (FAQ)
What is the primary benefit of the G190EG01 V2's 1000:1 contrast ratio in an industrial setting?
A high contrast ratio is crucial for legibility. Think of it as the difference between reading light grey text on a white background versus black text. The 1000:1 ratio ensures that text, data, and UI elements are sharply defined and easy to read, even in environments with high ambient light, reducing operator fatigue and potential errors.
How does the integrated LED driver simplify system design?
The inclusion of an integrated LED driver means that designers do not need to source, qualify, and integrate a separate controller board to power the backlight. This simplifies the electrical design, reduces the component count and potential points of failure, and streamlines the supply chain for the overall system.
Is the G190EG01 V2 suitable for a 19-inch industrial PC upgrade or replacement?
Yes, its standard 19.0-inch size, SXGA (1280x1024) resolution, 5:4 aspect ratio, and LVDS interface make it a strong candidate for replacing or upgrading displays in many existing industrial PCs and panel-mount systems that utilize these common specifications.
What does the 50,000-hour backlight lifetime mean in practical terms for total cost of ownership (TCO)?
A 50,000-hour lifetime equates to approximately 5.7 years of continuous 24/7 operation. This long operational life minimizes the need for costly maintenance cycles and panel replacements, directly lowering the total cost of ownership over the equipment's lifespan, which is a critical metric for industrial and commercial deployments.
The G190EG01 V2 stands as a strategic component for long-lifecycle industrial systems. Its design prioritizes reliability and visual consistency, ensuring that it provides a stable and clear human-machine interface that enhances system value and minimizes long-term operational costs.
