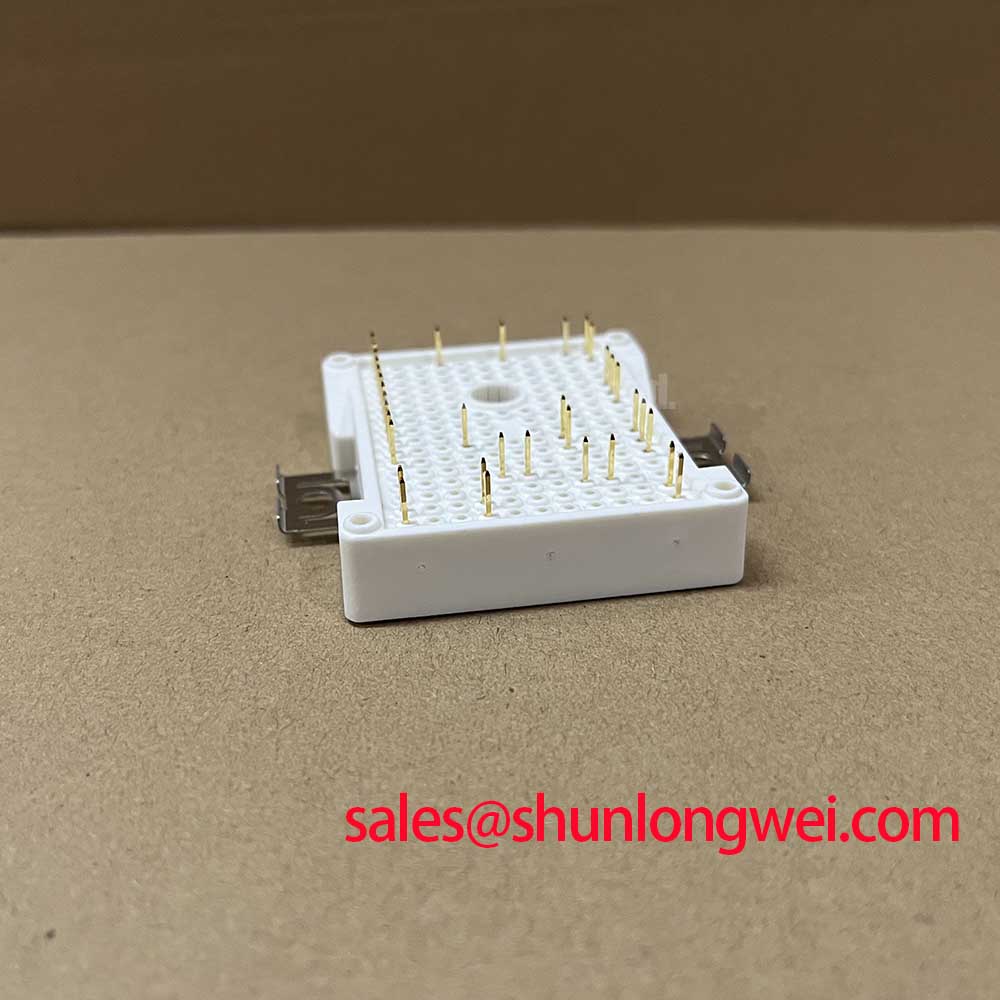

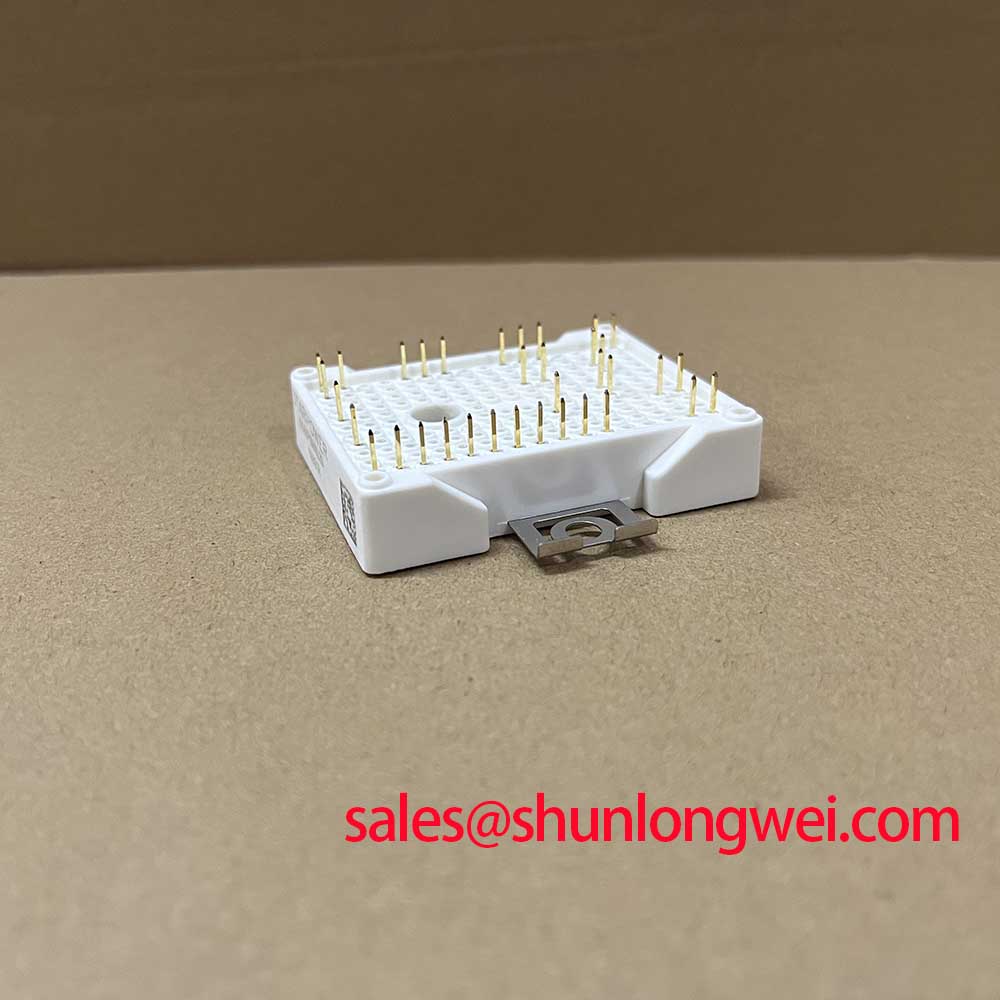

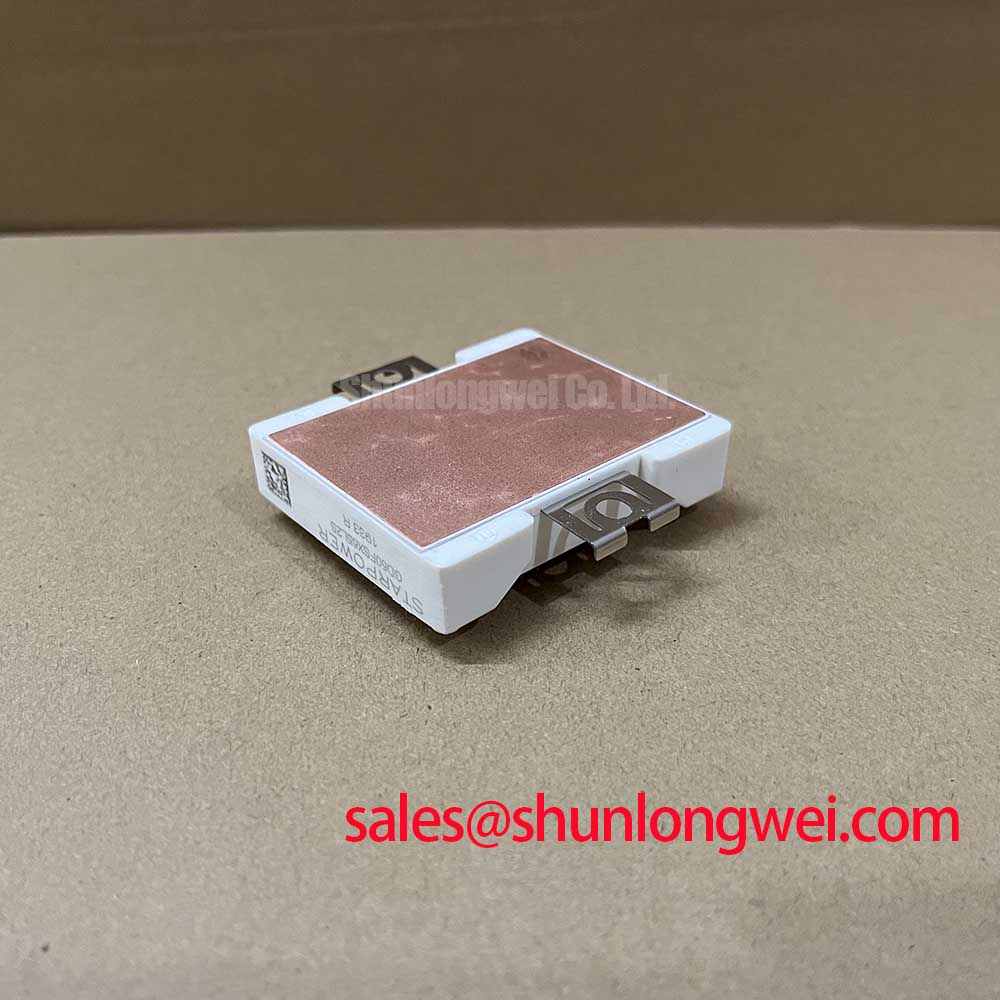

StarPower GD50FSX65L2S | Advanced 3-Level T-Type IGBT for High-Efficiency Power Conversion
The StarPower GD50FSX65L2S is a highly integrated 650V/50A power module engineered to meet the growing demand for superior efficiency and power density in modern power conversion systems. Leveraging an advanced 3-level T-type inverter topology, this IGBT module is specifically designed for demanding applications such as high-performance solar inverters, uninterruptible power supplies (UPS), and sophisticated industrial motor drives. For engineers pushing the boundaries of system performance, the GD50FSX65L2S offers a tangible advantage in reducing losses and improving output quality.
Technical Deep Dive: The 3-Level T-Type Advantage
Unlike conventional 2-level inverters, the GD50FSX65L2S is built on a 3-level T-type neutral-point-clamped (NPC) topology. This architecture is the cornerstone of its performance, delivering two primary benefits:
- Dramatically Reduced Switching Losses: In a T-type configuration, the fast-switching outer IGBTs (S1, S4) only block half of the DC-link voltage. This fundamental difference means switching losses (Eon, Eoff) are significantly lower compared to a 2-level module operating at the same frequency. This directly translates to higher system efficiency, reduced heatsink requirements, and the potential for increased switching frequencies.
- Superior Output Waveform Quality: The module generates a 3-level voltage output (+Vdc/2, 0, -Vdc/2), which results in a smoother, stepped approximation of a sine wave. This reduces the total harmonic distortion (THD) and minimizes output voltage ripple. For system designers, this means smaller, lighter, and less expensive output filter components are required, simplifying the overall design and reducing bill-of-materials (BOM) costs.
Application-Specific Value in Demanding Systems
The theoretical benefits of the StarPower GD50FSX65L2S translate into concrete advantages across several key industries:
- Solar Inverters: The high efficiency directly boosts the energy harvest (kWh) and improves the Maximum Power Point Tracking (MPPT) algorithm's effectiveness. The cleaner output waveform and lower EMI signature simplify grid-tie compliance and reduce filter complexity, a critical factor in compact residential and commercial solar systems.
- Uninterruptible Power Supply (UPS): In online double-conversion UPS systems, every percentage point of efficiency counts. The GD50FSX65L2S lowers operating temperatures and energy consumption, leading to a reduced Total Cost of Ownership (TCO) and enhanced reliability for critical data centers and medical equipment.
- Industrial Servo Drives: The ability to operate at higher switching frequencies enables quieter motor operation and faster control loop response. The low-inductance package and soft-recovery diodes of the GD50FSX65L2S ensure stable operation, providing the precise torque control required in CNC machinery and robotics.
Key Technical Specifications at a Glance
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 650V |
| Continuous Collector Current (IC @ Tc=80°C) | 50A |
| Collector-Emitter Saturation Voltage (VCE(sat), typ. @ 50A) | 1.45V (T-type IGBTs S1, S4) |
| Topology | 3-Level T-Type Inverter |
| Internal Components | 4x IGBTs, 4x FRDs, 1x NTC Thermistor |
| [Download Full Datasheet] | |
Selection Advice: 3-Level T-Type vs. Conventional 2-Level IGBT
When should you choose the StarPower GD50FSX65L2S over a standard 2-level IGBT module? The decision hinges on your primary design goals. If your application demands the highest possible efficiency, compact filtering, and low acoustic noise (typically at switching frequencies >10 kHz), the 3-level T-type architecture is the superior choice. While the gate drive design is more complex, the system-level benefits in performance and component reduction often provide a compelling return on investment. For cost-sensitive, lower-frequency applications where simplicity is paramount, a traditional 2-level module may suffice. Explore more advanced power conversion solutions in our full range of IGBT Modules.
By integrating this advanced topology into a robust and thermally efficient package, StarPower provides a powerful tool for next-generation power electronics. To discuss if the GD50FSX65L2S is the right fit for your high-performance inverter design, please Contact Us for a Quote and a detailed technical consultation.
