GD75PGX120C6SN STARPOWER 1200V 75A IGBT PIM Module

Content last revised on February 28, 2026

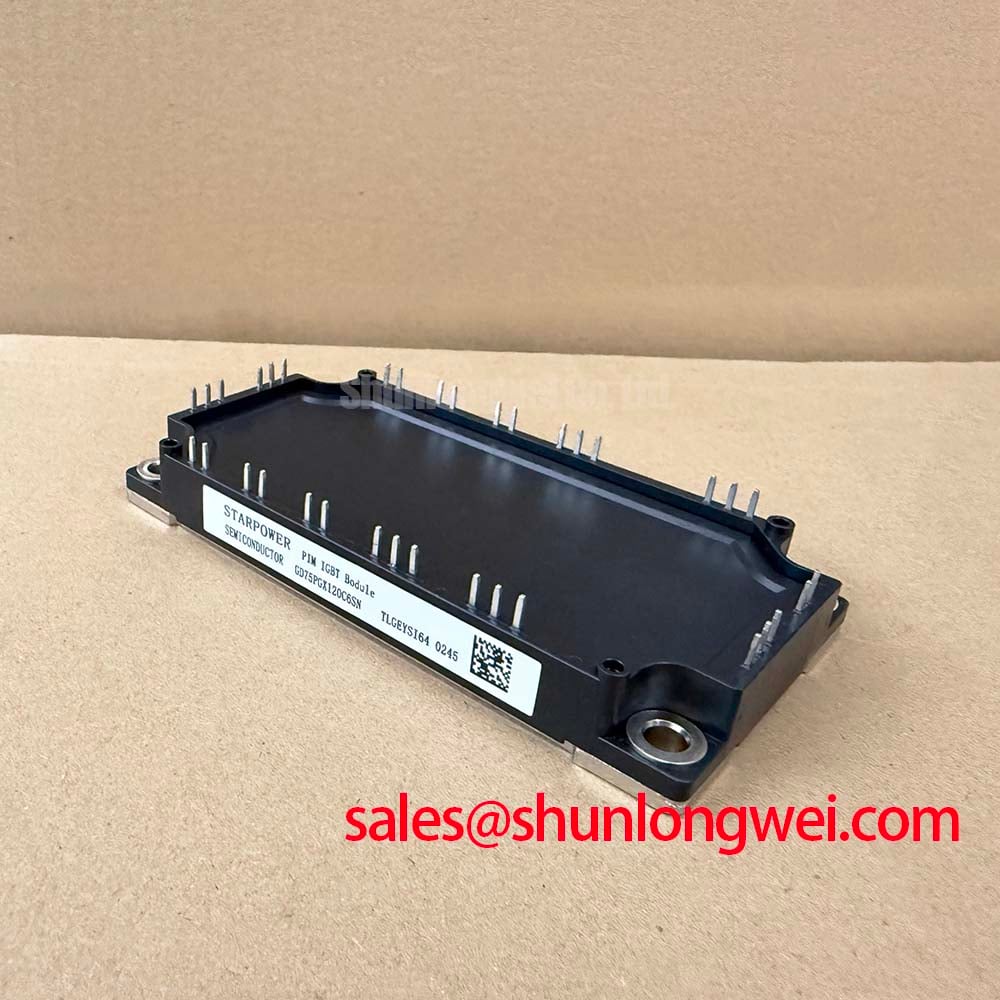

STARPOWER GD75PGX120C6SN IGBT Module: High-Density Power Integration for 1200V Industrial Systems

The GD75PGX120C6SN, a high-performance Power Integrated Module (PIM) from STARPOWER, represents a sophisticated solution for engineers seeking to minimize system footprints without compromising power handling. By integrating a three-phase input rectifier bridge, a three-phase inverter stage, and a dedicated brake chopper into a single package, this module streamlines the design of 1200V variable frequency drives and industrial power supplies.

UVP Statement: This module delivers an optimized PIM architecture that reduces parasitic inductance and assembly complexity in 1200V/75A industrial motor control applications. Its core technical strengths include a Collector-Emitter Voltage (Vces) of 1200V and a Continuous Collector Current (Ic) of 75A at Tc=100°C. Key engineering benefits involve significant PCB space savings and simplified thermal management through an integrated NTC thermistor. What is the primary benefit of its integrated PIM design? It significantly reduces system-level parasitic inductance while simplifying the BOM for compact inverter stages. For industrial motor drives prioritizing high power density and 1200V insulation, the GD75PGX120C6SN offers an optimal balance of integration and switching efficiency.

Application Scenarios & Value

Achieving System-Level Efficiency in Compact Motor Drive Architectures

In the realm of Industrial Automation, the GD75PGX120C6SN is primarily utilized in Variable Frequency Drives (VFD) and Servo Drives. A frequent challenge for OEM engineers is managing the surge currents during the startup of heavy industrial conveyor systems. With its robust Short-Circuit Withstand Time (typically 10μs at 150°C), this module provides a critical safety margin that prevents catastrophic failure during transient fault conditions. The integration of the rectifier and inverter stages ensures that the electrical loop is as tight as possible, minimizing EMI and switching spikes.

For systems requiring slightly different current handling capacities within the same 1200V framework, the GD50PIY120C6SN offers a 50A alternative for lower power requirements. Integrating the GD75PGX120C6SN into a design also allows for more effective implementation of safety standards like IEC 61800-3, as the compact internal layout reduces the complexity of Gate Drive signal isolation. This makes it a preferred choice for Solar Inverter auxiliary stages and high-reliability UPS (Uninterruptible Power Supply) systems.

Key Parameter Overview

Decoding Technical Specifications for Enhanced Thermal Reliability

The following table summarizes the critical electrical and thermal characteristics of the GD75PGX120C6SN. These values are essential for calculating Switching Loss and determining the requirements for Thermal Management.

To understand the practical impact of the VCE(sat) parameter, consider it as the "electrical friction" of the device. A lower VCE(sat) of 2.10V at high temperatures means that the module functions like a wider valve, allowing current to flow with less energy being converted into waste heat. This is a decisive factor in achieving high Power Cycling Capability and long-term Thermal Management reliability.

Technical & Design Deep Dive

Advanced Trench/Field Stop Technology for Precision Control

The GD75PGX120C6SN utilizes advanced Trench/Field Stop IGBT technology. This can be conceptualized as an architectural shift from a sprawling flat building to a high-density skyscraper. By moving the gate structure into vertical "trenches," the manufacturer increases the active area of the silicon chip without increasing its physical footprint. This architectural efficiency results in a superior Safe Operating Area (SOA) and reduced Switching Loss compared to older planar designs.

Furthermore, the integration of a Kelvin Emitter configuration within the module is a critical design feature for high-frequency switching. By providing a dedicated path for the gate-drive return current, it decouples the power circuit's high-current surges from the sensitive control signals. This significantly reduces the risk of "false triggering" and enhances the Miller Clamp effectiveness, ensuring stable operation even in the electrically noisy environments typical of Welding Power Supply or Electric Vehicle (EV) Inverter testing stations.

Industry Insights & Strategic Advantage

Navigating the Global Shift Toward High-Efficiency Power Conversion

The demand for modules like the GD75PGX120C6SN is increasingly driven by the global transition toward Industry 4.0 and Green Energy. Strategic procurement now favors PIM (Power Integrated Module) architectures because they align with the trend of decentralized motor control. Rather than large, central control cabinets, modern factories use compact drives mounted directly on motors. The GD75PGX120C6SN, with its 1200V rating, is perfectly positioned for 400V/480V AC grid applications, common in Marine LCD control systems and heavy machinery.

Understanding the nuances of IGBT Module selection is vital as carbon neutrality regulations tighten. The GD75PGX120C6SN enables engineers to meet strict efficiency targets by minimizing conduction losses in the PFC stage and inverter bridge. For a broader perspective on how these components fit into the evolving power landscape, our guide on the future role of IGBTs provides deeper strategic context.

FAQ

• How does the Rth(j-c) of 0.36 K/W affect the thermal design of a 15kW inverter?
  The Thermal Resistance of 0.36 K/W determines how efficiently heat moves from the junction to the case. In a 15kW design, this low value allows for a smaller heatsink while maintaining a safe junction temperature, directly contributing to higher system power density and lower Total Cost of Ownership (TCO).
• Does the integrated NTC thermistor eliminate the need for external temperature sensors?
  Yes, the internal NTC thermistor provides real-time monitoring of the baseplate temperature. This allows the system controller to implement thermal protection algorithms directly, reducing the component count and improving the System Integration and reliability of the drive.
• What is the primary benefit of the 1600V rectifier rating in a 1200V IGBT module?
  The 1600V peak reverse voltage rating on the input bridge provides an extra safety margin against grid voltage transients and lightning surges, ensuring the module's longevity in harsh industrial Variable Frequency Drive (VFD) applications.

For engineering teams focused on maximizing reliability in high-duty cycle industrial environments, the technical data suggests the GD75PGX120C6SN is a robust choice for next-generation power stage designs. For technical queries regarding bulk integration or specific Gate Drive requirements, contact our technical sales team.
