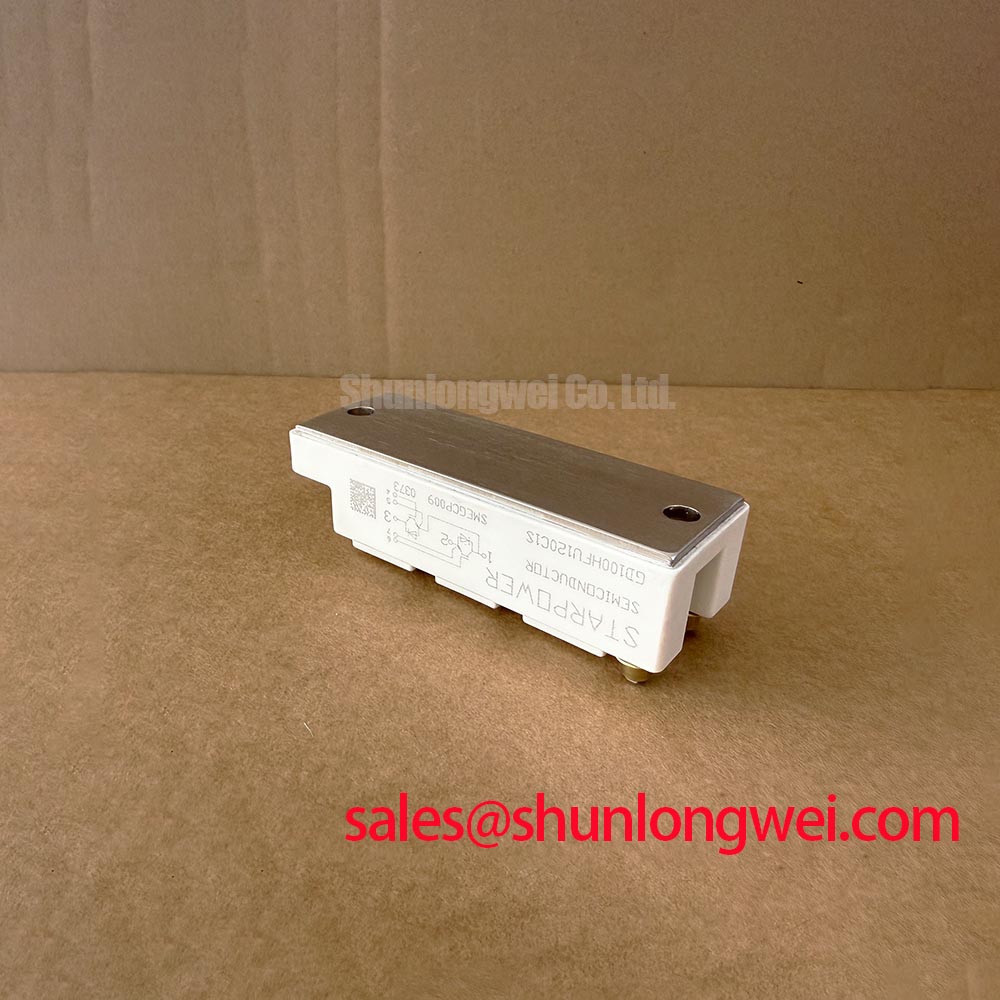

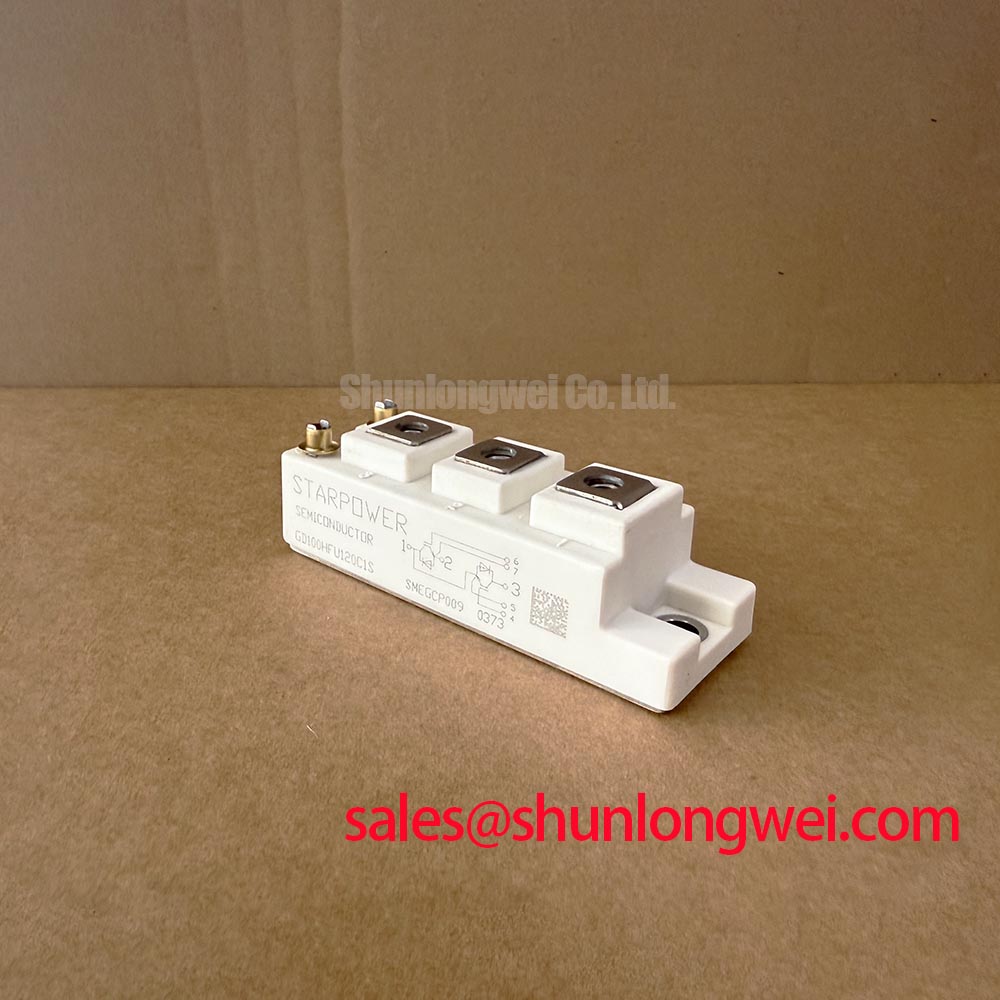

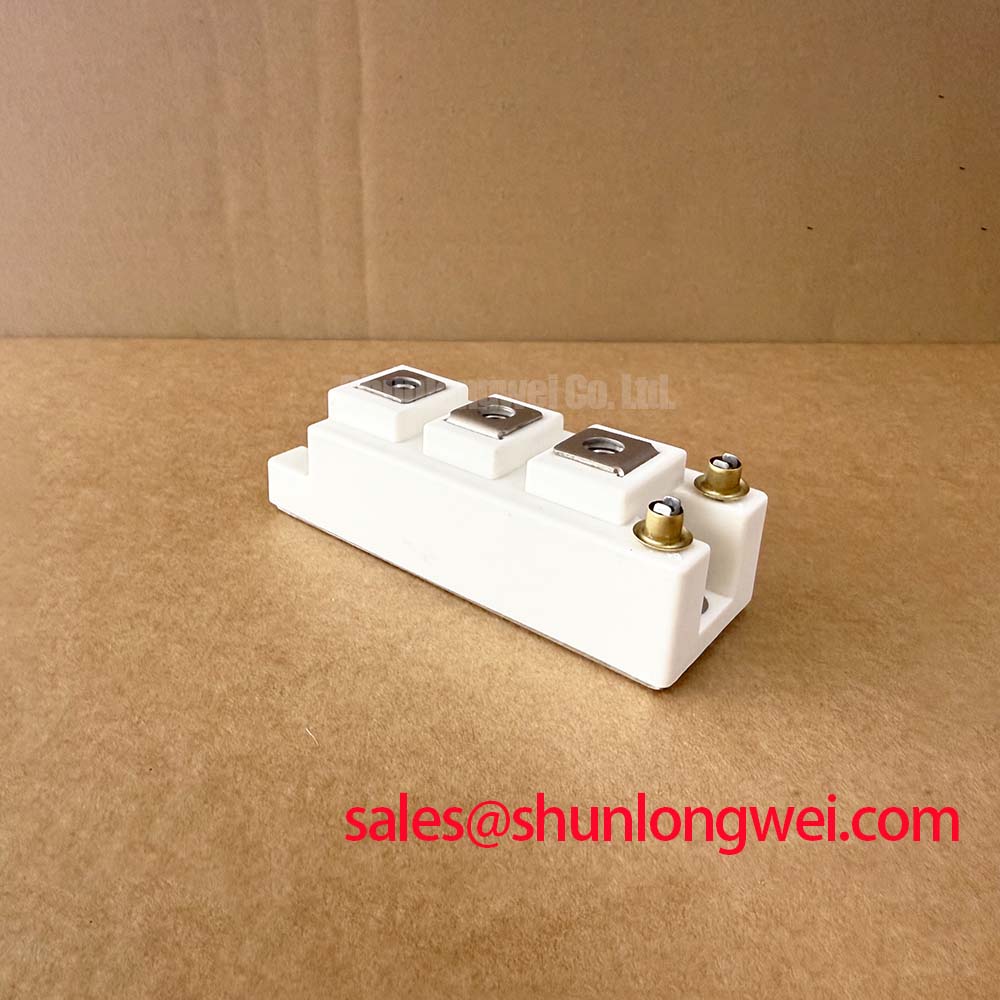

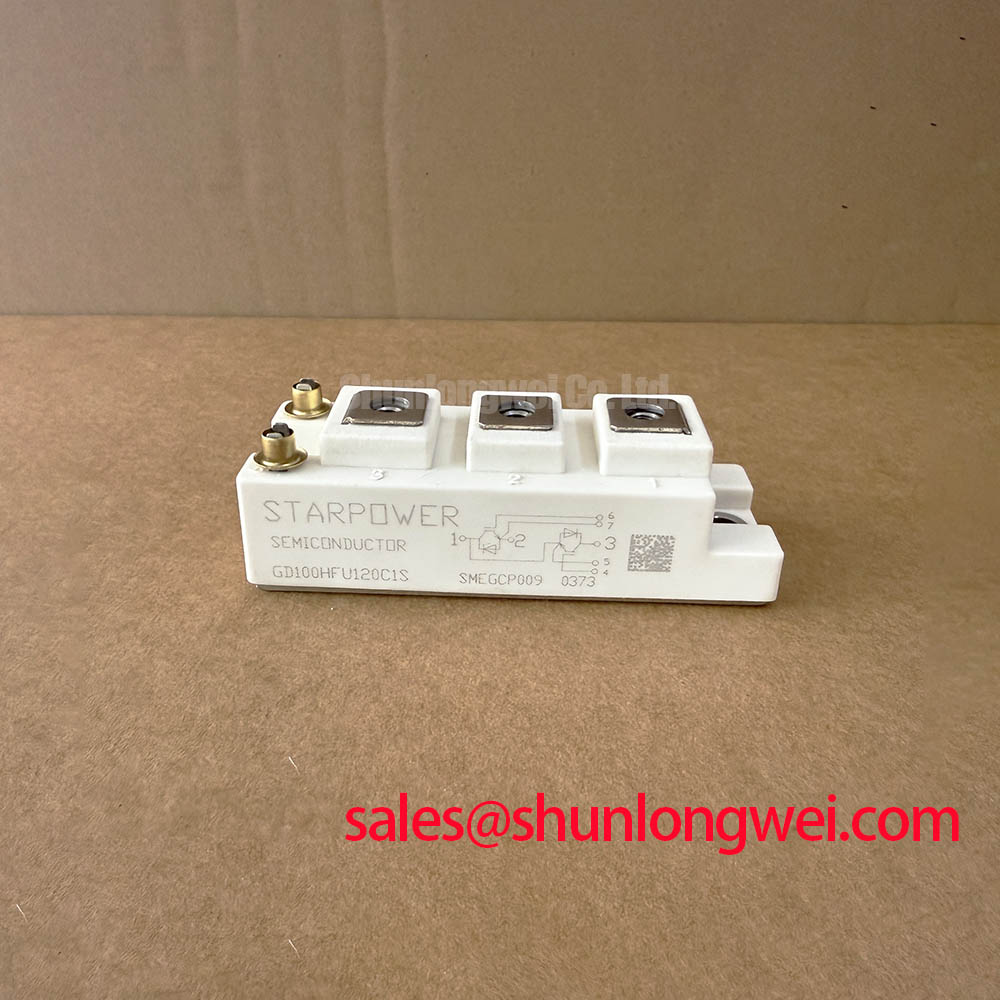

GD100HFU120C1S STARPOWER 1200V 100A IGBT Module
How can power electronics engineers maintain high switching frequencies in industrial inverters without triggering catastrophic thermal runaway? The GD100HFU120C1S provides a definitive answer through its advanced Trench-gate Field-stop technology, which significantly reduces conduction losses while maintaining a robust short-circuit withstand time. This 1200V | 100A | Vce(sat) 1.70V module is designed for efficiency-first architectures. Key benefits include a low-inductance package for reduced voltage overshoots and high power cycling capability for extended service life. For Variable Frequency Drives (VFD) requiring a balance between switching speed and thermal margin, the GD100HFU120C1S is the optimal choice.
Frequently Asked Questions
Addressing Engineering Challenges in High-Power Switching
How does the Vce(sat) of 1.70V in the GD100HFU120C1S impact the sizing of the cooling system?
The low typical Vce(sat) of 1.70V directly reduces conduction losses compared to older planar technologies. In a 100A application, this efficiency gain allows engineers to either reduce the physical size of the heatsink or operate the module at a higher ambient temperature without exceeding the 150°C junction limit. This thermal headroom is critical for high-density UPS designs.
What is the primary benefit of its trench-gate field-stop structure?
Enhanced long-term reliability by eliminating solder fatigue and providing a more uniform current distribution across the chip. This structure effectively suppresses the "tail current" during turn-off, which translates to lower Switching Loss and allows for higher frequency operation compared to standard NPT-IGBTs.
Does the GD100HFU120C1S include an integrated temperature sensor?
Yes, the module features an integrated NTC thermistor. This allows for real-time monitoring of the module's baseplate temperature, enabling the Gate Drive controller to implement thermal protection protocols or dynamic current scaling to prevent over-temperature failure modes.
What is the isolation voltage rating, and why does it matter for industrial motor drives?
The module provides an Isolation Voltage (Visol) of 2500V AC for one minute. This is essential for compliance with safety standards such as IEC 61800-5-1, ensuring that high-voltage power circuits are safely separated from low-voltage control signals, which prevents equipment damage and ensures operator safety.
How should the short-circuit withstand time (tsc) be factored into the gate driver design?
The GD100HFU120C1S is rated for a 10us short-circuit withstand time at 125°C. Engineers must ensure the Gate Drive circuit can detect a desaturation event and shut down the module within this window to prevent a catastrophic IGBT Failure. Utilizing a dedicated driver with a Miller Clamp is often recommended for these scenarios.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
| Critical Specification | Official Value | Engineering Significance |
|---|---|---|
| Collector-Emitter Voltage (Vces) | 1200V | Provides sufficient voltage margin for 400V/480V AC line applications. |
| Continuous Collector Current (Ic) | 100A (at Tc=80°C) | Defines the steady-state thermal capacity for Industrial Drives. |
| Vce(sat) Typical (Tj=25°C) | 1.70V | Lower values indicate superior efficiency and reduced heat generation. |
| Short-Circuit Withstand Time | 10us | Allows the protection logic time to react during a fault condition. |
| Isolation Voltage (Visol) | 2500V AC | Ensures system-level safety and EMC compliance in Servo Drives. |
Download the GD100HFU120C1S datasheet for detailed specifications and performance curves.
Technical Deep Dive
A Closer Look at the Field-Stop Architecture for Efficiency
The GD100HFU120C1S employs a trench-gate field-stop (T-FS) design, which represents a significant evolution in IGBT Module physics. By utilizing a very thin wafer and a localized "field-stop" layer, the module achieves a balance between low on-state voltage and fast switching speeds. Think of the field-stop layer as a soft-landing strip for electrons; it prevents the electric field from reaching the backside collector during turn-off, which eliminates the long current tails that plague traditional high-voltage switches. This results in significantly lower Eoff (turn-off energy loss).
From a mechanical perspective, the C1 package (a standard Half-Bridge configuration) utilizes high-reliability bonding wires and a copper baseplate. The Thermal Resistance (Rth) is optimized to facilitate rapid heat transfer from the junction to the heatsink. When compared to the GD200HFL120C2S, which is designed for higher current densities, the GD100HFU120C1S offers a more compact footprint for mid-range power applications like Welding Power Supply units. This design reduces parasitic inductance, which is a major contributor to EMI in high-speed Electric Vehicle (EV) Inverter prototypes. Understanding how to manage these parasitics is covered in detail in our guide on robust gate drive design.
Application Scenarios & Value
Achieving System-Level Benefits in High-Frequency Power Conversion
In the realm of Variable Frequency Drives (VFD), the GD100HFU120C1S serves as the critical switching element for three-phase motor control. Its 100A rating is perfectly suited for 37kW to 45kW motors operating on 400V grids. Engineers often face the challenge of IGBT failure analysis when dealing with inductive loads; here, the robust Safe Operating Area (SOA) of this STARPOWER module provides a buffer against the voltage spikes generated during motor braking or sudden load changes.
Beyond motor control, this module is highly effective in Solar Inverter topologies. As the industry moves toward 1500V systems, 1200V modules remain the backbone of the widely used Vienna Rectifier and multi-level inverter stages for 800V or lower DC buses. For systems requiring even higher power density, the related GD300HFL120C2S provides a Vces of 1200V with higher current handling. The integrated Kelvin Emitter pins in these modules allow for more precise gate control by decoupling the power circuit from the signal path, which is vital for maintaining signal integrity in high-EMI environments like Medical Imaging power stages. Integrating these modules into a cohesive design requires careful Thermal Management, a topic explored in depth in our engineer's guide to IGBT modules.
When deploying the GD100HFU120C1S in harsh environments, such as outdoor UPS systems or heavy machinery, the module's Power Cycling Capability ensures that it can withstand the repetitive thermal expansion and contraction associated with fluctuating loads. This long-term durability is a primary factor for OEMs aiming to reduce the total cost of ownership (TCO) for their industrial automation platforms.
Ensuring the reliability of a high-power system starts with precise data. By aligning the GD100HFU120C1S specs with your specific Gate Drive requirements and thermal constraints, you can achieve a design that is both efficient and rugged. For those looking to optimize their power stage further, comparing this module against alternatives from Infineon or Mitsubishi provides a broader perspective on the current state of trench-gate technology.
