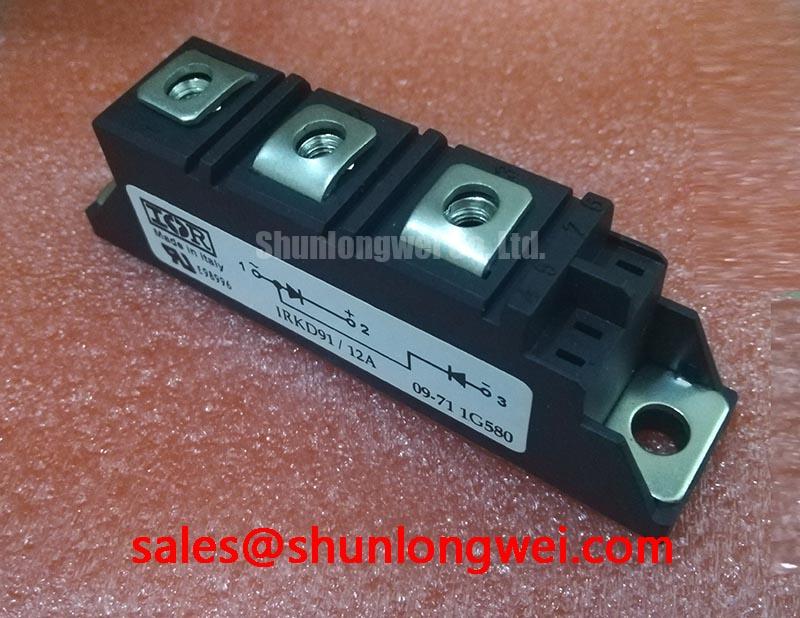

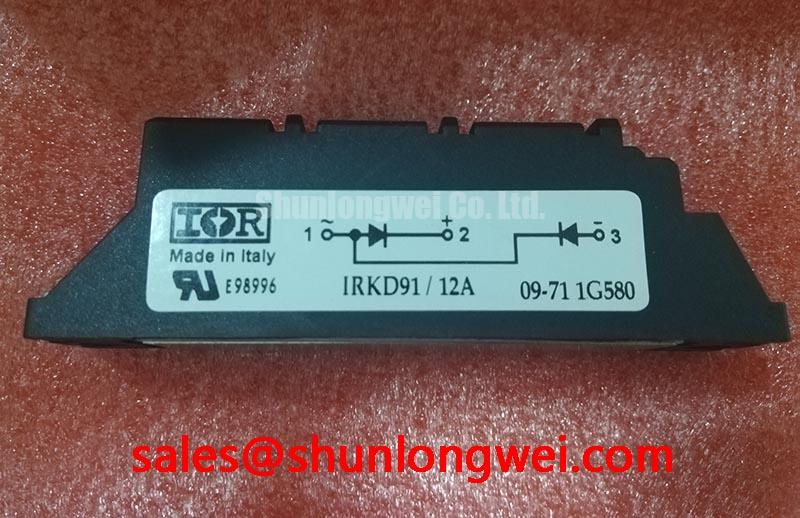

IRKD91/12A | 1200V 95A Thyristor/Diode Module for Reliable Industrial Power Control
Engineering-Grade Insights into the IRKD91/12A Doubler Module
Content last revised on October 4, 2025.
The IRKD91/12A Thyristor/Diode module is engineered to deliver exceptional reliability and streamlined thermal performance for demanding industrial power control systems. Featuring key specifications of 1200V | 95A (Average Current) | 2500V RMS Isolation, this component provides two primary engineering benefits: simplified thermal management and an enhanced operational lifespan. It directly addresses the challenge of handling significant inrush currents in applications like motor starters by offering robust surge handling capabilities. For controlled rectifier designs up to 1200V requiring simplified thermal assembly and predictable long-term performance, the IRKD91/12A's integrated insulation system presents a decisive engineering advantage.
Key Parameter Overview
Decoding the Specs for Thermal Stability and Electrical Performance
The technical specifications of the IRKD91/12A are optimized for stable operation in industrial environments. The parameters below, sourced directly from the official datasheet, highlight the module's capacity for robust power handling and its inherent design for thermal efficiency.
| Parameter | Symbol | Value | Unit | Conditions |
|---|---|---|---|---|
| Repetitive Peak Reverse Voltage | VRRM / VDRM | 1200 | V | |
| Average On-State Current | IT(AV) | 95 | A | TC = 85°C |
| RMS On-State Current | IT(RMS) | 150 | A | |
| Surge Non-Repetitive On-State Current | ITSM | 1370 | A | 60Hz, 10ms, TJ = 125°C |
| I²t for Fusing | I²t | 7.8 | kA²s | t = 10ms |
| Isolation Voltage | VISOL | 2500 | V | RMS, 50/60Hz, 1 min |
| Maximum Junction Temperature | TJ | 125 | °C |
Download the IRKD91/12A datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Industrial Power Control Architectures
The IRKD91/12A is engineered for power conversion and control circuits where reliability and efficient thermal design are paramount. Its doubler configuration makes it suitable for a range of single-phase and three-phase topologies.
- Motor Soft Starters: A primary engineering challenge in motor control is managing the high inrush current during startup. The IRKD91/12A's high surge current (ITSM) rating of 1370A provides the necessary robustness to withstand these repeated transient events without degradation, ensuring reliable motor ramp-up. This is a critical function in applications such as conveyor belts, pumps, and industrial fans.
- Controlled Rectifiers: In applications requiring variable DC output, such as electroplating power supplies or DC motor drives, the module's thyristor allows for precise phase control of the AC input. The glass-passivated chips ensure stable blocking characteristics across the operating temperature range, leading to predictable and reliable DC voltage regulation.
- AC Switches and Heater Controls: The module can be used for solid-state switching of high-power AC loads. The electrically insulated baseplate simplifies the mechanical and thermal design, reducing assembly time and improving the overall safety of the end equipment.
What is the benefit of the integrated insulation? It simplifies heatsink mounting and enhances system reliability by removing the need for fragile external insulating pads. For applications demanding higher current handling in a similar package, the SKKD162/16 provides a rated current of 162A.
Engineering FAQ
Maximizing Reliability with the IRKD91/12A
What is the primary benefit of the ADD-A-PAK™ package's electrically insulated baseplate?
The key benefit is the simplification of the thermal and mechanical assembly. The 2500V RMS integrated isolation eliminates the need for external insulating materials like mica or silicone pads and the associated thermal grease. This not only reduces component count and assembly labor but also removes a common point of failure, leading to a more robust and reliable thermal interface between the module and the heatsink.
How does glass passivation on the thyristor and diode chips contribute to the IRKD91/12A's reliability?
Glass passivation creates a hermetic seal over the sensitive junction termination area of the silicon chips. This process protects the junctions from environmental contaminants and moisture, which can cause leakage currents and voltage breakdown over time. It results in a device with highly stable blocking voltage characteristics, especially at elevated temperatures, directly contributing to a longer operational lifespan and lower field failure rates.
The datasheet specifies a high ITSM rating. How does this translate to performance in applications with inductive loads?
The high non-repetitive surge current (ITSM) rating of 1370A acts as a critical safety margin. In applications with inductive loads like motors or large transformers, events such as startup inrush or fault conditions can cause current spikes far exceeding the normal operating level. The IRKD91/12A is designed to absorb these brief, high-energy events without damage, preventing catastrophic failure and enhancing the overall resilience of the power system.
Technical Deep Dive
A Closer Look at the Insulated Baseplate and Glass Passivation for Enhanced Durability
The long-term reliability of the IRKD91/12A is fundamentally rooted in its construction, specifically the use of an electrically insulated baseplate. This design integrates a ceramic substrate, typically Alumina (Al₂O₃), directly between the power semiconductor chips and the external metal base of the module. This ceramic layer possesses high dielectric strength for electrical isolation and excellent thermal conductivity to efficiently transfer heat away from the chips.
This integrated approach offers a distinct advantage over non-insulated modules, which require external insulating pads for mounting. Those separate pads can be prone to puncture, incorrect installation, or degradation over time, compromising both safety and thermal management. The IRKD91/12A's design is analogous to a high-performance, built-in gasket in an engine; by integrating the critical insulating layer into the component itself, it ensures a perfect, reliable thermal and electrical interface every time, simplifying assembly and improving durability.
Industry Insights & Strategic Advantage
Meeting Industrial Demands for Robustness and Simplified Thermal Design
In modern industrial automation, equipment uptime is a primary driver of profitability. The design philosophy of the IRKD91/12A directly addresses this by focusing on component-level robustness to enhance system-level reliability. For equipment like industrial UPS (Uninterruptible Power Supply) systems, battery chargers, and Welding Power Supply units, a failure in the power stage can lead to costly production halts. The module's use of glass-passivated chips and an industry-standard package minimizes risks associated with environmental factors and mechanical stress.
The trend towards higher power density also places greater emphasis on efficient thermal design. By providing a pre-isolated package, the IRKD91/12A allows engineers to simplify their heatsink selection and mounting process, potentially reducing the overall system footprint and cost. This strategic choice of an IGBT Module with integrated insulation is not just a feature but a contributor to a lower total cost of ownership (TCO) through reduced assembly complexity and enhanced field reliability.
For designers of industrial equipment, selecting components like the IRKD91/12A is a strategic decision. It shifts the focus from managing basic component integration challenges to optimizing higher-level system performance, confident in the foundational reliability of the power control stage.
