IXEN60N120 Operational Boundaries: Evaluating Thermal Time Constants and Peak Junction Limits

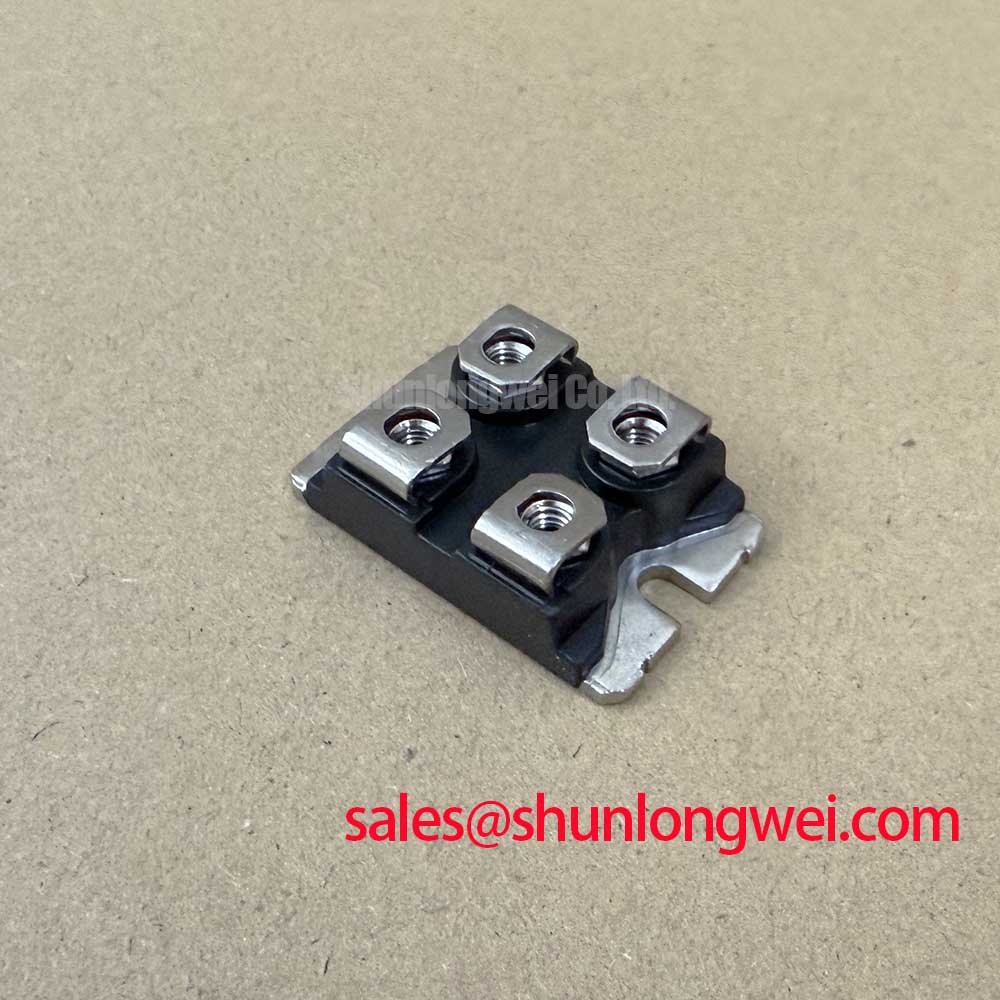

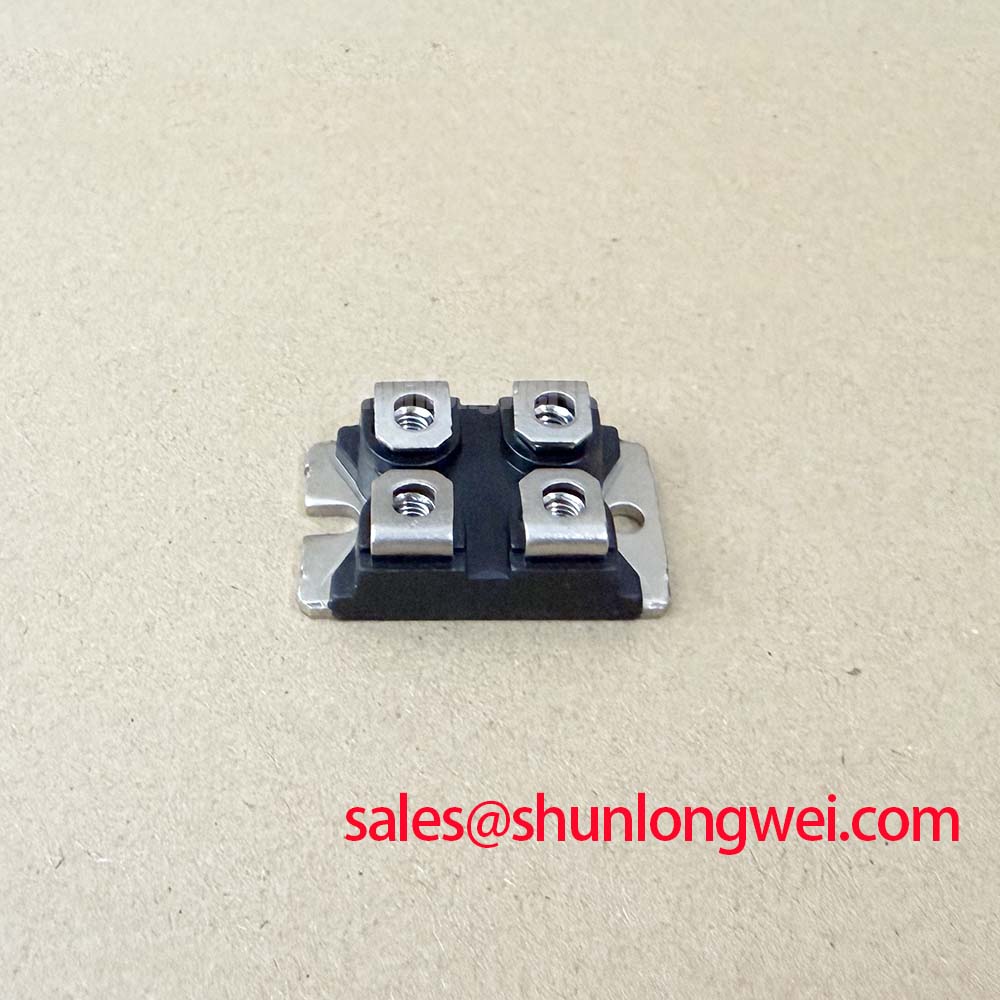

With the converter isolated and its DC link safely discharged, compare the installed device marking with the repair bill of materials before disturbing the heatsink interface. The IXEN60N120 from IXYS has a 1200 V collector-emitter rating and a 60 A continuous collector-current rating at a case temperature of 90°C—Official Specifications whose temperature conditions matter when assessing a replacement.
The supplied specifications also identify a 2.0 V collector-emitter saturation voltage at 60 A and 125°C, a 2.2 V Sonic-FRD diode forward voltage, a 2500 V AC isolation test rating at 50/60 Hz for one minute, and a 10 µs short-circuit time. These are separate characteristics, not interchangeable operating guarantees. For maintenance planning, the useful question is how the installed cooling, switching circuit, protection, and mechanical assembly keep operation inside the applicable boundaries.
Record case temperature and the actual overload waveform together when investigating temperature trips after load changes. A slow case-temperature measurement can miss a brief junction excursion because the semiconductor junction and the external cooling assembly respond on different timescales. As a Design Consideration, distinguish a transient overload from sustained heat accumulation before changing cooling hardware or protection settings.
A multi-RC thermal model represents heat storage and heat flow through several time constants. An Engineering Calculation of peak junction temperature should apply the measured loss history to the manufacturer's transient thermal response, using the appropriate model topology and case-temperature reference. Repeated pulses require the residual temperature rise from preceding pulses to be included. Model coefficients and the permissible junction-temperature ceiling belong to the device documentation; they should not be inferred from the current rating.
The specified saturation voltage provides a conduction-loss reference at its stated operating point, but it does not describe switching loss or an entire temperature-dependent conduction curve. Likewise, the diode's listed forward voltage alone cannot establish diode heating during commutation. For a practical thermal assessment, separate transistor conduction, transistor switching, and diode losses, then compare the predicted temperature trend with measurements taken under repeatable load and airflow conditions.
In an assembly with parallel switches, a Design Consideration is to evaluate static and dynamic current sharing separately. Do not assume a favorable temperature coefficient across the entire operating range from one saturation-voltage value. Differences in cooling contact, gate-loop impedance, and power-path inductance can affect sharing even when devices have matching nominal ratings.
Keep heatsink inlet and outlet paths unobstructed, and inspect filters, fins, and fan operation before treating a rising temperature trend as semiconductor deterioration. The general principles described in computational fluid dynamics can support forced-air heatsink assessment, but an airflow simulation still needs measured boundary conditions and comparison with the installed enclosure.
IXEN60N120 Operational Boundaries: Evaluating Thermal Paste Degradation Prevention
Inspect the removed thermal-interface imprint for uneven coverage, displaced compound, contamination, and evidence of incomplete contact. Preserve its orientation in the maintenance record so an uneven pattern can be compared with the mounting arrangement. These observations help locate an assembly problem; they do not, by themselves, prove a particular internal failure.
As a Design Consideration, control the thermal-interface material through a repeatable dispensing and assembly process rather than a generic thickness prescription. The suitable bond line depends on surface flatness, roughness, contact pressure, and the selected material. Excess compound can increase thermal resistance, while insufficient coverage can leave poorly coupled areas. Neither outcome is corrected reliably by simply increasing fastener torque.
Clean mating surfaces using a process compatible with their finishes, and inspect the heatsink for raised damage around mounting points. Baseplate curvature should be assessed against the applicable mechanical limits, not compensated by forcing the assembly flat. Where multiple mounting screws are specified, progressive cross-pattern tightening can help distribute seating pressure, with the final sequence and torque taken from the approved assembly instructions.
The discussion in The Advanced Thermal Management Revolution provides broader context for thermal-path design; it does not establish the IXEN60N120's internal substrate construction or mounting limits. For this device, keep acceptance checks tied to the external interface and the documented assembly process.
Maintenance Note: Trend case and connection temperatures under comparable load conditions, and check airflow before attributing a temperature increase to thermal-paste aging.
Set inspection intervals from equipment duty, contamination exposure, and observed temperature trends rather than an invented universal replacement period. During shutdowns in humid environments, inspect for moisture and corrosion before re-energization. As an Engineering Recommendation, equipment returning from cold storage should reach conditions that avoid condensation before electrical testing begins.
IXEN60N120 Operational Boundaries: Evaluating Turn-Off di/dt Induced V_peak Clamping and Limits
Capture collector-emitter voltage during turn-off with a suitably rated differential measurement arrangement and a controlled probe loop. Excessive measurement-loop pickup can exaggerate ringing, so establish measurement integrity before changing the gate resistor or snubber. Compare waveforms across the intended load and temperature range rather than judging the circuit from one lightly loaded trace.
An Engineering Calculation can estimate the inductive contribution using the inline relationship Vpeak ≈ VDC + Lσ|di/dt|. This simplified relationship explains why a faster current fall or greater commutation-loop inductance raises turn-off stress; diode recovery and distributed parasitics can make the measured waveform more complex. Evaluate the resulting peak against the 1200 V device boundary with system-defined operating margin.
As a Design Consideration, minimize the commutation-loop area through closely coupled outgoing and return conductors. Symmetrical busbar paths are also relevant where multiple switching branches share current. Conductor spacing must satisfy the equipment's insulation requirements, so reducing inductance cannot justify arbitrary reductions in electrical clearance.
Snubber selection should follow measured ringing, stored parasitic energy, repetitive dissipation, and component pulse capability. Increasing capacitance without evaluating charging current and heat can move the problem elsewhere. Any clamp or snubber adjustment should therefore be assessed together with switching loss, gate behavior, and the actual DC-link operating range.
The 10 µs short-circuit time is an Official Specification, not a recommended protection delay. As a Design Consideration, assess detection, blanking, propagation, and controlled turn-off as a complete sequence under the applicable test conditions. Set dead time from the actual driver and switching behavior: too little can permit overlap, while excessive dead time can increase diode conduction. Inspect gate-emitter waveforms for unintended turn-on during the opposite switch's transition.
When evaluating commercial string inverter or micro-grid energy-storage equipment, identify each device's circuit role before comparing parts. The IXGA48N60A3 may be a separate subject for auxiliary switching-stage assessment, but its inclusion in the same repair review does not establish suitability for a rectifier position or compatibility with this device.
IXEN60N120 Circuit Protection & Reliability: Torque Reaction Absorption
Check the approved terminal arrangement before selecting screw length, washers, or tightening tools. Thread engagement must suit the complete hardware stack without bottoming, while external conductors should meet the connection naturally rather than being pulled into position by the terminal screw. This is a Design Consideration for avoiding assembly preload and connection movement, not a claim about undocumented internal joints.
Support cables and busbars so their weight, vibration, and thermal expansion do not lever against the device connections. Where the assembly procedure permits it, restrain the mating hardware while applying the specified tightening torque with a calibrated tool. Inspect contact surfaces and seating before tightening; additional torque is not a dependable remedy for poor alignment or damaged hardware.
For replacement assessment, compare the original connection drawing, voltage class, current-temperature conditions, diode arrangement, gate-drive requirements, and cooling interface. The IXXN100N60B3H1 belongs in a documented comparison, not an automatic substitution instruction. A related manufacturer designation does not establish interchangeable electrical or mechanical behavior.
Keep device families distinct when reviewing protection documentation. IEC 60747-6, Semiconductor Devices—Thyristors concerns thyristors; it does not establish IGBT gate-drive compliance. Thyristor trigger-current and trigger-voltage criteria should not be transferred to the IXEN60N120's gate-drive assessment.
After assembly, establish a connection-temperature baseline under a documented load and compare subsequent inspections under similar conditions. A localized rise warrants investigation of contact condition, conductor loading, airflow, and measurement repeatability rather than an immediate single-cause diagnosis. Record the hardware stack, applied assembly procedure, instrument identification, and observed temperatures so the next maintenance intervention can distinguish a changed connection from a changed operating condition.
