IXYS 701819-302BA IGBT Module: 1200V / 300A Half-Bridge for Industrial Drives
Introduction to the 701819-302BA Power Module
A Foundation for Thermally Stable and Reliable Power Conversion
The IXYS 701819-302BA is a robust 1200V half-bridge IGBT module engineered for predictable thermal performance and long-term reliability in demanding industrial drive and power conversion applications. With core specifications of 1200V | 300A | Vce(sat) 2.2V (typ.), this module delivers a well-balanced feature set optimized for efficiency and durability. Its primary engineering benefits include reliable thermal management and a simplified path to creating three-phase inverter topologies. For engineers designing power stages for industrial machinery, the 701819-302BA provides the necessary voltage headroom and thermal stability to operate reliably on 400V and 480V AC lines, even under fluctuating load conditions.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
The technical specifications of the IXYS 701819-302BA are tailored for performance in mid-power industrial systems. The following parameters are critical for design evaluation, particularly concerning thermal management and electrical stress.
| Parameter | Value | Condition |
|---|---|---|
| Collector-Emitter Voltage (Vces) | 1200 V | Tj = 25°C |
| Continuous Collector Current (Ic) | 300 A | Tc = 80°C |
| Collector-Emitter Saturation Voltage (Vce(sat)) | 2.2 V (typ.) | Ic = 300 A, Vge = 15 V |
| Total Power Dissipation (Ptot) | 1560 W | Tc = 25°C |
| Thermal Resistance, Junction-to-Case (Rth(j-c)) | 0.09 K/W | Per IGBT |
| Gate-Emitter Voltage (Vges) | ±20 V |
Disclaimer: The parameters listed above are for reference purposes. Engineers must consult the official product documentation for complete and verified specifications.
Application Scenarios & Value
Achieving System-Level Benefits in Industrial Motion Control
For mid-power industrial drives requiring predictable thermal cycling and high voltage headroom, this 1200V module provides a robust foundation. The IXYS 701819-302BA is particularly well-suited for applications where operational reliability is directly tied to effective Thermal Management. A key use case is in the power stages of Variable Frequency Drives (VFDs) controlling AC induction motors for conveyor systems, pumps, and industrial fans.
In a VFD, the IGBTs are constantly switching under high power to synthesize the AC waveform that controls motor speed. This process generates significant heat. The 701819-302BA's balanced Vce(sat) and defined thermal resistance provide a predictable thermal profile, allowing engineers to design heatsinking solutions confidently. This prevents overheating during high-torque startup or sudden load changes, which is a common point of failure. The half-bridge, or phase-leg, configuration is the fundamental building block for a three-phase inverter; three of these modules can be used to construct a complete B6-bridge, simplifying inventory and mechanical layout. What is the primary benefit of the 1200V rating? It provides a robust safety margin for 480V industrial systems.
While this module is optimized for the 300A class, for systems that demand higher power output in a similar voltage class, the CM600DX-24T offers a higher current handling capability.
Technical Deep Dive
Anatomy of a Reliable Power Module

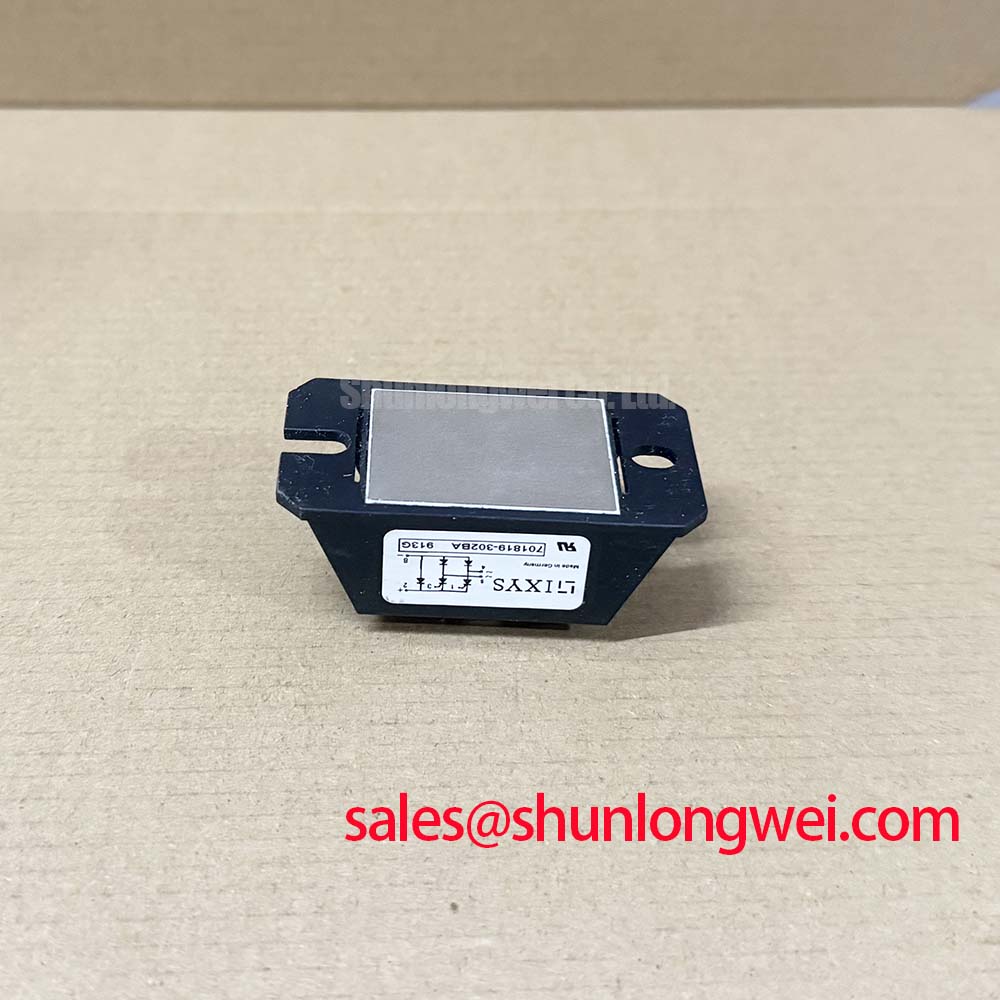

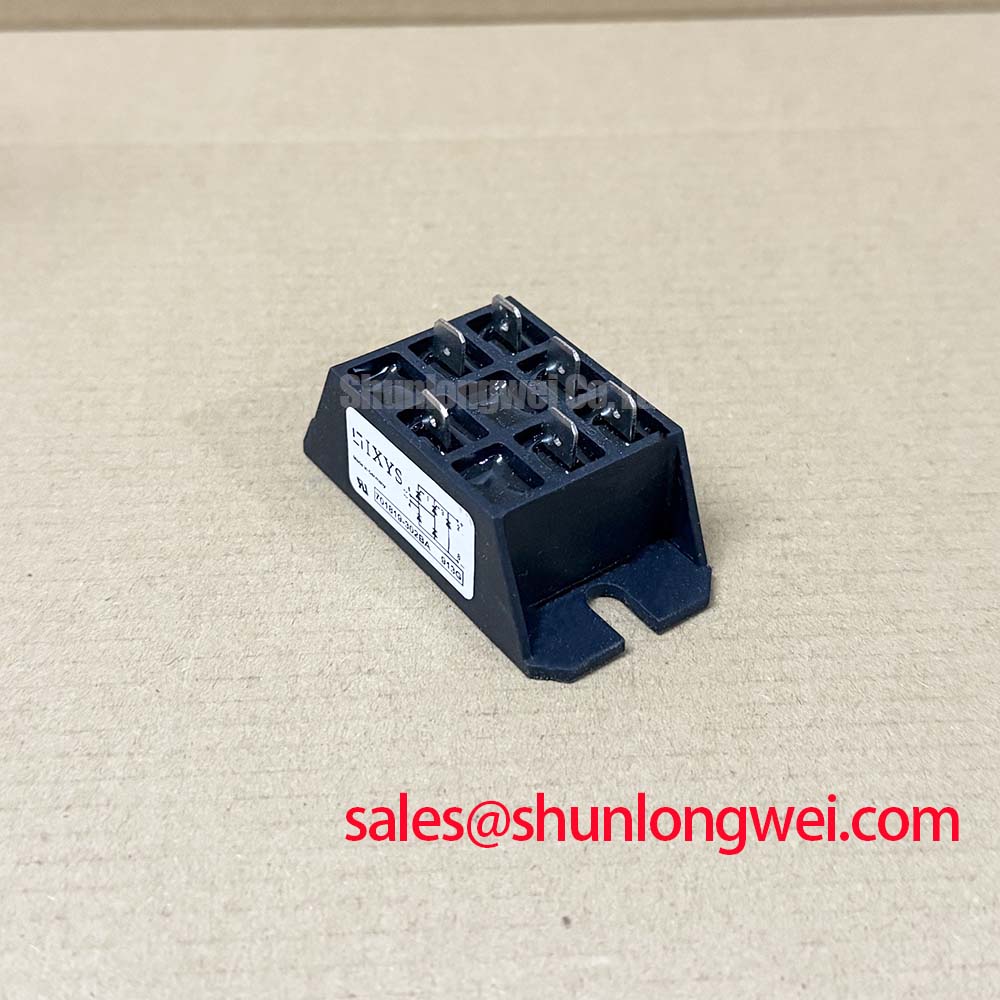

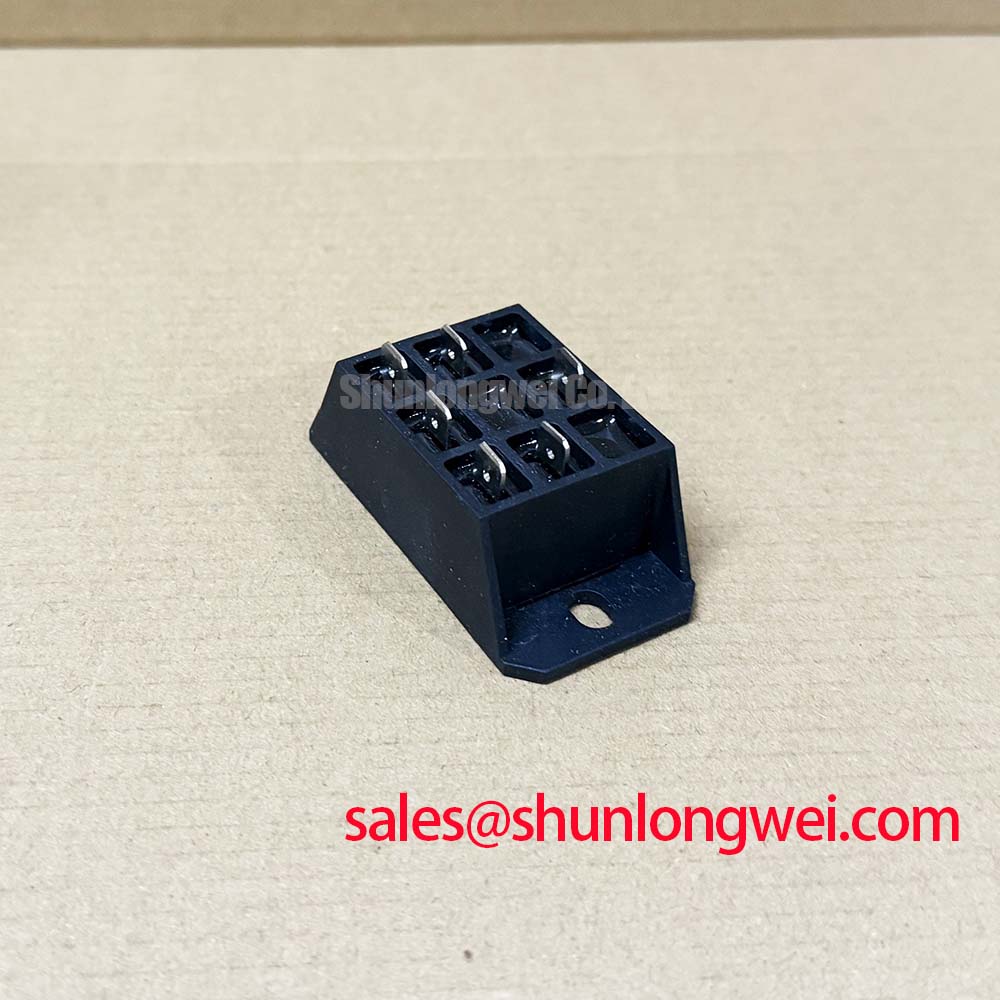

The long-term reliability of an IGBT module extends beyond its silicon chips. The IXYS 701819-302BA is built into an industry-standard package designed for mechanical stability and efficient heat transfer. This construction is crucial for surviving the repetitive thermal expansion and contraction that occurs during power cycling. Think of the module's baseplate as the foundation of a house; if it's not perfectly flat and robustly connected to the heatsink, the entire structure becomes unstable. This module's design focuses on ensuring a low-void thermal interface, which is essential for consistent heat extraction over tens of thousands of operational hours. Understanding these mechanical aspects is a key part of preventing premature IGBT failure analysis.
Frequently Asked Questions (FAQ)
How does the 1200V Vces rating of the 701819-302BA benefit designs for 480V AC industrial lines?
The 1200V rating provides a substantial safety margin. A 480V AC line can have a rectified DC bus voltage around 670-700V. The 1200V Vces ensures the device remains well within its SOA (Safe Operating Area), protecting it against transient voltage spikes from the line or from switching events within the inverter.
What is the significance of the half-bridge configuration?
The half-bridge (dual or phase-leg) configuration is highly versatile. It contains the high-side and low-side switches for one phase of an inverter. This allows engineers to use three identical modules to build a complete three-phase Variable Frequency Drive (VFD), simplifying both the electrical and mechanical design as well as procurement.
With a typical Vce(sat) of 2.2V at 300A, what is the primary thermal consideration?
At 300A, the conduction loss per IGBT will be approximately 660W (300A * 2.2V). This highlights the importance of the Rth(j-c) value. An effective thermal design, including the right heatsink and thermal interface material, is critical to keep the junction temperature within safe limits. A comprehensive guide to mastering IGBT thermal management can provide deeper insights.
Is this module suitable for high-frequency switching applications?
While robust, the primary design focus is reliability and thermal performance in motor drive applications, which typically operate at switching frequencies from 2 kHz to 15 kHz. For applications requiring significantly higher frequencies (above 20 kHz), engineers should carefully analyze the switching losses (Eon/Eoff) from the official datasheet to ensure thermal stability. What topology does this module support? Its half-bridge configuration simplifies three-phase inverter designs.
Strategic Outlook
Building Blocks for Modern Industrial Automation
The IXYS 701819-302BA represents a strategic component choice for designers of industrial power systems. In an environment where total cost of ownership (TCO) and system uptime are the ultimate metrics, selecting a module with a proven track record of reliability and a predictable thermal behavior is paramount. This device provides the foundational stability needed to build efficient and long-lasting motor drives, power supplies, and renewable energy converters, aligning with the industry's continuous demand for more resilient automation infrastructure.
