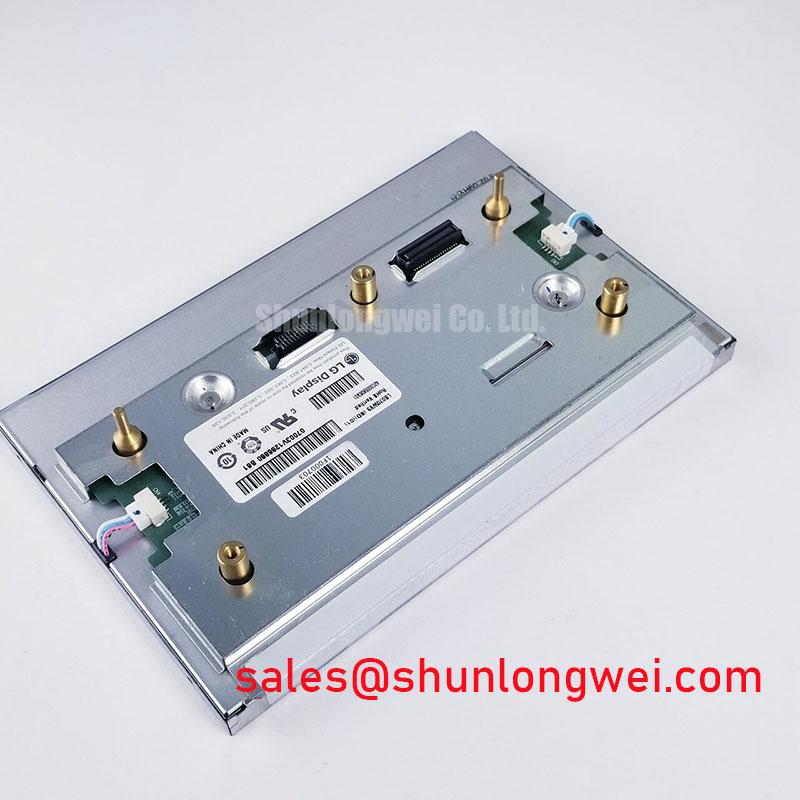

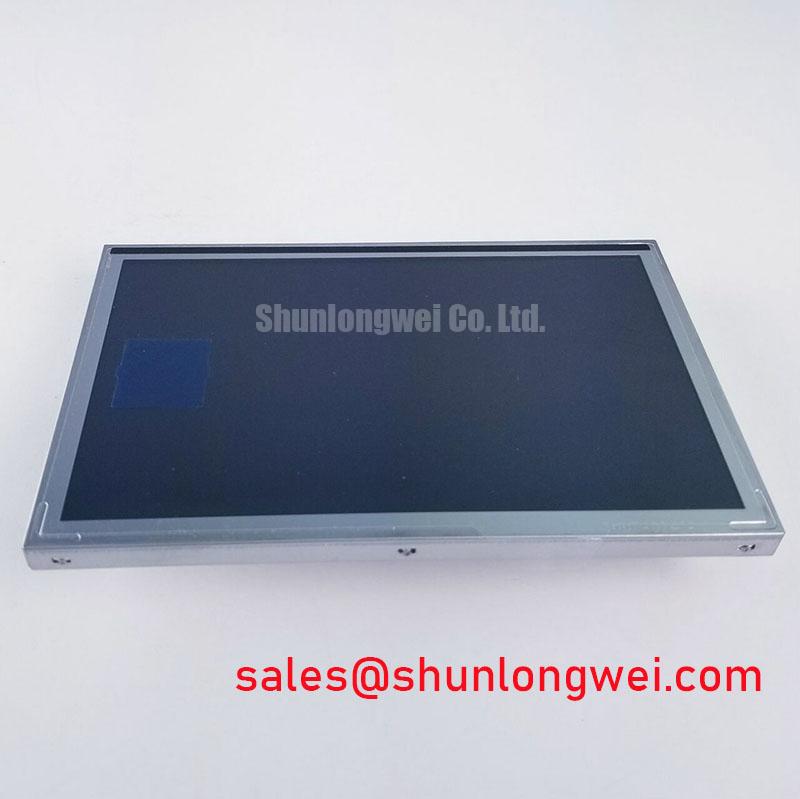

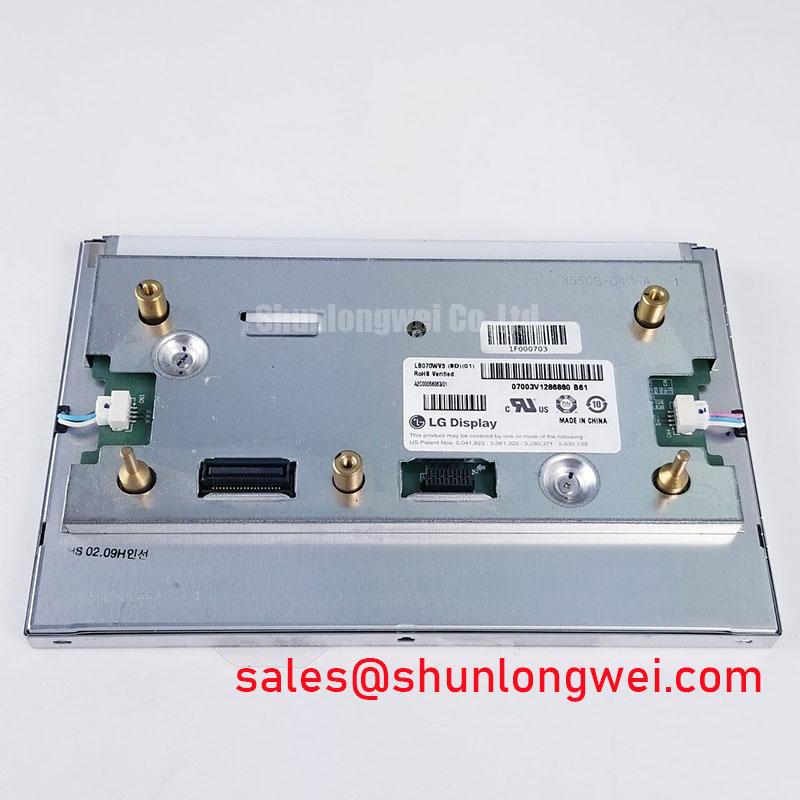

LB070WV3-SH01 | 7-inch WVGA Industrial LVDS LCD Display
As industrial automation advances, the demand for dependable Human-Machine Interfaces (HMIs) that function flawlessly in challenging operational settings is intensifying. The LG Display LB070WV3-SH01 is a 7.0-inch TFT-LCD panel engineered specifically to meet this need. It provides a robust visual foundation for systems where data clarity and operational uptime are critical. For engineers concerned with system integration, its standard LVDS interface ensures excellent signal integrity and straightforward connectivity with a wide array of industrial controllers, mitigating common issues of electromagnetic interference found in factory environments.
Core Specifications for System Integration
This table highlights the essential performance metrics of the LB070WV3-SH01, providing a clear snapshot for design-in and system validation. For complete details, please refer to the official product documentation.
| Parameter | Specification |
|---|---|
| Screen Size | 7.0 inch |
| Resolution | 800(RGB)×480 (WVGA) |
| Brightness | 400 cd/m² (Typ.) |
| Interface Type | LVDS (1 ch, 6/8-bit), 20 pins |
| Operating Temperature | -20 ~ 70 °C |
| Surface Treatment | Anti-Glare |
Download the Datasheet: A comprehensive datasheet is available for detailed electrical and mechanical specifications.
Deployed with Confidence: Real-World Scenarios
The resilience of the LB070WV3-SH01 makes it a trusted component in a variety of demanding fields. Its performance is validated not just in datasheets, but in application environments where conditions are often unpredictable. Consider its deployment in a programmable logic controller (PLC) interface on a manufacturing line, where the anti-glare surface is crucial for error-free monitoring under intense overhead lighting. Similarly, in agricultural vehicle telematics, its ability to function reliably from a cold start at -20°C ensures that operators have immediate access to critical machine data, regardless of the weather.
Technical Inquiries for the LB070WV3-SH01
-
What is the specific LVDS pinout configuration for the LB070WV3-SH01?
The module utilizes a standard 20-pin connector for its 1-channel LVDS interface. While common, it is imperative for design engineers to consult the official datasheet to confirm the exact pin assignments for power, ground, and data pairs to ensure correct and safe integration with the host controller board.
-
Is this display suitable for outdoor applications?
The LB070WV3-SH01's wide operating temperature range of -20 to 70°C makes it robust enough for many sheltered outdoor environments or enclosed kiosks. However, with a typical brightness of 400 cd/m², it is not classified as a sunlight-readable display. For direct sunlight applications, a panel with a brightness of 1000 cd/m² or higher and potentially optical bonding would be necessary.
-
How critical is the backlight lifetime, and what is typical for this model?
Backlight lifetime is a key indicator of long-term reliability and total cost of ownership. The WLED backlight system in this display is designed for extended industrial use, typically rated for 20,000 to 30,000 hours to half-brightness. This long operational life minimizes the need for maintenance and replacement, a significant advantage in embedded systems.
-
What are the benefits of a 'Normally White' display technology?
Normally White twisted nematic (TN) technology means that the pixels are transparent (white) when no voltage is applied. In the event of a total pixel or driver failure, the affected pixel will appear white rather than black. For certain user interfaces, this can be less obtrusive than a dead, black pixel, and is a common, cost-effective technology for industrial displays.
Strategic Value in Industrial HMI Evolution
Choosing an industrial-grade display is a strategic decision that impacts project lifecycle and operational success. The LB070WV3-SH01 offers distinct advantages that align with modern industrial requirements. Its construction is focused on durability, leading to a lower total cost of ownership compared to consumer-grade alternatives which often fail prematurely in harsh thermal or vibratory conditions. You can explore a deeper comparison in our guide on industrial versus consumer displays. Furthermore, the use of a standardized LVDS Interface accelerates development timelines, allowing engineering teams to bypass extensive interface validation and focus on core application software. This combination of reliability and integration efficiency provides a competitive edge in bringing new products to market faster.
Inside the Architecture: LVDS and Pixel Performance
Two key characteristics define the engineering value of this display: its electrical interface and its optical clarity. The LVDS (Low-Voltage Differential Signaling) interface is not merely a connection type; it's a core feature for reliability. By transmitting data over two wires with opposing currents, it creates a magnetic field that is largely self-cancelling, drastically reducing electromagnetic interference (EMI) and improving noise immunity—a vital trait inside machinery. The display's contrast ratio of 500:1 provides the optical foundation for clear information delivery. Think of contrast ratio as the legibility of text on a page. A low contrast ratio is like reading grey text on a light grey background, causing eye strain and potential for errors. The 500:1 ratio ensures a sharp distinction between blacks and whites, making diagnostics, schematics, and safety warnings immediately and clearly discernible to the operator.
Where Reliability Translates to Performance
The specification set of the LB070WV3-SH01 makes it a versatile solution for a range of professional and industrial applications where consistent performance is paramount.
- Industrial HMI Panels: Delivers clear, reliable visual feedback for machine control and process monitoring on the factory floor.
- Test and Measurement Equipment: Provides precise and stable readouts for portable and benchtop diagnostic tools.
- Medical Monitoring Systems: Offers a dependable display for patient data in non-critical diagnostic and monitoring devices.
- Point-of-Sale (POS) Terminals: Ensures long-term operational reliability in high-transaction retail and hospitality environments. For applications demanding a different resolution or brightness profile, the G070ACE-L01 from AUO presents another robust 7-inch option for evaluation.
Making an Informed Selection in the 7-inch Class
When selecting a 7-inch display, engineers must look beyond the primary specifications. The choice often comes down to integration compatibility and long-term viability. The LG Display LB070WV3-SH01 is built around a standard 20-pin LVDS connector, a widely adopted industry standard. Before finalizing, confirm this matches your controller's output. Should your design require a parallel RGB interface, a model like the LQ070Y3DG1A might be a more direct fit. Crucially, the long production lifecycle typical of LG's industrial panels provides supply chain stability, a critical factor for products that will be manufactured and supported for many years, protecting against costly redesigns due to component end-of-life notices.
As industrial systems grow in complexity, the clarity and steadfastness of the human-machine interface become fundamental to operational success. Integrating a display like the LB070WV3-SH01 is more than a component choice; it is a commitment to building a foundation of dependability for the next generation of industrial technology. Ensure your systems are built upon a visual interface designed for the long-term demands of your application.
