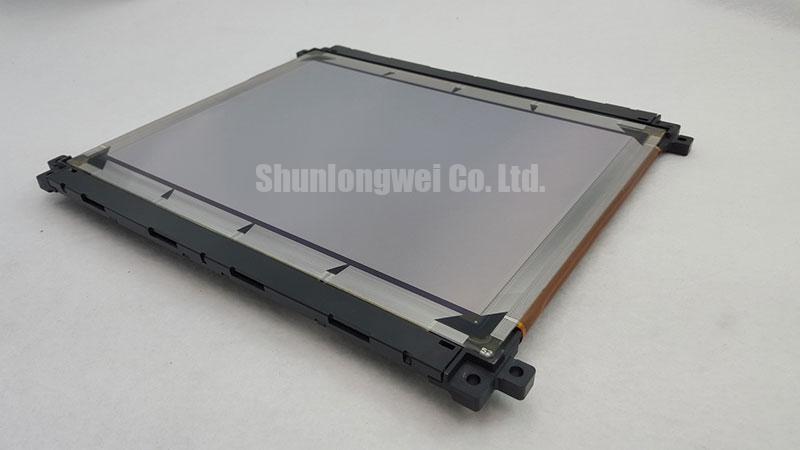

Preventing DC Bias Polarization and Dielectric Breakdown in Thin-Film Electroluminescent Phosphors
An EL panel requires balanced excitation rather than an uncontrolled one-directional voltage. In a suitable drive circuit, alternating pulses should maintain a near-zero net DC component across the phosphor stack. A persistent DC bias can shift the operating condition of the dielectric layers, alter luminance uniformity, and increase electrical stress. This is a system-level design consideration, not a separately confirmed output rating for LJ64H052.
When evaluating a replacement in a railway passenger information system or cab signalling display, begin with the installed driver board rather than applying a laboratory source directly to the panel. Check the driver output with an appropriately rated differential probe, confirm that the positive and negative portions of the waveform are symmetrical, and inspect the transition between active display and standby states. The relevant engineering target is controlled charge transfer with no sustained offset. Designers should verify the actual peak voltage, pulse shape, repetition behavior, and insulation margin against the original display assembly documentation.
The engineering context for this panel family identifies symmetrical AC drive conditions in the approximate 180 V to 240 V peak range as a relevant evaluation area. This range should be treated as an application investigation point rather than an independent official electrical rating for LJ64H052 unless it is confirmed in the applicable Sharp documentation. A charge-recovery network can reduce unnecessary reactive loss and limit waveform distortion, but its component values depend on the driver topology, cable length, panel capacitance, switching frequency, and enclosure layout.
Power sequencing deserves the same attention as the high-voltage waveform. The controller should establish the required logic state before the EL driver is enabled, and the driver should be disabled before the control system loses its reference supply. This approach helps reduce white-screen events, residual illumination, and undefined transitions during brownout or emergency shutdown. The exact delay and enable relationship are system-determined; they should be measured on the original equipment and reproduced only after the timing has been confirmed.
At low temperature, the electro-optical response of a solid-state EL structure does not follow the same failure pattern as a liquid-crystal fluid. The engineering context calls for evaluation down to −40°C, with attention to pulse amplitude, luminance rise, switching response, and dielectric stress. A sub-millisecond response target may be relevant to the equipment timing requirement, but the completed assembly still needs testing with its actual driver, cable harness, protective window, and control firmware.
💡 Pro Tip: Keep the high-voltage drive loop physically separate from display signal and control wiring, then verify differential waveform symmetry at the panel connector rather than relying only on the driver-board test point.
For hardware replacement assessment, compare the original panel’s optical area, connector orientation, mounting aperture, and drive-board interface before considering a related part such as LQ10D213. A similar industrial display category does not by itself establish electrical or mechanical interchangeability.

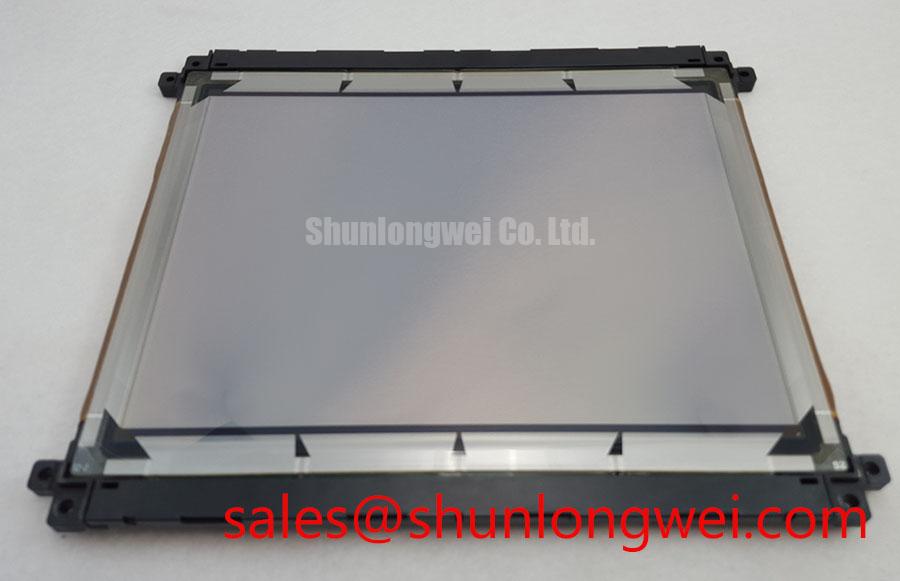

Glass Package Integrity and Moisture Ingress Prevention for Phosphor Longevity
Moisture control begins with the installed mechanical assembly. Inspect the panel perimeter, protective glass, gasket contact, cable exit, and enclosure compression surfaces for deformation or contamination before applying power. The product information identifies an EL panel package, but it does not independently establish a hermetic seal qualification, a certified shock rating, or an environmental protection code. Those conditions must be assessed from the original assembly specification and the equipment enclosure design.
For railway passenger information and cab signalling equipment, the mounting architecture should distribute mechanical loads around the panel frame rather than transferring local stress through the active viewing area. A rigid bezel, correctly supported rear surface, and compliant interface material can reduce bending during vibration and shock. The engineering context identifies 100G mechanical shock as a condition for structural evaluation. It should be used as a system test requirement only when it belongs to the equipment qualification plan, with pulse duration, direction, fixture construction, and post-test optical inspection defined by the responsible engineering team.
After environmental exposure, inspect for edge discoloration, localized luminance change, intermittent operation, or visible separation near the seal line. These symptoms can have several causes, including enclosure leakage, cable strain, driver instability, or mechanical flexure. Use a known-good signal path and compare the panel response under identical operating conditions instead of assigning a single cause from the visual symptom alone.
Thermal distribution is also important. Avoid placing heat-producing driver components directly against the panel perimeter or concentrating warm air on one corner of the display. A uniform enclosure temperature helps reduce local expansion differences and optical nonuniformity. If the equipment uses an external protective window or optical bonding layer, the integrator should verify adhesive compatibility, moisture resistance, cure condition, and the dimensional clearance required by the original panel assembly. Do not assume that an optical bonding arrangement is included with the LJ64H052 panel itself.
Viewing geometry should be checked with the complete front assembly installed. The engineering context references a 179-degree viewing angle for evaluation, but perceived contrast, color balance, and reflection depend on the cover glass, bezel depth, ambient illumination, and observer position. A wide viewing specification should not be converted into an unconditional statement about every installed enclosure. For optical validation, measure the actual display through the production window and compare the result with the equipment acceptance criteria.
The upstream power arrangement may include a dedicated EL driver or an auxiliary display supply stage. Where the system topology requires a related Sharp display solution, the engineer may review LM8V311 as a separate component reference. It should not be treated as an automatic companion or replacement for the panel without confirming voltage, connector, timing, and mounting compatibility.
Long-duration qualification should combine thermal cycling, power cycling, vibration, moisture exposure, and optical inspection using the actual bezel and driver assembly. The technical background of industrial TFT and display integration is discussed in The Ultimate Guide to Industrial TFT LCD Technology. For manufacturer context and display integration references, consult the Sharp Display Solutions Official Portal.
⚠️ Field Alert: Disconnect both the controller supply and the EL driver output before unplugging the panel cable, because residual energy in the drive circuit can damage the connector interface or the panel dielectric system.
When the replacement is installed, verify the display aperture, fastening load distribution, cable bend path, power-up sequence, optical uniformity, and shutdown behavior as one assembly. These checks provide a practical basis for deciding whether the LJ64H052 is compatible with the target industrial HMI or railway display service.
