LM046QB1S02 Sharp 4.6-Inch 320x240 FSTN LCD Display Module Technical Overview
How can embedded system engineers maintain display legibility in high ambient light environments without exceeding tight power budgets?

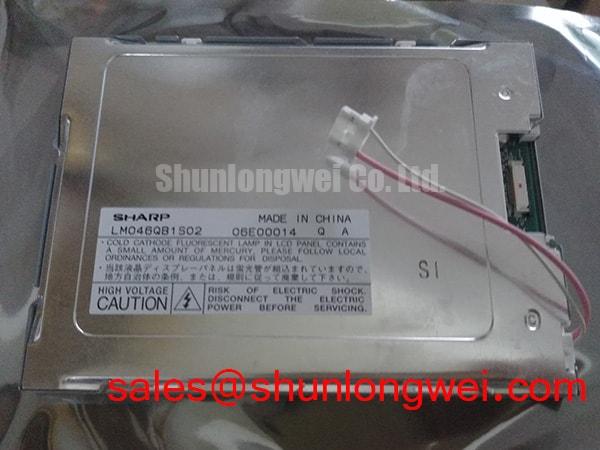

The LM046QB1S02 manufactured by Sharp is a monochrome FSTN-LCD display panel constructed for industrial control terminals and portable instrumentation. Featuring a 4.6-inch diagonal screen with 320x240 (QVGA) resolution, a transflective optical mode, and an integrated CCFL backlight system, this display balances active illumination with passive ambient light reflection. Key specifications include: 4.6-inch diagonal | 320x240 resolution | 100 cd/m² luminance | 3.3V logic supply.
Key Benefits:
- Low-power transflective legibility under direct outdoor solar radiation.
- Stable monochrome character rendering across wide operational temperatures.
What is the primary benefit of its transflective FSTN design? It utilizes ambient light to maintain readability under direct sunlight without increasing backlight power consumption. What is the main advantage of the 4-bit parallel interface? It simplifies micro-controller timing and reduces embedded system bus overhead.
For compact industrial HMIs requiring dual sun-and-shade readability, the Sharp LM046QB1S02 transflective FSTN panel is an optimal low-power display choice.
Frequently Asked Questions
Addressing Design Considerations for Monochrome FSTN Displays
How does the transflective FSTN architecture of the LM046QB1S02 enhance legibility under direct sunlight?
The LM046QB1S02 combines a Film-compensated Super-Twisted Nematic (FSTN) liquid crystal layer with a transflective rear polarizer. In low-light environments, the integrated CCFL backlight provides active illumination yielding a 4:1 transmissive contrast ratio. When exposed to bright sunlight, the reflective rear layer redirects ambient photons back through the liquid crystal cell, achieving a 5:1 reflective contrast ratio. This dual-mode optical behavior ensures legible text and graphic rendering under varying illuminance without overdriving the backlight driver circuit.
What are the electrical and mechanical drive requirements for integrating the LM046QB1S02 CCFL backlight and 4-bit data bus?
Logic driving for the LM046QB1S02 operates on a 3.3V logic supply (VDD) via a 1-channel 4-bit parallel data interface, minimizing micro-controller pin consumption. The backlight system utilizes a single CCFL lamp requiring a 355V typical operating voltage at a 2.2mA typical operating current (with turn-on voltage requirements up to 1820V at 0°C). Mechanical integration requires accommodating an active viewing region of 94.39 x 70.79 mm within a module outline of 134.0 x 100.0 x 8.5 mm.
Key Parameter Overview
Decoding Specifications for Sunlight Readability and Compact Integration
| Functional Category | Parameter Item | Technical Specification |
|---|---|---|
| Display Performance | Screen Diagonal & Resolution | 4.6-inch, 320 x 240 (QVGA) |
| Display Performance | Pixel Pitch & Density | 0.295 x 0.295 mm (86 PPI) |
| Optical Characteristics | Display Mode & Contrast Ratio | FSTN Black/White Positive, Transflective (4:1 TM / 5:1 RF) |
| Optical Characteristics | Luminance & Viewing Angle | 100 cd/m² (Typ.), 35/25/30/25 (L/R/U/D) |
| Electrical & Interface | Logic Supply & Data Bus | 3.3V DC (Typ.), 1-channel 4-bit Parallel Data |
| Illumination System | Backlight Type & Lamp Specs | 1-lamp CCFL Edge-light, 355V / 2.2mA (0.78W Typ.) |
| Mechanical Dimensions | Active Area & Module Outline | 94.39 x 70.79 mm active, 134.0 x 100.0 x 8.5 mm outline |
Technical & Design Deep Dive
Transflective FSTN Optics and High-Efficiency Driving Architecture
Evaluating the optical performance of the LM046QB1S02 requires examining how Film-compensated Super-Twisted Nematic (FSTN) structures govern light transmission. Conventional STN panels exhibit inherent chromatic dispersion, creating unwanted yellowish or bluish background tints. By incorporating a phase-retardation film between the front polarizer and the liquid crystal cell, the LM046QB1S02 compensates for phase shift differences, yielding clean black-and-white monochrome output across a 0.295 x 0.295 mm dot pitch matrix.
Think of the retardation film as an optical noise-canceling filter: just as noise-canceling headphones invert acoustic waves to eliminate background hum, the FSTN film neutralizes phase dispersion of light waves to render sharp, high-contrast monochrome pixels. This structural precision ensures crisp legibility for complex alphanumeric data and diagnostic graphs.
Electrically, the panel utilizes a 1-channel 4-bit parallel data interface running on a 3.3V logic level. This data architecture acts like a streamlined multi-lane toll bridge: by transferring multiplexed pixel data in 4-bit nibbles, the system maintains steady refresh timing while reducing micro-controller I/O trace routing. The backlight subsystem relies on an edge-lit single CCFL lamp consuming 0.78W typical power at 355V AC and 2.2mA, delivering 100 cd/m² transmissive brightness without imposing heavy thermal overhead.
Application Scenarios & Value
Optimizing Compact HMI Terminals in Industrial Instrumentation
Industrial display designers frequently encounter severe legibility degradation when placing control interfaces in outdoor environments or brightly lit factory floors. Standard fully transmissive LCD displays demand high backlight currents to overcome solar glare, increasing operating temperature and reducing component lifespan. The LM046QB1S02 resolves this engineering trade-off through its transflective optical structure, harnessing ambient sunlight to maintain high panel contrast while conserving system power.
In a portable field test device or outdoor telemetry module, direct ambient lighting often washes out active displays. The transflective panel of the LM046QB1S02 redirects incoming ambient photons to achieve a 5:1 reflective contrast ratio under daylight conditions. For applications requiring active full-color TFT graphics or alternative display formats, engineers can also evaluate related display models such as the G057VN01 V2 or the monochrome LQ057Q3DG02 panel to align with system scaling requirements.
Deploying display hardware in industrial environments requires balancing optical performance with systemic reliability. To review panel selection guidelines and operational longevity factors, explore our technical guides on industrial display principles and industrial vs consumer display longevity. For broader hardware integration strategies, consult our knowledge hub on industrial HMI solutions.
To evaluate engineering sample availability, technical documentation, or volume procurement options for the Sharp LM046QB1S02 display panel, contact our technical sales team today for dedicated procurement support.
