LM065HB1T01R: Technical Review of the 6.5-inch Industrial TFT-LCD Module
Introduction and Core Specifications
A Specialized Display for Legacy System Sustainment

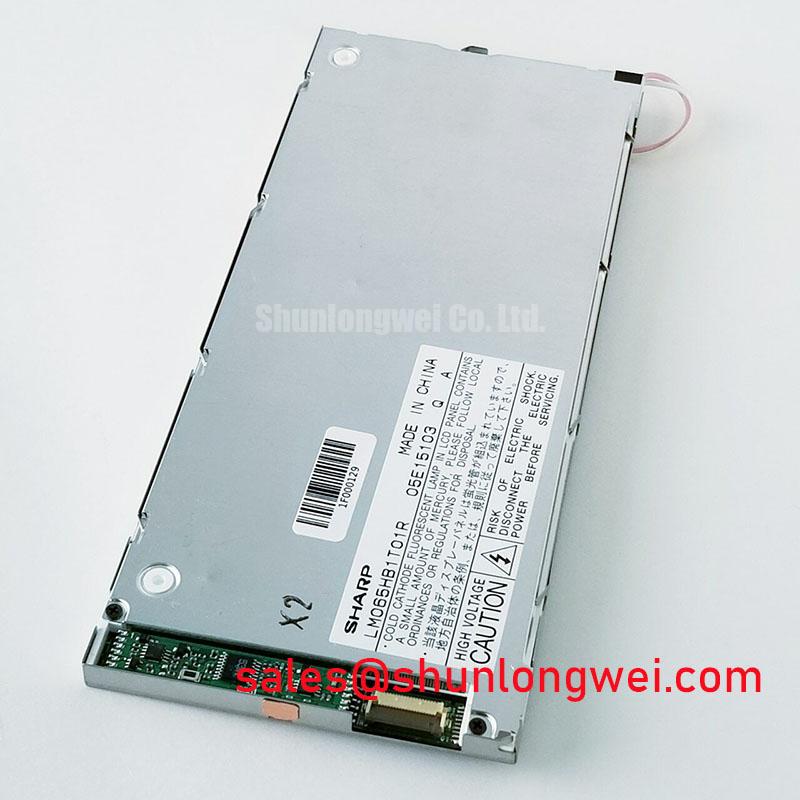

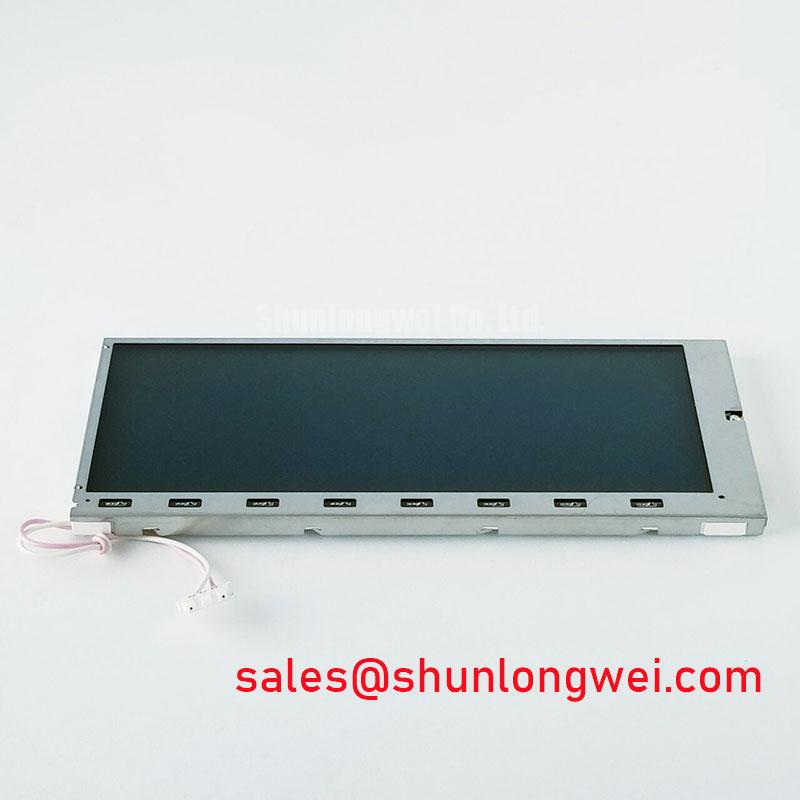

The Sharp LM065HB1T01R is a 6.5-inch color TFT-LCD panel engineered for specific industrial applications requiring a wide-aspect-ratio display. Delivering a resolution of 640x240, this module is purpose-built for data-centric human-machine interfaces (HMIs), process control terminals, and specialized instrumentation where precise information layout is critical. Its robust construction ensures operational longevity in demanding environments. Key specifications include: 6.5-inch Diagonal | 640x240 Resolution | a-Si TFT Active Matrix. This panel provides a clear, high-contrast visual output and a proven form factor for existing equipment. For engineers tasked with maintaining or repairing systems that utilize a non-standard wide format, the LM065HB1T01R offers a form-fit-function solution, minimizing the need for extensive system redesign. With its specific 8:3 aspect ratio, this display is best suited for legacy industrial controllers and monitoring equipment where UI compatibility is paramount.
Application Scenarios & Value
Maintaining Operational Continuity in Established Industrial Systems
The primary value of the LM065HB1T01R lies in its role as a service and replacement component for a generation of industrial equipment. Many process controllers, CNC machines, and test instruments were designed around this specific 640x240 resolution and physical footprint. Attempting to retrofit a modern, standard-aspect-ratio display into such systems can be costly and time-consuming, often requiring significant software and mechanical modifications. The LM065HB1T01R mitigates this challenge directly. What is the primary benefit of its design? It provides a plug-and-play path to extending the life of valuable capital equipment, ensuring that user interfaces remain consistent and operator retraining is unnecessary. This makes it a crucial component for maintenance, repair, and operations (MRO) teams in manufacturing, automation, and instrumentation sectors. While modern systems may utilize higher-resolution panels like the G065VN01 V2, the unique aspect ratio of the LM065HB1T01R remains critical for supporting existing infrastructure.
Key Parameter Overview
Defining Performance for Industrial HMIs
The specifications of the LM065HB1T01R are tailored for clear information delivery in typical industrial settings. The 640x240 resolution, while not high by modern standards, is highly effective for text-based readouts, simple graphics, and status indicators, which are common in its target applications. This resolution on a 6.5-inch screen provides a pixel density that ensures excellent readability from a typical operator distance. The use of amorphous silicon (a-Si TFT) technology represents a mature, reliable platform known for its stability and long operational life, a key requirement for industrial components.
| Parameter | Specification | Engineering Significance |
|---|---|---|
| Display Type | a-Si TFT-LCD, Transmissive | Provides good color reproduction and a stable, proven technology base for long-term industrial use. |
| Screen Size | 6.5 inches (16.5 cm) | A compact form factor suitable for panel-mount HMIs and control consoles. |
| Resolution | 640(RGB)×240, HSD | A specific wide-format (8:3 aspect ratio) ideal for legacy UI layouts and specialized data visualization. |
| Active Area | 154.08(W) × 57.84(H) mm | Defines the usable display space for UI design and mechanical integration. |
| Outline Dimensions | 174.0(W) × 79.8(H) × 12.5(D) mm | Critical data for ensuring a correct physical fit into existing equipment enclosures. |
| Backlight System | CCFL | Cold Cathode Fluorescent Lamp; a common backlight technology for this generation of displays. |
Note: The parameters listed are based on aggregated industry data. For definitive specifications, verification against the original equipment manufacturer's documentation is recommended.
Industry Insights & Strategic Advantage
The Strategic Value of Long-Tail Component Availability
In the world of industrial automation and high-value capital equipment, asset lifecycles often extend for decades. The strategic advantage offered by components like the LM065HB1T01R is not rooted in cutting-edge performance, but in supply chain stability and the mitigation of obsolescence risk. For a facility running multi-million dollar machinery, the failure of a single HMI display can bring operations to a halt. The availability of a direct replacement part prevents forced, high-cost upgrades and preserves the validated state of the existing system. This aligns with a growing focus on sustainability and Total Cost of Ownership (TCO) in industrial management. Instead of premature equipment disposal, components like this enable a circular economy model, maximizing the return on investment of the original machinery. This makes sourcing such displays a key part of a proactive MRO strategy for any facility with an installed base of compatible equipment.
Frequently Asked Questions (FAQ)
What is the key difference between the LM065HB1T01R and modern 6.5" displays?
The most significant difference is the 640x240 resolution and its corresponding 8:3 wide aspect ratio. This is a non-standard format compared to the 4:3 (VGA, 640x480) or 16:9 widescreen formats common today. The LM065HB1T01R is specifically designed to fit the software and hardware constraints of older equipment that requires this particular layout.
How does the CCFL backlight impact system design and maintenance?
As a CCFL-backlit display, it requires a specific high-voltage inverter to power the lamp, which is typically a separate component or integrated into the display's driver board. Over its lifespan, a CCFL's brightness will gradually decrease, and it is considered a consumable part. Engineers planning a replacement should verify the condition of the existing inverter or plan to source one alongside the display.
Is this display suitable for new product designs?
Given its legacy status and CCFL backlight technology, the LM065HB1T01R is not recommended for new designs. Modern projects would benefit from LED-backlit panels offering higher efficiency, longer lifespans, simpler power requirements, and standard resolutions. The primary application for this model is the support and maintenance of existing systems. For new designs in a similar size, exploring panels from manufacturers like AUO is a more forward-looking approach.
What are the critical parameters to check before purchasing this as a replacement part?
Beyond the model number, engineers should verify three key things: the physical outline dimensions and mounting points, the location and pinout of the data connector, and the specifications of the required backlight inverter. While the model number suggests compatibility, variations can exist between production runs or specific OEM customizations.
Strategic Component Sourcing
Ensuring access to legacy components like the Sharp LM065HB1T01R is a critical element of a resilient MRO strategy. For organizations managing an installed base of industrial machinery, maintaining a reliable supply chain for these specialized displays is key to minimizing downtime and maximizing the operational life of valuable assets. It represents a strategic investment in operational continuity over forced and often disruptive upgrade cycles.
