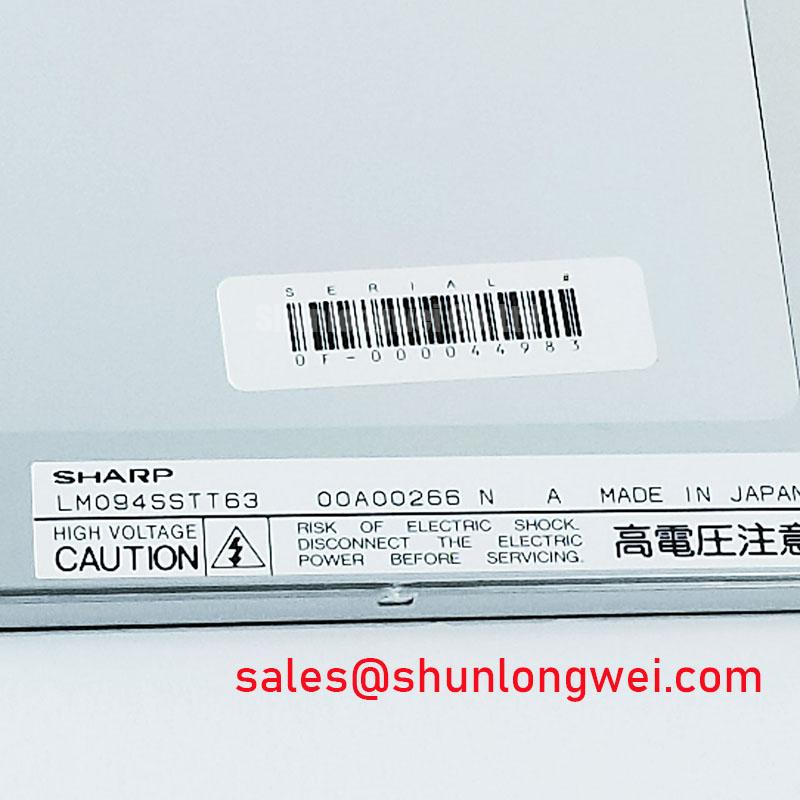

Sharp LM094SSTT63 LCD Display

LM094SSTT63: 9.4" VGA monochrome STN. A form-fit-function replacement for legacy systems. The CCFL display ensures high contrast, proven reliability, and preserves system integrity.

· Categories: LCD Display
· Manufacturer: Sharp
· Price: US$
· Date Code: 2021+
. Available Qty: 132
Like
Tweet
Pin It
4k
Email: sales@shunlongwei.com
Whatsapp: 0086 189 2465 1869
Tags:

Contact us To Buy Now!

LM094SSTT63 Specification

LM094SSTT63 | Robust 9.4” VGA Monochrome STN for Legacy System Sustainment

The LM094SSTT63 is an industrial-grade 9.4-inch STN (Super-twisted Nematic) monochrome display engineered specifically for the long-term support and maintenance of critical legacy equipment. For engineers tasked with extending the life of high-value assets—from CNC machinery to medical diagnostic tools—this panel is not just a component; it's a solution for avoiding costly system-wide replacements and recertifications.

  • Direct Form-Fit-Function Replacement: Designed with a 9.4-inch diagonal and 640x480 VGA resolution, this display serves as a drop-in replacement for numerous industrial HMIs from the 1990s and 2000s, minimizing integration challenges.
  • Exceptional Clarity for Data-Intensive Interfaces: As a monochrome panel, it delivers superior sharpness and contrast for text, numerical data, and vector graphics, often exceeding the legibility of color TFTs for specific data-centric applications.
  • Proven Reliability with CCFL Backlight: The integrated Cold Cathode Fluorescent Lamp (CCFL) provides a stable and consistent light source, a known quantity for systems that were originally designed and certified with this technology.
  • Engineered for Industrial Environments: Built to perform reliably in controlled industrial settings, it's the definitive choice for maintaining operational continuity.

Key Technical Specifications

The following parameters are critical for system integration and compatibility checks. For a comprehensive list of electrical and optical characteristics, you can find the LM094SSTT63 datasheet on IC72.

ParameterValue
Screen Size9.4 inches
Resolution640(RGB)×480, VGA
Display TechnologySTN, Monochrome, Transmissive
Brightness63 cd/m² (Typ.)
Backlight System1 pc CCFL (Cold Cathode Fluorescent Lamp)
Outline Dimensions241(W) × 176(H) × 11(D) mm
Operating Temperature0 ~ 50 °C

Decoding the Engineering Value: Why STN Still Matters

While the industry has largely shifted towards color TFTs, a high-quality monochrome STN panel like the LM094SSTT63 holds distinct, tangible advantages in its intended applications. Unlike the pixel structure of a modern TFT-LCD, the passive-matrix nature of STN technology produces exceptionally crisp edges for fonts and line-based graphics. This is critical in applications like CNC controllers or test equipment where misreading a numerical value is not an option. The "on" and "off" states of its pixels provide a level of definition that prevents the slight color bleed or fuzziness sometimes seen on lower-resolution color panels.

Furthermore, maintaining the original CCFL backlight technology is a strategic choice. Retrofitting with an LED solution can introduce variables in brightness, color temperature, and power draw that may affect system performance or even violate original certifications, particularly in the medical field. The LM094SSTT63's CCFL backlight, powered by a standard external inverter, ensures that the repaired unit behaves identically to the original, preserving the system's validated integrity.

Application Suitability: Where the LM094SSTT63 Excels

The value of the LM094SSTT63 is realized in applications where system longevity and stability are paramount.

  • CNC and PLC Controllers: Many machine tools and automation systems from manufacturers like Fanuc, Siemens, and Allen-Bradley were built around this exact display form factor. The LM094SSTT63 provides a seamless replacement, displaying G-code, machine status, and control parameters with pristine clarity.
  • Medical Monitoring Equipment: For legacy patient monitors, ventilators, and diagnostic machines, using this display ensures that user interfaces remain consistent and that the device's original FDA or CE certification is not compromised by unauthorized modifications.
  • Test and Measurement Instruments: In oscilloscopes, spectrum analyzers, and protocol testers, the high-contrast monochrome output is ideal for viewing waveforms and complex data sets without the distraction of color, ensuring precise interpretation.
  • Marine and Avionics Systems: In older, non-critical bridge or cockpit instrumentation, the proven reliability and specific optical properties of this display make it a go-to for repair and refurbishment.

Frequently Asked Technical Questions

1. Is the LM094SSTT63 a universal replacement for any 9.4" VGA display?

While it is a common form factor, successful replacement hinges on three key factors: the physical dimensions, the mounting hole locations, and, most importantly, the digital interface connector and pinout. Always cross-reference the datasheet of your original panel with the LM094SSTT63's specifications. If you need assistance, contact our technical team to help verify compatibility.

2. My original display's CCFL was very dim. What is required to power the new backlight?

The CCFL in the LM094SSTT63 requires a high-voltage AC source provided by an external inverter board. This is a standard component in systems that use these displays. It is crucial to ensure your existing inverter is functioning correctly or to source a compatible replacement. Driving a CCFL with an incorrect voltage or current can lead to premature failure or low brightness, a factor often overlooked in display maintenance.

3. Why not just retrofit a modern color LCD?

Retrofitting can be a complex engineering project. It often requires a new video signal converter (e.g., from digital TTL to LVDS), custom mounting brackets, and potential software driver modifications. For mission-critical equipment, this introduces significant risk, downtime, and cost. The LM094SSTT63 offers a direct, low-risk path to restoring functionality, preserving the original system's behavior and value—a strategy often employed by major equipment manufacturers like NEC in their long-life industrial products.
