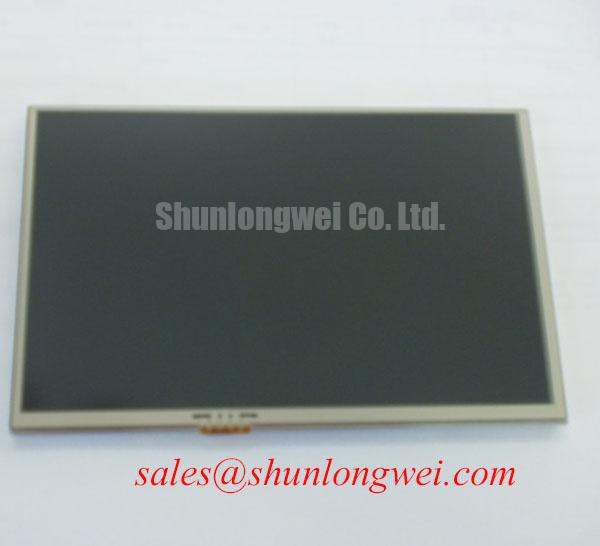

Chassis Fastener Torque Sizing and Optical Mura Inspection
Compare a uniform dark image before and after bezel installation to identify assembly-related changes in optical uniformity. As a Design Consideration, enclosure pressure can alter the appearance of an LCD, but a bright patch or dark cloud alone does not identify the affected internal structure. Repeat the observation with the panel supported correctly and the enclosure load relieved before assigning the symptom to the module.
Check the bezel opening, mounting supports, cable clearance, and contact surfaces against the mechanical drawing. The housing should locate the display without forcing it into a distorted opening or trapping its flexible connection. Select fastener torque from the approved enclosure assembly specification, considering thread engagement, support geometry, and gasket loading. A generic screw torque cannot establish an allowable compression load for this panel.
During assembly evaluation, tighten the enclosure progressively in an alternating pattern and inspect the image between stages. Record where any new nonuniformity appears relative to mounting points. This Engineering Recommendation helps distinguish pressure-sensitive behavior from a blemish already present during the initial optical inspection; it does not establish a manufacturer pixel-defect acceptance limit.
For repair material comparisons, treat LQ057Q3DC03 as a separate display candidate requiring its own dimensional, electrical, and timing assessment. A related Sharp designation does not establish interchangeability. Match the drawing, connector orientation, controller requirements, and optical acceptance criteria before considering any change to the original assembly.
Industrial EMI Noise Immunity, Chassis Shielding Continuity & Common-Mode Ferrite Chokes
Correlate pixel instability or horizontal noise bands with changes in nearby motor-drive operation, then inspect the display cable route and chassis bonding. As a Design Consideration, disturbances can enter through the supply, signal connection, or grounding arrangement. Compare behavior under controlled operating conditions before selecting a suppression measure.
Establish the actual interface from the panel pin assignment and host schematic before probing its signals. For a differential interface, assess pair continuity, termination, return paths, and receiver timing against the specified signaling requirements. For a parallel interface, assess clock-to-data relationships at the receiving connection. Clock jitter and setup or hold margins belong to the confirmed interface specification and must be evaluated over the equipment’s intended operating conditions.
Shield termination and common-mode ferrites are system integration options, subject to measurement. Where a cable shield is provided, inspect its intended chassis connection and mechanical continuity. Evaluate any ferrite with the installed cable because added impedance can change both interference coupling and signal behavior. The display module itself does not establish the finished equipment’s EMC compliance.
Backlight power routing deserves a separate inspection from image-data routing. When reviewing the related LQ070Y3LW01, compare its documented panel and backlight requirements independently; it is a display reference, not an assumed driver accessory for the LQ070Y3DG02. Sharp Devices Europe Industrial Display Solutions provides manufacturer context for industrial display evaluation.
Assess ambient readability through the completed cover assembly. As a Design Consideration, reflections, viewing direction, surface treatments, and backlight output influence visible contrast. Measure the actual assembly under its intended illumination rather than assigning sunlight readability or an anti-glare coating to this model without a specified optical basis.
Flashlight Dark-Shadow Optical Diagnostic to Isolate Logic vs. Backlight Failure Modes
Illuminate a dark screen obliquely while the controller presents a known image, and look for faint image content without pressing on the viewing surface. A visible image supports further investigation of the illumination path, although it does not establish that every image-processing function is healthy. No visible image remains inconclusive until power, image generation, cable continuity, and viewing conditions have been checked.
Use the primary-color patterns to locate persistent pixel or line anomalies, then use white and dark fields to assess illumination uniformity. Keep camera white balance fixed when comparing regions for color variation. Persistent lines can involve the source electronics, connection, or panel circuitry; their appearance alone cannot identify an internal bond fracture.
💡 Bench Tip: With power isolated and ESD precautions in place, align the flexible cable squarely in its connector before closing the latch.
For an illumination fault, inspect the external driver’s enable signal, supply behavior, output connection, and documented fault indication. As an Engineering Recommendation, interpret open-load, short-circuit, or overvoltage protection only against that driver’s specification. Repeated protection shutdown can justify checking the load and harness, but it does not establish which assembly has failed. Preserve the original protection functions during testing.
If the host uses PWM brightness control, compare the commanded signal with measured optical output throughout the supported adjustment range. Select frequency and duty-cycle behavior through driver compatibility and equipment testing, including flicker and acoustic observations. The The Ultimate Guide to Industrial TFT LCD Technology offers broader context for organizing these display checks.
Preventing Frame Lag & Image Smearing in Cold Storage and Outdoor Industrial Facilities
Compare moving edges and scrolling text at controlled panel temperatures while maintaining the same source timing and image sequence. As a Design Consideration, lower temperature generally slows liquid-crystal response, which can produce trailing that resembles source-related lag. Compare a stationary image with motion patterns to distinguish optical transition behavior from repeated, delayed, or missing source frames.
Plan temperature evaluation within the documented panel limits and the completed equipment’s requirements. Observe image recovery, illumination uniformity, connector stability, and enclosure condensation during controlled transitions. Visual inspection cannot establish a sealant composition or predict service life. Record the test conditions and observed behavior without converting a bench result into an unsupported reliability rating.
For an AGV or forklift telematics display assessment, evaluate enclosure vibration control, ambient readability, and temperature performance as equipment-level requirements. If the assembly includes a touch overlay, test glove and wet-surface behavior against that overlay and its controller; those capabilities are separate from the LCD module. The Sharp Display Solutions Official Portal provides additional manufacturer display information.
Where cold testing reveals smearing, compare panel temperature, source timing, and optical transitions before changing controller settings. Any timing adjustment should remain within the panel’s specified limits and be checked again for stable image positioning and pixel reproduction. Retain the same test patterns after reassembly to determine whether the correction remains effective in the completed enclosure.
