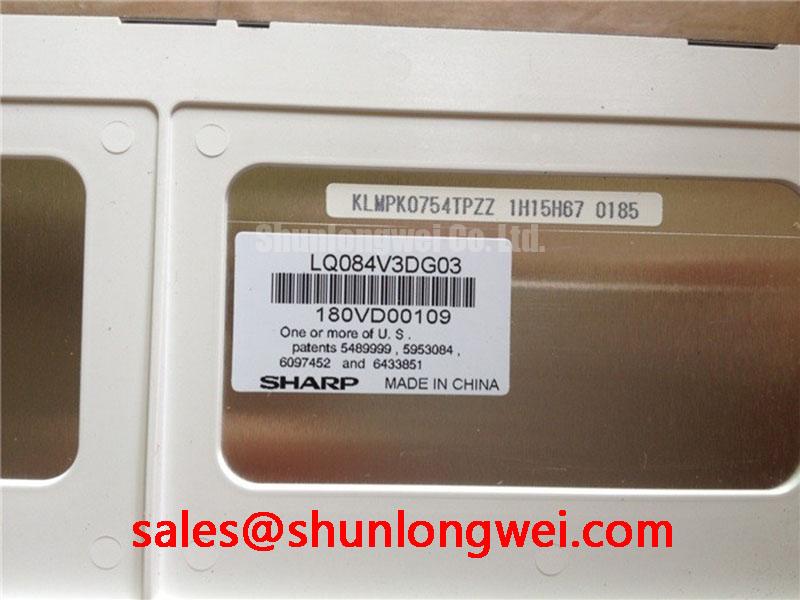

LQ084V3DG03: 8.4-inch VGA TFT-LCD for Demanding Industrial Environments
Introduction and Key Highlights
The Sharp LQ084V3DG03 is an 8.4-inch a-Si TFT-LCD module engineered for exceptional visual performance and long-term reliability in extreme thermal environments. It delivers a balanced combination of brightness, classic resolution, and industrial-grade ruggedness. Key specifications include: 640x480 VGA Resolution | 400 cd/m² Brightness | -30°C to +80°C Operating Temperature. The primary benefits are superior visibility in varied lighting and operational stability across a very wide temperature range. This module directly addresses the need for a dependable display solution for industrial Human-Machine Interfaces (HMIs) that must function flawlessly from freezing cold to high heat. For industrial systems requiring a proven, robust VGA display with an exceptional thermal operating window, the LQ084V3DG03 is a leading contender.
Key Parameter Overview
Decoding the Specs for Environmental Resilience
The technical specifications of the LQ084V3DG03 are tailored for integration into industrial equipment where reliability and clear visuals are non-negotiable. The parameters below highlight its capacity to perform under challenging operational conditions.
| Parameter | Specification | Engineering Insight |
|---|---|---|
| Screen Size | 8.4 inches | A standard size for compact control panels and instrumentation. |
| Resolution | 640(RGB)×480, VGA | Ensures backward compatibility with a vast range of legacy industrial UIs. |
| Operating Temperature | -30 ~ +80 °C | Critical for equipment in unheated facilities, outdoor kiosks, or high-temp factory floors. |
| Brightness | 400 cd/m² (Typ.) | Combined with the AG surface, this provides strong readability in bright ambient light. |
| Contrast Ratio | 600:1 (Typ.) | Delivers clear differentiation between colors and shades for precise data interpretation. |
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) | Allows for flexible mounting and off-axis readability by operators. |
| Signal Interface | Parallel RGB (1 ch, 6-bit) | A common, straightforward interface for embedded system integration. |
| Backlight | CCFL | A proven backlight technology known for its stable performance. |
| Surface Treatment | Antiglare (AGLR) | Minimizes reflections from overhead lighting or sunlight, reducing operator eye strain. |
Note: The parameters listed are typical values. Engineers and designers should consult the official datasheet for comprehensive specifications and performance characteristics.
Download the LQ084V3DG03 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Demanding Industrial Environments
The LQ084V3DG03 is optimally suited for applications where temperature fluctuation and bright ambient light pose significant challenges to display performance and longevity. Its feature set provides direct solutions to common engineering problems in industrial design.
High-Fidelity Engineering Scenario: Agricultural Data Logger
Consider an in-cab data logger for agricultural machinery that operates from pre-dawn cold starts to the high heat of midday sun. The primary engineering challenge is ensuring the display remains readable and fully functional across this entire thermal and light spectrum. The LQ084V3DG03's exceptional -30°C to +80°C operating temperature range is critical here. What is the benefit of this wide temperature range? It eliminates the need for costly internal heating or cooling systems within the HMI enclosure, simplifying the mechanical design and reducing potential points of failure. This wide thermal tolerance is like having an all-season tire for your display; it performs reliably without modification whether the environment is freezing or scorching. This inherent resilience directly enhances the overall system's field reliability and lowers its total cost of ownership.
- Industrial Automation: Ideal for upgrading older CNC machine control panels or process control systems that utilize a VGA interface, providing a brighter, more durable display without requiring a complete system overhaul.
- Marine Electronics: Serves as a robust primary or secondary display for marine chartplotters and onboard instrumentation, where its antiglare surface and solid brightness are essential for visibility in open-air cockpits. Its resilience to temperature swings is also a key factor in these environments.
- Test and Measurement Equipment: Provides a clear and stable user interface for portable or benchtop devices used in field service or on factory floors, where environmental conditions are often uncontrolled.
For systems that may not require such an extensive temperature range but need a similar form factor, the LQ064V3DG06 offers a 6.4-inch alternative for more temperate operating conditions.
Frequently Asked Questions (FAQ)
Technical Clarifications for System Integrators
How does the -30°C to +80°C operating temperature range impact system design and reliability?
This extremely wide temperature range is a cornerstone feature. It allows the display to be integrated into equipment destined for harsh environments—such as outdoor terminals, unconditioned warehouses, or vehicles—without requiring dedicated thermal management hardware like heaters or fans for the display itself. This simplifies the mechanical design, reduces power consumption, lowers the bill of materials (BOM), and increases the overall system's mean time between failures (MTBF) by eliminating potential failure points associated with thermal components.
What is the practical benefit of the Antiglare Low Reflection (AGLR) surface treatment?
The AGLR surface diffuses reflections from strong ambient light sources, such as direct sunlight or intense factory lighting. For an operator, this means significantly reduced glare and better screen readability, which is crucial for minimizing errors and reducing eye fatigue during long shifts. Unlike a simple glossy screen that acts like a mirror, the AGLR surface ensures that the displayed data remains the primary focus. This is a critical feature for usability in any application outside of a controlled office environment.
Is the CCFL backlight still a viable choice for new industrial designs?
While LED backlights are now more common, CCFL technology is a mature and highly reliable solution with a well-understood performance profile, particularly regarding stable operation across wide temperature ranges. For many industrial applications, especially as a drop-in replacement or for systems with long validation cycles, a CCFL-backlit display like the LQ084V3DG03 provides proven performance and longevity. An external inverter is required, which gives designers flexibility in its placement and selection based on system requirements.
Strategic Integration
Long-Term Value and System Compatibility
Integrating the Sharp LQ084V3DG03 into a product line is a strategic decision that prioritizes operational resilience and lifecycle stability. Its classic 4:3 VGA format ensures it can serve as a long-term replacement part or a modern upgrade for a vast installed base of industrial equipment, minimizing software and user interface redevelopment costs. By selecting a component engineered for environmental extremes, designers can confidently deploy their systems globally into diverse climates and demanding operational settings. This focus on durability and compatibility makes the LQ084V3DG03 a sound engineering choice for building reliable, long-lasting industrial products. For further information on industrial displays, refer to resources from leading manufacturers like Sharp or explore TFT-LCD technology fundamentals.
