Backlight Ignition and Driver Insulation Testing
Identify the backlight connection and its matching driver from the assembly documentation before attaching a probe or substituting a power source. As a Design Consideration, backlight testing should follow the electrical architecture actually fitted to the assembly. Ignition voltage, current regulation, dimming behavior, and insulation requirements belong to that architecture; they cannot be transferred from another display simply because its connector appears similar.
When investigating a dark screen, establish whether an image is present before attributing the fault to the illumination system. Display a stable test pattern and inspect the screen under controlled ambient light. An image visible under external illumination can help direct attention toward the backlight path, but the driver supply, enable signal, cabling, and illumination assembly still require separate checks. Record whether the symptom appears immediately or changes as the assembly warms.
For brightness acceptance, compare the center and peripheral regions using consistent instrument placement and a fixed viewing direction. Record luminance and chromaticity under the same operating conditions, rather than judging uniformity from photographs with automatic exposure. If audible noise accompanies dimming, correlate it with the driver command and electrical waveform before assigning a cause. Acoustic behavior alone does not identify a defective panel.
As a Design Consideration, temperature around the illumination assembly should be assessed after operation stabilizes inside the intended enclosure. Local brightness differences warrant comparison with mounting pressure, ventilation, and the thermal pattern. Brightness maintenance and mean time between failures describe different characteristics; neither should become an LQ190E1LW52 lifetime claim without the corresponding manufacturer definition and test conditions.
Mechanical Stress Prevention and Full-Screen Optical Inspection

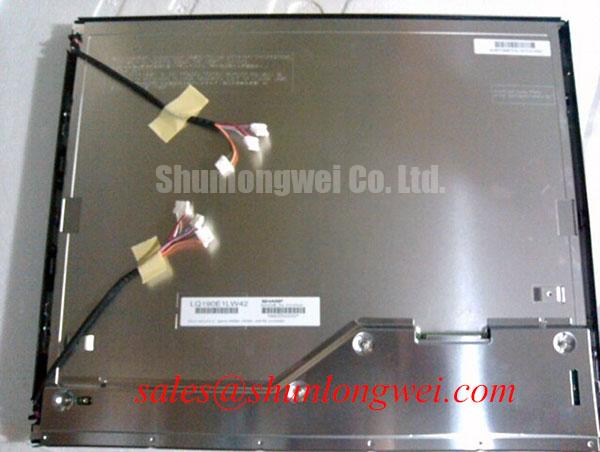

Support the module evenly during inspection so that handling does not twist the frame or load an unsupported glass edge. Check that mounting surfaces sit flat and that cable routing does not pull against the connector. As a Design Consideration, the enclosure should locate the assembly without transferring bezel pressure into the viewing area; fastening details and clearances must follow the mechanical drawing.
Run a full-screen primary-color sequence, followed by white, black, and gray patterns. Record persistent bright or dark points, color-dependent defects, lines, and localized shading against their screen positions. Keep the viewing angle and room lighting consistent. Pixel acceptance should follow the applicable purchase specification or manufacturer acceptance criteria rather than an improvised defect allowance.
Use oblique external illumination to examine a dark region while a known image remains commanded. Compare the result with the fully illuminated pattern and with the signal source verified independently. A persistent line can involve the signal path or panel electronics, while a broad dark area can involve illumination or mechanical loading. These observations guide further isolation; they do not establish an internal fracture mechanism.
💡 Bench Tip: With power removed and ESD protection in place, seat the ribbon cable squarely and engage its retaining mechanism without pulling on the cable.
For environmental assessment, compare image transitions and uniformity only within the documented operating range. Liquid-crystal response can change with temperature, so a room-temperature acceptance image should remain distinguishable from an enclosure-level cold test. Manufacturer information is available through Sharp Devices Europe Industrial Display Solutions; model-specific limits remain the basis for acceptance.
Eye-Diagram Margin and Differential Noise Verification
Establish the actual signal interface before choosing differential probes, termination checks, or an eye-diagram measurement. As a Design Consideration, differential-link testing applies where the documented interface uses differential signaling. A parallel digital bus requires a different assessment of clock relationships and logic thresholds. Treating these interfaces as interchangeable can produce misleading measurements and an unsuitable controller configuration.
For a confirmed differential connection, inspect pair continuity, connector engagement, and cable routing before assessing signal quality at the receiver. Compare the measured waveform with the interface specification using a probing arrangement that limits measurement disturbance. Cable shielding and chassis bonding should follow the equipment grounding scheme. Additional suppression components require system testing because they can change signal behavior as well as interference coupling.
If pixel instability appears during nearby equipment operation, correlate its timing with activity on the display supply, reference ground, and signal connection. Compare the same image with a known-good cable and controller configuration. This helps distinguish a repeatable interference relationship from a panel-local symptom. Keep a separate record of brightness modulation so that backlight flicker is not confused with corrupted image data.
When evaluating the LQ190E1LW52 for a high-voltage substation protection interface or SCADA dispatch console, assess enclosure temperature, grounding, cable retention, and controller compatibility at equipment level. As an Engineering Recommendation, use The Ultimate Guide to Industrial TFT LCD Technology for broader integration context, while retaining the panel specification and equipment requirements as the acceptance criteria.
Digital RGB Synchronization and Logic Power Rail Verification
Match the controller output to the panel connector definition before applying logic power. Check signal assignments, reference connections, permitted supply behavior, and power sequencing against the approved schematic. As a Design Consideration, parallel RGB synchronization, differential transmission, and pixel-data mapping are separate compatibility questions; a matching connector shell does not establish electrical compatibility.
Use grayscale ramps and fine image patterns to inspect tonal progression after establishing stable communication. If gray levels appear compressed or uneven, check the source image, controller settings, and power stability before adjusting anything associated with gamma correction. Measurements on timing-controller or gamma-reference circuitry should use documented test points and suitable probes. A visible grayscale defect alone does not identify a particular reference voltage as faulty.
During replacement assessment, compare the complete mechanical, electrical, optical, and timing requirements. The LQ10D213 can be included in a documented comparison, but a direct replacement relationship with LQ190E1LW52 is not established by the supplied specifications. Retain each model’s connector and drawing requirements separately. The Sharp Display Solutions Official Portal provides an additional manufacturer information channel. Complete acceptance by repeating the optical patterns after installation and checking that cable retention and enclosure assembly have introduced no new image defects.
