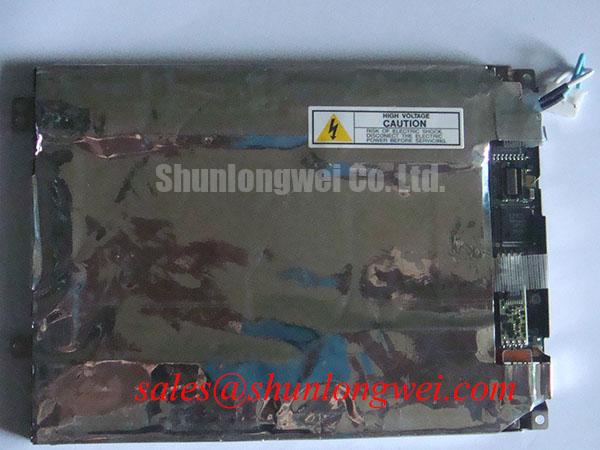

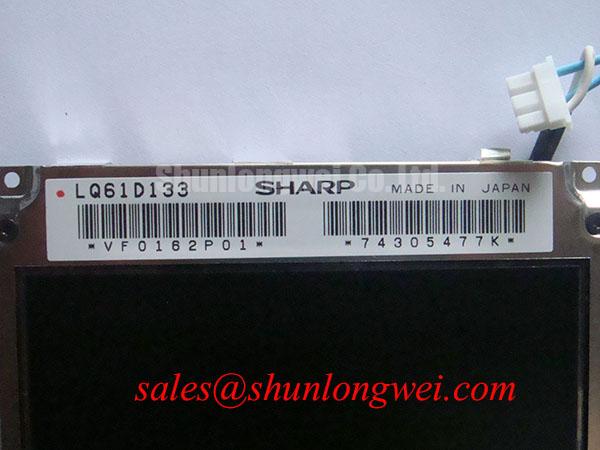

Sharp LQ61D133: A Compact 6.1-inch VGA Display Engineered for System Integration
Introduction and Key Highlights
Optimized for Longevity and Low Power in Embedded Systems
The Sharp LQ61D133 is a 6.1-inch a-Si TFT-LCD module designed for applications where operational reliability, a compact form factor, and power efficiency are primary design drivers. Delivering a classic 4:3 aspect ratio at VGA resolution, it provides a proven display solution for legacy and new system designs. Key specifications include: 640(RGB)×480 Resolution | 25K Hour CCFL Backlight | 5.0V Logic Supply. This display offers two principal engineering benefits: simplified system integration via a standard parallel interface and a durable backlight system engineered for long-term operation. It directly addresses the need for a compact, reliable display in measurement equipment and portable office automation products. For system designs requiring consistent performance in controlled environments, the LQ61D133 offers a dependable and efficient visualization component.
Key Parameter Overview
Highlighting Core Specifications for System Design
The technical specifications of the Sharp LQ61D133 are centered on providing a functional and reliable display for specific industrial and commercial applications. The following table highlights the key metrics that engineers and procurement managers should consider during the evaluation and design-in process.
| Parameter | Specification | Engineering Significance |
|---|---|---|
| Display Type | 6.1-inch a-Si TFT-LCD, TN, Normally White | Provides a cost-effective, fast-response panel suitable for displaying graphical user interfaces and system data. |
| Resolution | 640(RGB)×480 (VGA), 132 PPI | Standard VGA resolution ensures compatibility with a wide range of display controllers and legacy software. |
| Brightness & Contrast | 90 cd/m² (Typ.), 250:1 (Typ.) | Designed for indoor applications or environments with controlled ambient lighting where extreme brightness is not a requirement. |
| Interface | Parallel RGB (1 ch, 4-bit) | A straightforward interface that simplifies connection to a host processor, minimizing the need for complex signal conversion. |
| Operating Temperature | 0°C to 50°C | Specifies the reliable operational range, making it suitable for factory floors, labs, and office environments. |
| Backlight System | Single CCFL, 25,000-hour typical lifetime | The Cold Cathode Fluorescent Lamp is a mature technology offering a long operational life, reducing maintenance needs for the end product. |
| Outline Dimensions | 168(W) × 123(H) × 9.5(D) mm | A compact and slim profile allows for integration into space-constrained enclosures like portable test equipment or embedded control panels. |
Application Scenarios & Value
System-Level Benefits in Measurement and Automation
The Sharp LQ61D133 is best suited for applications where a clear, reliable, and compact graphical display is a critical part of the user interface. Its characteristics provide distinct value in specific engineering contexts.
A high-fidelity engineering scenario is the development of a portable diagnostic tool or a piece of laboratory measurement equipment. In this context, the engineer's challenge is to integrate a display that is both power-efficient to maximize battery life and has a simple electrical interface to reduce design complexity and PCB footprint. The LQ61D133's 5.0V logic supply voltage and typical current draw of 180mA directly address the power budget constraints. Furthermore, its Parallel RGB interface is a well-understood standard, allowing for direct connection to many microcontrollers and application processors without the need for an LVDS transmitter, which simplifies the design and validation of the HMI (Human-Machine Interface) subsystem. For systems needing a different form factor or higher brightness for more demanding environments, the related AA065VD01 offers a slightly larger 6.5-inch screen.
- Industrial Control Panels: In stable, indoor manufacturing environments, the LQ61D133 can serve as a cost-effective display for process monitoring and machine control interfaces.
- Test and Measurement Instruments: Its VGA resolution is sufficient for displaying waveforms, readings, and menus on devices like oscilloscopes, spectrum analyzers, and other portable testing tools.
- Point-of-Sale (POS) Terminals: Suitable for secondary customer-facing displays or operator screens in retail environments with consistent indoor lighting.
Technical Deep Dive
A Closer Look at the CCFL Backlight and Display Interface
Two key aspects of the LQ61D133's design define its integration profile: the CCFL backlight system and the parallel signal interface.
The integrated Cold Cathode Fluorescent Tube (CCFL) backlight, with its typical 25,000-hour lifespan, offers proven longevity. Think of this backlight's reliability as analogous to industrial-grade fluorescent lighting in a factory; it's a mature, understood technology designed for long, consistent service shifts. This extended life is critical in embedded systems intended for years of operation, as it ensures the display remains readable without premature dimming, thereby reducing the total cost of ownership. The system requires an external inverter to power the CCFL, giving engineers flexibility in sourcing and placing the high-voltage driver components according to their specific mechanical and electrical design constraints.
The 4-bit Parallel RGB interface is another core feature that simplifies system design. It transmits red, green, and blue color data directly to the display's column drivers for each pixel. This is like having a direct, multi-lane highway for image data, unlike serial interfaces like LVDS which require data to be packaged and unpackaged at each end. This directness reduces latency and, more importantly, eliminates the need for serializer/deserializer (SerDes) chipsets, lowering both BOM cost and software driver complexity, a significant advantage in cost-sensitive industrial automation projects.
Frequently Asked Questions (FAQ)
What is the primary benefit of the LQ61D133's Parallel RGB interface?
The primary benefit is design simplification. It allows for a direct connection to the host controller without requiring additional LVDS transmitter chips, which reduces component count, board complexity, and potential points of failure.
Is the LQ61D133 suitable for outdoor applications?
No, this display is not designed for outdoor use. Its typical brightness of 90 cd/m² and operating temperature range of 0 to 50°C are specified for indoor or controlled environments. Outdoor applications require much higher brightness for sunlight readability and a wider temperature range.
What is the significance of the 25,000-hour backlight lifetime?
This figure indicates a high degree of reliability for the CCFL backlight. For a device operating 8 hours a day, 365 days a year, this translates to over 8.5 years of typical use before the backlight reaches half its initial brightness, aligning with the long service life requirements of industrial equipment.
What is meant by a "4-bit" gray scale signal?
This refers to the digital signal's depth for each primary color (Red, Green, Blue). A 4-bit signal provides 16 (2^4) distinct levels of intensity for each color. With three colors, this allows the display to render a total of 16x16x16 = 4,096 colors. The datasheet notes support for 262K colors, which is likely achieved through techniques like frame rate control (FRC).
Strategic Integration for Long-Lifecycle Products
Selecting the Sharp LQ61D133 is a strategic decision for product lines where stability, reliability, and ease of integration are valued over cutting-edge resolution or brightness. Its adherence to standard interfaces and proven backlight technology de-risks the design process for engineers developing specialized TFT-LCD applications. By providing a dependable VGA display solution, the LQ61D133 enables the creation of robust and long-lasting industrial and commercial devices.
