LTA104S1-L01: An Engineer's Guide to this Industrial SVGA TFT-LCD Display
Introduction to a Legacy of Reliability
Decoding the LTA104S1-L01 for Industrial HMIs

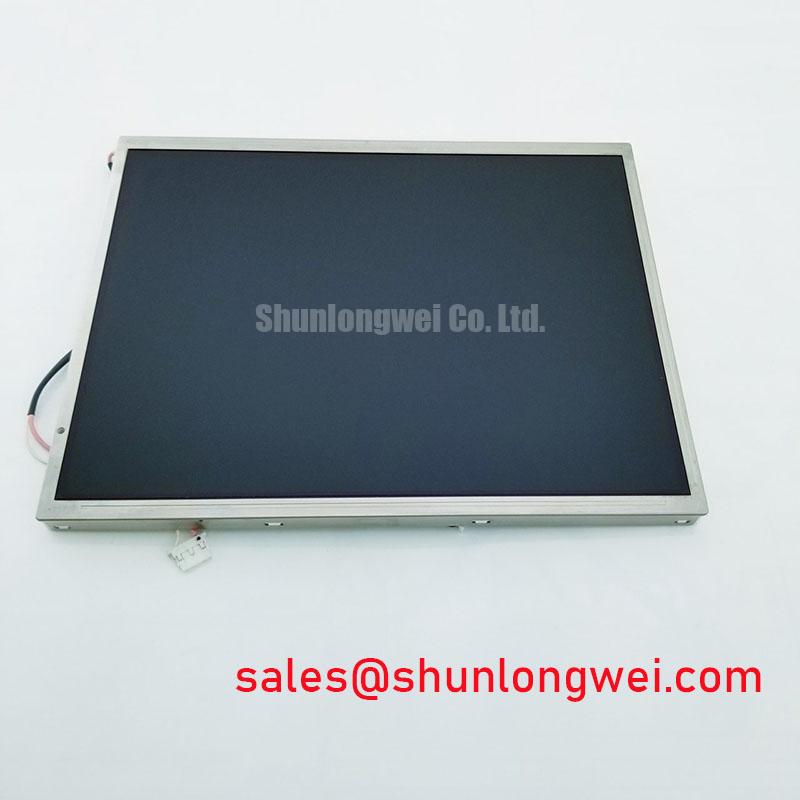

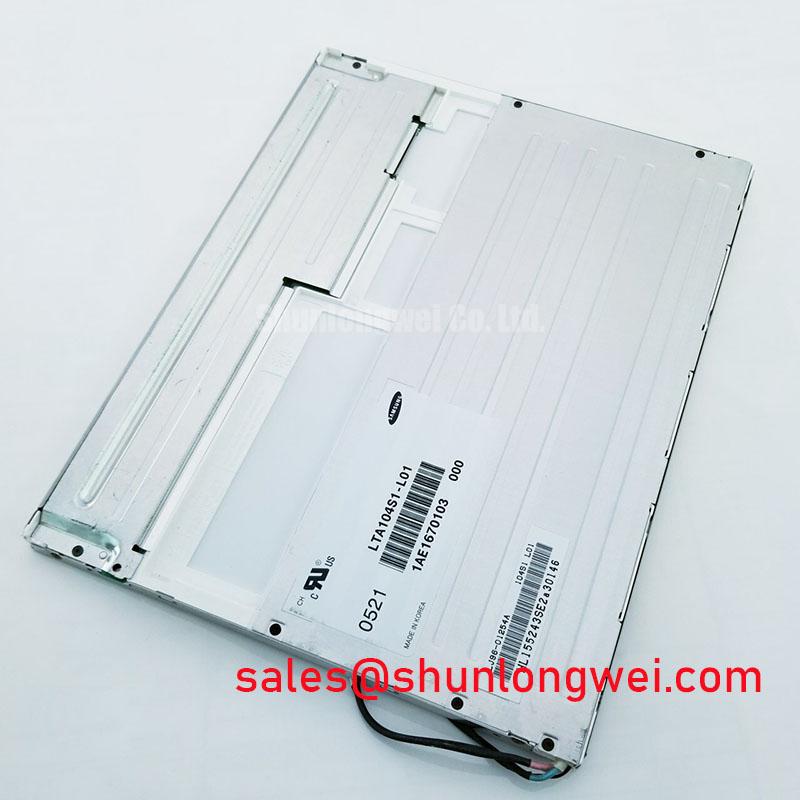

The Samsung LTA104S1-L01 is a 10.4-inch a-Si TFT-LCD panel engineered for longevity and consistent performance in demanding industrial applications. This display delivers a practical balance of resolution, brightness, and reliability, making it a staple for human-machine interfaces (HMIs), control terminals, and embedded systems. Its core specifications include an 800x600 SVGA resolution, a typical brightness of 350 nits, and a single-channel LVDS interface. These features provide clear readability and straightforward system integration. A primary benefit is its robust CCFL backlight system, which ensures a long operational life. This directly addresses the engineering need for components that minimize maintenance cycles and downtime in the field. For industrial control systems requiring a proven, no-frills display with stable, long-term availability, the LTA104S1-L01 presents a reliable and efficient solution.
Key Parameter Overview
Highlighting the Core Specifications for System Integration
The parameters of the LTA104S1-L01 are tailored for industrial and specialized AV applications where reliability and clarity are paramount. The specifications below provide a snapshot of its capabilities, focusing on the metrics most critical for design engineers and procurement specialists.
| Parameter | Specification | Engineering Value |
|---|---|---|
| Screen Size | 10.4 inches | Provides ample viewing area for complex data visualization in a compact form factor suitable for panel mounting. |
| Resolution | 800(RGB) x 600 [SVGA] | Offers a 96 PPI density, ideal for rendering clear graphical user interfaces (GUIs) and text in typical industrial control software. |
| Brightness | 350 cd/m² (Typ.) | Ensures readability in typical indoor industrial environments, from factory floors to control rooms. |
| Viewing Angle | 60/60/45/45 (Typ.)(CR≥10) | Prioritizes the 6 o'clock viewing direction, a common requirement for operator panels mounted below eye level. |
| Interface | LVDS (1 ch, 6-bit) | The Low-Voltage Differential Signaling interface simplifies connection to a wide range of embedded boards and controllers, reducing EMI and cable complexity. |
| Backlight System | CCFL, 30K hours (Min.) | The Cold Cathode Fluorescent Lamp backlight is a proven technology known for its long operational lifespan, directly contributing to a lower total cost of ownership. |
| Operating Temperature | 0 ~ 50 °C | Suitable for controlled indoor environments typical of factory automation and process control applications. |
Download the LTA104S1-L01 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
System-Level Benefits in Industrial Control and Instrumentation
The LTA104S1-L01 is engineered for applications where operational uptime and data clarity are non-negotiable. Its feature set provides tangible value in several key industrial domains.
A primary application is in Human-Machine Interfaces (HMIs) for factory automation. Consider a CNC machine controller where an operator needs to monitor machining paths and input parameters. The 800x600 SVGA resolution is perfectly matched for this task, displaying critical data without the unnecessary pixel density that would increase system cost and power consumption. The 350-nit brightness ensures that the display remains legible under typical factory floor lighting. What is the primary benefit of its CCFL backlight? A minimum 30,000-hour lifespan, which translates directly to enhanced long-term reliability by reducing the frequency of maintenance interventions.
In Medical Diagnostic Equipment, such as patient monitoring systems or ultrasound viewers, consistent and reliable image display is crucial. The LTA104S1-L01's Normally White display mode ensures that in the event of a pixel failure, the pixel appears white, a characteristic often preferred in certain diagnostic contexts. Its standard LVDS Interface allows for straightforward integration with the custom single-board computers that often power these devices.
For legacy system upgrades or as a display component in Test and Measurement Instrumentation, the LTA104S1-L01 offers a stable and proven solution. Its physical dimensions and electrical characteristics make it a viable drop-in consideration for older systems, simplifying the MRO (Maintenance, Repair, and Operations) process. For systems requiring a similar form factor but with different performance characteristics, the G104S1-L01 may present an alternative for evaluation.
Frequently Asked Questions (FAQ)
What is the optimal viewing direction for the LTA104S1-L01, and why is this important for HMI design?
The optimal viewing direction is specified at 6 o'clock. This means the display achieves its best contrast and color fidelity when viewed from below the central horizontal axis. This is a critical design consideration for industrial HMIs, which are often mounted in consoles or panels below the operator's direct line of sight. Designing the equipment with this in mind ensures the operator has the clearest possible view of the interface.
How does the 6-bit LVDS interface impact color representation in an industrial GUI?
A 6-bit LVDS interface allows the LTA104S1-L01 to display up to 262,144 distinct colors. For the vast majority of industrial GUIs—which rely on clear status indicators, simple graphics, and text—this color depth is entirely sufficient. It provides a rich enough palette for effective data visualization without the higher cost and bandwidth requirements of 8-bit or 10-bit interfaces, striking an optimal balance between performance and system cost.
Is the CCFL backlight system field-replaceable?
The datasheet specifies the backlight as a 2-piece CCFL system. While CCFLs are generally long-lasting, their replacement is typically a more involved process than with modern LED strips and may require specialized handling. The design focus is on longevity, with a minimum 30,000-hour rated life, to align with the operational lifetime of the host industrial equipment and minimize the need for such maintenance.
Industry Insights & Strategic Advantage
Leveraging a Proven Display Technology for Long-Lifecycle Systems
In an industry often focused on the latest high-resolution panels, the LTA104S1-L01 from Samsung holds a strategic advantage for a specific class of industrial equipment: those with long design, validation, and operational lifecycles. Sectors like industrial automation, specialty medical devices, and transportation systems often value stability and proven reliability over cutting-edge specifications. The use of established technologies like a-Si TFT and CCFL backlighting provides a known performance baseline, which simplifies the qualification process and risk assessment for engineers. This display enables designers to avoid the complexities and potential supply chain volatility associated with newer consumer-grade panels, ensuring component availability for the extended service life expected of industrial capital equipment.
