LTA106C210F | Legacy-Ready 10.6-inch WXGA Display for Industrial Longevity

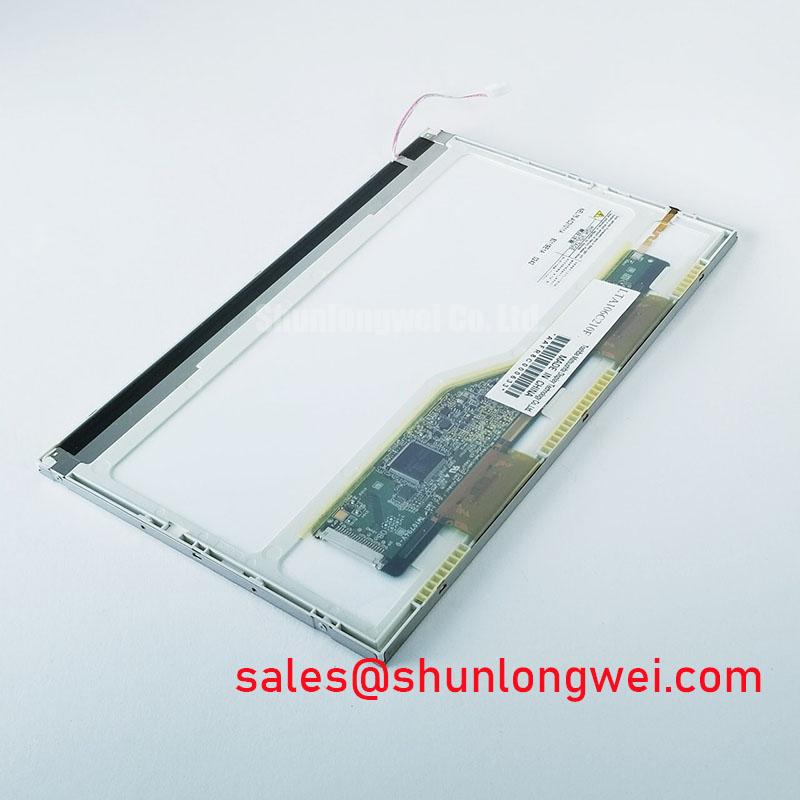

The LTA106C210F is a purpose-built 10.6-inch TFT-LCD panel engineered for applications demanding long-term stability and consistent performance. Originating from Toshiba's renowned display division, this module is a cornerstone for sustaining the operational life of critical industrial, medical, and test equipment. Its specific design parameters make it an ideal form-fit-function replacement for systems built around its unique WXGA resolution and CCFL backlight technology, mitigating the need for costly and time-consuming redesigns.
- Precise WXGA Resolution: The 1280 x 768 resolution provides a sharp, detailed canvas on a 10.6-inch diagonal, perfect for complex graphical user interfaces (GUIs) and data-rich readouts.
- Proven a-Si TFT Technology: Built on a mature amorphous silicon (a-Si) platform, the LTA106C210F delivers proven reliability and consistent optical performance essential for long-lifecycle machinery.
- Industrial-Grade Durability: Engineered to perform in demanding settings, this display is a workhorse component for Human-Machine Interfaces (HMIs), process controllers, and specialized instrumentation.
- Legacy System Compatibility: Featuring a CCFL backlight and a standard LVDS interface, it ensures seamless integration into existing equipment designs, preserving system integrity and validation.
Key Parameters Overview
The following specifications define the core performance characteristics of the LTA106C210F. For comprehensive engineering data, including timing diagrams and mechanical drawings, please refer to the official datasheet.
| Parameter | Specification |
|---|---|
| Model Number | LTA106C210F |
| Screen Size (Diagonal) | 10.6-inch |
| Resolution | 1280 x 768 (WXGA) |
| Display Technology | a-Si TFT (Amorphous Silicon) Active Matrix |
| Aspect Ratio | 15:9 |
| Interface | LVDS (Low-Voltage Differential Signaling), 1 channel, 6-bit |
| Backlight System | CCFL (Cold Cathode Fluorescent Lamp) |
| Typical Brightness | 400 cd/m² |
| Operating Temperature Range | -10°C to +70°C |
For detailed cross-reference information and compatibility checks, you can review this LTA106C210F Reference Document.
Engineered for Clarity and Durability
The LTA106C210F's design is a deliberate balance of mature technologies chosen for maximum reliability. The foundation is its a-Si TFT-LCD substrate, a technology valued in industrial circles for its predictable lifecycle and robust performance against electrical and environmental stress. Paired with a WXGA resolution, this panel offers a significant advantage over lower-resolution displays, enabling more sophisticated and less ambiguous operator interfaces without requiring a larger physical footprint. The use of a standard LVDS interface further enhances its industrial credentials by providing high noise immunity, a critical factor for ensuring signal integrity within electrically noisy factory environments or complex medical apparatus.
Proven Performance in Critical Applications
The value of the LTA106C210F is most evident in its target applications, where continuity and reliability are paramount.
- Legacy HMI & Control Panel Refurbishment: This display serves as a vital component for extending the life of factory automation and process control systems. By matching the original specifications, it allows for targeted panel replacement, avoiding the high costs and validation hurdles of a complete system overhaul.
- Medical Diagnostic Equipment: In devices like patient monitors and diagnostic imaging consoles, consistency is key. This panel provides the stable, reliable visualization platform that these long-lifecycle medical devices require.
- Test and Measurement Instruments: For specialized oscilloscopes, spectrum analyzers, and other benchtop instruments, the LTA106C210F offers the clear, precise readout and long-term availability needed to support product lines that often remain in service for over a decade.
Engineer's FAQ for the LTA106C210F
This model uses a CCFL backlight. What are the implications for my design or repair?
The CCFL backlight is a key feature for legacy compatibility. While modern designs have transitioned to LED backlights for lower power consumption, the CCFL in the LTA106C210F delivers a very stable and broad color spectrum. For repair and refurbishment, using this panel ensures that the display's brightness, color profile, and power draw match the original system design, requiring no changes to the existing CCFL inverter or power budget. For new designs, an LED alternative would be recommended, but for sustaining existing platforms, this is the technically correct choice.
Is the LTA106C210F compatible with modern single-board computers (SBCs)?
Direct compatibility is unlikely, as most modern SBCs output video via HDMI or DisplayPort. The LTA106C210F requires an LVDS signal. To bridge this gap, an appropriate LVDS controller or converter board would be necessary. These boards translate the HDMI or DP signal into the specific LVDS format required by the panel. While possible, this approach is best suited for specialized projects. The primary application remains direct replacement in systems already equipped with an LVDS output. For any questions regarding integration or finding modern equivalents for new designs, please contact our technical team for expert guidance.
