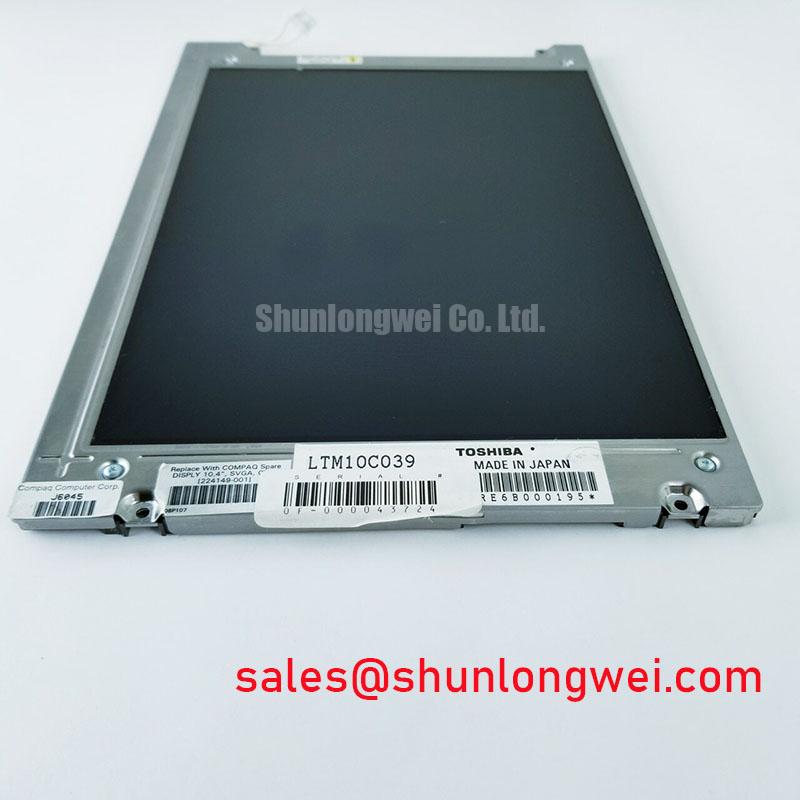

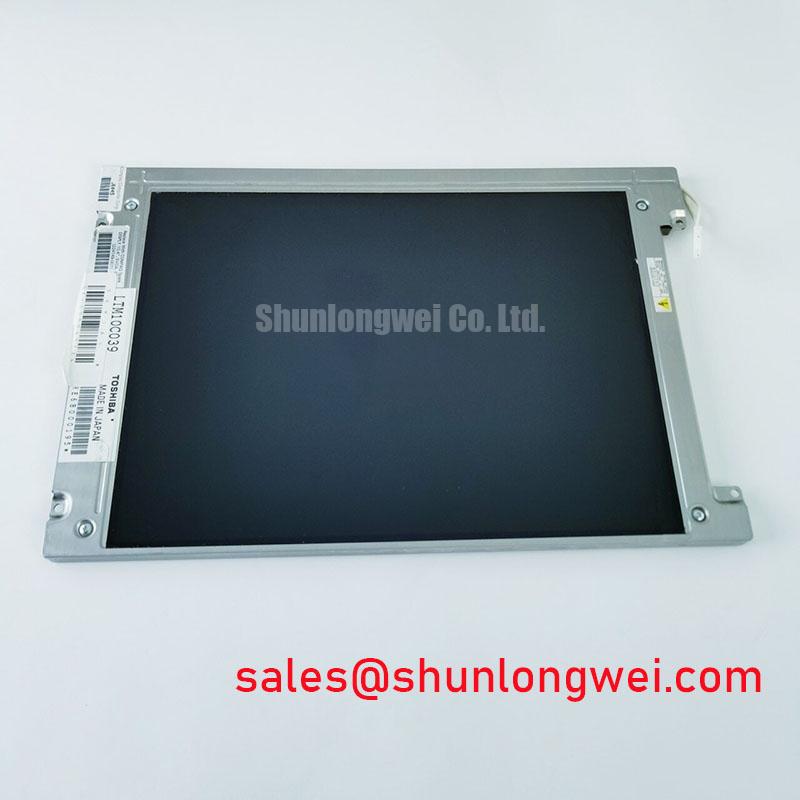

LTM10C039 | 10.4" XGA LCD for Industrial Environments
Engineered for Operational Stability in Demanding Conditions
The LTM10C039 is a 10.4-inch XGA TFT-LCD module specifically designed for sustained reliability in applications subject to mechanical stress and wide temperature variations. Delivering a sharp 1024x768 resolution, its core value is anchored in its robust construction. Key specifications include a 1024x768 XGA resolution, a broad -10 to +70°C operating temperature range, and a validated 1.5G vibration resistance. This provides tangible benefits such as enhanced system uptime and simplified field maintenance. To address engineering concerns about deployment in mobile or machinery-mounted systems, its mechanical design is validated against specific vibration and shock profiles, ensuring operational integrity where commercial-grade displays may falter.
Maintaining Operational Clarity in Modern Industrial Ecosystems
In the context of Industry 4.0 and increasingly automated logistics, the reliability of human-machine interface (HMI) components is paramount. Data must be clearly presented to operators regardless of environmental challenges. The Toshiba LTM10C039 addresses this need directly. Its ability to function consistently across a wide thermal spectrum from -10°C to +70°C makes it suitable for non-climate-controlled factory floors, outdoor kiosks, or in-vehicle cabins. This resilience reduces the need for complex and costly external heating or cooling systems, contributing to a more streamlined and dependable final product design. Investing in such a durable display component is a strategic move towards ensuring long-term data accessibility and operational continuity.
Deployment Scenarios Demanding Mechanical and Thermal Stability
The specific engineering attributes of the LTM10C039 lend themselves to applications where standard displays would be prone to failure. Its proven durability is a critical asset in environments characterized by constant movement, vibration, and temperature fluctuations.
- Industrial Control Panels: When mounted directly onto machinery, HMI panels are subjected to continuous, low-frequency vibrations. The LTM10C039's 1.5G vibration tolerance ensures the display remains functional and readable, preventing data loss or catastrophic failure.
- Vehicle-Mounted Terminals: Systems in forklifts, agricultural equipment, and public transit vehicles experience both mechanical shock and significant temperature swings. This module provides a stable visual interface for logistics, diagnostics, and passenger information systems.
- Portable Test & Measurement Equipment: Field instruments require components that can withstand being transported and used in varied outdoor and industrial settings. The robust construction and anti-glare surface of the LTM10C039 ensure it can deliver critical readings reliably.
For systems operating between -10°C and +70°C where vibration up to 1.5G is a known factor, the LTM10C039 provides a specified and reliable HMI foundation.
A Factual Look at Key Specifications for System Integration
To assist in the evaluation process, the following table presents key parameters of the LTM10C039 alongside a related component. This data is intended to provide a clear, factual basis for engineering assessment without offering direct recommendations. Your final selection should be based on a comprehensive review of your system's unique requirements. For systems that may require a different resolution, the G104S1-L01 offers an alternative set of specifications.
| Parameter | LTM10C039 | G104S1-L01 |
|---|---|---|
| Screen Size | 10.4 inch | 10.4 inch |
| Resolution | 1024 x 768 (XGA) | 800 x 600 (SVGA) |
| Operating Temperature (°C) | -10 to +70 | -30 to +80 |
| Vibration Resistance (G) | 1.5 (10~55Hz) | 1.5 (10~500Hz) |
| Interface | LVDS (1 ch, 6-bit) | LVDS (1 ch, 6-bit) |
Engineering for Durability: A Closer Look at the LTM10C039
A deeper analysis of the LTM10C039's specifications reveals a design philosophy centered on longevity and serviceability in the field. Understanding these points is key to appreciating its value beyond simple resolution and brightness metrics.
Interpreting Mechanical Resilience
What is the primary benefit of its vibration rating? A specified tolerance of 1.5G is a direct validation of the module's structural integrity. This ensures that under constant mechanical stress, internal component connections, the liquid crystal cell, and the backlight assembly will not fail prematurely. Think of this specification as an integrated suspension system for the display's core; it's designed to absorb and dissipate harmful energy, safeguarding the visual interface. This is a critical factor explored in guides on engineering displays for heavy machinery.
Design for Serviceability
What facilitates easier maintenance? The module features a detachable backlight cable, simplifying service and integration. This seemingly minor feature has significant practical benefits. During system assembly, it allows the main TFT-LCD panel to be mounted without the delicate backlight wiring being exposed to potential damage. For field repairs, it enables technicians to replace the backlight unit—a common wear item—without needing to replace the entire, more expensive, LCD module, thereby lowering the total cost of ownership (TCO).
Core Specifications of the LTM10C039
The following parameters represent the key performance indicators for the LTM10C039, with a focus on characteristics relevant to its deployment in robust systems. For a complete list of specifications, please refer to the official product datasheet.
| Specification | Value |
|---|---|
| Screen Diagonal | 10.4 inch |
| Resolution | 1024(RGB) × 768 [XGA] |
| Operating Temperature | -10 ~ 70 °C |
| Storage Temperature | -20 ~ 80 °C |
| Vibration Resistance | 1.5 G (14.7 m/s²) |
| Surface Treatment | Anti-glare |
Disclaimer: The technical information provided above is for informational purposes only. Engineers should consult the official datasheet for detailed specifications and operational guidelines before integration.
Selecting components that are purpose-built for their operational environment is fundamental to creating a reliable and profitable end-product. The LTM10C039 represents a display solution where durability is not an afterthought but a core design principle, empowering the development of systems that are built to last in the field. This focus on lifecycle and resilience is a cornerstone of modern industrial design, ensuring that technology deployments deliver value not just on day one, but for years to come. For further reading on TFT technology, see The Ultimate Guide to TFT-LCD.
