High-Voltage Striking Potential and Secondary-Coil Insulation Testing
| Item | Identification |
|---|---|

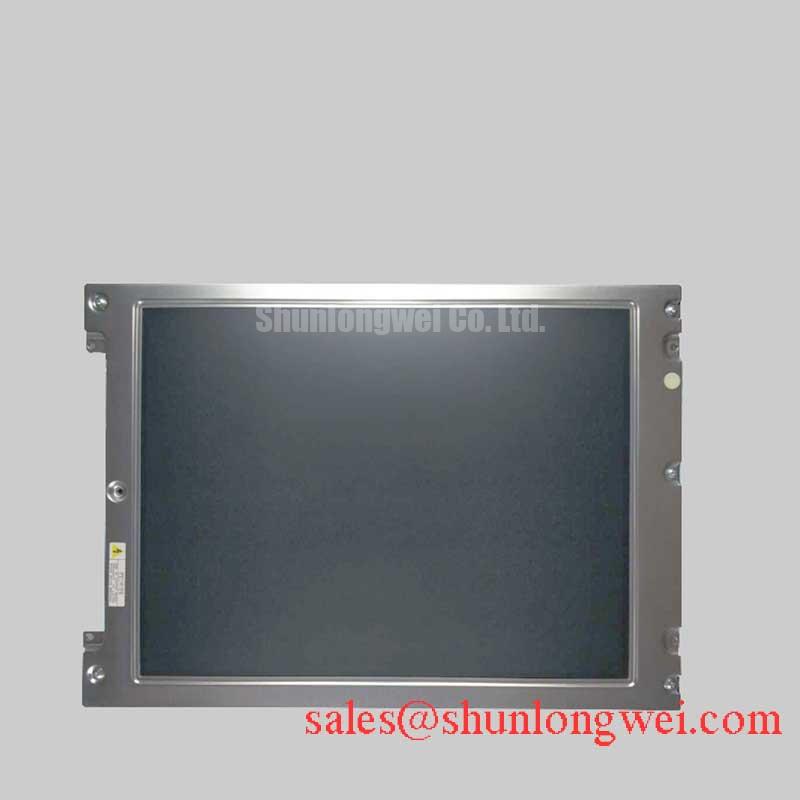

| Model | LTM10C210 |
| Manufacturer | Not confirmed in the supplied information |
| Product Category | Industrial Grade LCD/HMI Panel |
| Module Format | TFT LCD Display Module |
| Specification Status | Requires verification against the original factory documentation |
With the equipment isolated from power, first inspect the LTM10C210 label, display connector seating, cable strain relief, and the host board’s panel supply before attributing a black or dim screen to the LCD module itself. The original panel documentation remains the controlling source for interface assignment, required supply rails, timing sequence, backlight architecture, and mechanical mounting details.
A dark screen can present two very different service conditions: the LCD image path may be working while illumination is absent, or the panel may not be receiving valid image data at all. Start by observing whether a faint image becomes visible under controlled external illumination. If menus, status fields, or a cursor can be seen, the diagnostic path should move toward the original backlight circuit, its enable control, and its supply path rather than immediately condemning the LTM10C210.
The 1500–1650 Vrms cold-strike range referenced in some CCFL backlight service discussions must not be assigned to this specific LCD module without its original backlight documentation. Likewise, constant-current LED operation and PWM dimming capability are system-level characteristics that require confirmation from the installed panel assembly and its driver. The system integrator should verify the required supply voltage, connector pinout, backlight type, and enable sequence from the original panel documentation.
Design Consideration: where a host system uses a high-voltage lamp inverter, technicians should inspect for damaged insulation, connector tracking, loose secondary wiring, and unstable enable behavior with the unit safely isolated. A buzzing sound, intermittent light output, or repeated start attempts can indicate that the inverter and panel load need separate measurement. These observations do not establish a single fault cause. Compare supply stability, control signals, and output behavior against a known-good signal path where available.
Backlight lifetime figures, including a stated brightness half-life at 50,000 hours, cannot be claimed for the LTM10C210 from the verified information available here. Brightness retention depends on the actual light source, driver current regulation, ambient temperature, operating schedule, and enclosure heat removal. For a broader explanation of industrial display operating principles and the limits of generic selection claims, see The Ultimate Guide to Industrial TFT LCD Technology.
⚠️ Field Alert: Disconnect power and allow stored energy in the host backlight circuit to discharge before removing or reconnecting the panel cable.
Dynamic Contrast Ratio Stabilization and Liquid Crystal Birefringence Temperature Tracking
When the backlight is visibly active but the image looks washed out, inverted, flickering, or only partly readable, check the signal source before treating optical behavior as a panel defect. Inspect the cable for pinched sections, incomplete connector engagement, corrosion, and stress caused by chassis movement. Then verify that the host controller produces a stable display signal and that its power-up sequence agrees with the original documentation for the LTM10C210.
Terms such as TN, IPS, MVA, anti-glare treatment, dynamic contrast ratio, and a symmetric 85°/85°/85°/85° viewing range describe display technologies or possible panel characteristics, but they are not confirmed official specifications for this model in the available factory parameter set. They should not be used as replacement acceptance criteria. A replacement evaluation should instead compare the original module label, active-area fit, connector location, interface requirements, mounting arrangement, and observed image behavior in the target equipment.
Design Consideration: liquid-crystal optical response can vary with temperature, so a display that appears different after a cold start should be rechecked after the equipment reaches its normal operating condition. This is a useful diagnostic distinction, not proof of permanent panel degradation. Persistent contrast instability can also originate in the host timing board, an unstable supply rail, a poor ground return, or an impaired cable connection.
TTL and LVDS are not confirmed interfaces for the LTM10C210 by the supplied official data. Engineers should not infer interface voltage, clock tolerance, data hold requirements, or pin assignment from a similarly sized display. The system integrator should verify the required interface from the original panel documentation and measure the installed signal path with suitable instruments before applying a replacement module.
For equipment where display behavior is viewed alongside motion status or fault feedback, the system context can be useful during diagnosis. Servo Drive Precision Motion Control provides general background on servo-drive systems, while display signal integrity remains a separate verification task at the HMI connection.
Mitigating Gray-to-Gray (GTG) Response Time Escalation during Cold-Start Machine Power-Up
During a cold machine start, watch the screen through the complete power-up cycle rather than judging it from the first second of operation. Record whether the backlight starts, whether the image appears, whether characters update, and whether the symptom changes after the host electronics stabilize. This sequence helps separate a possible display response issue from incomplete initialization, poor supply regulation, or a host controller that is not delivering valid data.
Gray-to-gray response time, sub-zero behavior, and thermal cycling between −30°C and +85°C are not verified official ratings for the LTM10C210. They must not be presented as guaranteed operating boundaries for this module. Temperature capability should be confirmed from the original manufacturer documentation and assessed with the full equipment enclosure, since airflow, nearby heat sources, vibration, and cable routing can materially change real operating conditions.
Design Consideration: at low temperature, an LCD can appear slower or show temporary visual nonuniformity as the display system stabilizes. If the image remains delayed or distorted after stable operating conditions are reached, inspect the panel supply, timing source, and connector path. Avoid a single-cause diagnosis. A similar symptom may arise from the display module, a damaged flex or harness, a controller board, or an incorrect power sequence.
Do not assume that a visible image confirms correct backlight operation, and do not assume that illumination confirms correct pixel data. A disciplined repair check keeps these paths separate. Verify host voltage behavior under load, examine the signal waveform against the original system expectation, and compare panel response with a known-good assembly when service conditions permit.
Industrial equipment engineers may evaluate this module type for HMI and monitoring-panel repair where the mechanical and electrical characteristics match the original installation. Railway passenger information systems and cab signalling displays are examples of equipment categories that require a documented compatibility review, particularly for connector retention, power sequencing, enclosure sealing, and service access.
Preventing Localized Light Guide Plate (LGP) Compression Warp on Dark Screen Fields
Before tightening a replacement display into a bezel, place the LTM10C210 into the original mounting position and confirm that no bracket, gasket, cable, or enclosure edge applies uneven pressure across the visible area. Check dark image fields and uniform-color test screens after assembly, because localized bright or dark areas can be associated with panel stress, bezel distortion, uneven support, or an external object pressing on the module.
The internal optical stack, light-guide construction, allowable bezel compression, chassis tolerance, and fastening limits are not confirmed official specifications for this model. The 0.35–0.45 N·m M3 torque range sometimes used as a general industrial mounting reference must therefore be treated only as a Design Consideration, not as a manufacturer requirement for the LTM10C210. The correct mounting method, fastener specification, torque limit, and tightening order must be taken from the original equipment and panel documentation.
Where multiple fasteners are used, engineers should tighten progressively in a cross-pattern only when the original mechanical design supports that approach. The principle is to distribute clamping force evenly and avoid bending the display frame. Final verification should be performed with the actual bezel, because an apparently acceptable bare-panel installation can behave differently when the front cover, touch overlay, or harness is installed.
Dark-field mura, uneven brightness, and pressure marks should be documented under the same image pattern and ambient conditions used for comparison. They may indicate mechanical stress, backlight irregularity, contamination, or a display-side issue, but visual inspection alone cannot determine the root cause. For systems that include power electronics near the display, use the system’s established grounding and cable-routing practice; IEEE Transactions on Industry Applications is a useful external technical resource for broader industrial electrical-system context.
