MG10G6EL2 Toshiba 600V 10A IGBT Module

Content last revised on October 9, 2026

Benchtop Waveform Tuning: Junction-to-Case Thermal Network Simulation on MG10G6EL2

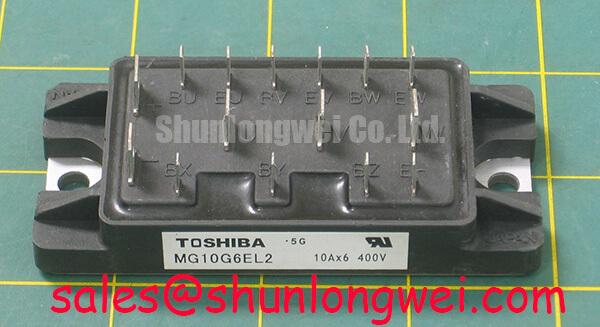

Begin a cold-state evaluation by confirming the Toshiba marking, terminal identification, and the 600.0 V voltage class before applying any gate or collector-emitter test signal. The MG10G6EL2 is specified as a 10.0 A IGBT module in a Toshiba Module package, so the first bench record should separate these official ratings from the switching conditions imposed by the target drive.

For a pulsed-load investigation, record the initial case temperature, pulse duration, repetition pattern, bus voltage, gate waveform, collector-emitter voltage, and collector current together. A junction-to-case transient thermal model can then be represented by several RC sections rather than by a single steady-state thermal resistance. The first RC section describes the rapid die-to-case response, while the slower sections represent heat spreading through the package toward the case. This approach is useful when a servo amplifier produces short acceleration pulses followed by lower-load travel intervals.

The calculated junction temperature should be treated as an engineering estimate based on the selected thermal network and measured loss waveform. It is not an additional Toshiba rating. Use the measured switching and conduction losses as inputs, then compare the calculated peak junction temperature with the applicable thermal limit from the device documentation and the actual cooling assembly. If the model predicts a narrow margin, reduce uncertainty by checking the thermal interface, mounting flatness, heatsink contact, airflow path, and temperature sensor placement rather than increasing the assumed current capability.

Waveform tuning should begin with a controlled load. Examine the gate-to-emitter voltage during turn-on and turn-off, then correlate the voltage transition with collector current and collector-emitter overshoot. A broad gate loop or shared return path can create apparent ringing that is incorrectly attributed to the semiconductor itself. Keep the power commutation path physically compact, and route the gate-control return separately from the high-current emitter path where the package layout permits.

The package drawing should be used to identify whether an auxiliary or Kelvin emitter connection is actually provided. Do not assume that a visually similar terminal has the same electrical function. If an auxiliary emitter exists, connect the driver return to that reference and keep the high-current emitter connection from carrying the driver signal. If it is not provided, the gate-loop design must account for the voltage developed across the common emitter path.

For applications such as high-dynamics multi-axis CNC and robotics servo drives, the replacement assessment should include the original switching frequency, bus voltage, motor cable length, braking method, and fault history. A technically similar Toshiba module may have different internal topology, terminal arrangement, or dynamic characteristics. Engineers comparing devices can review the neutral product context for MG50H1BS1, while still validating electrical and mechanical compatibility independently.

💡 Bench Tip: Use ESD controls and compare cold-state diode-mode readings with a known-good reference module before connecting the part to a powered gate driver.

Field Diagnostics and Commissioning: Common-Mode Transient Immunity in MG10G6EL2 Topologies

Start commissioning by isolating the gate-drive supply, control return, and power-stage reference, then observe whether common-mode movement is coupling into the gate signal. The MG10G6EL2 product data supplied for this page confirms its voltage, current, and package classification, but it does not establish a built-in isolation barrier, a reinforced isolation rating, or a specific CMTI value. Those properties belong to the complete driver, isolation component, board layout, and power-stage arrangement and must be verified from their respective documentation.

During a common-mode test, monitor the gate-emitter waveform with an appropriately rated differential probe. Look for short unwanted pulses near the opposite switch transition, abnormal gate displacement relative to the local emitter, or repeated fault timing that follows the switching edge rather than the commanded PWM signal. These observations can indicate capacitive coupling, insufficient driver reference control, probe-ground interaction, or an overly inductive gate loop. The correct response is to trace the current path and compare the signal at the driver output and at the module terminals.

Designers evaluating operation across a switching range such as 2 kHz to 16 kHz should treat frequency as a system-level thermal and EMI variable, not as an automatic operating range for this module. Increasing frequency changes switching loss, heatsink demand, gate-driver dissipation, motor-cable emissions, and the frequency of common-mode events. Thermal derating should therefore be established from measured case temperature, load profile, cooling airflow, and the applicable Toshiba thermal limits.

High-ambient commissioning requires attention to the complete airflow route. A fan may deliver its nominal flow at an unobstructed inlet while the installed cabinet has filters, cable bundles, recirculation zones, or a restricted exhaust path. Measure temperature at the module case and at the heatsink near the mounting area during the actual duty cycle. A temperature rise that appears only during rapid acceleration may require a thermal transient review rather than a simple steady-state airflow adjustment.

In a servo cabinet, inspect the separation between the control harness and the DC-link, motor, and braking conductors. Maintain a clear return path for the gate driver, avoid routing sensitive control traces parallel to high di/dt conductors, and use shielding and chassis termination according to the system EMC plan. The IGBT module itself should not be described as independently certified for CISPR or EN 55011 compliance; final compliance depends on the assembled drive, enclosure, filtering, cabling, and operating conditions.

Where an upstream rectifier or related power-conversion stage is being reviewed, the MG75G1JL1 may be considered as a separate, complementary product reference. Its use in a particular topology requires independent confirmation of voltage, current, mechanical, thermal, and control compatibility. For the MG10G6EL2, confirm the terminal map and gate-drive requirements from the original equipment documentation before applying a replacement procedure.

Preventing Spurious Faults: Turn-Off di/dt Induced Vpeak Clamping Guidelines for MG10G6EL2

Measure turn-off overshoot directly at the module terminals, because the voltage seen at a remote oscilloscope point may not represent the semiconductor terminal stress. The familiar relationship between peak voltage, DC-link voltage, stray inductance, and current slew rate explains why a faster turn-off edge or a longer commutation path can increase the transient. It is an engineering model for test interpretation, not an additional product specification for the MG10G6EL2.

Begin with the physical commutation loop: DC-link capacitor, positive and negative bus connections, switching module, and return path through the load or freewheeling branch. A laminated or closely coupled bus structure generally reduces loop inductance compared with widely separated conductors. The target inductance must be determined by the system voltage, current slew rate, allowable peak voltage, semiconductor ratings, and measured ringing. Do not treat a value such as 25 nH as a universal requirement for this Toshiba module unless it is established by the equipment design and validated by measurement.

Symmetrical bus geometry helps prevent one switch position from experiencing a different parasitic environment from its companion position. Keep the high-current path short, avoid unnecessary conductor neck-downs, and place the local DC-link film capacitance according to the inverter topology. Snubber selection should follow the observed ringing frequency, transient energy, capacitor pulse capability, resistor loss, and physical placement. A capacitor placed far from the switching loop may have limited effect because its connection inductance becomes part of the transient path.

When a fault appears only with a long motor cable, inspect the interaction between the inverter edge and the cable transmission-line behavior. Reflected waves can produce a second voltage peak at the motor or inverter terminals, depending on cable impedance, termination, motor insulation characteristics, rise time, and cable length. Filtering should be selected from measured edge behavior and the drive’s control requirements. An output reactor, dv/dt filter, or sine-wave filter is a system option, not an assumed accessory of the MG10G6EL2.

Freewheeling-device behavior also affects the observed transient. If the circuit includes a separate diode or an integrated diode path, verify the actual topology and diode data before attributing ringing to reverse recovery. The recovery softness factor, stored charge, temperature, current, and commutation rate influence both voltage overshoot and radiated or conducted EMI. A softer recovery waveform may reduce one form of ringing while increasing switching loss, so the final choice requires simultaneous review of thermal and electrical measurements.

Bootstrap arrangements deserve a separate check when the gate driver uses a high-side supply. Confirm that the bootstrap capacitor receives sufficient recharge time, that its voltage remains inside the driver’s specified operating range, and that the bootstrap diode’s recovery behavior is compatible with the switching pattern. This is a driver-circuit requirement rather than an official MG10G6EL2 module parameter. Measure the high-side supply at the driver pins under the same duty cycle and common-mode transitions used in the final machine.

For maintenance teams reviewing transient margins and switching behavior, the technical reference Unlocking Efficiency in Industrial Drives provides additional context for power-device evaluation. Thermal interface materials and die-attach construction should not be inferred from the external package label; general semiconductor packaging background, including eutectic systems, is discussed in this eutectic system reference.

After clamping or layout changes, repeat the test at the highest intended bus voltage, representative current, relevant temperature, and the actual gate resistance configuration. Record the peak collector-emitter voltage, gate disturbance, ringing frequency, case temperature, and fault timing together. This measurement set gives the equipment engineer a practical basis for deciding whether the observed margin is controlled by bus inductance, gate-loop coupling, cable reflection, recovery behavior, or cooling capacity.
