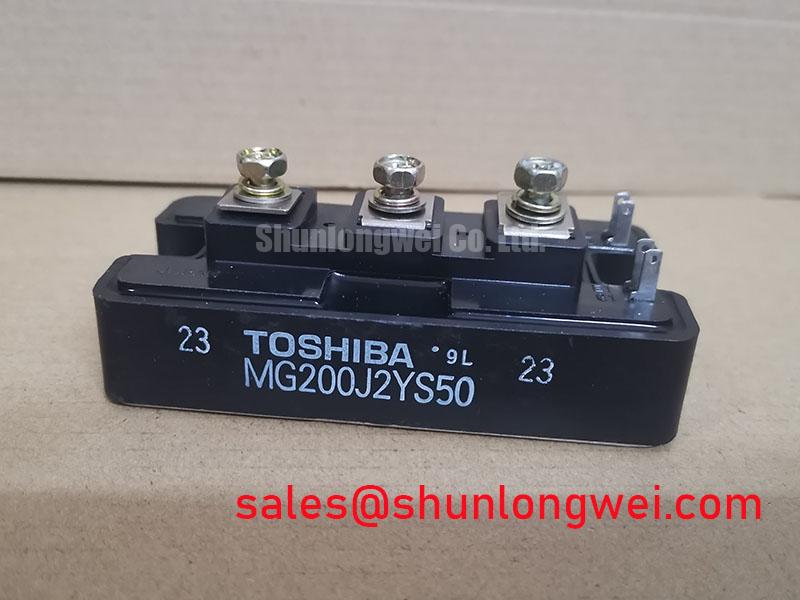

MG200J2YS50 IGBT Module: A Technical Analysis for High-Frequency Power Systems
The MG200J2YS50 by Toshiba is a 600V, dual IGBT module engineered for high-frequency power conversion, offering a robust solution for demanding motor control and switching applications. With its 600V | 200A | VCE(sat) 2.7V (Max) rating, this module provides excellent switching speed and low conduction losses. It delivers superior thermal efficiency and simplified half-bridge integration. For systems requiring robust performance in the 10-50 kHz range, the MG200J2YS50's low saturation voltage and fast switching times present a compelling design choice. What is the key advantage of its integrated half-bridge design? It significantly reduces stray inductance and simplifies PCB layout for improved system reliability.
Key Parameter Overview
Decoding the Specs for High-Speed Switching Performance
The technical specifications of the MG200J2YS50 are tailored for applications where switching efficiency is a primary design consideration. The parameters below highlight the module's capability to minimize losses and support rapid switching cycles, which is critical in modern Variable Frequency Drive (VFD) and power conversion systems.
| Parameter | Symbol | Test Condition | Value | Unit |
|---|---|---|---|---|
| Absolute Maximum Ratings (Tc=25°C) | ||||
| Collector-Emitter Voltage | VCES | VGE = 0V | 600 | V |
| Gate-Emitter Voltage | VGES | VCE = 0V | ±20 | V |
| Collector Current (DC) | IC | - | 200 | A |
| Collector Current (Pulse) | ICP | 1ms | 400 | A |
| Collector Power Dissipation | PC | - | 900 | W |
| Electrical Characteristics (Tj=25°C unless otherwise noted) | ||||
| Collector-Emitter Saturation Voltage | VCE(sat) | IC = 200A, VGE = 15V | 2.10 (Typ) / 2.70 (Max) | V |
| Fall Time | tf | IC = 200A | 0.15 (Typ) / 0.30 (Max) | µs |
| Diode Forward Voltage | VF | IF = 200A, VGE = 0V | 2.0 (Typ) / 2.50 (Max) | V |
| Diode Reverse Recovery Time | trr | IF = 200A | 0.15 (Max) | µs |
Download the MG200J2YS50 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Benefits in High-Frequency Power Conversion
The MG200J2YS50 is optimized for power systems where efficient and rapid switching is paramount. Its architecture provides tangible benefits in a range of industrial applications.
- Motor Control Applications: In AC motor drives and servo systems, the module's fast fall time (tf = 0.30µs Max) and low collector-emitter saturation voltage (VCE(sat) = 2.70V Max) directly contribute to lower switching and conduction losses. This results in higher drive efficiency and reduced heat generation, allowing for smaller heatsink designs and more compact overall system dimensions.
- High Power Switching Applications: For systems like uninterruptible power supplies (UPS) and industrial welding equipment, the high collector current rating of 200A and pulsed capability of 400A provide substantial operational headroom. The integrated freewheeling diode, with its fast reverse recovery time (trr = 0.15µs Max), is crucial for protecting the IGBT during inductive load switching, enhancing the reliability of the power stage.
High-Fidelity Engineering Scenario: Consider the design of a 50kW VFD for a conveyor belt system. A key challenge is managing the thermal load during frequent start/stop cycles, which cause high current demands. The MG200J2YS50's low VCE(sat) of 2.1V (Typ) is a significant advantage here. Lower saturation voltage means less power is dissipated as heat (P = VCE(sat) * IC) each time the IGBT conducts. For a 200A load, this represents a substantial reduction in waste heat compared to an older generation IGBT with a VCE(sat) of 3.0V, simplifying the thermal management strategy and improving long-term reliability. For applications demanding higher current handling in similar packages, engineers may also evaluate the CM300DY-24H.
Frequently Asked Questions (FAQ)
What is the primary benefit of the MG200J2YS50's integrated half-bridge configuration?The primary benefit is design simplification and enhanced electrical performance. By integrating two IGBTs in a half-bridge (2-in-1) configuration, the module reduces the component count and simplifies the PCB layout. More importantly, this integration minimizes the stray inductance between the switches, which is critical for reducing voltage overshoots during high-speed switching and improving overall system reliability.
How does the maximum fall time (tf) of 0.30µs impact my design?A fast fall time directly correlates to lower switching losses (E_off). Switching losses are a major source of heat in power converters, especially at higher frequencies. The MG200J2YS50's fast tf allows the device to transition from the 'on' state to the 'off' state very quickly, minimizing the time during which both high voltage and high current are present simultaneously. This leads to higher converter efficiency and reduced thermal stress on the component.
Is the isolated case design important for industrial applications?Yes, the electrically isolated case is a critical feature for safety and system integration in industrial environments. It simplifies mounting the module directly to a common heatsink without the need for additional, often thermally inefficient, insulating layers. This improves thermal transfer, enhances personnel safety by isolating high voltage potentials from the chassis, and helps in meeting regulatory compliance standards for electrical equipment.
Enabling Robust and Efficient Power Designs
The Toshiba MG200J2YS50 GTR module offers a compelling set of features for engineers developing next-generation motor drives and high-power converters. Its balance of switching speed, low conduction loss, and integrated design provides a direct path to creating more efficient, reliable, and compact power electronic systems. To further explore solutions for your specific power requirements, please contact our technical support team for detailed evaluation assistance.
