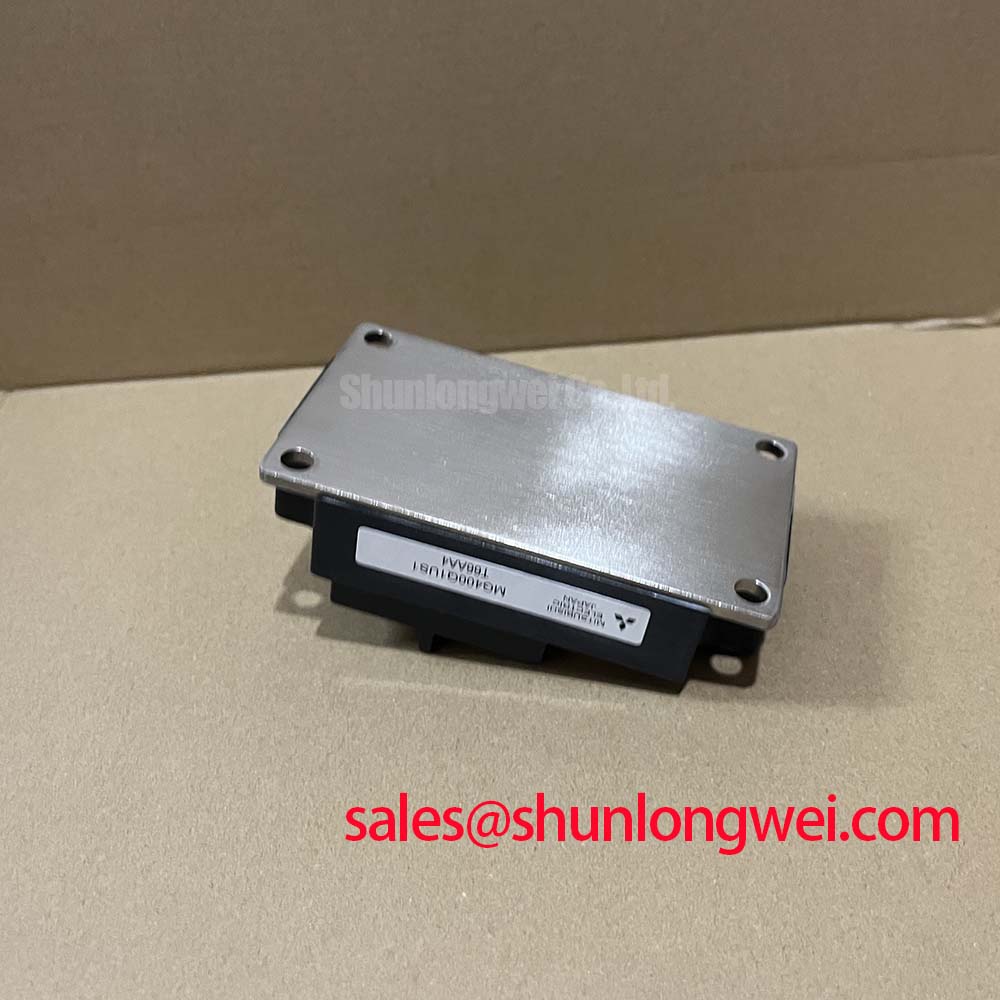

Toshiba MG400Q1US1 | High-Current 600V IGBT for Robust Power Control
The Toshiba MG400Q1US1 is an engineered solution for power electronics designers who require uncompromising current handling and field-proven reliability. This IGBT module is not about chasing the lowest possible switching losses; it's about delivering robust, stable power in the most demanding industrial environments. It represents a workhorse component built for longevity and performance under heavy electrical and thermal stress.
- High Current Capability: With a 400A collector current rating, it's designed to manage substantial power loads with a significant safety margin.
- Robust 600V Breakdown Voltage: Provides ample headroom for applications running on 200/240V and 400V AC lines, ensuring reliability against voltage transients.
- Flexible Single-Switch Topology: The "1-in-1" configuration offers maximum design freedom for engineers building custom inverter legs, choppers, or paralleled arrays for ultra-high current systems.
- Proven Durability: Built within a standard isolated package, this module is optimized for excellent thermal conductivity and mechanical strength, making it a trusted choice for mission-critical equipment.
Key Technical Specifications
The following parameters are critical for system design and simulation. These specifications underscore the MG400Q1US1's suitability for high-power, medium-frequency power conversion tasks.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 600V |
| Continuous Collector Current (IC) | 400A (@ TC=25°C) |
| Collector-Emitter Saturation Voltage (VCE(sat)) | 2.7V (Max) |
| Total Power Dissipation (PC) | 1560W |
| Short Circuit Withstand Time (tsc) | 10µs |
For a comprehensive breakdown of all electrical and thermal characteristics, you can Download the Toshiba MG400Q1US1 Datasheet.
Application Scenarios & Value Proposition
The specifications of the Toshiba MG400Q1US1 directly translate into tangible benefits across several high-power applications.
High-Power Motor Drives & VFDs
In large industrial motor control, particularly for high-efficiency inverter ACs and Variable Frequency Drives (VFDs), the ability to handle high currents and survive inductive kickback is paramount. The 400A rating provides the necessary power to drive multi-kilowatt motors, while the module's inherent ruggedness ensures a long operational life, reducing downtime and maintenance costs in factory automation and HVAC systems.
Industrial Welding & Heating Systems
Applications like arc welding and high-frequency induction heating impose severe conditions on power switches. They require components that can withstand repetitive high-current pulses and potential short-circuit events. The MG400Q1US1’s robust Safe Operating Area (SOA) and 10µs short-circuit withstand time are critical features that make it an ideal choice for these punishing environments, guaranteeing operational stability where lesser components would fail.
Technical Deep Dive: Design Philosophy
Understanding the design trade-offs of the MG400Q1US1 reveals its strategic value. While newer technologies may offer a lower VCE(sat), this Toshiba module prioritizes a wider safety margin and overall system resilience. This design choice results in a device that is exceptionally tolerant of the non-ideal conditions often found in real-world industrial settings, such as line voltage fluctuations and load mismatches. The focus is on predictable performance and preventing catastrophic failure, a cornerstone of reliable system design.
Frequently Asked Questions for the MG400Q1US1
Our engineers frequently address the following practical design questions about this robust IGBT module.
- Can the MG400Q1US1 be paralleled for higher current?Yes, the single-switch configuration is ideal for paralleling. However, successful implementation requires careful attention to symmetrical PCB layout to ensure equal current sharing, the use of individual gate resistors to dampen potential oscillations, and thermal matching to prevent current hogging by one module.
- What is the most critical aspect of the gate drive design for this module?For a high-current module like this, a robust gate drive is essential. It must be capable of supplying sufficient peak current to charge and discharge the gate capacitance quickly, ensuring efficient switching. Equally important is implementing a solid gate-source protection mechanism to prevent spurious turn-on. For more insights, review these 5 practical tips for robust IGBT gate drive design.
