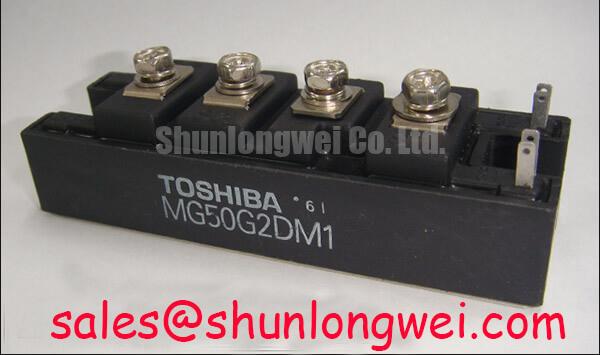

MG50G2DM1 Toshiba 600V 50A IGBT Module
The MG50G2DM1 is a high-performance N-channel IGBT module architected for precision power switching in mid-voltage industrial environments. Offering a robust 600V collector-emitter voltage rating and a 50A continuous collector current, this dual-pack configuration is designed to streamline half-bridge topologies while maintaining thermal stability. It provides an essential balance of high-speed switching capabilities and low saturation voltage, making it a reliable building block for modern inverter designs. For motor drive systems prioritizing compact integration within 600V limits, this 50A half-bridge module is the optimal choice.
Application Scenarios & Value
Achieving Power Density in Mid-Range Inverter Designs
Engineers often face the challenge of minimizing the physical footprint of power stages while ensuring the component can withstand the electrical rigors of inductive loads. The MG50G2DM1 addresses this by integrating two IGBT chips into a single low-profile housing, effectively halving the required mounting space compared to discrete solutions. In a high-fidelity engineering scenario involving a 15kW Variable Frequency Drive (VFD), a lead designer must manage the startup surge of a three-phase motor. Utilizing the 50A capacity of this module allows the system to absorb these transient currents safely within the 250W power dissipation limit, ensuring long-term reliability without over-engineering the cooling assembly.
The module is particularly effective in Uninterruptible Power Supplies (UPS) and servo amplifiers where switching precision is paramount. By leveraging the fast switching characteristics of the Toshiba GTR technology, designers can reduce the size of passive filtering components, thereby lowering the total cost of ownership (TCO) of the system. For applications requiring higher voltage overhead to manage 690V industrial lines, the related BSM50GB120DN2 offers a 1200V rating. Integrating the MG50G2DM1 into a well-designed IGBT module architecture ensures the power stage remains robust against the voltage spikes typical in industrial power grids.
Technical & Design Deep Dive
Optimizing Thermal Margins in Integrated Half-Bridge Topologies
The internal architecture of the MG50G2DM1 emphasizes thermal path optimization. With a maximum power dissipation of 250W at a case temperature of 25°C, the module utilizes a high-conductivity baseplate to facilitate efficient heat transfer to the external heatsink. In the field of power electronics, managing the Thermal Resistance (Rth) is akin to widening a highway; the lower the resistance, the faster the thermal "traffic" can exit the silicon junction, preventing catastrophic failure due to overheating. This is a critical consideration for engineers performing IGBT failure analysis during the prototyping phase.
The isolation voltage of 2500V AC for one minute provides a significant safety margin between the active power circuitry and the mounting surface, which is vital for meeting international safety standards in industrial equipment. Furthermore, the Vce(sat) of approximately 2.7V (typical) indicates efficient conduction. Conduction loss in an IGBT can be compared to friction in a water pipe; a lower saturation voltage represents less "friction," meaning more energy is delivered to the load rather than being lost as heat within the semiconductor itself. This efficiency is a primary driver for its adoption in high-duty cycle motor control and power conversion units.
Key Parameter Overview
Decoding the Technical Specifications for System Integration
| Parameter Category | Specific Metric | Technical Value |
|---|---|---|
| Voltage Ratings | Collector-Emitter Voltage (Vces) | 600V |
| Voltage Ratings | Gate-Emitter Voltage (Vges) | ±20V |
| Current Ratings | Continuous Collector Current (Ic) | 50A (at 25°C) |
| Current Ratings | Peak Collector Current (Icp) | 100A (1ms pulse) |
| Power & Thermal | Max Power Dissipation (Pc) | 250W |
| Power & Thermal | Isolation Voltage (Visol) | 2500V AC (1 min) |
| Mechanical | Configuration | Dual (Half-Bridge) |
Download the MG50G2DM1 datasheet for detailed specifications and performance curves.
Frequently Asked Questions
How does the dual-pack configuration of the MG50G2DM1 simplify PCB layout?
By integrating a full half-bridge into a single module, the MG50G2DM1 significantly reduces the complexity of high-current traces on the PCB. It minimizes parasitic inductance between the high-side and low-side switches, which is crucial for reducing voltage ringing during high-speed switching transitions.
What is the primary benefit of the 2500V AC isolation rating?
This rating ensures that the internal electrical components are securely isolated from the metal baseplate. This allows engineers to mount multiple modules on a single shared heatsink without the risk of electrical shorting or the need for additional external insulation pads, simplifying the mechanical assembly.
Can the MG50G2DM1 be used in parallel for higher current applications?
While paralleling is possible, it requires careful matching of the Vce(sat) and symmetrical gate drive circuitry to ensure balanced current sharing. For designs needing higher native current capacity, evaluating the 2MBI200NB-120 may be more efficient than paralleling multiple 50A units.
What precautions should be taken when testing this module?
Due to the sensitivity of the gate oxide, standard ESD precautions are mandatory. For field verification, following a guide on how to test an IGBT module with a multimeter can help identify gate-emitter shorts or collector-emitter leakage before installation.
How does the 2.7V Vce(sat) affect the selection of a cooling system?
The saturation voltage directly determines the conduction losses (P = Vce(sat) x Ic). At 50A, the module will generate substantial heat. The cooling system must be sized based on the worst-case duty cycle to ensure the junction temperature remains well below the absolute maximum of 150°C.
As a specialized distributor, we provide comprehensive technical data to support your procurement and engineering evaluation. For current availability, detailed lead times, or specific technical queries regarding the MG50G2DM1 and its integration into your power stage design, please contact our technical sales team for a formal quotation.
