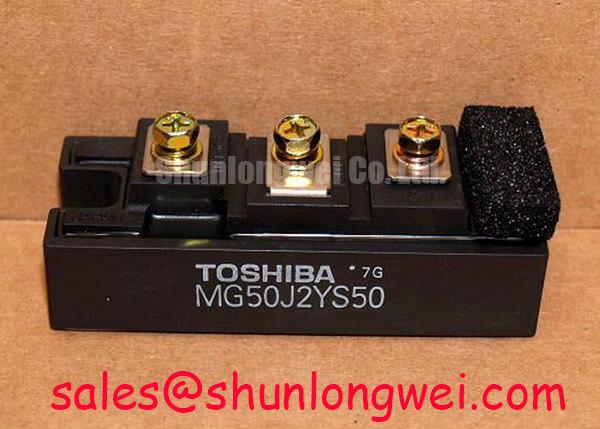

High-Speed Power Switching with the Toshiba MG50J2YS50
Are you experiencing high switching power losses and slow reverse recovery times in your motor drive designs?
A 600V, 50A half-bridge IGBT module optimizing high-speed power switching efficiency with minimal fall time and reverse recovery losses.
- Top Specs: 600V | 50A | Rth(j-c) 0.45 °C/W
- Key Benefits: Minimizes switching losses. Simplifies half-bridge layouts.
With a maximum fall time of 0.30µs at a collector current of 50A, it directly reduces turn-off switching losses in high-frequency applications. For 400V DC bus applications prioritizing high-speed motor control efficiency, this 600V half-bridge IGBT module is the optimal choice.
Frequently Asked Questions
Resolving Critical Gate Drive and Switching Questions for System Designers
How does the maximum fall time of 0.30µs influence thermal design and switching frequency limits in motor drives?
The turn-off fall time of 0.30µs (max at IC = 50A) ensures low turn-off switching losses, allowing higher carrier frequencies. Minimizing turn-off energy dissipation reduces the load on the heatsink, enabling a more compact thermal footprint.
What is the engineering advantage of the 2500V AC isolation voltage rating in industrial applications?
The 2500V AC isolation rating allows the module to be directly mounted on a common heatsink, simplifying system packaging. This design eliminates the need for external isolation barriers, reducing both assembly time and total system complexity.
Key Parameter Overview
Detailed Specifications for Optimizing Switching Efficiency and Power Losses
The following table outlines the key technical parameters for the Toshiba MG50J2YS50 GTR module, grouped by functional categories to aid engineering analysis.
| Absolute Maximum Ratings (Ta = 25°C) | ||
|---|---|---|
| Parameter | Symbol | Rating |
| Collector-Emitter Voltage | VCES | 600V |
| Gate-Emitter Voltage | VGES | ±20V |
| Collector Current (DC) | IC | 50A |
| Collector Current (1ms) | ICP | 100A |
| Forward Current (DC) | IF | 50A |
| Collector Power Dissipation (Tc = 25°C) | PC | 280W |
| Isolation Voltage (AC, 1 min.) | VIsol | 2500V |
| Electrical Characteristics (Ta = 25°C) | |||
|---|---|---|---|
| Parameter | Symbol | Typical | Maximum |
| Collector-Emitter Saturation Voltage (IC = 50A, VGE = 15V) | VCE(sat) | 2.10V | 2.70V |
| Gate-Emitter Cut-off Voltage (IC = 5mA, VCE = 5V) | VGE(off) | 7.0V | 8.0V |
| Turn-off Fall Time (IC = 50A, VGE = ±15V, RG = 24Ω) | tf | 0.15µs | 0.30µs |
| Diode Reverse Recovery Time (IF = 50A, VGE = -10V, di/dt = 100A/µs) | trr | 0.08µs | 0.15µs |
| Thermal Characteristics | ||
|---|---|---|
| Parameter | Symbol | Maximum Value |
| Thermal Resistance (Transistor Stage) | Rth(j-c) | 0.45 °C/W |
| Thermal Resistance (Diode Stage) | Rth(j-c) | 0.90 °C/W |
Download the MG50J2YS50 datasheet for detailed specifications and performance curves.
Technical & Design Deep Dive
Analyzing Switching Dynamics and Loss Mitigation Strategies
The MG50J2YS50 integrates two silicon N-channel IGBTs in a half-bridge configuration. Engineers designing high-frequency switching circuits must balance gate drive dynamics with switching losses. To understand this, let's explore how an IGBT works. In a half-bridge layout, the gate charge acts like filling a tiny water bucket. A higher gate-emitter cut-off voltage VGE(off) (typically 7.0V) prevents parasitic turn-on caused by rapid dV/dt transients.
Similarly, the turn-off fall time is akin to a water valve closing. A slow turn-off allows current to trickle through under high voltage, causing massive Switching Loss. By reducing the maximum fall time to 0.30µs, this module acts like a snap-action valve, restricting turn-off energy dissipation. What is the primary benefit of the short fall time? It minimizes turn-off energy dissipation during high-frequency switching. How does the isolation voltage simplify installation? It allows mounting directly on heatsinks without external isolating materials.
Using a proper gate resistor (RG = 24Ω) ensures that the module switches quickly without causing excessive voltage spikes across the stray inductance. Integrating a low-inductance busbar design further minimizes the peak collector voltage during switch-off transients, protecting the internal silicon dies. This layout improves the thermal margin by keeping junction temperatures well within the 150°C rating.
Application Scenarios & Value
Translating Low Conduction and Switching Losses into High-Performance Systems
The MG50J2YS50 is designed for motor control and industrial power conversion systems. In a standard motor drive or variable frequency drive (VFD), engineers often face the challenge of motor startup surge currents. The peak collector current rating (ICP) of 100A provides a safe margin for transient motor startup demands without triggering overcurrent protection. This transient capability is essential for preserving system uptime under variable load conditions.
For high-frequency switching applications like a servo drive, fast diode commutation is critical. The module’s integrated freewheeling diode features a reverse recovery time (trr) of 0.15µs. This prevents excessive reverse recovery current spikes, reducing thermal stress on the diode stage and protecting the module from localized hot spots. Adding a suitable snubber circuit helps clamp high-frequency voltage oscillations during commutation.
While this model is suitable for 600V applications, systems requiring higher voltage headroom may consider the MG150Q2YS50, which offers a collector-emitter rating of 1200V. For lower current systems, the MG75J6ES50 provides a related path for design customization.
