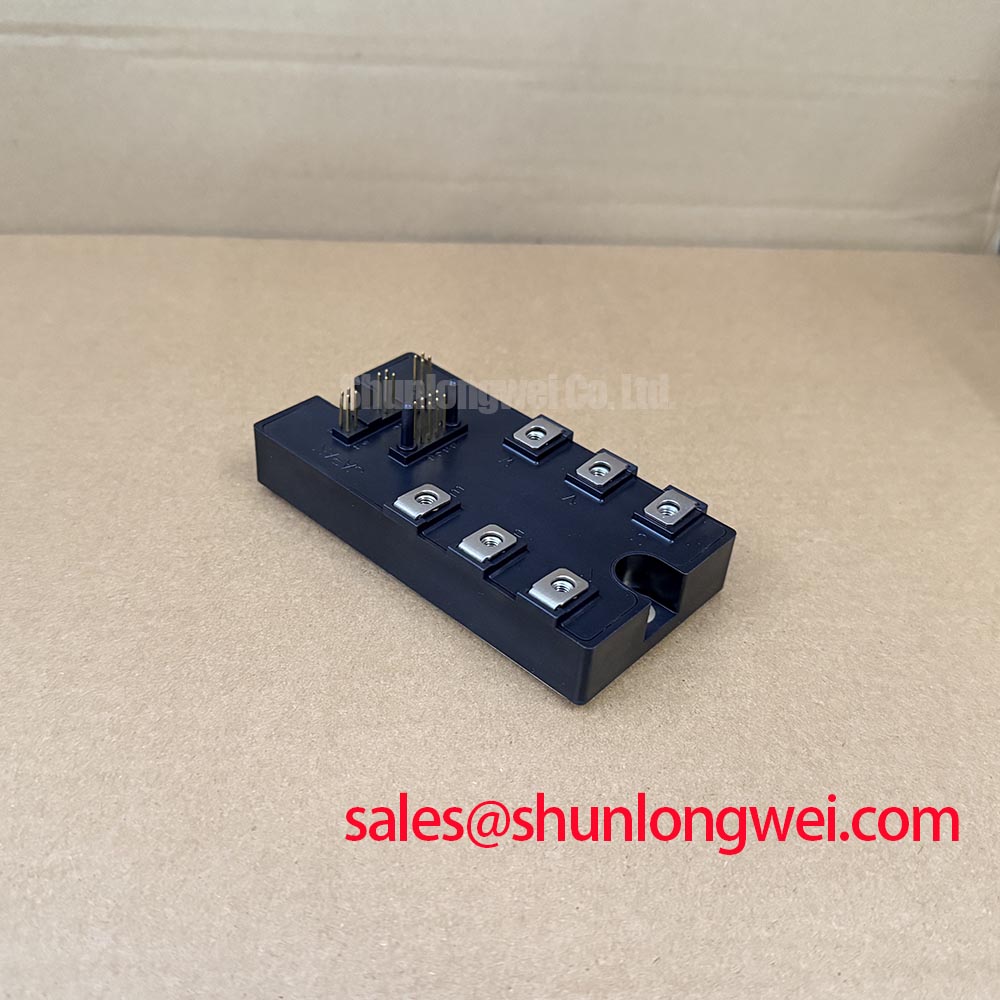

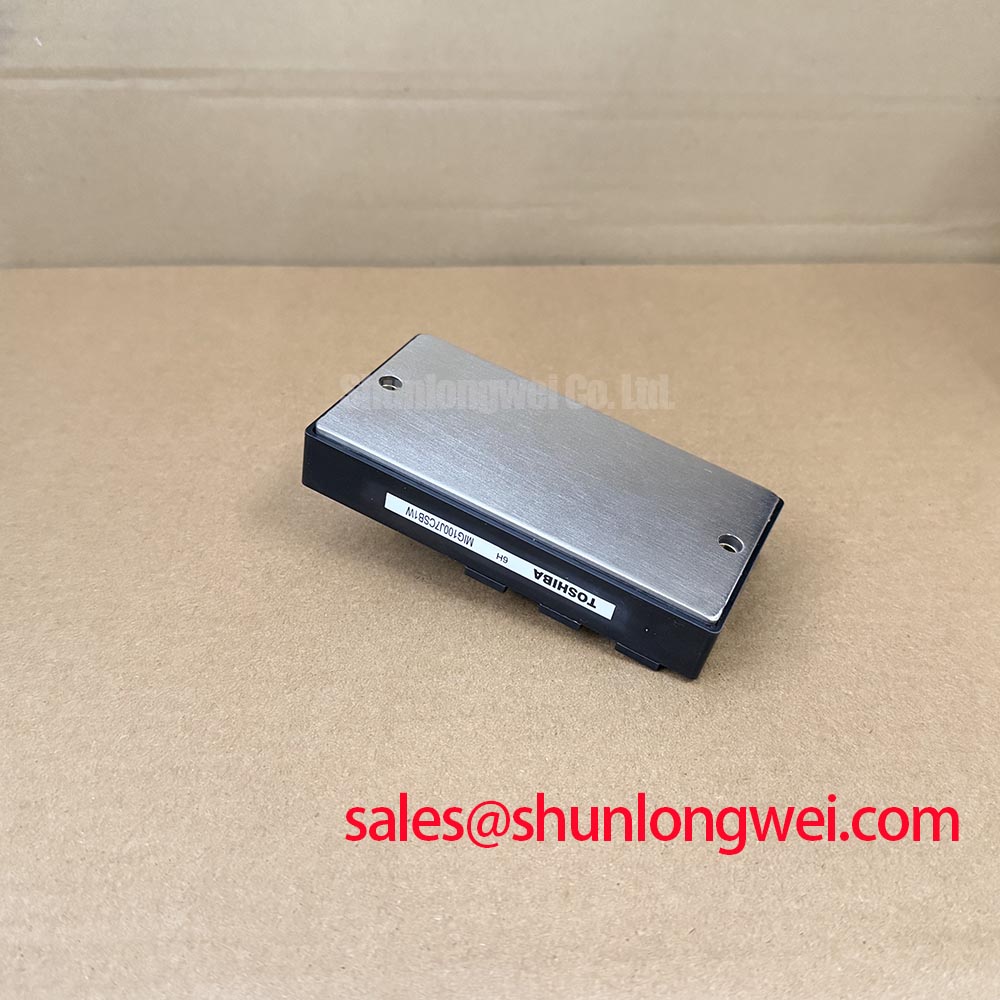

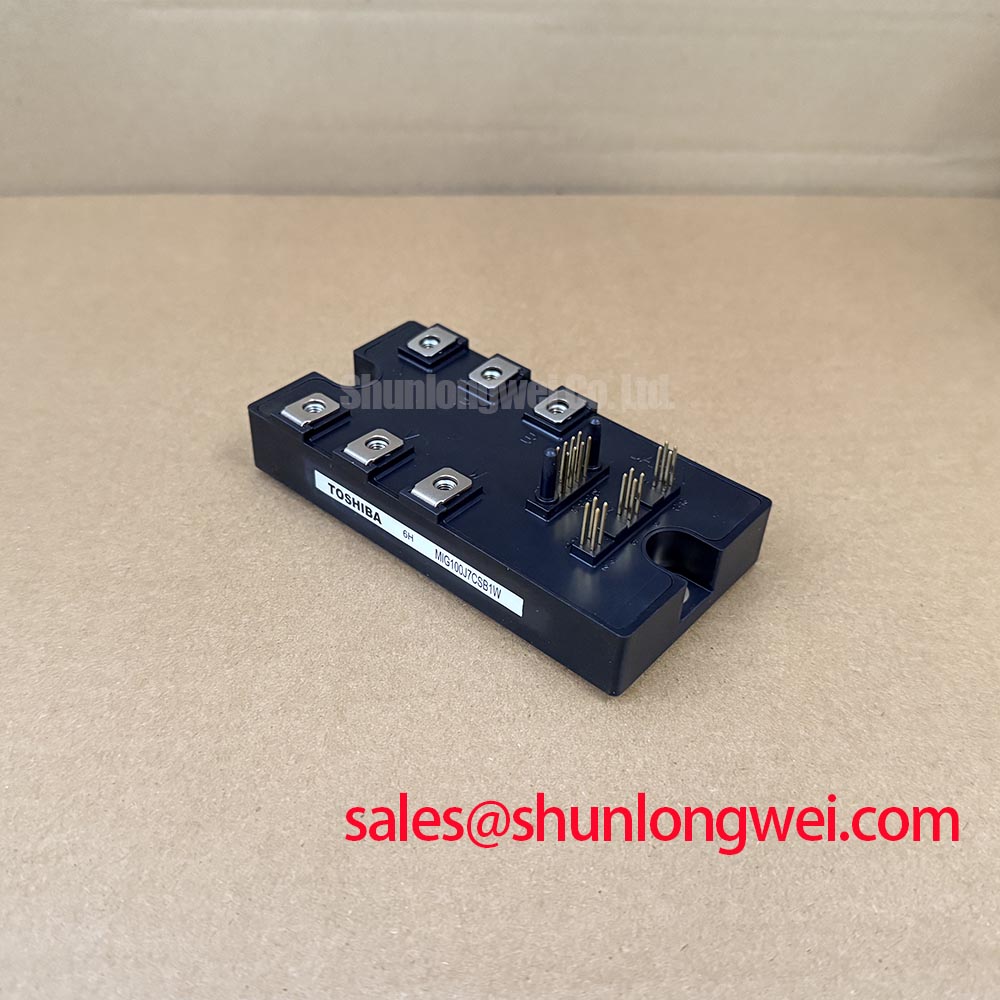

MIG100J7CSB1W Toshiba 600V 100A 7-Pack Intelligent Power Module
The MIG100J7CSB1W is a high-performance Intelligent Power Module (IPM) designed by Toshiba to provide a complete power stage solution for 600V systems. Featuring a 7-pack configuration that integrates a three-phase inverter and a brake stage, this module delivers 100A of continuous current handling within a compact, transfer-molded package. Its primary value lies in the seamless integration of gate drive circuits and multi-layered protection features, including Over-Current (OC), Over-Temperature (OT), and Under-Voltage Lockout (UVLO), which significantly reduces the footprint and complexity of modern industrial motor drives. For engineers prioritizing thermal efficiency and rapid system integration, the MIG100J7CSB1W offers a robust platform for VFD and servo drive applications.
Application Scenarios & Value
Optimizing Industrial Motor Drives for Thermal Reliability and Space Constraints
Engineers often face the challenge of balancing high power density with the parasitic risks inherent in discrete gate drive layouts. The MIG100J7CSB1W addresses this by housing the IGBT chips and their associated drive circuits in a single thermal environment. In a typical Variable Frequency Drive (VFD) application, the 600V rating is ideal for 230V AC line-fed systems, providing ample margin against transient voltage spikes. By utilizing the brake circuit integrated within the module, designers can manage regenerative energy in servo drives without requiring additional external power components, thereby reducing the total bill of materials.
In high-fidelity engineering scenarios, such as robotic servo drives, maintaining EMI compliance under IEC 61800-3 standards is a critical hurdle. The internal layout of the MIG100J7CSB1W minimizes stray inductance between the driver and the IGBT gate, which suppresses high-frequency oscillations during high-speed switching. This leads to cleaner PWM signals and reduced electromagnetic interference. For systems requiring higher power levels, such as 400V industrial lines, one might evaluate modules like the PM150CSD120, which offers a 1200V rating.
Technical Deep Dive
Advanced Protection Logic and Integrated Drive Architecture
The architecture of the MIG100J7CSB1W is centered around a "Security-First" design philosophy. Unlike standard modules that require external logic to interpret fault signals, this Toshiba IPM features an open-collector fault output that immediately signals the MCU when a protection threshold is breached. The integrated over-temperature protection acts like an internal thermostat, ensuring the module shuts down the power stage before the silicon reaches its 150°C maximum junction temperature, much like a safety valve on a high-pressure boiler. This localized sensing is far more accurate than external thermistors mounted on a heatsink.
Furthermore, the Under-Voltage Lockout (UVLO) feature prevents the IGBTs from operating in the linear region, which occurs if the control supply drops below a safe level (typically around 13.5V). By ensuring the gates are only driven when fully saturated, the module prevents the catastrophic power losses and localized heating that lead to premature failure. This level of thermal management is essential for maintaining a high power density in enclosed control cabinets where airflow is limited. To better understand these dynamics, engineers can refer to an in-depth analysis of IGBT modules.
Key Parameter Overview
Functional Specifications and Integrated Circuit Capabilities
| Main Characteristic | Parameter Value | Engineering Significance |
|---|---|---|
| Collector-Emitter Voltage (Vces) | 600V | Standard for 200V-240V AC power systems |
| Continuous Collector Current (Ic) | 100A | Supports motor outputs up to 15-20 HP |
| Configuration | 7-Pack (Inverter + Brake) | Complete three-phase control in one unit |
| Isolation Voltage (Viso) | 2500V AC | Ensures safety compliance and high reliability |
| Switching Loss (Eoff) | Low Vce(sat) | Maximizes efficiency in high-frequency PWM |
Download the MIG100J7CSB1W datasheet for detailed specifications and performance curves.
Frequently Asked Questions
How does the integrated brake circuit in the MIG100J7CSB1W benefit servo drive designs?
The 7-pack configuration includes a dedicated brake IGBT and diode. This allows the system to dissipate regenerative energy from the motor during rapid deceleration through an external resistor, without needing to add a separate high-power discrete switch to the DC link.
What are the recommended gate drive supply voltages for this module?
The MIG100J7CSB1W typically requires a 15V DC control supply. The internal UVLO protection will trigger a fault signal if this voltage drops below 13.5V, ensuring the IGBTs never operate in an inefficient, high-heat linear state.
Can the MIG100J7CSB1W be used for 480V AC applications?
No. The 600V Vces rating is insufficient for 480V AC lines, which typically require 1200V rated modules like the 7MBR75VB120-50 to handle the peak rectified voltage and potential surges.
What is the primary benefit of its integrated drive in the MIG100J7CSB1W?
It simplifies the external gate drive design while providing precise fault management for over-current and over-temperature events.
How does the isolation voltage of 2500V impact system safety?
This rating provides a robust galvanic barrier between the high-voltage DC link and the low-voltage logic control, protecting the MCU and human operators from electrical faults.
For engineers designing compact 200V class industrial drives, the MIG100J7CSB1W serves as a strategic building block that eliminates the most common failure points in power electronics through its integrated, self-protecting architecture.
