## MIG150J7CSB1W: Technical Review of a 600V/150A Integrated Power Module
This document provides an engineering-focused overview of the MIG150J7CSB1W, an Intelligent Power Module (IPM) manufactured by Toshiba Semiconductor. As a distributor of electronic components, we aim to furnish design engineers and procurement specialists with precise, fact-based information derived directly from the component's datasheet to support their evaluation and decision-making processes.
***
### Core Functionality and Integrated Design

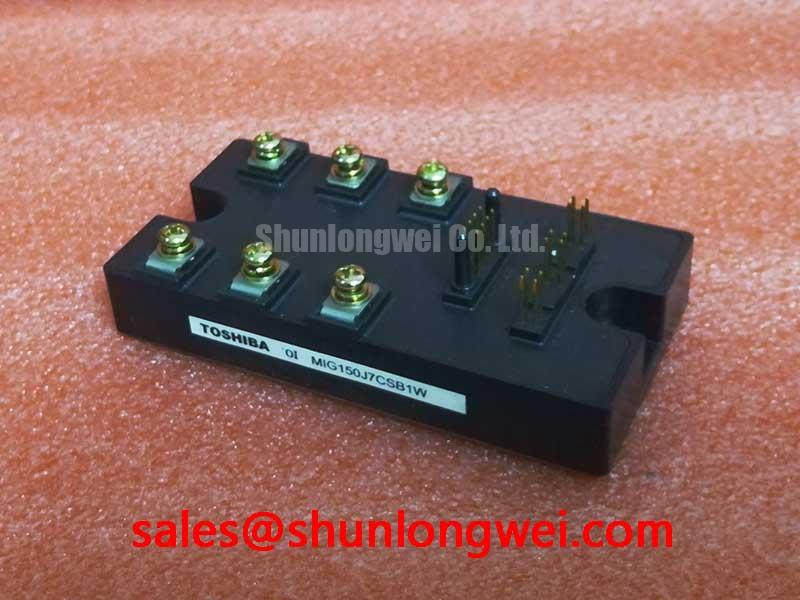

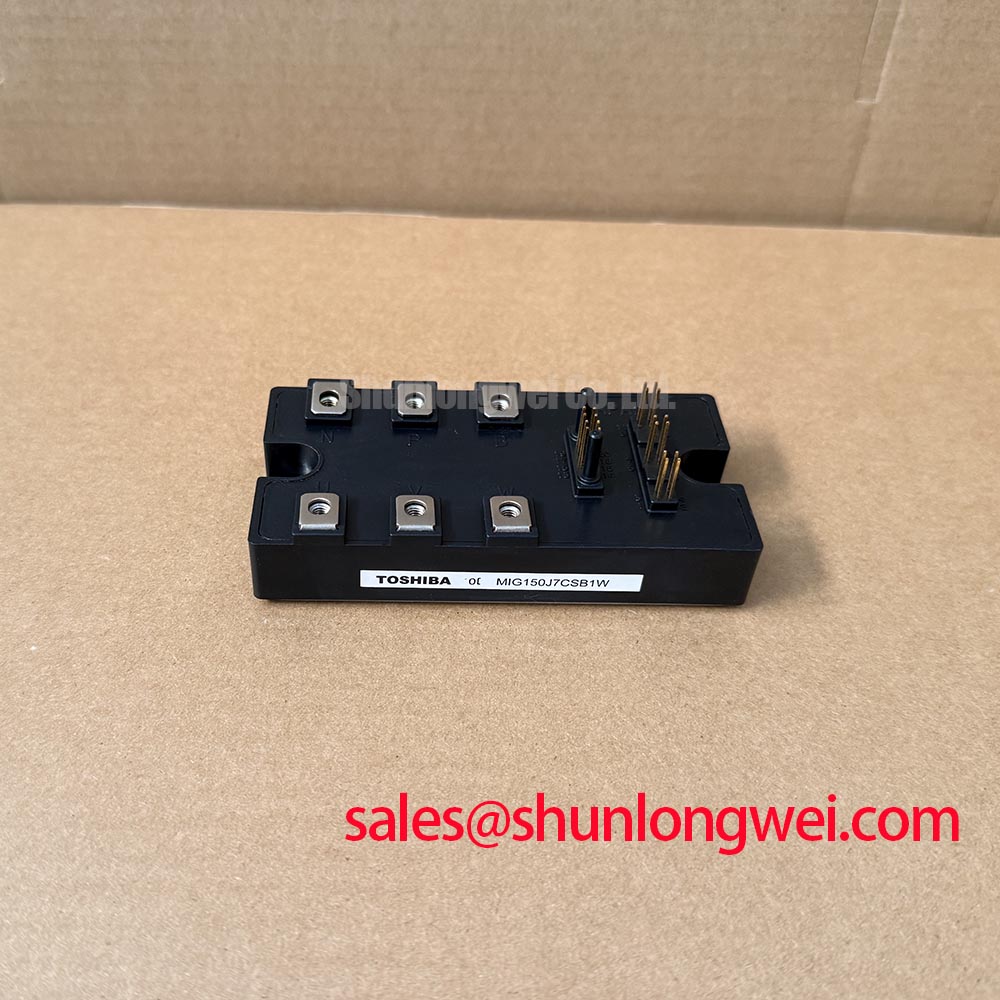

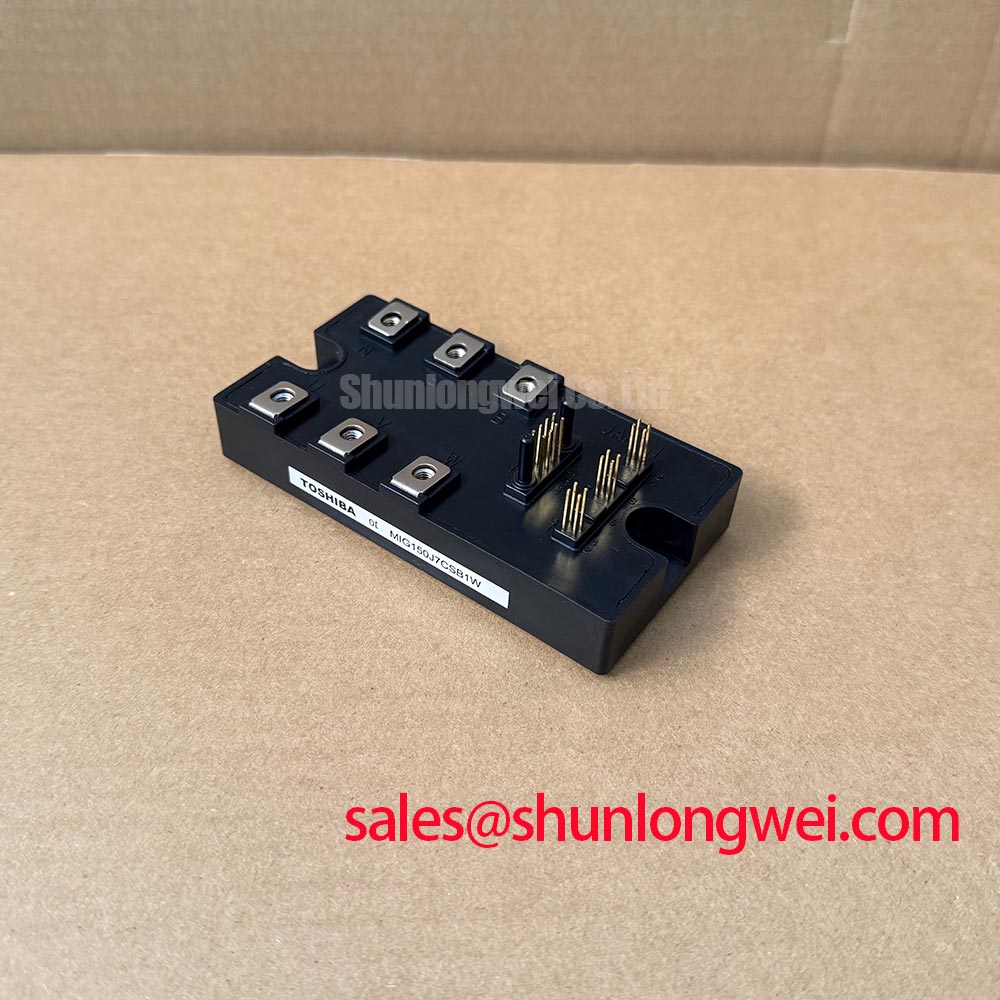

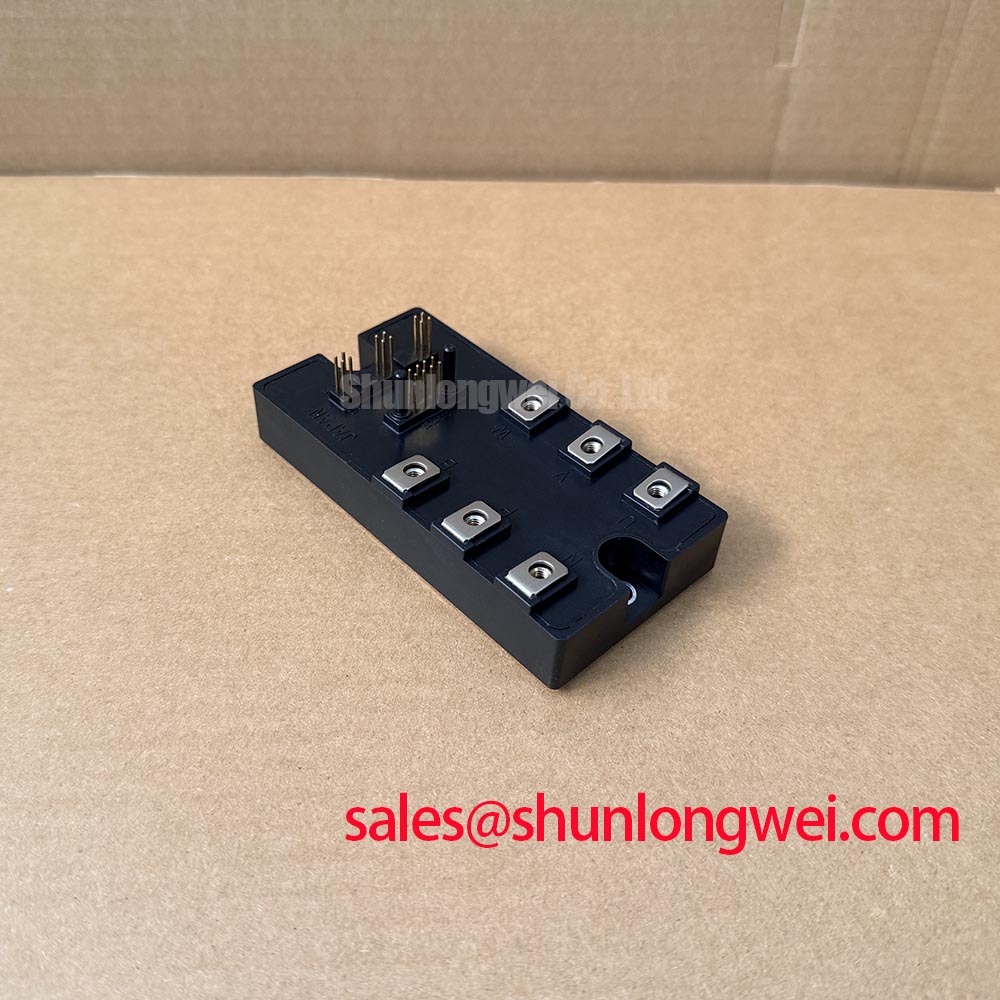

The MIG150J7CSB1W is officially designated as a **TOSHIBA Intelligent Power Module** containing a silicon N-channel Insulated Gate Bipolar Transistor (IGBT). It integrates a comprehensive 7-in-1 configuration, comprising a three-phase IGBT inverter bridge, a brake chopper circuit, and dedicated control circuits. This high level of integration is a defining characteristic, incorporating IGBT drive units and a suite of protection features against short-circuit current, over-current, under-voltage, and over-temperature events. The primary design objective of this module is to simplify the power stage in high-power switching applications, particularly for motor control.
What is the advantage of an integrated 7-in-1 IPM? It significantly reduces system complexity and component count, leading to a smaller PCB footprint and simplified assembly.
For systems that demand robust, all-in-one solutions for three-phase motor control, the MIG150J7CSB1W's integrated protection and drive circuitry offers a streamlined design path.
### Application Scenarios & Value
#### Engineering Value in Motor Control Systems
The MIG150J7CSB1W is explicitly designed for **high-power switching applications and motor control**. Its architecture directly addresses the core requirements of Variable Frequency Drives (VFDs), servo drives, and other industrial automation systems. The integration of the brake circuit is particularly valuable in applications requiring rapid deceleration or control of regenerative energy, such as robotics, CNC machinery, and elevators.
This module's primary value proposition lies in its ability to accelerate development and enhance system reliability. By co-packaging the power switches with their corresponding gate drivers and protection logic, engineers can circumvent many of the complex design challenges associated with discrete solutions. These challenges include gate drive circuit optimization, parasitic inductance mitigation, and the implementation of reliable fault-sensing mechanisms. The module's internal isolation between the control and power sections further simplifies system-level design and improves noise immunity.
Best Fit: For industrial motor drives up to approximately 45 kW where design simplification, integrated protection, and reliable performance are primary project requirements.
For applications requiring different current or voltage ratings, other modules in the same family, such as the MIG75J6CSB1W, may provide alternative performance points.
### Key Parameter Overview
#### Unpacking the Specifications for System Design
The performance of any power module is dictated by its electrical and thermal characteristics. The following parameters from the MIG150J7CSB1W datasheet are critical for design engineers to evaluate its suitability for a given application.
| Parameter | Symbol | Value | Conditions | Engineering Significance |
| :--- | :--- | :--- | :--- | :--- |
| **Collector-Emitter Voltage** | VCES | 600 V | | Defines the maximum blocking voltage, making it suitable for 200/240 VAC line applications with sufficient safety margin. |
| **Collector Current (DC)** | IC | 150 A | Tc = 25°C | Represents the maximum continuous current handling capability under ideal cooling conditions. Derating is necessary for real-world operating temperatures. |
| **Collector Power Dissipation** | PC | 690 W | Per IGBT | A key indicator of the module's power handling capacity and the thermal load that must be managed by the heatsink. |
| **Collector-Emitter Saturation Voltage** | VCE(sat) | 2.1 V (Typ), 2.7 V (Max) | IC = 150 A | This parameter is a direct measure of conduction losses. A lower VCE(sat) translates to higher efficiency and reduced heat generation during operation. |

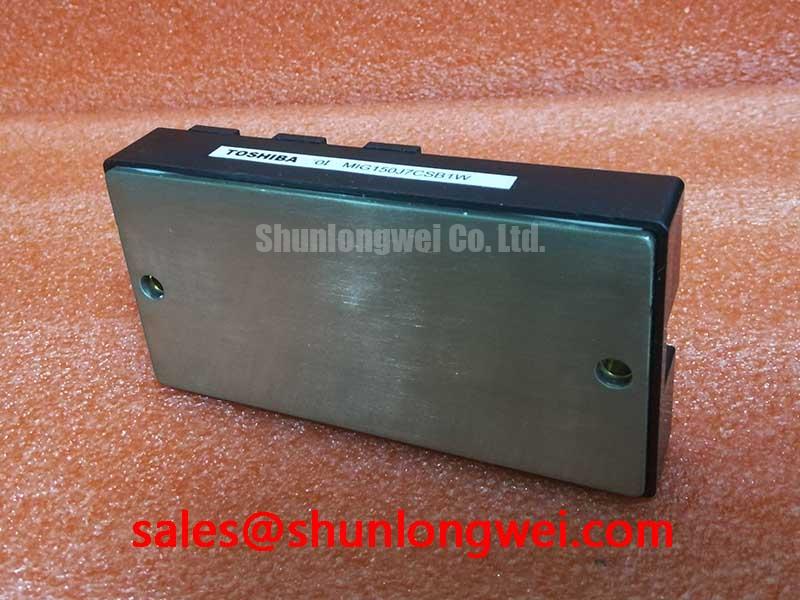

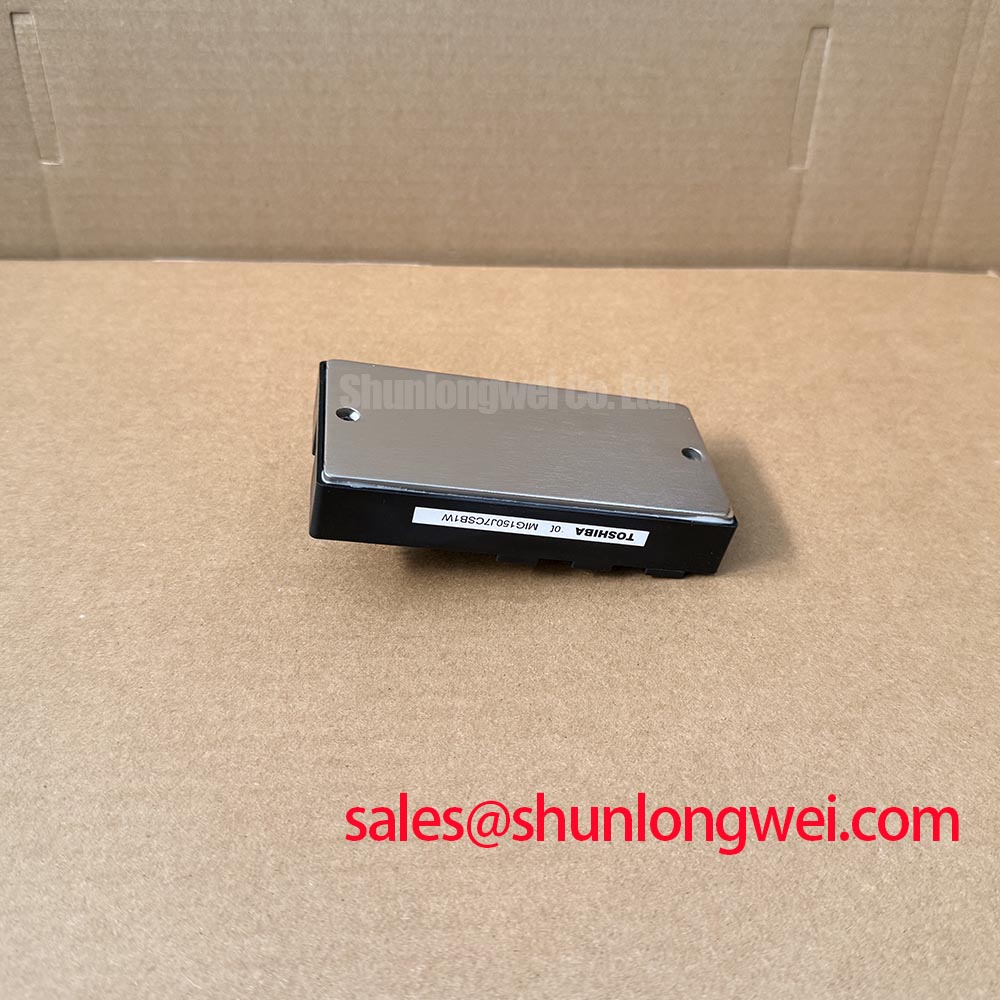

| **Isolation Voltage** | Visol | 2500 V | AC, 1 minute | Ensures safety and regulatory compliance by guaranteeing high dielectric strength between the electrical terminals and the module's mounting baseplate. |
| **Operating Junction Temperature** | Tj | +150 °C | | The maximum allowable temperature of the IGBT die. Exceeding this limit can lead to performance degradation and eventual failure. |
Download the MIG150J7CSB1W datasheet for detailed specifications and performance curves.
### Technical Deep Dive
#### The Strategic Importance of Integrated Protection
The term "Intelligent Power Module" signifies more than just the co-packaging of components; it refers to the module's intrinsic ability to protect itself from destructive fault conditions. The MIG150J7CSB1W incorporates several critical protection circuits that are paramount for ensuring reliability in demanding industrial environments.
* **Over-Current (OC) and Short-Circuit (SC) Protection:** These circuits monitor the collector current of the IGBTs in real-time. If the current exceeds a predetermined threshold, indicating a phase-to-phase short, a ground fault, or a motor stall, the control circuit initiates a soft shutdown of the IGBTs. This controlled turn-off is crucial to avoid large voltage overshoots (dV/dt) that could damage the devices. This is analogous to having an incredibly fast, intelligent fuse that not only breaks the circuit but does so in a way that prevents collateral damage.
* **Under-Voltage (UV) Lockout:** The UV protection ensures that the gate drive supply voltage is sufficient for fully enhancing the IGBTs. Attempting to switch the IGBTs with inadequate gate voltage can cause them to operate in the linear region, leading to extremely high power dissipation and rapid thermal failure. The UV lockout acts as a permissive check, preventing operation until the system is ready.
* **Over-Temperature (OT) Protection:** An internal temperature sensor provides feedback to the control logic. If the module's temperature approaches its maximum limit, a fault signal is generated, allowing for a controlled system shutdown. This prevents thermal runaway and is a critical feature for long-term operational reliability.
What is the system-level benefit of these protections? They dramatically increase the robustness of the end-application, reducing field failures and warranty claims by safeguarding the power stage against the most common failure modes.
### Frequently Asked Questions (FAQ)
What is the primary application for the MIG150J7CSB1W?
The MIG150J7CSB1W is specifically designed for three-phase motor control applications, such as industrial motor drives (VFDs), servo amplifiers, and AC motor controllers, where its integrated 7-in-1 topology provides a compact and reliable solution.
What does the '7-in-1' configuration include?
This configuration integrates a three-phase inverter (six IGBTs and six free-wheeling diodes), a brake chopper (one IGBT and one diode), and the associated gate drive and protection circuits into a single module.
What is the maximum AC line voltage this module can support?
With a collector-emitter voltage (VCES) rating of 600V, this module is well-suited for applications connected to 200 VAC or 240 VAC lines, providing the necessary voltage headroom to handle transient spikes and DC bus ripple.
Does this module require an external gate driver circuit?
No, the MIG150J7CSB1W is an Intelligent Power Module that includes integrated gate drive circuits. It requires only logic-level PWM signals from a microcontroller or DSP for operation, which greatly simplifies the design process.
***
*Disclaimer: This content is for informational purposes only. As a distributor, we do not provide design guarantees or warranties. All technical specifications are based on the manufacturer's datasheet and are subject to change without notice. Engineers must consult the official datasheet and conduct their own validation for their specific application.*
