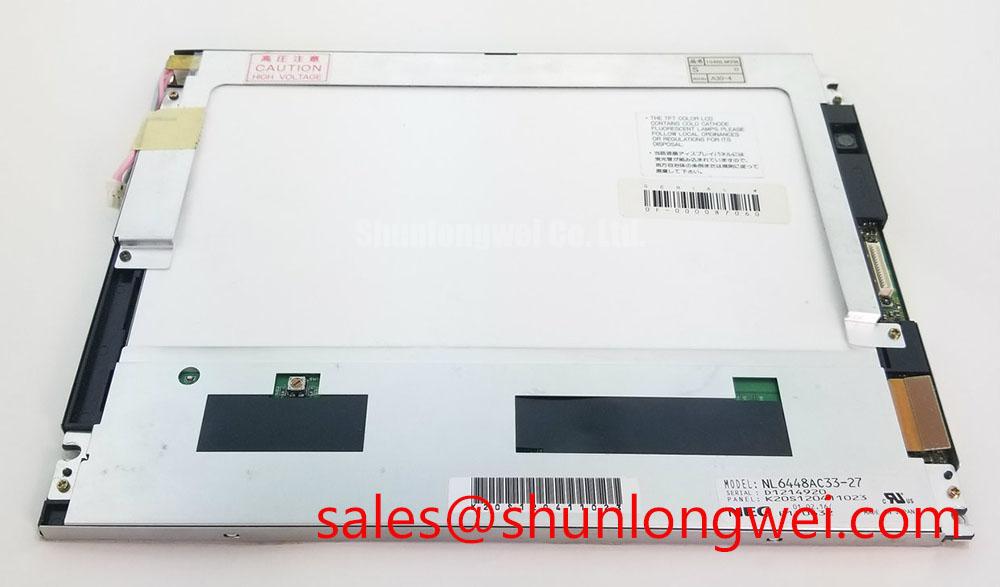

NL6448AC33-27: A Deep Dive into the 10.4-inch Industrial VGA TFT-LCD
Engineered for Durability and Clarity in Demanding Environments
The NL6448AC33-27 is a robust 10.4-inch VGA display engineered for long-term operational reliability in demanding industrial and medical environments. It delivers a strategic combination of performance and durability, featuring key specifications of 640x480 VGA resolution, a high-luminance 400 cd/m² backlight, and an expansive -10°C to +70°C operating temperature range. This provides two primary engineering benefits: excellent visibility in varied lighting and simplified system integration. For engineers specifying displays for systems where long-term reliability is more critical than cutting-edge resolution, the NL6448AC33-27 provides a stable and proven platform. Best fit for industrial control panels and medical devices requiring a proven, long-life VGA display with a wide operational temperature range.
Application Scenarios & Value
System-Level Benefits in Uncontrolled Thermal Environments
The true value of the NL6448AC33-27 is realized in applications where environmental conditions are unpredictable and system uptime is paramount. Consider its deployment in an industrial HMI for a process control system on a factory floor. Ambient temperatures can swing dramatically, from a cold start on a winter morning to peak heat during multi-shift operations. A standard commercial display might suffer from slowed response times, image sticking, or catastrophic failure. The NL6448AC33-27's wide operating temperature range of -10°C to +70°C directly addresses this engineering challenge, ensuring consistent and reliable performance without the need for complex external heating or cooling systems. What defines the NL6448AC33-27's reliability? Its wide -10°C to +70°C operating temperature range. This core feature reduces system complexity, lowers potential points of failure, and enhances the overall ruggedness of the final product.
This focus on reliability makes it an ideal candidate for medical monitoring devices, geological survey equipment, and legacy system upgrades where a dependable VGA interface is required. While modern systems may utilize higher resolutions, for applications built around established software and hardware, the NL6448AC33-27 offers a direct-fit solution that minimizes redesign and recertification costs. For systems requiring a similar form factor but with SVGA resolution, the G104S1-L01 presents an alternative pathway for higher-density graphical interfaces.
Key Parameter Overview
Decoding the Specifications for Industrial Reliability
The technical specifications of the NL6448AC33-27 are centered on delivering sustained performance over a long operational life. Understanding these key parameters is crucial for accurate system design and performance forecasting. The contrast ratio of 400:1, for instance, is a critical parameter for operator clarity. Think of it as the difference between charcoal gray text on a light gray background versus deep black text on a crisp white background. In a high-stakes industrial or medical setting, this level of clarity ensures that data is interpreted correctly, minimizing the risk of operator error.
| Optical Specifications | |
|---|---|
| Screen Size | 10.4 inches (26 cm) diagonal |
| Resolution | 640(H) x 480(V) pixels (VGA) |
| Pixel Pitch | 0.33(H) x 0.33(V) mm |
| Luminance | 400 cd/m² (Typical) |
| Contrast Ratio | 400:1 (Typical) |
| Response Time | 35 ms (Typical, ton + toff) |
| Electrical & Interface | |
| Display Technology | Amorphous Silicon TFT Active Matrix |
| Interface | 6-bit Digital (RGB) |
| Backlight | White LED with integrated driver |
| Power Consumption (Panel) | 1.5 W (Typical) |
| Mechanical & Environmental | |
| Module Dimensions | 243.0(W) x 185.1(H) x 11.0(D) mm |
| Active Area | 211.2(H) x 158.4(V) mm |
| Weight | 475 g (Typical) |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -20°C to +80°C |
Download the NL6448AC33-27 datasheet for detailed specifications and performance curves.
Industry Insights & Strategic Advantage
The Enduring Value of VGA Displays in Long-Lifecycle Systems
In an industry focused on ever-increasing pixel density, the strategic selection of a VGA display like the NL6448AC33-27 is a calculated engineering decision. For manufacturers of industrial HMI, test and measurement equipment, and medical devices, product lifecycles often span a decade or more. The introduction of a new, high-resolution display would necessitate a complete overhaul of the user interface software, extensive validation, and potentially costly recertification from regulatory bodies. Opting for a proven, reliable VGA module mitigates these risks entirely.
Choosing this display is analogous to selecting a time-tested, universally compatible engine for a critical vehicle fleet rather than a brand-new, unproven powertrain. The NL6448AC33-27 acts as a stabilizing force in the bill of materials, ensuring supply chain continuity and backward compatibility for field service and upgrades. This focus on long-term stability and Total Cost of Ownership (TCO), rather than just initial component cost, is a hallmark of designing for rugged, industrial applications where reliability is the primary currency. This approach aligns with the core principles of designing for longevity, a key consideration for many engineers working with single board computers (SBCs) in embedded systems.
Frequently Asked Questions
Engineering and Integration Inquiries
What is the primary benefit of the -10°C to +70°C operating temperature range for system design?
This wide operating range allows the display to be deployed in environments without active climate control, such as factory floors, outdoor kiosks, or vehicle cabins. It simplifies the system's thermal design, reduces the need for auxiliary fans or heaters, and directly contributes to a more robust and reliable end product by ensuring consistent display performance across a broad spectrum of real-world conditions.
How does the integrated LED backlight driver simplify the integration process?
The built-in driver circuit eliminates the need for engineers to design and source a separate, external constant-current driver for the backlight. The display accepts a standard DC voltage, and the onboard circuitry handles the precise power regulation for the LEDs. This reduces component count, simplifies the mainboard layout, shortens design time, and removes a potential source of electromagnetic interference (EMI).
For technical inquiries or to further evaluate how the NL6448AC33-27 can enhance the reliability of your application, we invite you to connect with our team of display specialists for detailed integration support.
