NL6448BC33-59D NEC Industrial TFT LCD HMI Panel

Content last revised on September 12, 2026

NEC NL6448BC33-59D Inspection and Identification

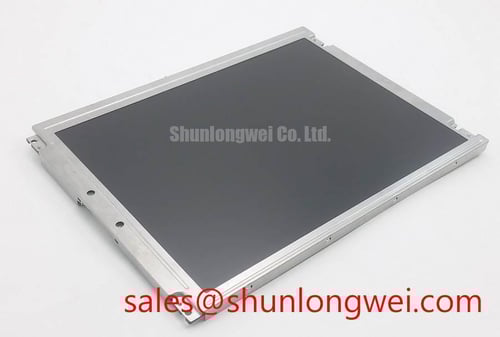

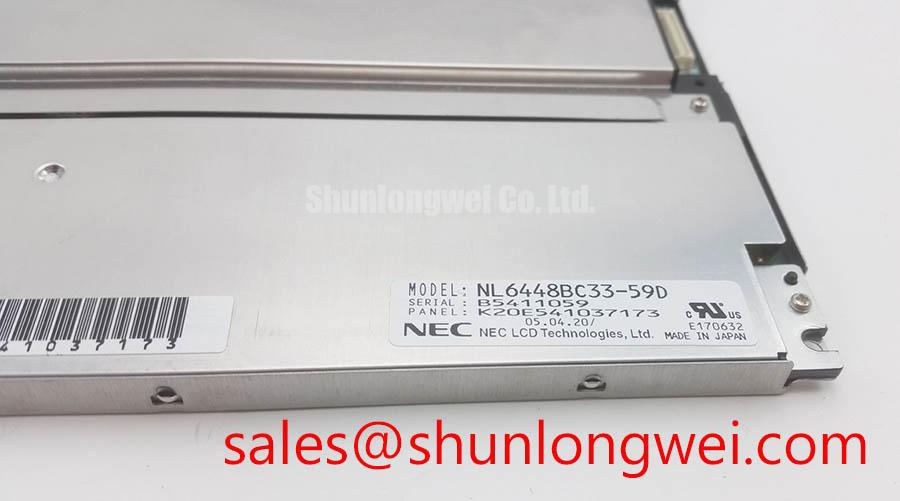

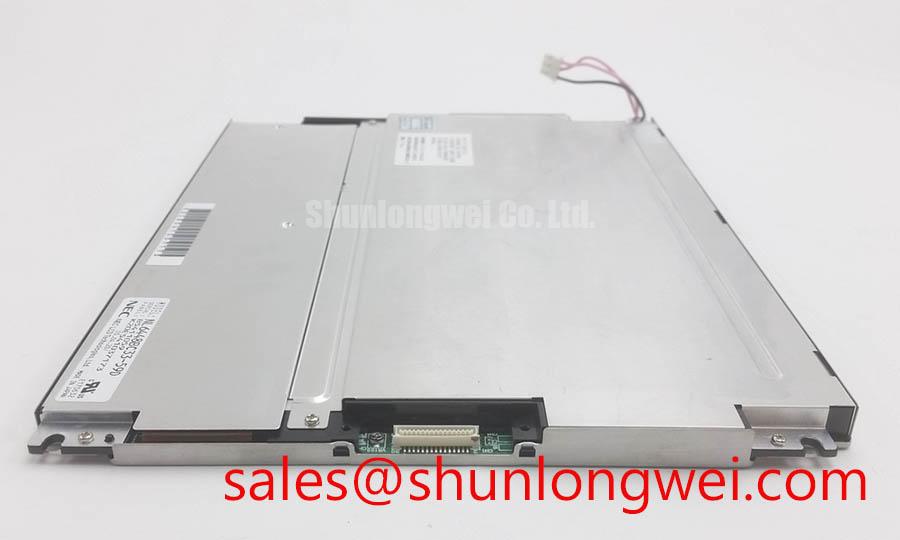

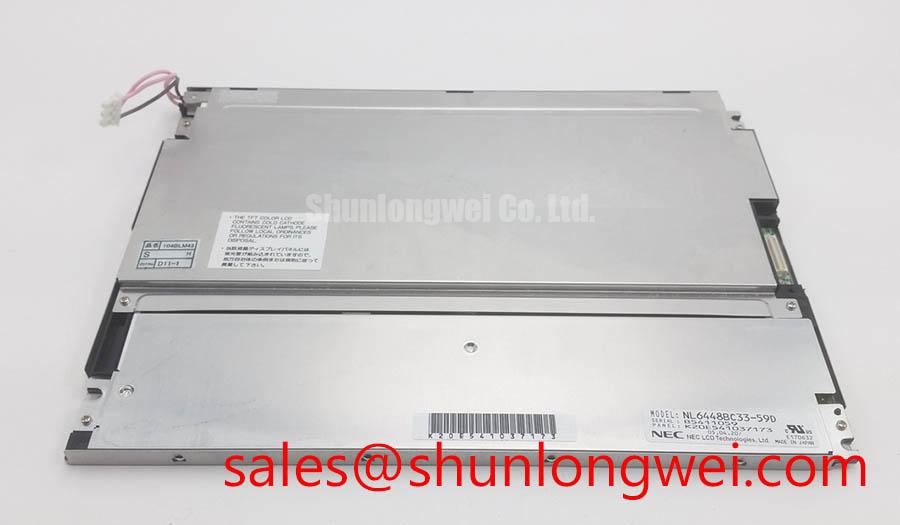

Begin incoming inspection by checking the NEC NL6448BC33-59D label against the equipment service record, then examine the TFT-LCD Display Module for cracked glass, frame distortion, connector damage, and contamination before applying power.

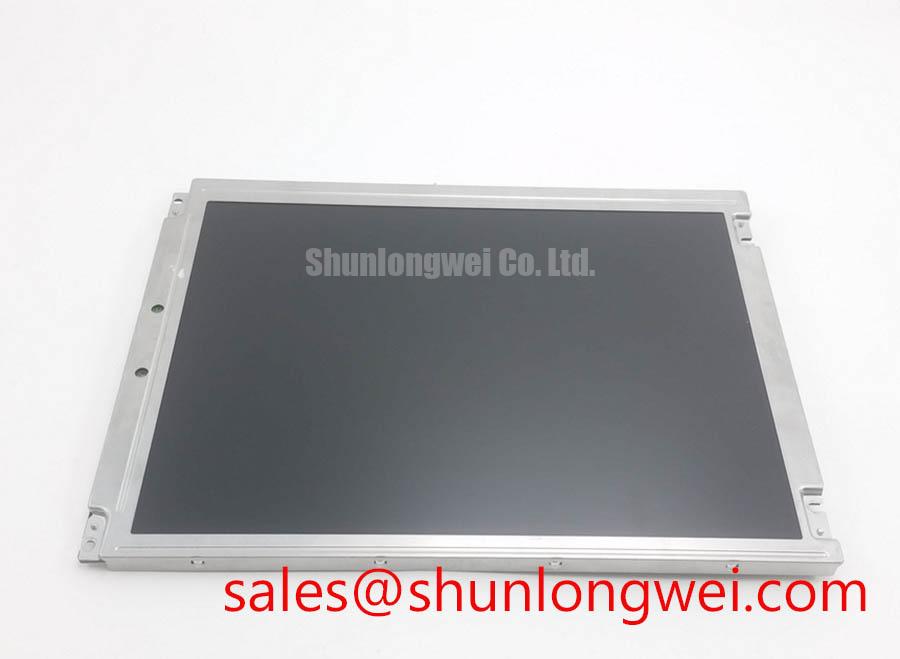

The NL6448BC33-59D is an Industrial Grade LCD/HMI Panel manufactured by NEC. Its factory classification is a TFT-LCD Display Module, with an official factory specification status used for component identification and replacement evaluation. The available product record does not establish a complete electrical timing table, optical performance table, interface pinout, backlight architecture, operating temperature range, or mechanical drawing. Those values should therefore be confirmed from the original panel documentation and the equipment manufacturer’s service information before installation.

Suppressing Acoustic Capacitor Buzz and EMI Emissions across 200 Hz to 1 kHz PWM Frequencies

When this panel is evaluated for a hazardous petrochemical Zone 2 explosion-proof operator station, the first practical task is to separate the display module from the enclosure’s illumination and power-control behavior. A replacement panel should not be assumed to accept the same backlight drive conditions as the removed unit. The system integrator should verify whether the original assembly uses an integrated backlight, an external driver, or a dedicated interface board from the original panel documentation. The available factory information for this product identifies the module category but does not confirm a CCFL ignition specification, LED current rating, PWM input specification, dimming ratio, or acoustic performance limit.

A high-voltage cold-cathode fluorescent lamp circuit and a constant-current LED driver create different electromagnetic conditions. If the original equipment contains a high-voltage ignition stage, inspect the wiring separation, insulation condition, return path, and enclosure bonding before attributing audible noise to the LCD itself. If the system uses an LED driver, evaluate the driver switching node, current-loop layout, PWM control line, and grounding reference independently. The 200 Hz to 1 kHz range stated for the equipment evaluation should be treated as a system test range, not as an official operating specification of the NEC module.

Acoustic buzz can be associated with magnetics, ceramic capacitors, transformer laminations, mechanical panel brackets, or enclosure resonance. During bench testing, change only one control condition at a time and record the relationship between brightness command, PWM frequency, audible response, and visible flicker. A constant-current driver may reduce some lamp-related high-voltage behavior, but the correct driver remains system-determined. Designers should verify current regulation, startup behavior, fault handling, and conducted emissions with the panel connected to its intended controller.

The often-mentioned 50,000-hour half-life or MTBF value must not be assigned to this NEC model without a manufacturer data source that defines the test method, luminance criterion, ambient conditions, and failure definition. It may be used as an equipment-level target during lifecycle planning, but it is not an official product parameter supplied in the available record. For purchasing and repair decisions, retain the original display brightness requirement and compare measured output during acceptance testing rather than converting an unsupported lifetime assumption into a guarantee.

For high-noise installations, route display data and backlight-control wiring away from high-current motor and inverter conductors. Keep the return path intentional and minimize unnecessary loop area. If a differential interface is present in the original equipment, the designer should verify the required characteristic impedance, pair matching, connector assignment, and signal amplitude from the controller and panel documentation. A stated impedance target or skew value should not be imposed on this model unless confirmed by its interface specification.

💡 Bench Tip: Use ESD protection, keep the flexible cable perfectly square to the connector, and lock the cable only after checking that all contacts are fully seated.

Industrial EMI Noise Immunity, Chassis Shielding Continuity and Common-Mode Ferrite Chokes

Pixel jitter, horizontal noise bands, intermittent lines, and unstable brightness should be investigated as signal-path or power-reference symptoms rather than assigned to the panel without measurement. Start with a known-good controller, inspect the display cable for crease damage, and compare the panel supply and ground behavior during startup and brightness changes. The incoming inspection record should include the connector condition, cable retention, mounting pressure, and image result at several uniform test patterns.

A 400 V variable-frequency motor drive can create strong electric and magnetic field exposure around an operator station, but the exact immunity of the completed assembly depends on enclosure construction, cable routing, grounding, filtering, controller design, and installation practice. The NEC module itself should not be described as independently passing an EMC certification for the finished machine. The integrator should verify the complete equipment against its applicable compliance requirements after the display, controller, cable, and enclosure are assembled.

Where shielded FFC, LVDS, or other display cabling is used, the intended shield termination must be confirmed from the equipment design. A shield that is bonded at one end only, bonded at both ends, or left mechanically floating can produce different common-mode behavior depending on the enclosure and frequency range. The practical objective is continuity of the intended chassis reference without creating an uncontrolled signal return through the display connector. The correct termination is system-determined and should be verified using conducted and radiated noise testing.

Common-mode ferrite components can be evaluated when the measured interference is common to the differential pair or supply conductors. Their effect depends on impedance over the disturbance spectrum, saturation behavior, DC bias, placement, and the differential signal’s tolerance. They should not be added as a universal cure for display artifacts. Compare the signal at the controller output and at the panel input with an oscilloscope or suitable differential probe. If the waveform changes between those points, investigate cable routing, connector contact, reference continuity, and termination before selecting a filter.

PWM brightness control also requires observation at the complete display assembly. A command frequency between 200 Hz and 1 kHz may be relevant to the equipment, but the acceptable range, duty-cycle linearity, and visible flicker threshold are not confirmed factory data for the NL6448BC33-59D. Test the minimum and maximum brightness commands, intermediate steps, startup, shutdown, and recovery from a controller reset. A camera-based check may reveal modulation that is not obvious to the eye, while a photometric measurement can help determine whether the backlight response follows the control command consistently.

If a display fault appears only when a motor drive changes speed, capture the panel supply, logic reference, display clock, and data activity during the same event. Inspect the chassis bonding points and cable clamp pressure. A ferrite choke may be considered after the disturbance path is identified, but its final selection and placement should be validated in the completed Zone 2 operator-station enclosure. Explosion-protection construction, cable glands, and enclosure certification remain equipment-level matters outside the LCD module’s product classification.

VESA and JEIDA Data Mapping Alignment with Even and Odd Channel Signal Integrity

Before connecting the replacement panel, confirm the interface type, connector keying, pin assignment, logic supply, backlight connection, and data mapping from the original documentation. The available official product record does not provide a confirmed 3.3 V or 5.0 V logic supply for this model, so the system integrator should verify the required supply voltage from the original panel documentation. Applying a familiar voltage based only on connector appearance can damage the module or produce misleading startup behavior.

VESA and JEIDA mapping are not interchangeable labels. A mapping mismatch may produce incorrect color order, split-screen artifacts, uneven image regions, or unstable data interpretation even when the panel appears to power correctly. Confirm the controller configuration against the panel’s original timing and mapping documentation. Check whether even and odd data channels are assigned as expected, then verify clock polarity, active data transitions, and the relationship between display enable, sync signals, and pixel data where applicable.

Signal integrity should be reviewed from the controller to the panel connector as one transmission path. Keep differential routing balanced, control unnecessary stubs, provide the intended reference plane, and avoid routing the display cable alongside switching power conductors. A nominal 100 ohm differential target is a common design consideration for suitable differential display links, but it must not be treated as an official NL6448BC33-59D parameter without a confirmed interface specification. The system designer should validate eye quality, common-mode voltage, and timing margin at the actual panel connector.

Power sequencing is equally important. The available information does not establish a factory rise-time window such as 0.5 ms to 10 ms for this model. The controller should therefore be configured only after the original power-on sequence, enable signals, reset behavior, and backlight timing have been verified. Observe the supply during cold startup and after a rapid power interruption. If the image remains blank while the backlight is active, check data mapping, enable conditions, and signal activity rather than concluding that the LCD glass has failed.

Low-temperature operation can lengthen liquid-crystal response and make gray transitions appear slower. The exact operating range, gray-to-gray response time, and compensation method for this NEC module are not present in the supplied factory parameter set. When a system must operate in sub-zero conditions, designers should verify the panel’s documented temperature limits and test startup at the lowest intended ambient temperature. A heater, if used by the equipment, should be controlled as part of the enclosure thermal design and should not be assumed to be an approved accessory for this module.

For a replacement assessment, compare a full-screen white pattern, black pattern, red, green, blue, and several gray levels. Look for fixed bright or dark pixels, line defects, color-channel interchange, image splitting, and brightness instability. Record whether each symptom follows the panel, the cable, or the controller. This substitution test is more useful than a single power-on observation because it distinguishes interface configuration problems from physical display defects without relying on unsupported diagnostic voltage thresholds.

The similarly cataloged NL10276BC16-06 may be reviewed as a separate same-size or same-resolution selection candidate only where its own documentation confirms mechanical, electrical, optical, and interface compatibility. It should not be treated as an automatic replacement for the NL6448BC33-59D.

High-Humidity Storage Margins at 60°C and 90% RH with Delamination Prevention Protocols

Storage and installation records should distinguish humidity exposure from operating temperature exposure. The supplied factory information confirms the product category and module construction, but it does not specify a 60°C and 90% RH storage qualification, a thermal-cycle profile, a perimeter sealant material, or a delamination life rating for this exact model. These conditions may be used as equipment-level evaluation points only when supported by the original environmental specification and the enclosure qualification plan.

After humid storage, allow the assembly to stabilize according to the equipment manufacturer’s handling procedure before applying power. Inspect the visible glass perimeter, polarizer surface, frame, connector, and cable entry area for haze, bubbles, lifting, corrosion, or contamination. Avoid wiping pressure across the active area while condensation is present. Any observed optical change should be documented with uniform test images and compared against an accepted reference panel.

Thermal expansion differences between the display frame, mounting bracket, enclosure, and fasteners can create mechanical stress during temperature cycling. Use the original mounting points and maintain even support without twisting the module. The panel should not be clamped against an uneven surface or forced into alignment by connector tension. Vibration and shock evaluation should be performed at the equipment level because the result depends on bracket stiffness, fastener retention, cable restraint, enclosure mass, and the actual vibration spectrum.

Sub-zero conditions can increase liquid-crystal viscosity and extend gray-level transitions. A heater strip may assist enclosure warm-up, but its control strategy, placement, electrical isolation, and thermal limits must be established by the system designer. Do not infer a guaranteed operating window or response-time compensation from the model number. Test cold start, image refresh, gray transitions, brightness recovery, and shutdown behavior across the documented temperature range for the finished operator station.

Clock jitter, data hold time, and transmitter timing margin should be checked at the panel connector when the system is exposed to temperature extremes or supply disturbance. The exact TTL or LVDS timing values must come from the original panel and controller documentation. If the display uses an LVDS path, verify pair continuity and the reference return under vibration. If the equipment uses another signaling arrangement, retain the original topology rather than assuming that a similar connector indicates identical electrical behavior.

For a petrochemical operator station, enclosure sealing, window construction, cable glands, condensation control, and hazardous-area certification must be reviewed as part of the complete assembly. The LCD module does not independently certify the finished Zone 2 equipment. Engineers evaluating installation margins may consult The Ultimate Guide to Industrial TFT LCD Technology for broader TFT-LCD integration context, while the model-specific limits should remain tied to the original NEC documentation.

Where the display is part of a larger supply and illumination topology, the NL10276BC30-24D can be reviewed as a separate display-related solution for front-end or auxiliary-stage evaluation. Compatibility must be established independently through connector, electrical, optical, mechanical, and environmental checks before any equipment change is approved.
